LCD BLOCKER ULB-900 - UNICOS

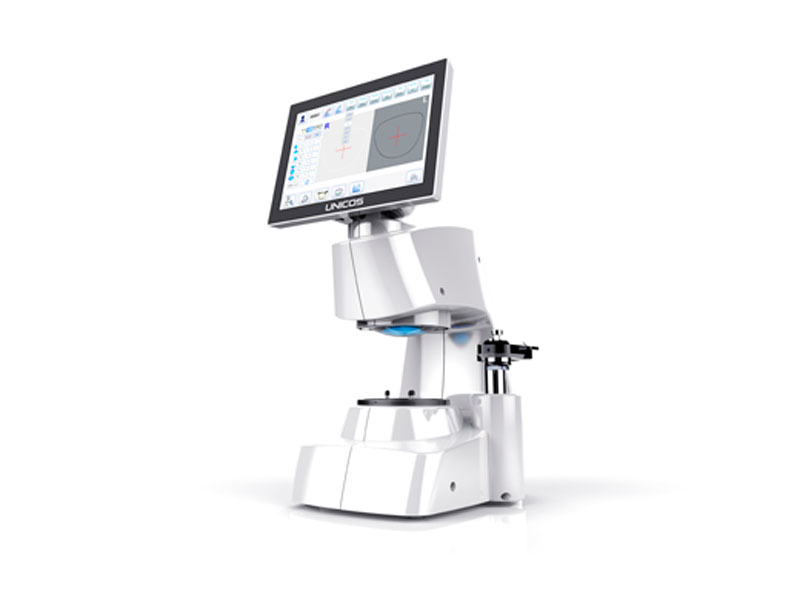

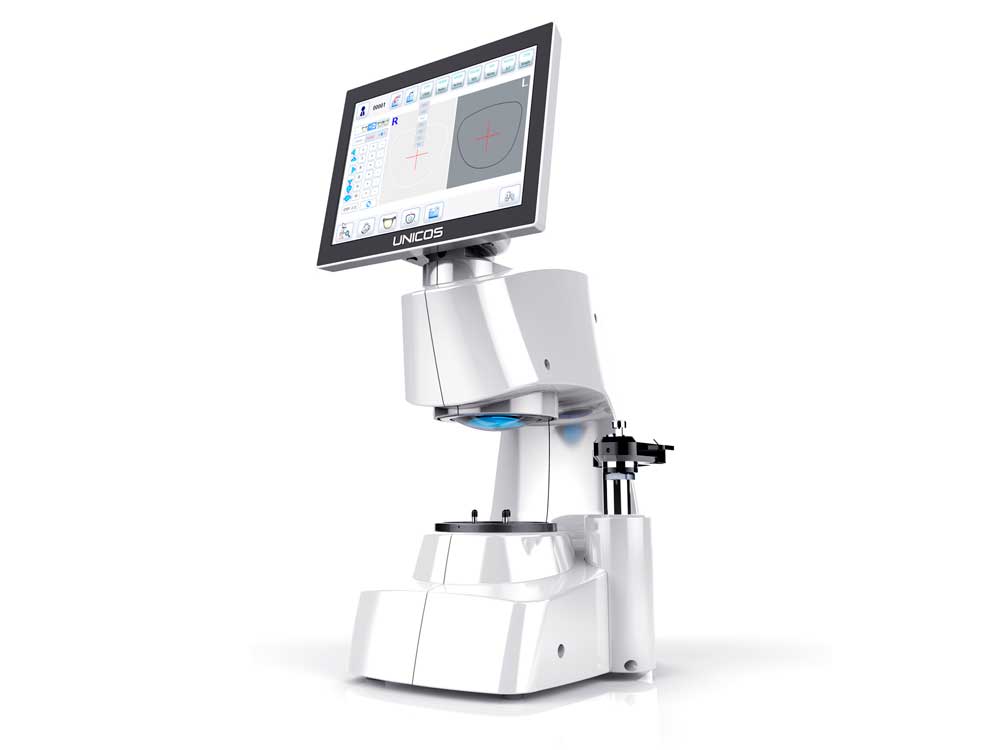

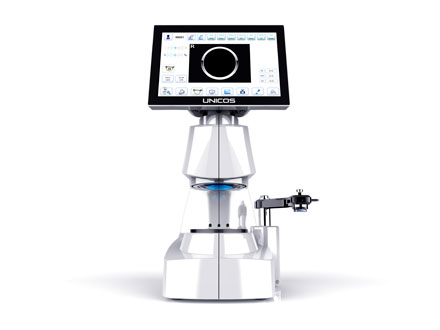

LCD BLOCKER ULB-900

The UNIQUE of LCD BLOCKER

10.1 Inch Touch LCD Tracer and Blocker

ULB-900 is a Combined model to serve both function of Tracer and Blocker. 10.1 Inch LCD allows accurate Tracing and Blocking with fast and premise processes.

Wide Capacitive LCD screen with Intuitive UI & Fast and accurate Scanning

The 10.1 Inch LCD capacitive touch screen, with pictograms of all task icons in the UI, is easy for users to quickly prepare for the entire process.

Fast and Accurate Scanning

Fast lens scanning (0.5sec) through precise contour tracing with high resolution camera and brightness adjustment.

Accurate Blocking

Various marking icons for each lens type support accurate blocking.

Product Extension

2 Edgers (UPE-900) and 2 Tracers (UPT-900) can be connected at the same time with cable.

Convenient Data management and S/W updating

Folder format and memo function make it more convenient to mange data and S/W Updating couldd be done by USB Easly.

  • Capacitive touch screen.
  • 10.1" high-resolution LCD
  • Easy lens design and management
  • Ul / UX with intuitive images
Specifications: ULB-900
BLocking Function Method Imaging of reflected image
Maximum lens diameter 80 mm in diameter
Display 10.1 Inch Full Color LCD Monitor, Touch panel
Blocking accuray position ±0.5mm
Axis angle ±1º
Blocking pressure 2.5kgf ±0.5kgf
Layout Range. FPD 30.00 to 99.5 mm
PD 30.00 to 90.00 mm
1/2 PD 15.00 to 49.75 mm
Optical center height ± 9.95 mm
Size adjustment ± 10.00 mm (Diameter)
Optical Tracing Equicalent sphere [-1D ~ +1D]
Camera magnification X1, X2
Measurement range ø 30 ~ 80
VIDEOS
  • ULB-900 LCD Blocker
