Optimum performance with unique features.

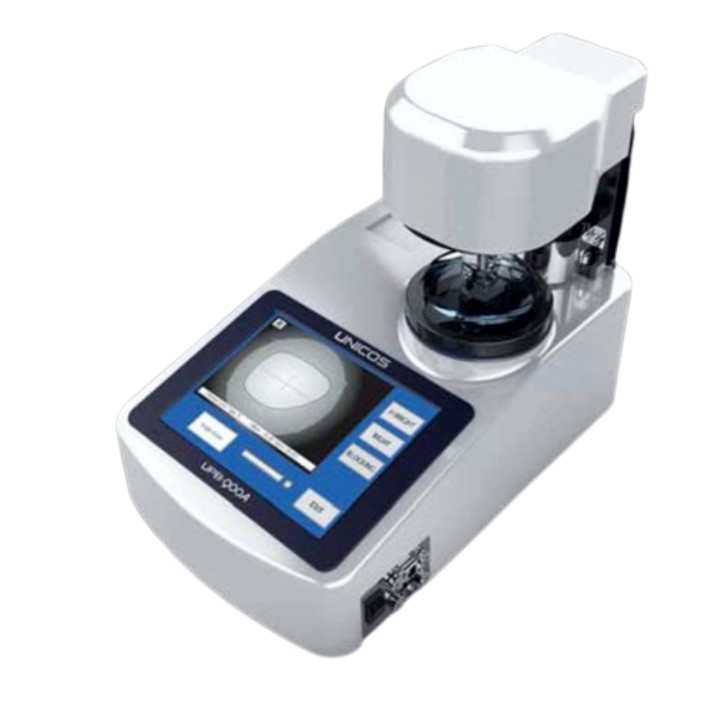

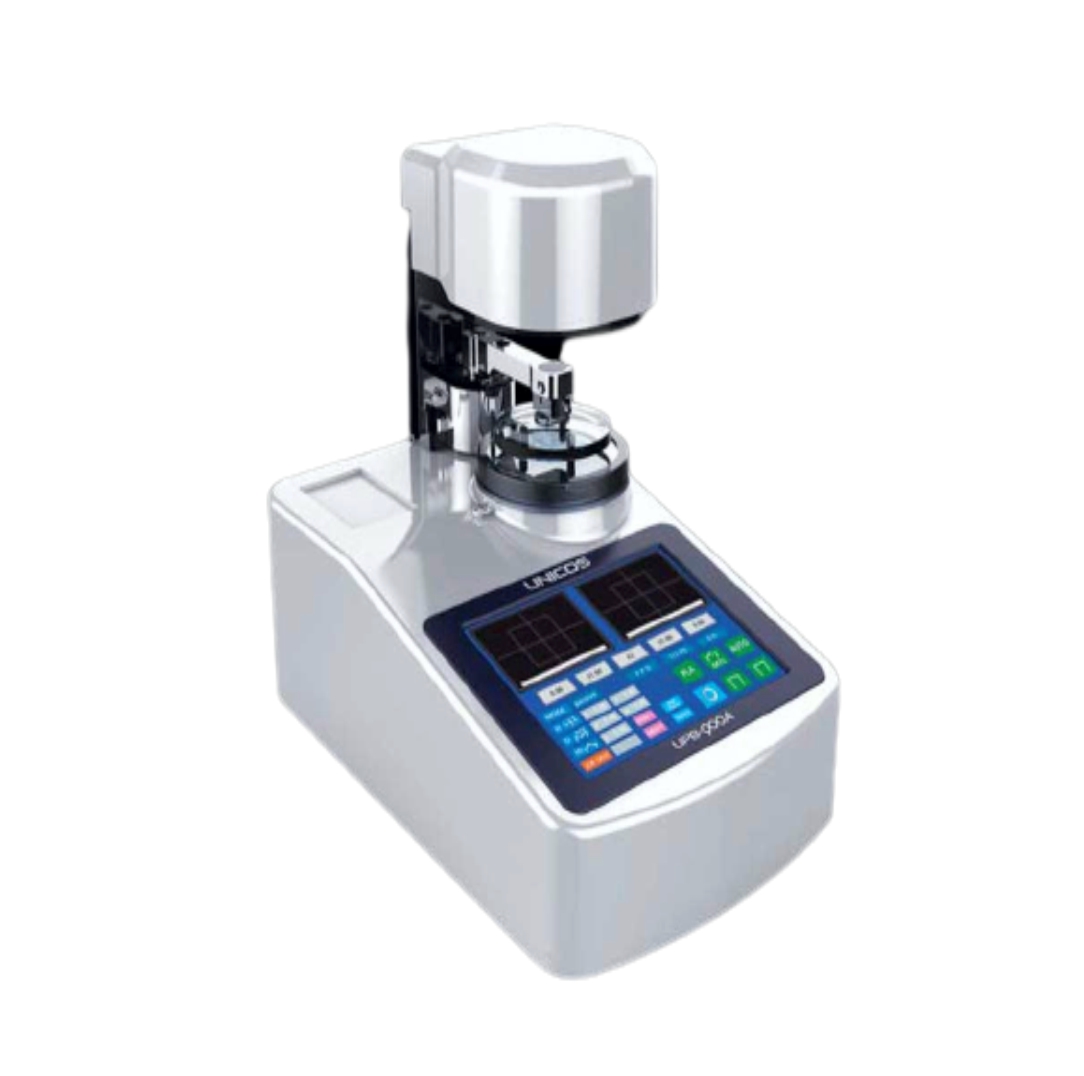

As automatic blocker, high technology built-in image processing software which allows the automatic non-contact measuring of frame patterns or demo lenses has been applied to UPB-900A.
It also displays the XY coordinates of the drilling holes (max 10 per lens) or slots in relation with the blocking center. Rimless frames are not a headache any longer.
The UPB-900A uses a video camera to block lens accurately to be edged without any parallax error.
The UPB-900A uses an internal computer which can be used as a hub for connecting up to several edgers via cable link or EdgeNet™ Wireless communication.
200 jobs could be saved in the memory and recalled from any edger using a barcode reader.
|Tracing size||Frame : Φ 17 mm to Φ 90 mm
Pattern : Φ 24 mm to Φ 75 mm
|Measurement item||Shapes Pattern / Demo lens : 2-D circumference|
|Tracing time||Max 40 sec|
|Interface||PORT 1 (Selectable)
- RS232C : For PC or Lens Edger
- TCP/IP : For internet server
|PORT 2 (Optional)
- RS232C : For Barcode reader
|Power supply||AC 100V-240V 50/60Hz|
|Dimension / Weight||240 (W) X 300 (D) X 200 (H), 10 Kg|
|Working mode||OMA Packed binary|
|Standard accessories||Pattern holder, Suction cup
RS232C NULL Modem cable
Design and details are subject to change without prior notice for it’s improvements.
