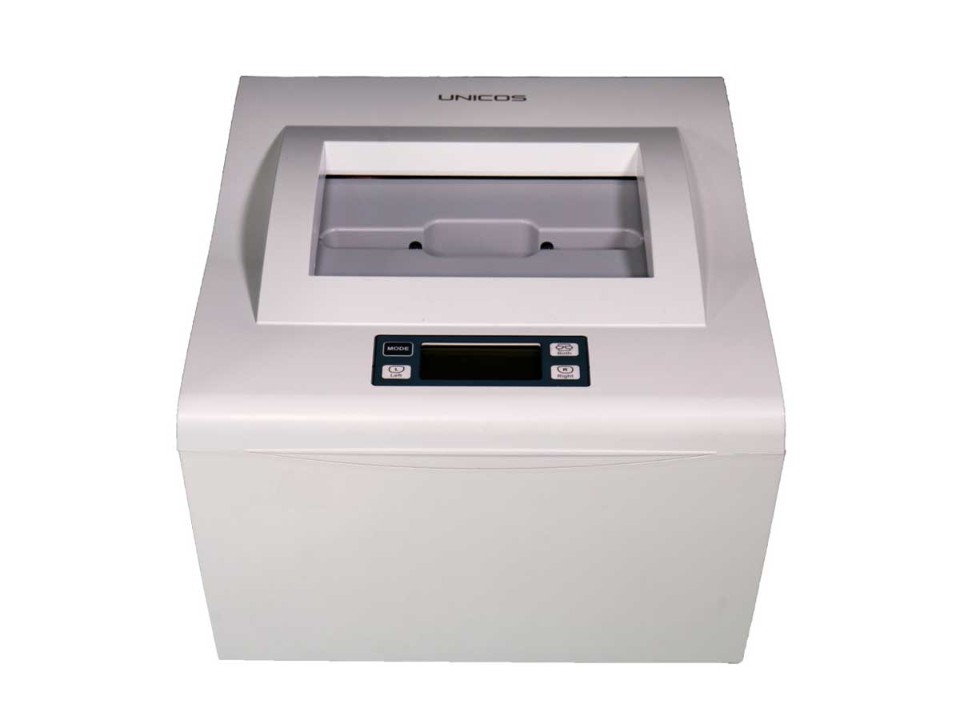

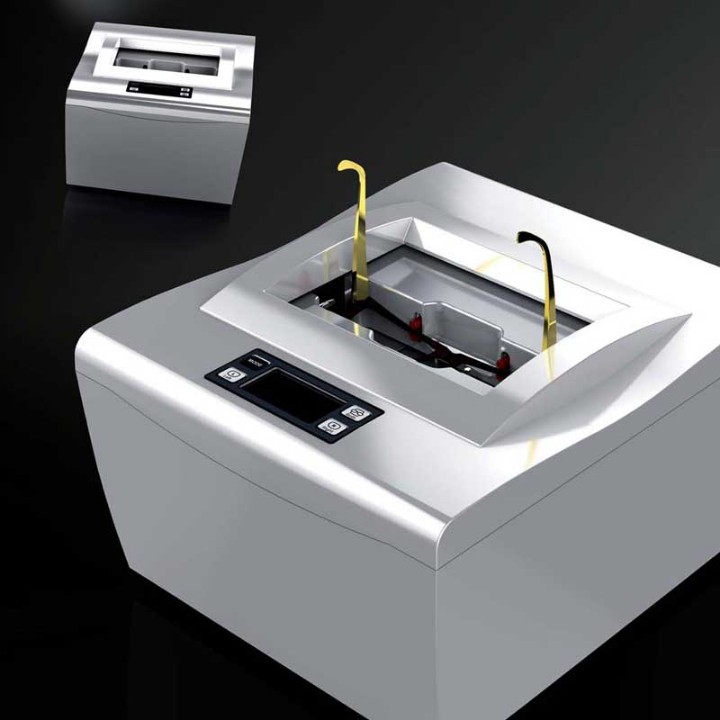

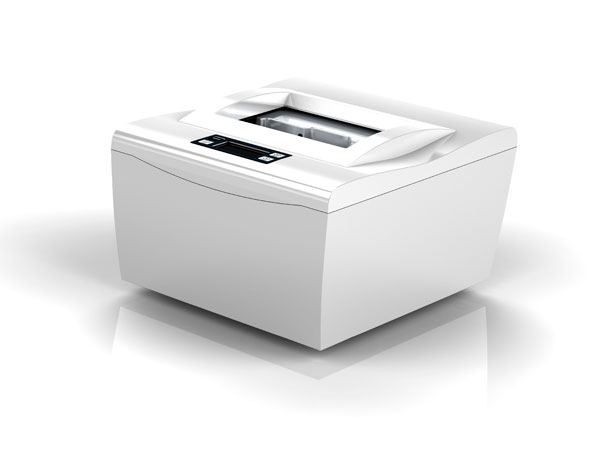

TRACER UPT-900

State-of-the-art Tracer.

High Precision 3D Tracing

The UPT-900 tracer measures with extreme care frames in 3D to offer the best possible accuracy and a perfect matching between the lens and the frame, even highly curved.

Fast tracing

The UPT-900 tracer may scan either both eyes or single eye rapidly.

It also has an automatic recovery feature to rescan the frame automatically at reduced speed in case the quality of a frame does not allow a fast speed tracing.

Universal

The UPT-900 tracer may scan small frames (B size 17 mm) with a constantly real-time monitored stylus pressure to reduce frame distortion.

The important Z movement capacity allows the measurement for high base-curved frames.

(High Precision 3D Tracer)

Features

UPT-900 measures with wxtreme care frames in 3D to offer the best possible accuracy and a perfect matching between the lens and the frame, even gighly curved.

Fast tracing

Rapidly scans either both eyes or a single eye. it also has an automatic recovery feature which will rescan automatically at reduced speed the frame when the frame quality does not allow fast speed tracing.

Universal

UPT-900 could scan small frames(B size 17mm) with a constantly real-time monitored stylus pressure to reduce frame distortion.

The important Z movement capacity allows the measurement of gigh base.

  • Wireless Communication
  • 1:n Communication
  • Size Adjustable through computer
  • OMA Compliance
Specifications: UPT-900
Tracing Method Automatic 3-D binocular tracing
Tracing size Frame : Φ 17 mm to Φ 90 mm
Pattern : Φ 24 mm to Φ 75 mm
Measurement item Shapes
Frame curve
FPD
Frame : 3-D circumference
Pattern / Demo lens : 2-D circumference
Frame front wrapping angle
Frame clamping Automatic one-touch clamping
Measuring points 1000
Tracing time Frame : Max 40sec
Pattern : Max 30sec
Interface PORT 1 (Selectable)
- RS232C : For PC or Lens Edger
- TCP/IP : For internet server
PORT 2 (Optional)
- RS232C : For Barcode reader
Power supply AC 100V-240V 50/60Hz
Power consumption 50VA
Dimension / Weight 240 (W) X 300 (D) X 200 (H), 10 Kg
Standard accessories Pattern holder, Suction cup
Standard frame
Standard pattern
Power code
RS232C NULL Modem cable
Software TraceApp.exe : For setting
Unicos.exe : For internal calibration
AutoTune.exe : For calibration
Working mode UNICOS Mode
OMA Ascii
OMA Packed binary
