Digital Brake Fluid Tester

Check boiling point and water content of brake fluids for optimal braking power.

Over time, brake fluids will take on water, break down, and compromise the safety of the brake system.

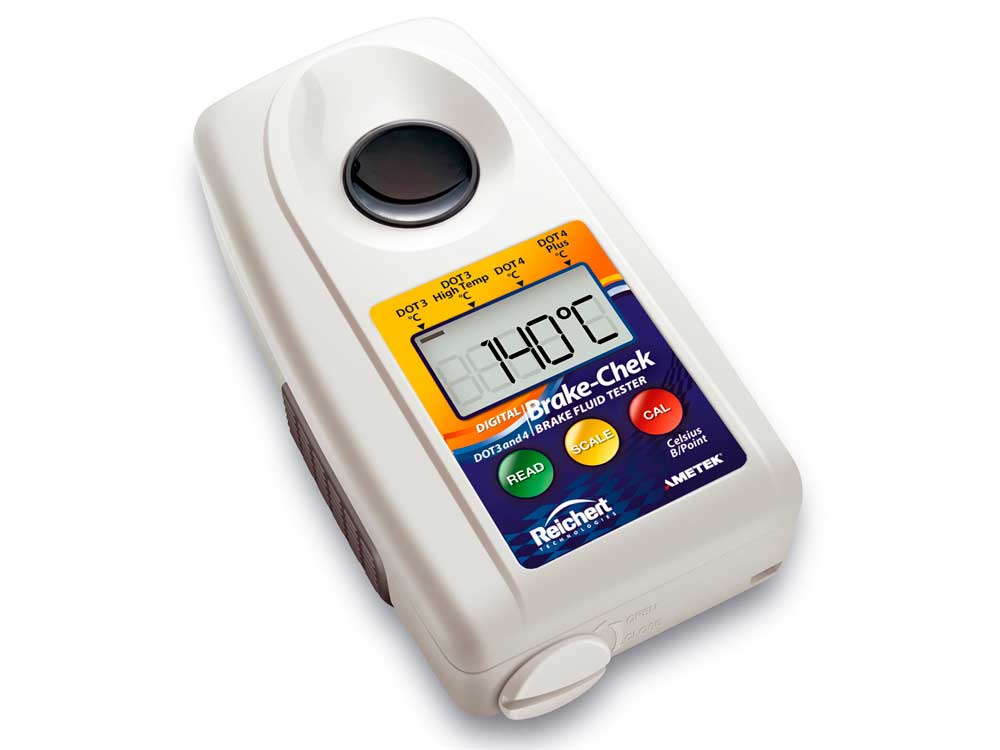

The Reichert Digital Brake-Chek® tests brake fluid in seconds–right at the calipers for the most precise measurement of brake fluid integrity.

This fast, simple test increases your service business. Just one fluid flush per day provides additional revenue for your shop.

Details:

Leave the science to Reichert.

With the simple push of a button, the Reichert Digital Brake-Chek®, the world's smallest handheld tester, will quickly and accurately provide you and your customer with critical brake fluid boiling point data.

When water content in brake fluid increases...

1. The boiling point decreases
Fluid with a reduced boiling point can create a vapor by boiling in the wheel cylinder. Normally this could happen under adverse conditions such as braking down a long steep grade or with stuck brake pads. Under these conditions rotor temperatures can climb high enough to boil brake fluid with high water content. Stepping on the brake pedal will now only compress the vapor instead of applying force to the pad. The result is sudden brake failure. DOT3 Fluid with no moisture content boils at greater than 401°F (205°C) as specified by DOT Standard 116. The fluid in a 3 to 4 year old car with 3 to 4% moisture content could boil at less than 300°F (149°C).

The dry boiling points for the brake fluid classes are:

2. The viscosity increases
Brake Fluid must flow freely to be effective. In extremely cold weather brake fluid with high water content is very viscous, causing slow pedal response and requiring more effort.

3. Corrosion problems can occur
Water in brake fluid can contribute to the corrosion of parts such as the steel pistons and ABS modulators.

Key Features

• Quick, automatic digital measurements
• Economical to operate, 10,000+ measurements on two AAA batteries
• World's smallest handheld brake fluid tester
• Test brake fluid without boiling
• Only small sample of brake fluid needed for results
• No messy cleanup

Choose between two instruments

• Measure in degrees Fahrenheit both DOT3 and DOT4
• Measure in degrees Celsius both DOT3 and DOT4

Technical Specifications:
