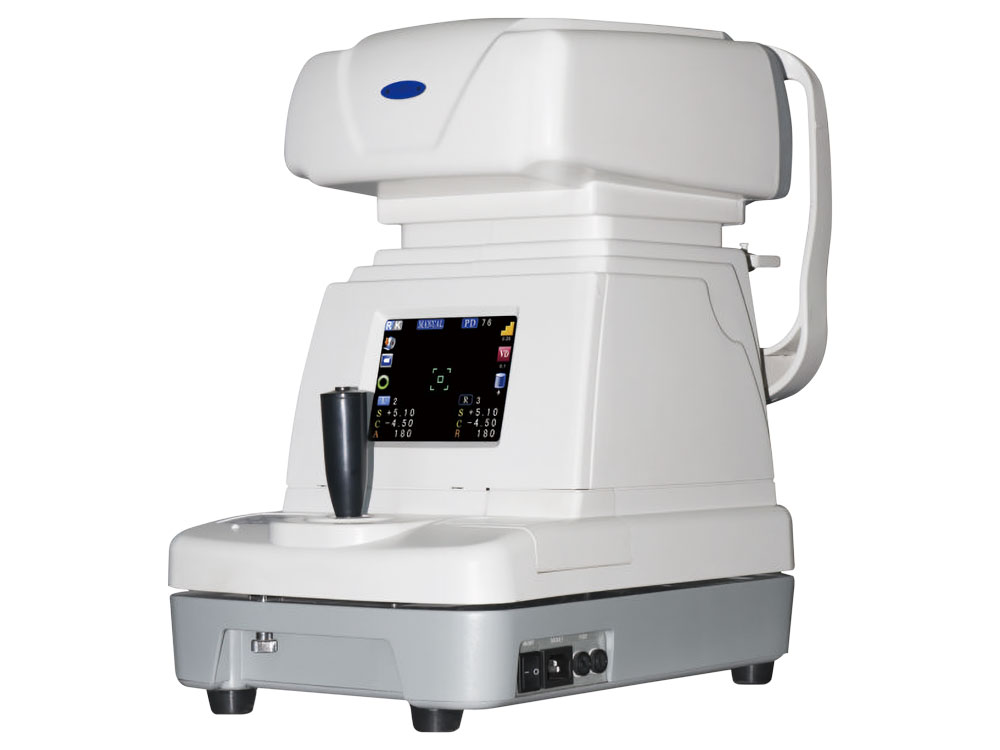

Auto Refractometer AAR9500

  • Keratometry and refractometry mode select
  • Auto / manual focus function
  • 5.7" color TFT LCD screen
  • Auto PD measurement
  • Faster and more accurate measurement
  • More broad measurement range of Min.
  • Pupil size to Q 2.0mm
  • Convenient user menu setting

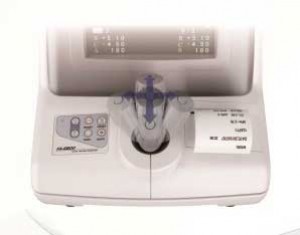

  • Easy to operate, one-band control

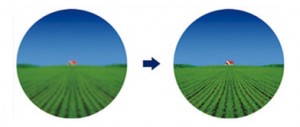

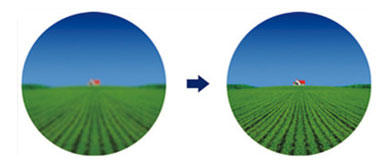

  • Auto fog chart
Specifications: AAR9500


Vertex Distance 0mm, 12mm, 13.75mm
Spherical -20 ~ +20D (VD=12) 0,12/0,25D Step
Cylinder -8 ~ +8D 0.12D/0.25D Step
Axis 0~180°
Cylinder form -, +, ±
Pupil distance 45~88mm, 1mm Step
Min. pupil size 2.00mm


Radius of curvature 5.0~10mm (Increment: 0.01mm)
Corneal Power 33.75~67.50D (when corner equivalent refractive index is 1.337)
(increment selectable from 0.12, 0.25D)
Corneal astigmatism 0.8~8.0D (increment selectable from 0.12, 0.25D)
Axis 1~180º (increment: 1º)
Corneal Diameter 2.0~14.00mm (increment: 0.1mm)
Memory of data 10 measure value for each right and left eye


Chart Auto fog
Display 5.7" Color LCD (FA-6100&FA-6100A) 5.6"Color LCD (FA-6000A)
Print Thermal printer
Power supply 100~240V 50/60Hz
Dimensions FA-6100: 469mm*308mm*522mm
FA-6000A&FA-6100A: 280mm*492mm*462mm
Weight ~15.5 kg

Specifications are tentative and subject to change
