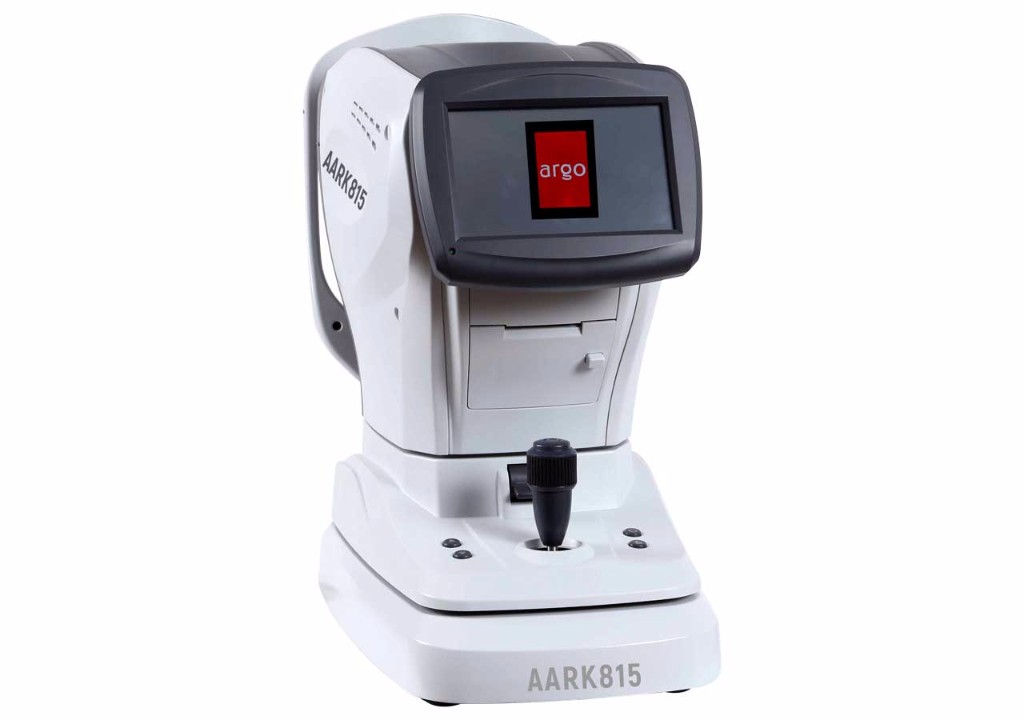

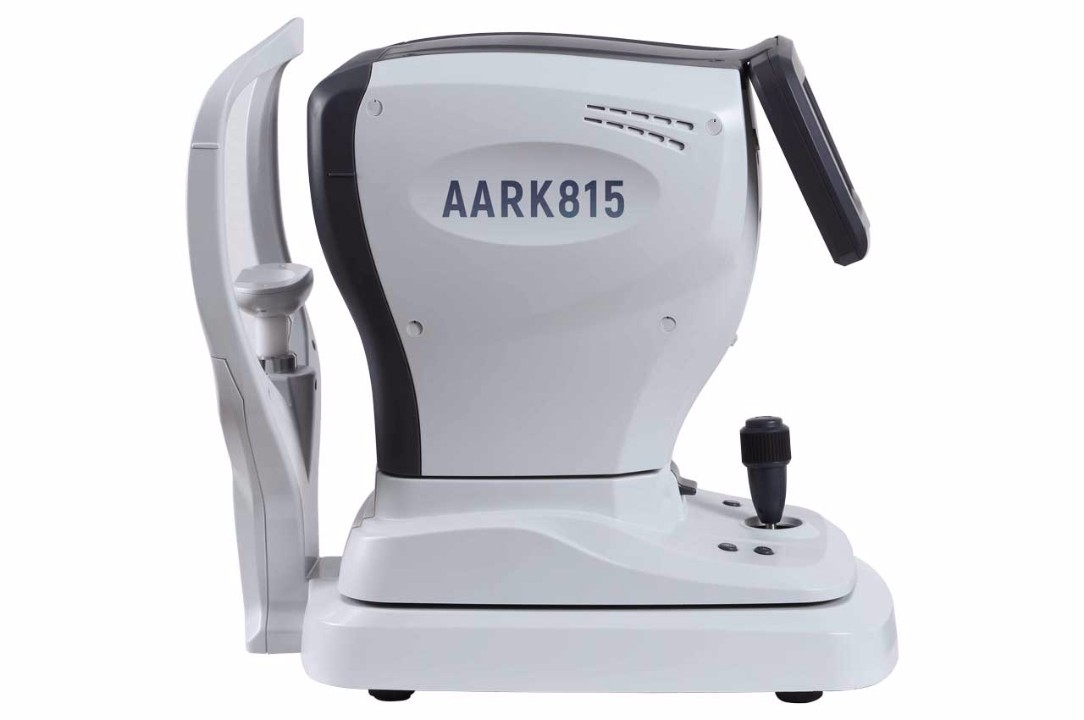

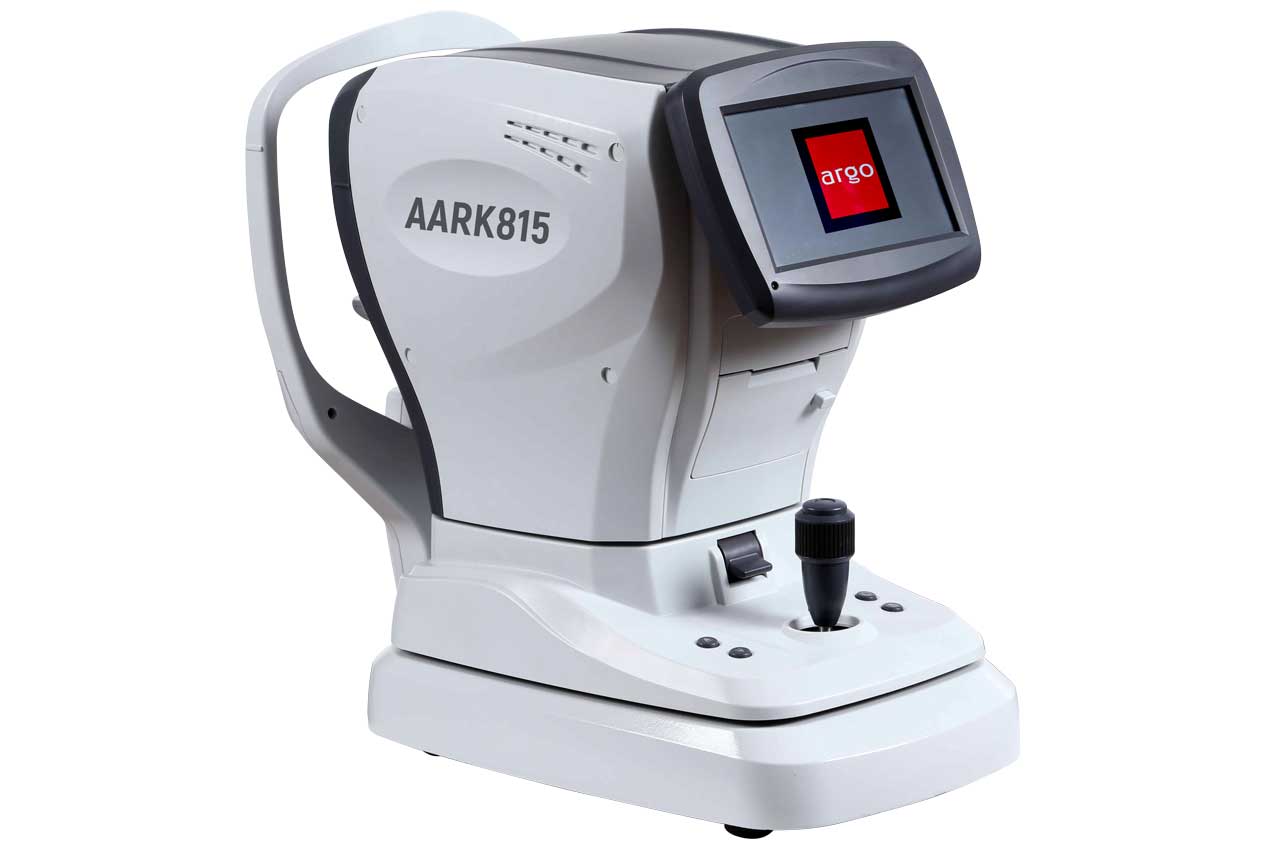

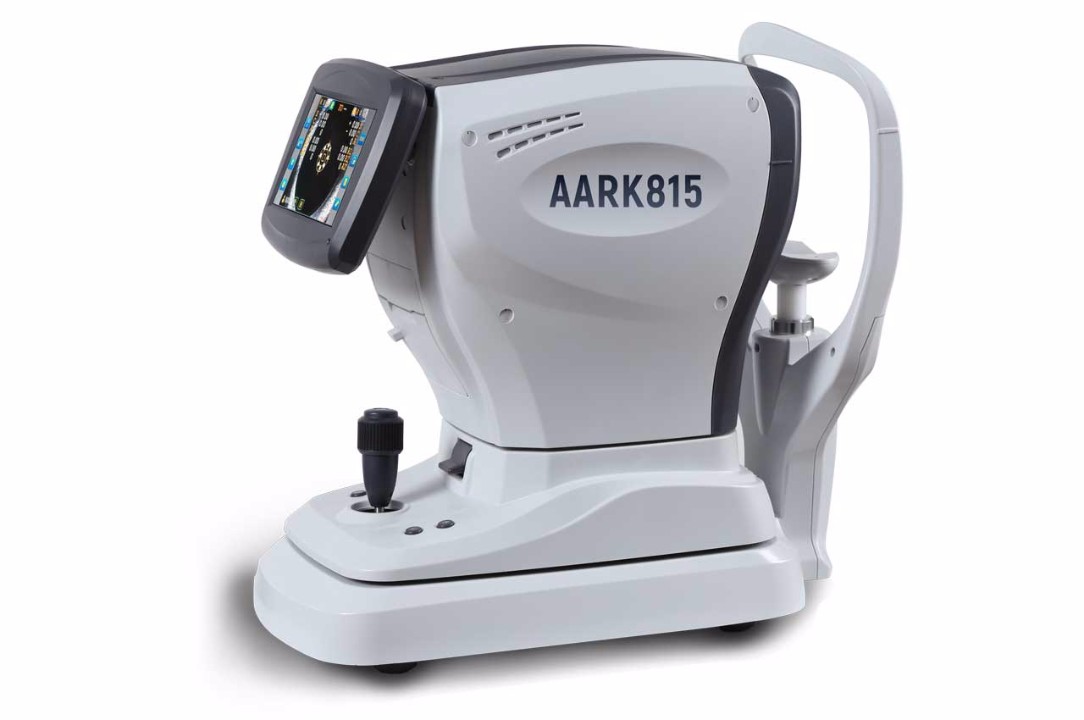

Auto Ref/Keratometer AARK815

Feaures

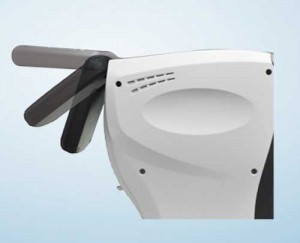

7.0 inch touch

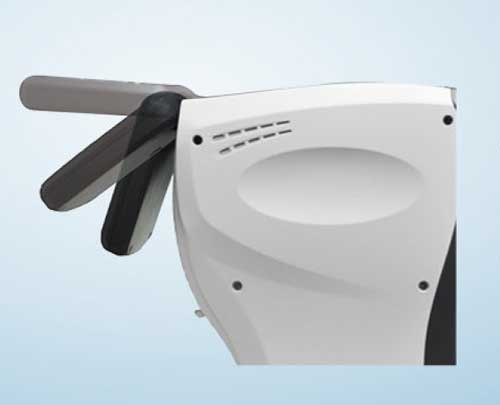

7.0 inch touch screen, 90° angel adjustable, provide operator with comfortable viewing angle both when sit or stand.

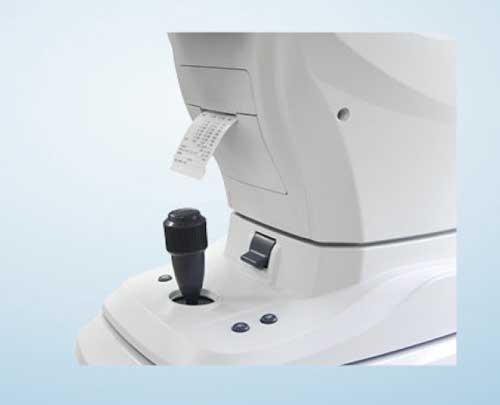

Built-int fast thermal printer

Built-in fast thermal printer, with easy loading and auto cutter function.

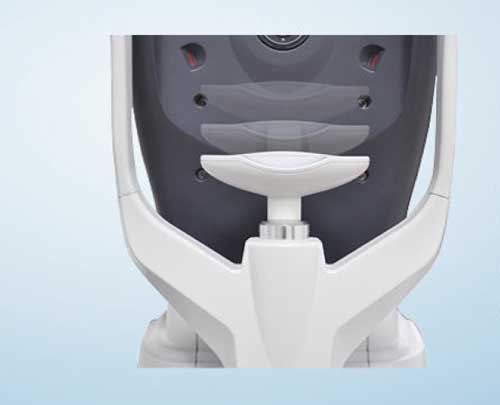

Motorized chin rest

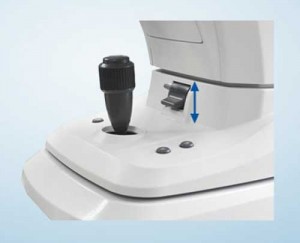

Motorized chin rest and height adjustment, makes the operation easier and smoothly.

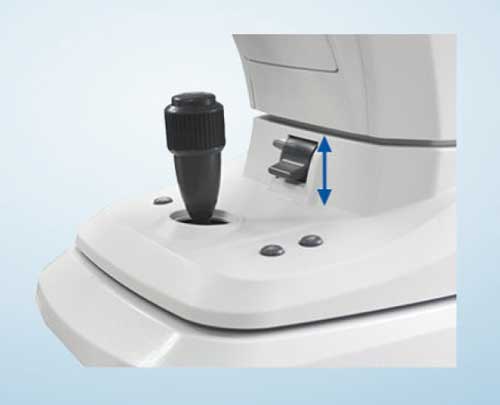

One key lock function

One key lock function, convenient and practical.

Adopt the ARM Cortex-AB processor, which makes the measurement more faster and accurate. The touch screen provides friendly user interface, and makes the operation more convenient.

  • Fashion and compact design.
  • Adopt the ARM Cortex-As processor provides faster measurement.
  • Advanced refraction measurement technology, image analysis more entirely, enable the reliable measurement result and optimize data consistency.
  • Automatic identification the best measurement position for keratometry, avoid the operating error and enable the accurate Keratometry measurement.
  • IOL function available.

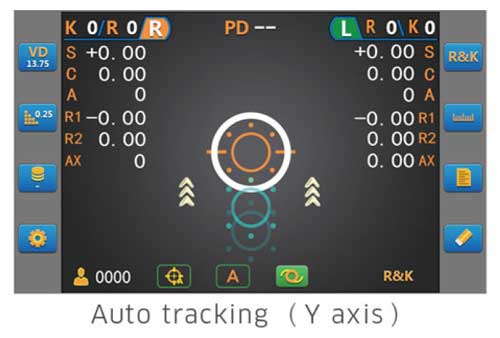

The auto tracking function provides the focusing more fast, and reducing the work load sufficiently.

The auto tracking function provides the focusing more fast, and reducing the work load sufficiently.

Specifications: AARK815

Specification

Measurement mode K/R Refraction I Keratometry measurement
REF Refraction measurement
KER Keratometry measurement
Refraction Measurement Vertex Distance 0.0, 12.0, 13.75, 15.0mm
Sphere -25.00- +22.00D (0.12/ 0.25D step) (VD=12mm)
Cylinder 0.00-±10.00D (0.12/0.25 step)
Axis 0 - 180° (1° step)
Pupil Distance 10-85mm
Minimum measurable pupil diameter 02.0 mm
Target Automatic fogging target
Keratometry measurement
AARK815
Curvature radius 5- 10mm (0.01mm step)
Refractive power 33.75D- 67.50D (0.12/0.25D step)
Cylindrical power 0.00-15.00D (0.12/0.25D step)
Axis 0 - 180° (1° step
Corneal diameter 2.0-12.00mm
Hardware specification Monitor 7.0 inch Color LCD
Printer Thermal printer with easy loading and auto cutte
Power saving 5/15 minutes
Data output RS232/ Bluetooth
Power supply AC100-240V, 50/60 HZ, 50W
Dimensions/Weight 262(W)*487(D)*467(H)mm/ 17 .5kg

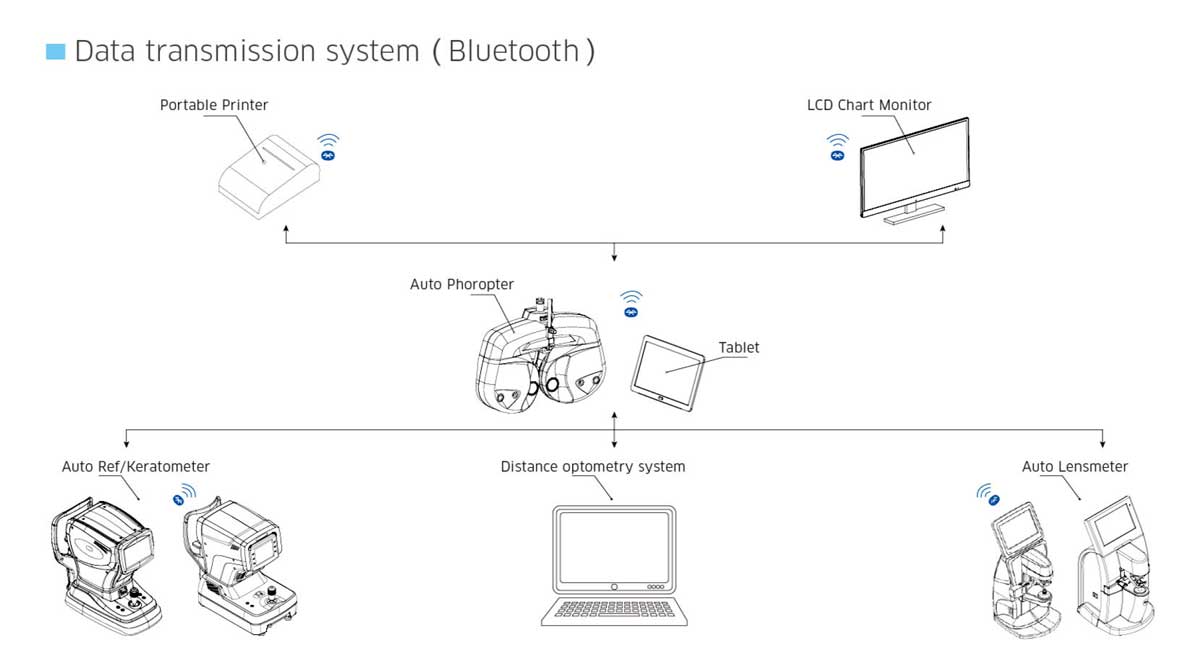

Data transmission system ( Bluetooth)
