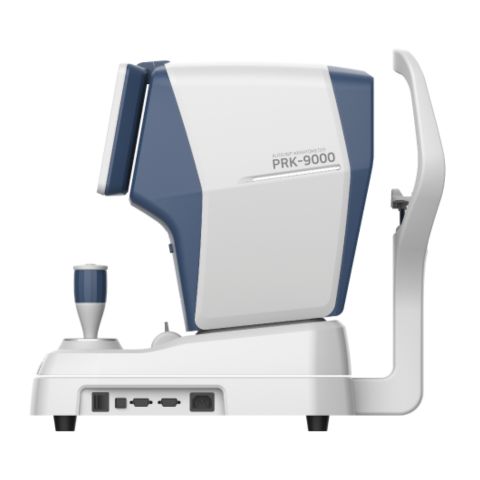

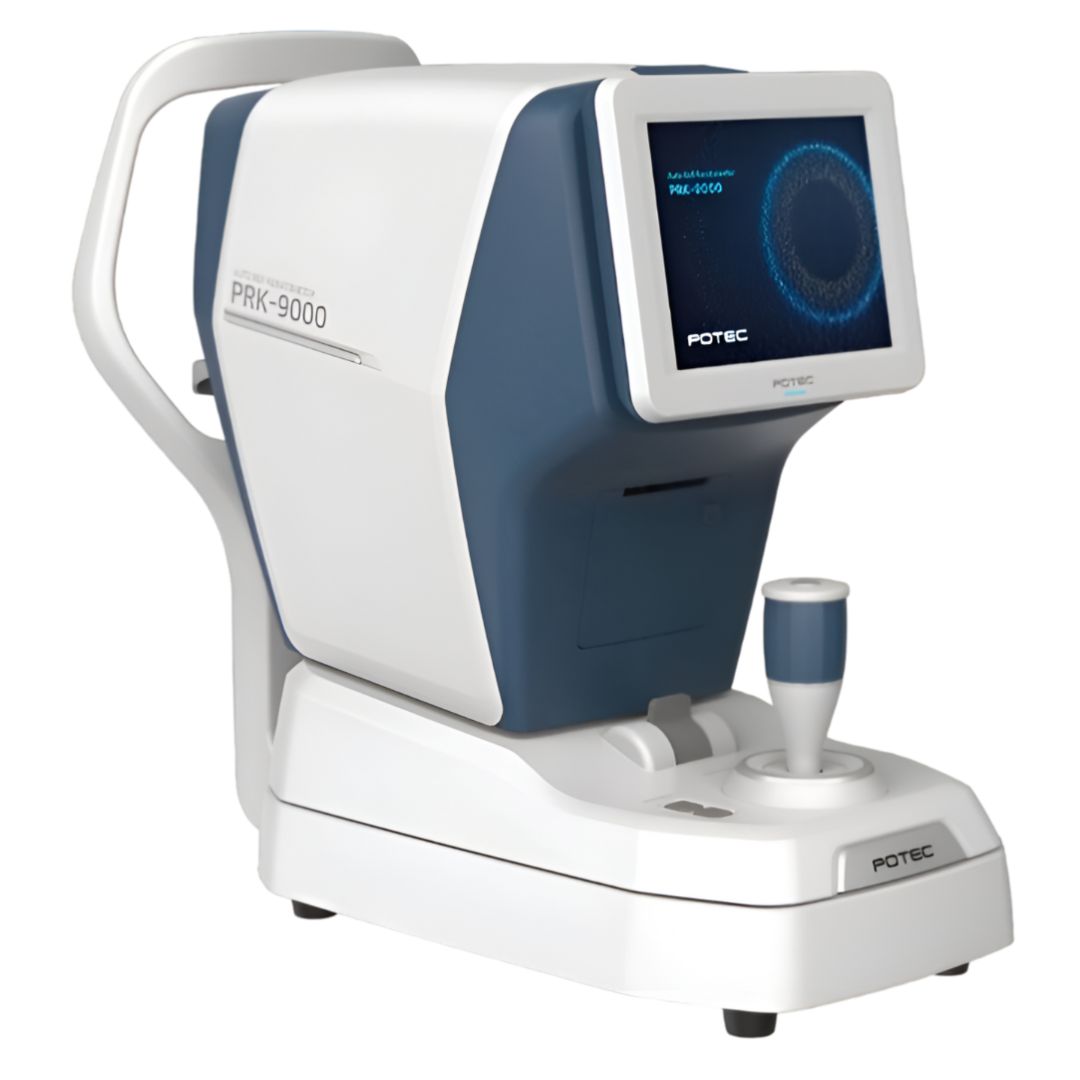

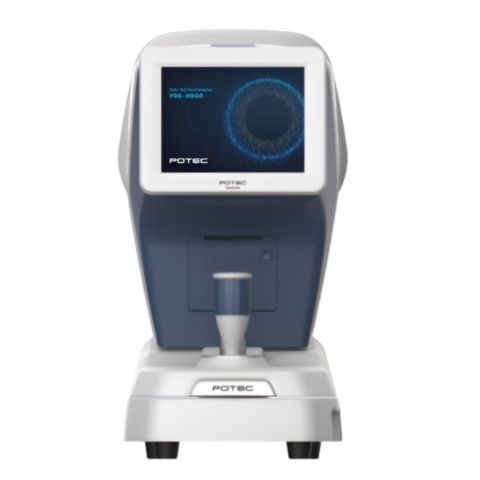

PRK-9000 Auto Ref-Keratometer

PRK-9000

PRK-9000 is designed to deliver increased measurement accuracy and a range of multifunctional capabilities, including Dry Eye Diagnosis.

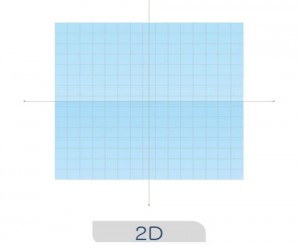

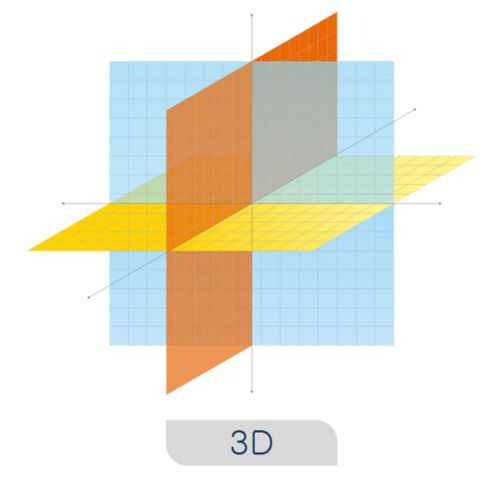

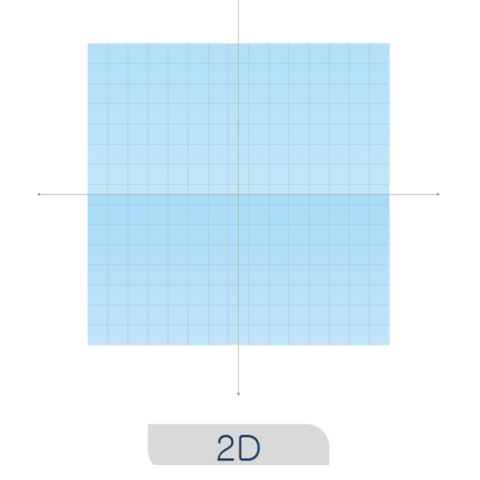

3D/2D Semi Auto Tracking

Automatic eye recognition and three-dimensional drive mechanism automatically tracks the measurement point of the pupil for convenient and optimized focusing conditions.


Redefined Accuracy

The high-performance latest CPU enables rapid image processing of eye information captured by the high-resolution camera.


Dry Eye Pre-diagnosis

Provides an observation mode for meibomian degeneration that can be used as basic data for diagnosing tear film condition and dry eye.


Other features

  1. Color view mode
  2. Enhanced connectivity (LAN, HDMI)
  3. Superior low vibration and noise performance
  4. WiFi communication (optional)
Specifications: PRK-9000

Measurement Modes

1 REF - 2 KER - 3 K/R - 4 CLBC - 5 K(P)

Refractometry

Vertex Distance (VD) 0.0, 12.0, 13.5, 15.0mm
Sphere Power (SPH) -30.00 ~ +25.00 D (VD: 12mm)-(Increments 0.12, 0.25 D)
Cylinder Power (CYL) 0.00 ~ ±10.00 D - (Increments 0.12, 0.25 D)
Axis (AX) 1~180˚ (Increments: 1˚)
Cylinder Form -, +, MIX
Pupil Distance (PD) 10 ~ 88mm
Minimum Pupil Diameter Ø 2.0 mm

Keratometry

Radius of Curvature 5.0 ~ 13.0mm (Increments: 0.01mm)
Corneal Power 25.96 ~ 67.50 D (n=1.3375) - (Increments 0.05, 0.12, 0.25 D)
Corneal Astigmatism 0.00 ~ -15.00 D - (Increments 0.05, 0.12, 0.25 D)
Axis 1 ~ 180˚ (Increments: 1˚)

Others

Corneal Diameter 2.0 ~ 14.0mm (Increments: 0.1mm)
Internal Printer Thermal line printer with Auto-Cutter function
Monitor 8-inch TFT LCD monitor - (800x600 pixels, tiltable/swivel)
3D Auto Tracking Range X, Y, Z: 10mm (±2mm)
Chinrest Motorized
Communication RS-232, LAN, WiFi (optional)
Update USB (A type) memory card
Dimensions & Weight 260(W) × 520(L) × 480(H)mm / 20kg

* Design and specifications are subject to change without prior notice.
