big ben® Sphygmomanometer

Name: Mercoframes Optical Corp – Big Ben® Sphygmomanometer
Brand: Mercoframes Optical Corp

Blood Pressure Management Get More Information Inquiry About this product

big ben® Sphygmomanometer

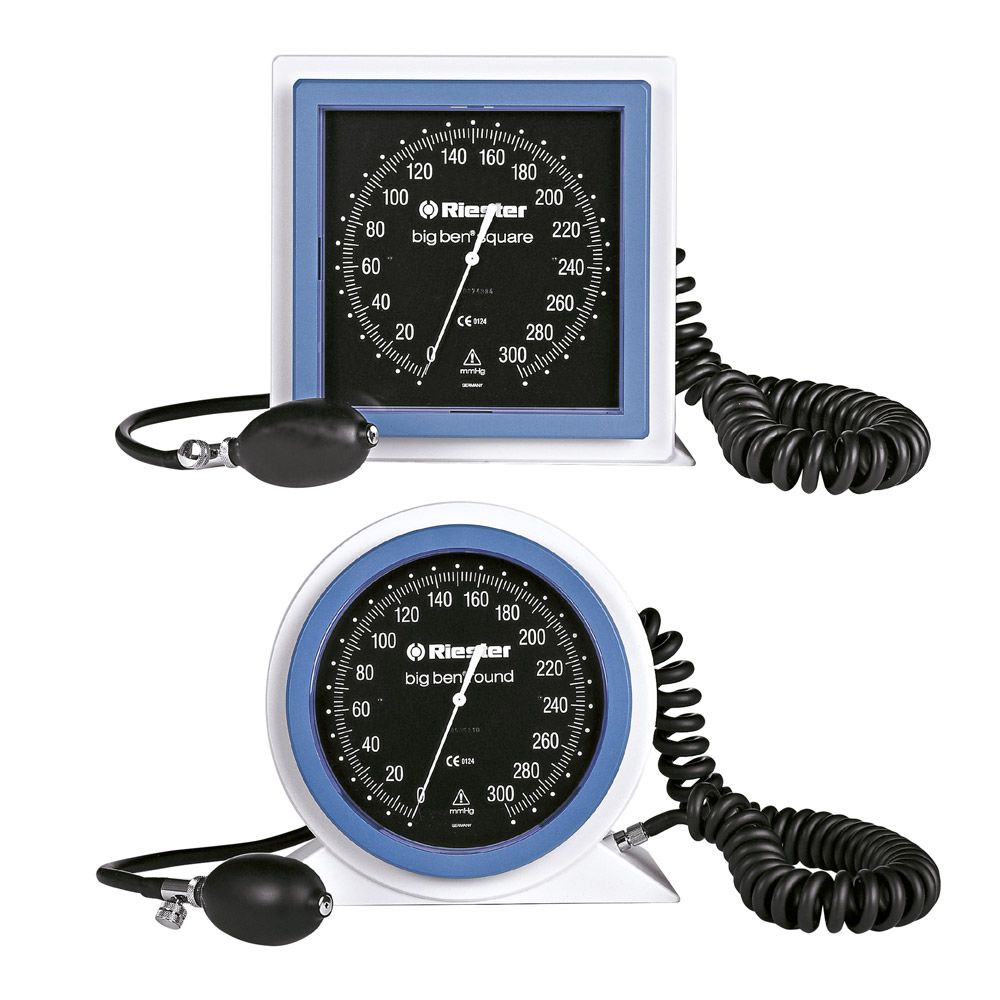

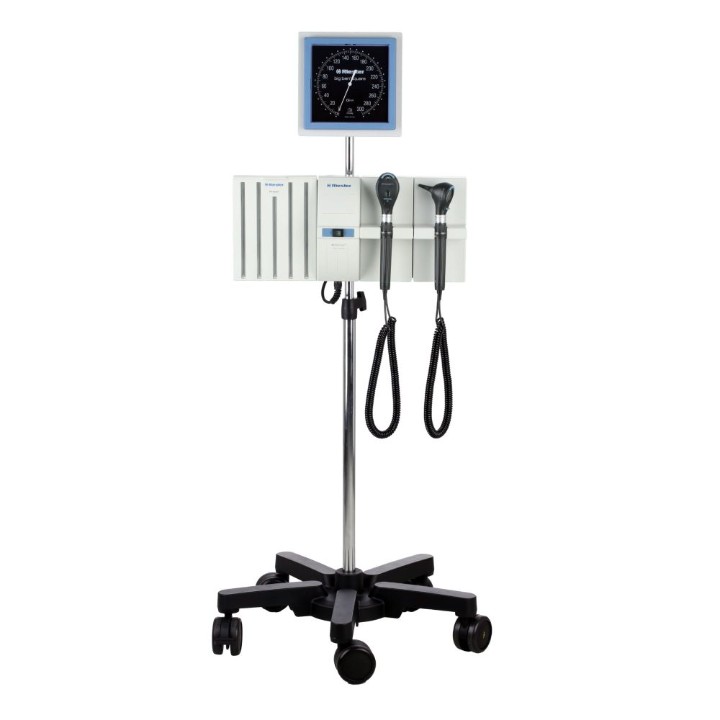

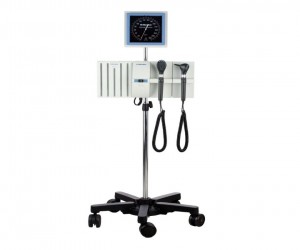

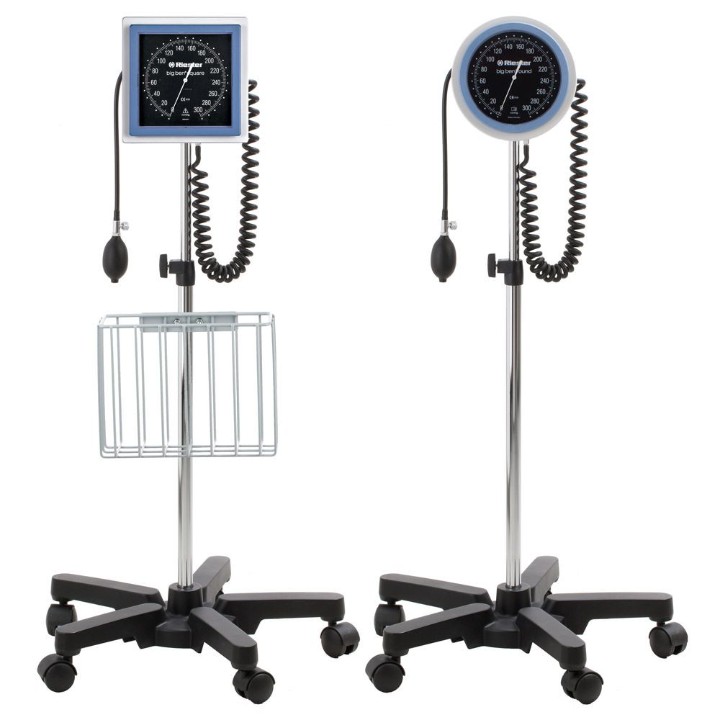

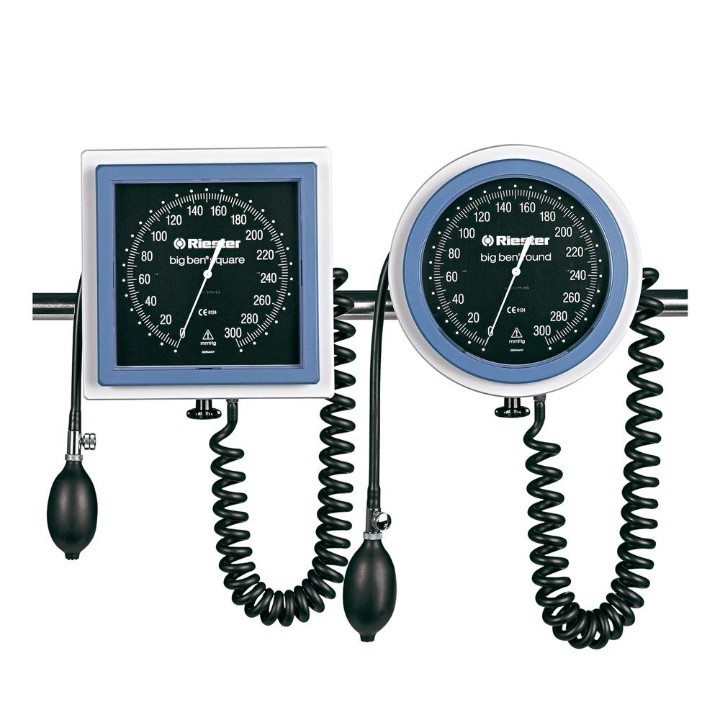

big ben® is a high grade, versatile and robustly designed aneroid sphygmomanometer. Available in round or square versions, offering the versatility in configuration with desk, wall, rail, or floor standing models. The iconic Riester design and top-quality finish makes the big ben® a popular choice in blood pressure measurements in all clinical environments.

Features and benefits
for both the clinician and patient

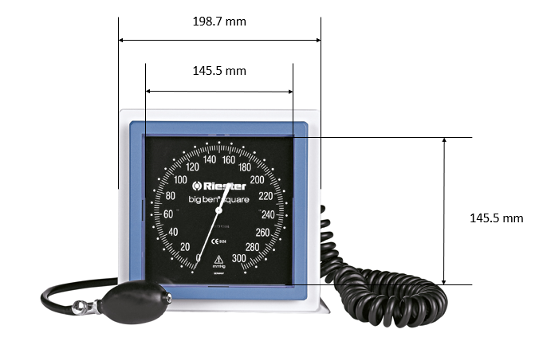

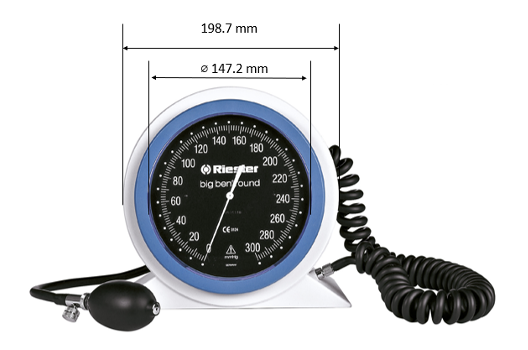

Easy to read, generously dimensioned scale (Ø 147.2mm or 145.5mm)
High-contrast visual display
BP measurement scale up to 300 mm Hg

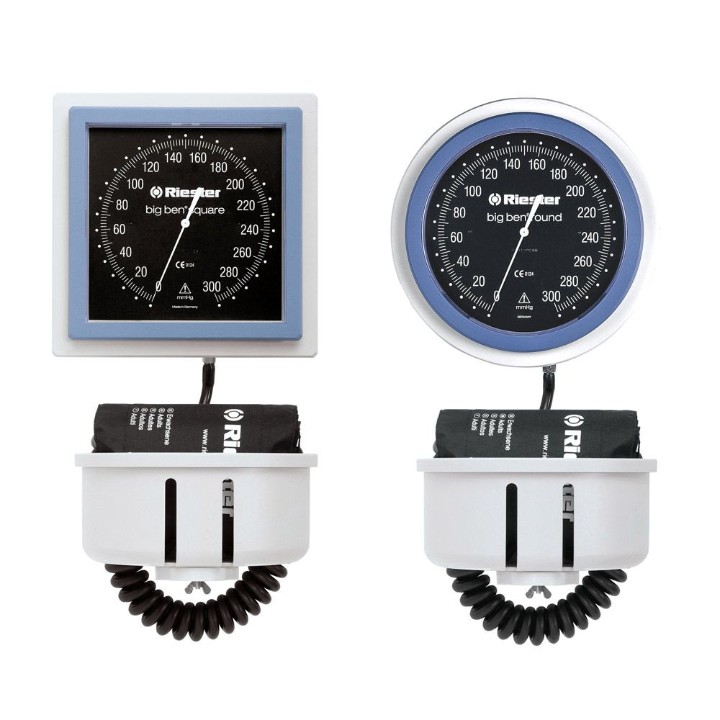

Spacious basket on the reverse side or on mobile stand, for tubes and cuffs
Latex free
German engineered air-release valve with fine adjustment
Micro-filter to protect the release valve and measurement system to prevent contamination to internal mechanisms
Specially hardened copper-beryllium membrane, which is resistant to ageing, can withstand pressures of up to maximum 600 mm Hg

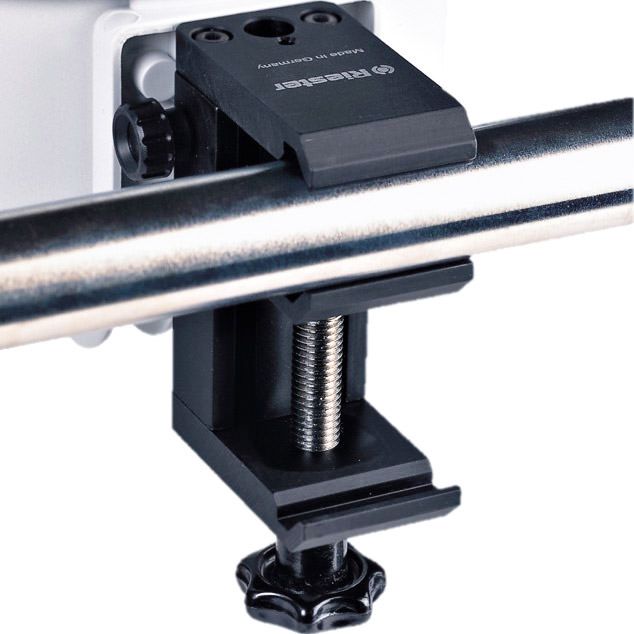

Wall rail clamp mounting made of glass-fibre reinforced ABS plastic: as strong as steel.
Precision mechanism mounted on a special support, in order to ensure complete stability of the BP measuring system and the zero-point for calibration and consistent, accurate readings
Maximum error tolerance: ± 2 mm Hg

Specifications: big ben

Type	Aneroid; mercury-free
BIHS Validation
Dimension
Options	wall; desk; rail; mobile
Weight	1600g; 1300g; 1200g; 4000g
Accurac	±3 mmHg (±2 mmHg Riester inhouse standard)
Calibration	Lifetime measuring technology; No recalibration needed when used properly
Measurement conditions	10^o C to 40^o C at 85% relative humidity
Microfilter	Yes
Shock-resistant	Yes
Latex-free	Optional
