AEW2004 AUTO LENS EDGER - Argo Equipment

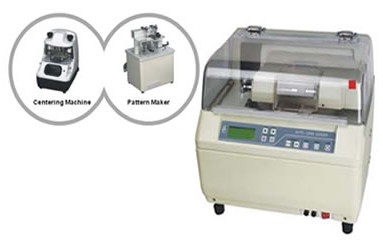

AEW2004 AUTO LENS EDGER

Clearance for 220v ONLY

Main features:

  • High automation.
  • Once the lens and mould are set up, select grinding way and press the start key,it will be grinded automatically.
  • While grinding, you can move the lens now and then to prolong the wheels life.
  • Can re-process the dissatisfied lens.
  • Fast grind PC lens: one piece takes 3 minutes +/-, smooth and fine.
  • The main motor, the first and the second wheels are imported.
  • Other parts are made in China.
  • Technical data: power alternating current: 220V,50Hz.
  • Output:600W.
  • Processing range:22mm-70mm.
  • Weight: 45kg.
  • Size of the appearance capital part :length 490mm/width 420mm/height 430mm.
  • Work table: length 640mm/width 450mm/height 800mm.
  • Work table packaging size:length 74mm/width 17mm/height 56mm.
  • Wheeles size: PC wheel or plastic rough-grinding wheel: dia 120mm/width14.5mm.
  • Glass rough grinding wheel: dia 120mm/width 16mm.
  • PC, glass or plastic fine grinding and V edge wheel: dia120mm/width 22mm.
  • Polishing wheel: dia120mm/width 10.5mm.
  • Lens material acceptable: glass lenses, CR-39 lenses, polycarbonate lenses.
  • Minimally can whetting out diameter: 22mm.
  • Different rims for selection: free sharp rim, flat rim + polishing.
  • Dimension: W620X D530X H540mm.
  • Power requirements: 110-120v/60Hz AC 200-240v/50Hz AC 600W.
  • Weight: 45 kg.
  • AHE1001 / AHE1001-I AHE1001: single bearing
  • AHE1001-I: double bearing.
  • Refined every wheel with v groove.

Specifications:

  • Dimensions (L X W X H).
  • Net eight 360 X 220 X 288 8kg.
  • Power requirement 100-120V/60Hz AC or 200-240V/50Hz AC 100W.
  • AHE1001-1 double-wheel holder
  • AHE1001 single-wheel holder
  • AHE1002 / AHE1002-I AHE1002: three wheels (rough grinding wheel, fine grinding wheel and V grove wheel)
  • AHE1002-I: single wheels (w/two functions)
  • Specifications: dimensions (L X W X H).
  • Net weight 395 X 245 X 295 9kg.
  • Power requirement 100-120V/60Hz AC or 200-240V/50Hz AC 100W.
  • AHE1004: Water tank with drawer type.

Specifications:

  • Dimensions (L X W X H).
  • Net weight 435 X 315 X 315 9kg.
  • Power requirement: 100-120V/60Hz AC or 200-240V/50Hz AC 120W ANC3017.
  • NOTCH CUTTER output power 100w.
  • Operating frequency: 40KHz.
  • Power supply 100-120V/60Hz AC or 200-240V/50Hz AC.
  • Cleaning tank volume 150X140X60mm.
