ri-scope® ri-derma dermatoscope

New Product Dermatology Inquiry About this product

ri-scope® ri-derma dermatoscope

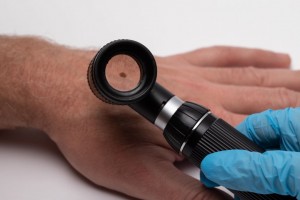

ri-derma dermatoscope offers physicians and specialists a reliable method of dermatoscopic screening and early identification of malignant melanomas. Proven epiluminescence microscopy allows melanocytic and non-melanocytic structures to be distinguished and enables precise observation of changes in skin pigmentation.

A reliable method of dermatoscopic screening

The ri-scope® ri-derma dermatoscopes are powerful and flexible examination tools, available in both LED or Xenon illumination. The device provides 10x magnification, easy to configure and with an accurate light colour, intended for adults and children.

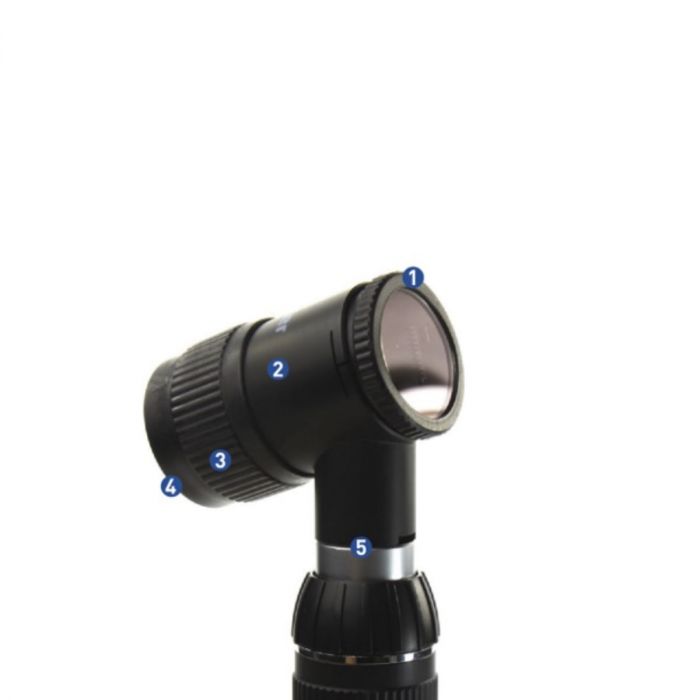

ri-derma dermatoscope details

Skin-friendly contact plates with scaling
Metal case
Focusing wheel
10x magnifying lens
Bayonet fitting to quickly switch instrument heads

Features and benefits

10-fold magnification of the structure of the skin with focussing, achromatic lens.
Two different skin-friendly and sterilizable contact plates are available: with scale from 0 – 10mm for exact measurement of pigmented skin lesions or without scale.
Illumination of the examination field with 3.5 V LED illumination or 2.5 V xenon illumination resembles natural daylight
Bulbs can be quickly replaced at the base of the instrument head, and offer a bayonet fitting for quick and secure attachment of the instrument head to the handle
Stable casing of black chrome-plated metal, dustproof
Developed and manufactured in Germany

Specifications: ri-scope-ri-derma-dermatoscope

Product details

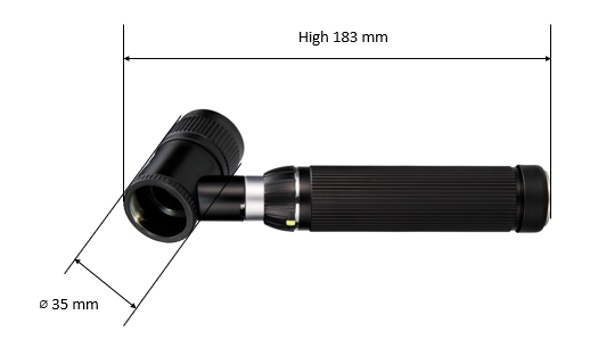

Dimensions
weight head	ri-scope^® ri-derma dermatoscope head 110g
Technical data of lamp for ri-scope^® derma dermatoscope	ri-scope^® ri-derma dermatoscope: XL 2.5 V 2.5 V 750 mA, mean life span 15 h XL 3.5 V 3.5 V 690 mA, mean life span 15 h LED 2.5 V 2.5 V 280 mA, mean life span 10,000 h LED 3.5 V 3.5 V 280 mA, mean life span 10,000 h
Battery	2 Alkaline AA / C 1.5V batteries. 1 Li-Ionen accu for C-handle
Ambient temperature	0° to +40° C
Relative humidity	30% to 70% non-condensing
Storage/ Transport ambient temperature	-10° to +55°C
Storage/ Transport relative humidity	30% to 95% non-condensing
