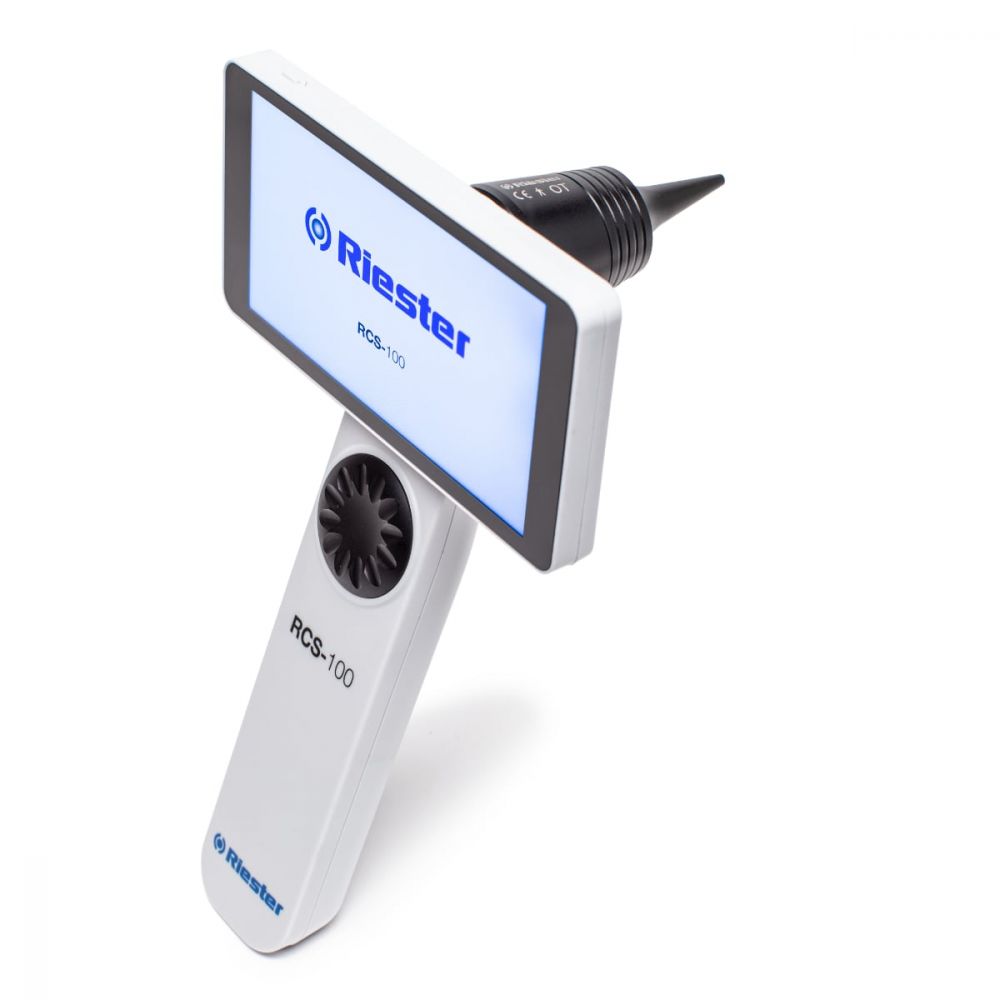

RCS-100 Digital Otoscope

The RCS-100 Medical Camera System with otoscope lens and LED light provides an enhanced view of the auditory canal, as well as 6 x magnification displayed on the 5” LCD screen.

RCS-100 with otoscope lens can substitute the traditional otoscope

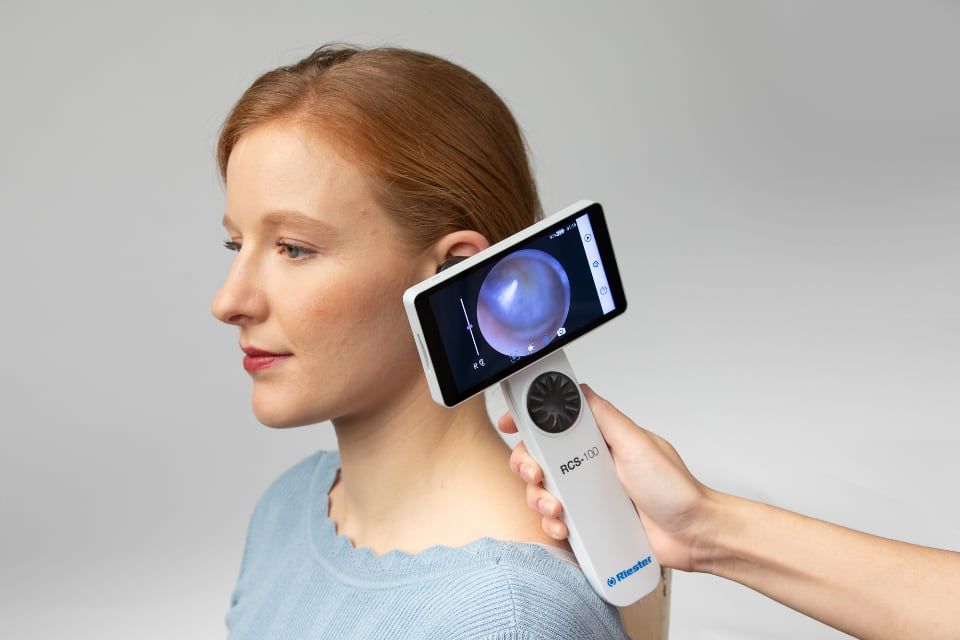

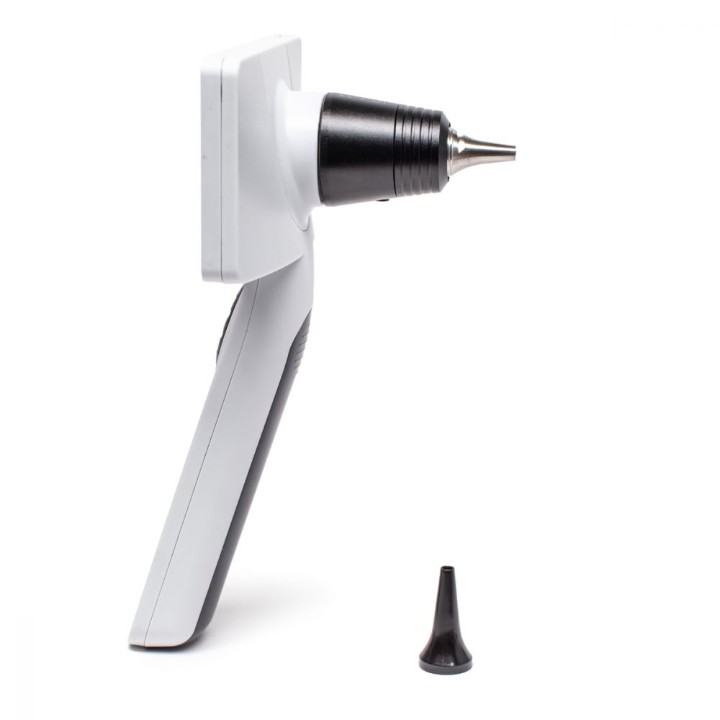

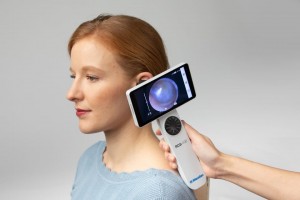

RCS-100 with otoscope lens can substitute or replace the traditional otoscope, providing the additional benefit of capturing and sharing the digital photograph or video of the ear canal and tympanic membrane. The otoscope lens can be used with a choice of reusable or disposable specula.

Photographic images of tympanic membranes in routine clinical practice

ENT & Audiology News notes: The ability to capture and record photographic images of tympanic membranes in routine clinical practice has several distinct advantages over hand-drawn representations. Photographs are helpful when explaining unfamiliar concepts to patients and can be a valuable aid when discussing treatment options. Photo documentation is essential for accurately monitoring evolving pathologies, such as tympanic membrane retraction, where subtle changes over time could be easily missed or overlooked when relying on drawings alone. Finally, photographs also provide a precise, contemporaneous record for medico-legal purposes. ¹

Specifications: rcs-100-digital

Product details

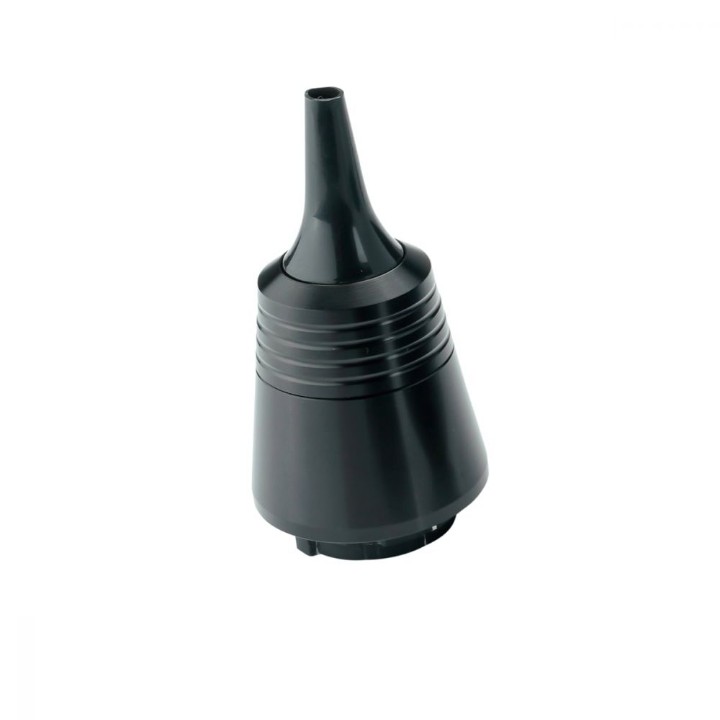

RCS-100 Otoscope Lens

Dimensions	73.5mm x 40.0mm x 40.0mm
Weight	96g, 3.39oz
F/# (focal length/width)	2.9
Magnification on display	6x
Field of view	12mm Ø field of view at 25mm distance from viewing object (with 4mm specula size) 9mm Ø field of view at 15mm distance from viewing object (with 4mm specula size) 8mm Ø field of view at 10mm distance from viewing object (with 4mm specula size)
Max object distance	15mm, at max object distance FOC diameter: 15mm
Depth of field scope	10mm
Lighting source	Natural light LED
LED colour temperance	4000k

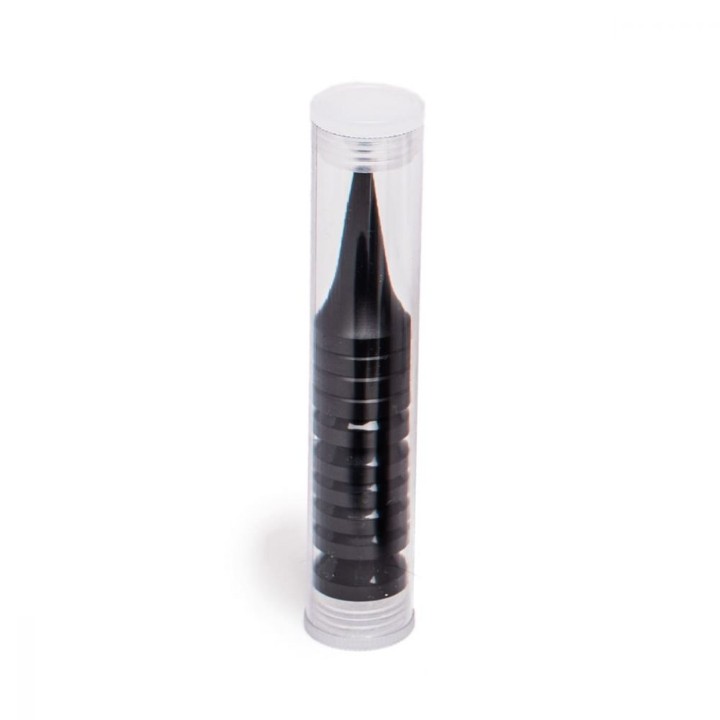

Disposable and reusable specula	2mm (0.08in), 3mm (0.12in), 4mm (0.16in), 5mm (0.2in)

RCS-100


LCD screen	5“ full HD colour TFT-LCD display 1.280 x 720 pixel including scratch proof cover
Focus	Automatic/manual
Image/Video format	Picture: JPEG / Video: MP4
Battery	3.6 V 2600 mAH 1S1P 18650-li-battery
Adaptor	Input: 100 ~ 240 V50 ~ 60 Hz, 0.3 A Output: DC 5 V/2 A
CMOS sensor	8 MP (megapixels)
USB	OTG type C USB, UVC
RAM	2 GB LPDDR3
ROM	16 GB
Optional	Extended memory 16 GB Wifi SD Card
Start time	< 30 sec.
Wake up time	< 5 sec.
Stand by time approx.	7 days
Ambient temperature	+ 10° C to + 40° C
Operating time	Video 3.5 hours
Charging time	3 hours
Relative humidity	15 % to 95 % rel. non condensing
Storage	0° C to + 45° C
Cleaning control unit and charging adaptor	Soft cloth with alcohol (70 % ethyl alcohol)
Cleaning optical lenses	Cleaning cloth or a lens cleaning tissue (e.g. THORLABS)
Handset weight	292 g
Handset dimensions mm (in)	225 x 135 x 45 (8.86 x 5.31 x 1.77)
