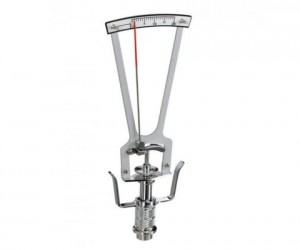

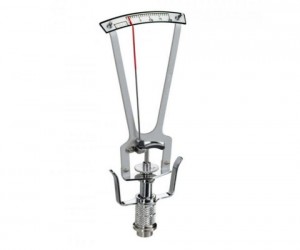

Schiötz Tonometer

Schiötz Tonometer

Highly precise eye tonometer for measuring intraocular pressure. Its reliability and durability makes this quality measuring instrument indispensable in every ophthalmologist’s practice and eye clinic.

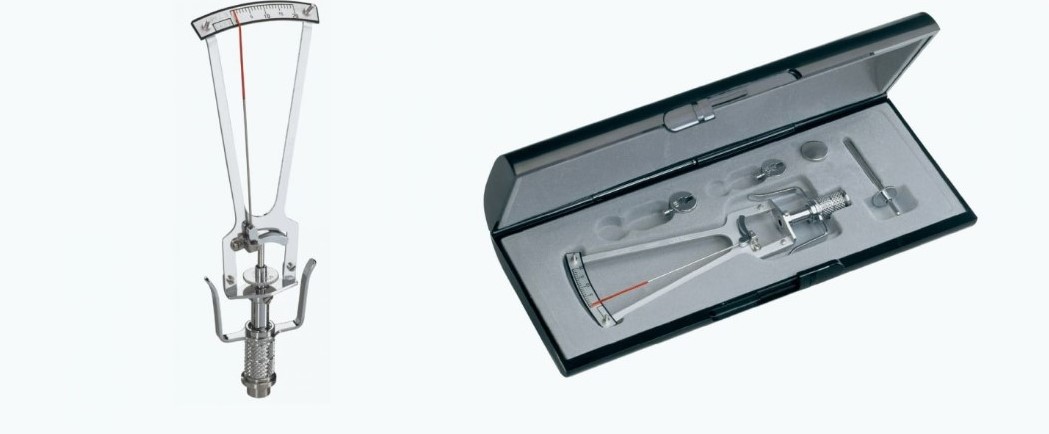

Schiötz C Tonometer and Schiötz Tonometer in Case

The Tonometer

An eye pressure test uses an instrument called a tonometer to measure the pressure inside your eye.

Riester’s schiötz Tonometer is used to measure intraocular pressure. Eye doctors primarily use the tonometry in cases of suspected increased intraocular pressure or as a preventive examination for early detection of glaucoma.

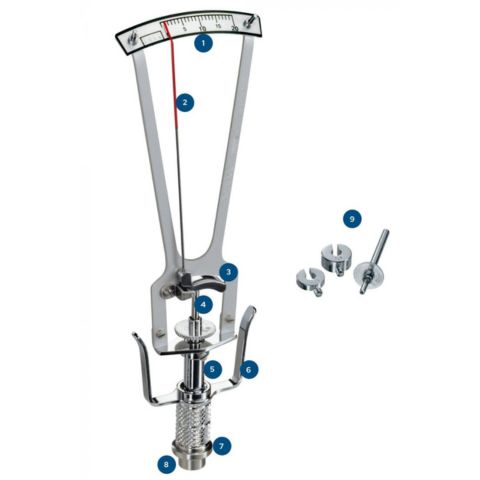

Schiötz Tonometer details

  1. Scale
  2. Needle
  3. Lever arm
  4. Plunger
  5. Barrel
  6. Holder
  7. Foot plate
  8. Test block
  9. Weights

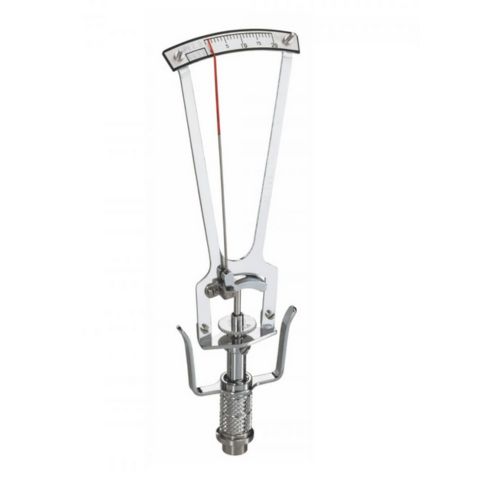

Schiötz A Tonometer

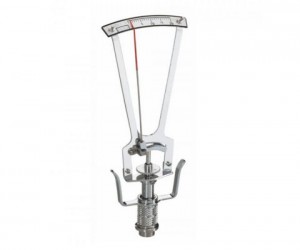

Schiötz B Tonometer

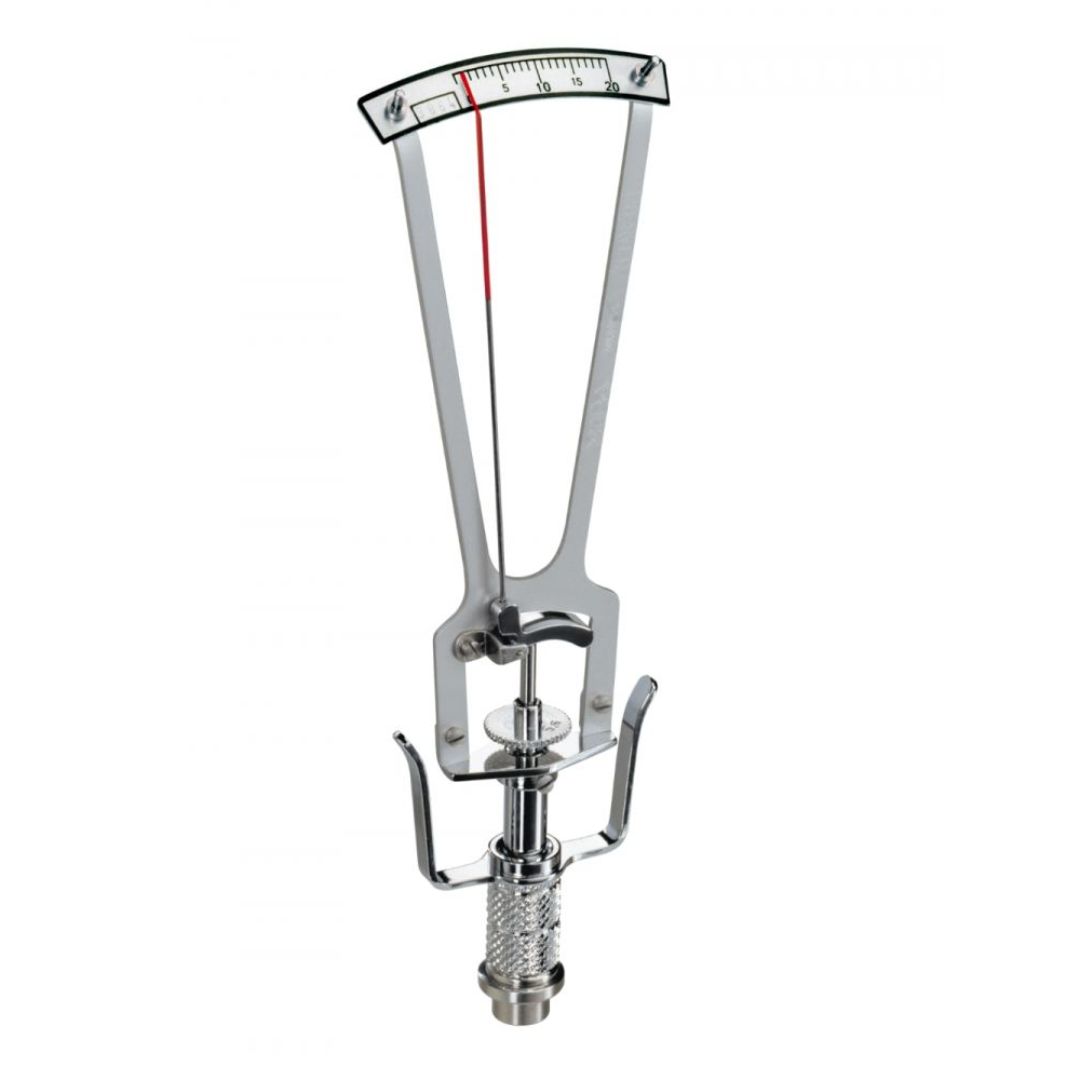

Schiötz C Tonometer

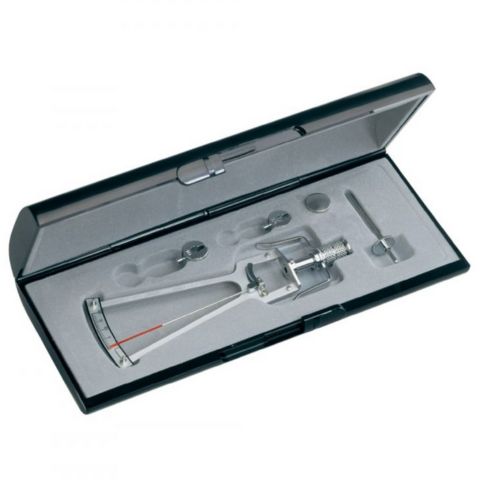

Schiötz Tonometer in case

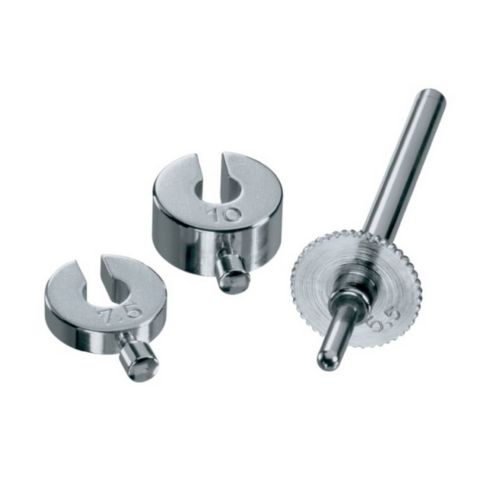

Schiötz Tonometer 3 weights

Features and benefits of a Schiötz Tonometer

  • High quality agate bearing for an extremely long service life
  • Precision measurement on a scale of 0 to 20 subdivisions and 0 to -1 sub-divisions
  • Easy to read scale with red pointer
  • Complete in a black deluxe case with velvet-look inserts
  • Supplied with three weights (5.5 g, 7.5 g, 10 g) and a conversion table
Specifications: schiötz-tonometer
Dimensions Height: 130 mm, Width: 45 mm, Weight: 24.4 g
0 to 20 graduation marks
0 to -1 graduation mark
One graduation mark corresponds to a stroke of 0.05 mm
Operating temperature 10° C to + 40° C
Relative humidity 30% up to 70 % relative humidity, non-condensing
Storage temperature -20° C to +70° C
Storage relative humidity up to 85 % relative humidity, non-condensing
Air pressure 700 hPa bis 1060 hPa
