Vet I Oto-/Ophthalmoscope - Riester

Vet I Oto-/Ophthalmoscope

Instruments for Veterinary Medicine Inquiry About this product

Vet I Oto-/Ophthalmoscope

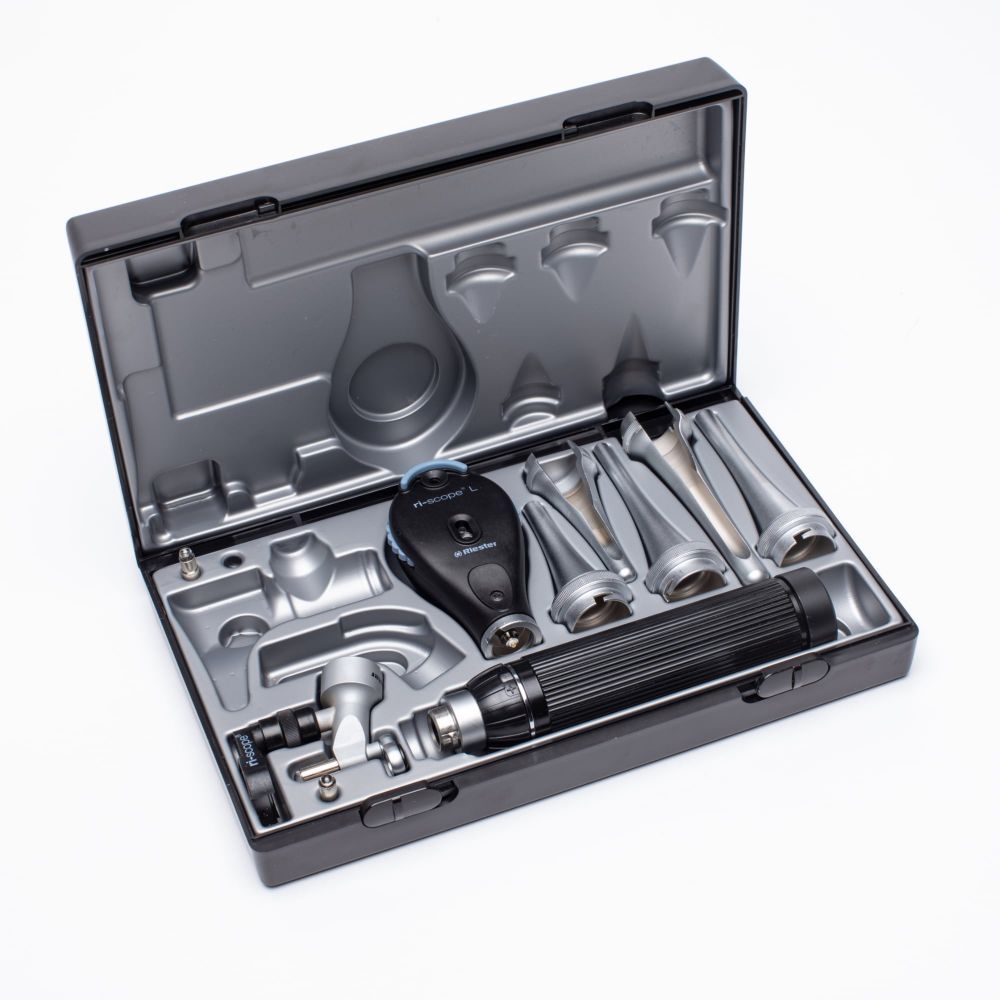

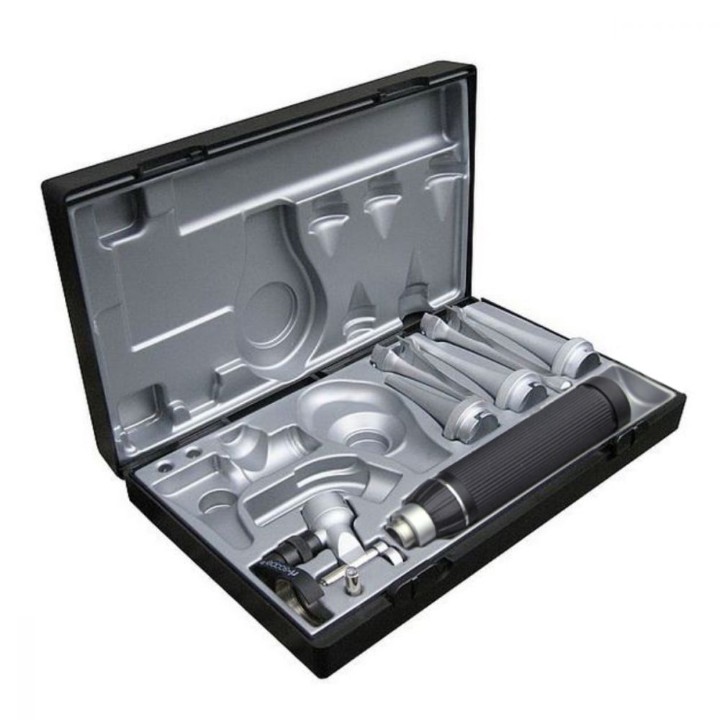

The Riester Vet I Oto-/Ophthalmoscope comes with operation otoscope, ophthalmoscope with accessories and spare lamps in impact-resistant case.

Vet I Oto-/Ophthalmoscope – details

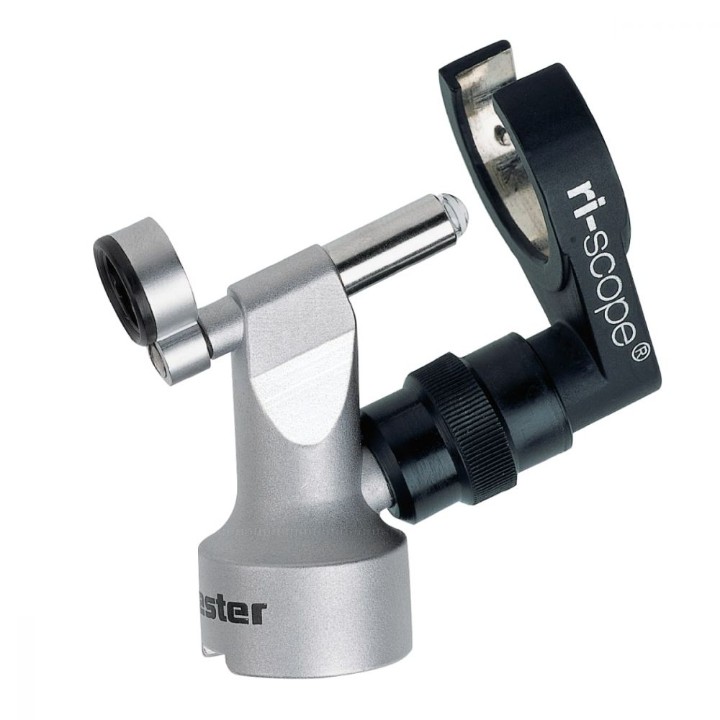

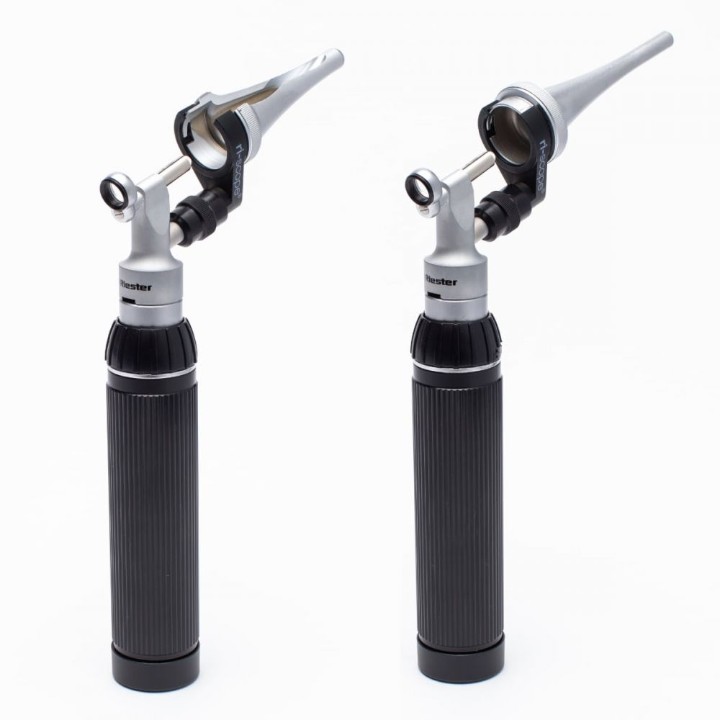

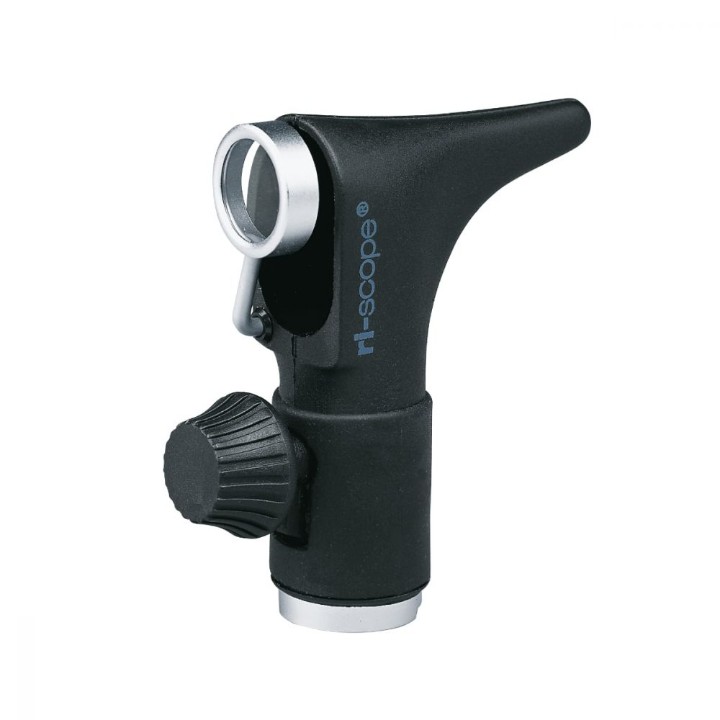

ri-scope® Operation otoscope Veterinary head

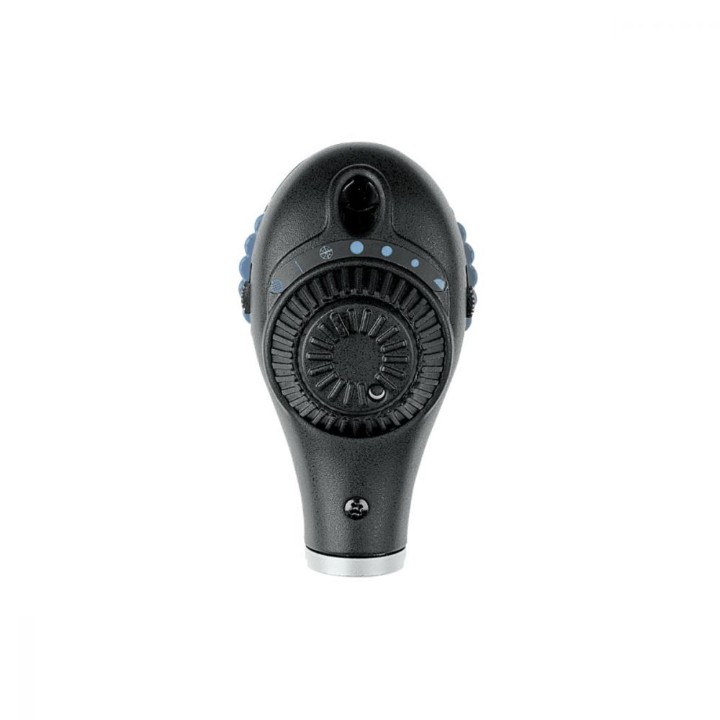

ri-scope® L1 Ophthalmoscope Head
Bayonet fitting on the heads for fast and secure attachment to the handle

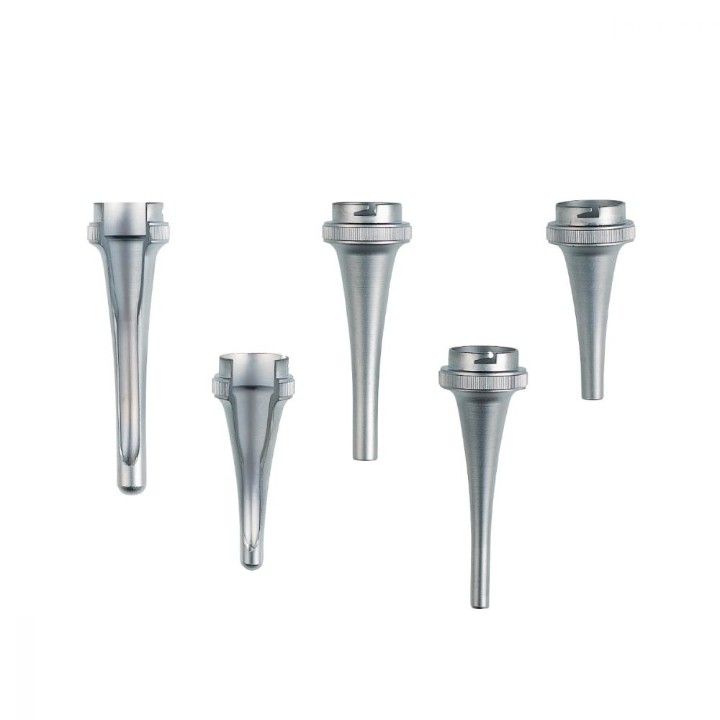

ri-scope® Operation Otoscope Veterinary Metal Specula

Unslotted, sterilisable at 134°C for 10 minutes in steam sterilizer:

diameter 4 mm, 83 mm long
diameter 5 mm, 62 mm long
diameter 6 mm, 82 mm long

Slotted, sterilisable at 134°C for 10 minutes in steam sterilizer:

diameter 7.5 mm, 68 mm long
diameter 9.4 mm, 92 mm long

two spare lamps (Xenon 3.5V lamp or Halogen 2.5V lamp)

1pcs for the operation otoscope
1pcs for the ophthalmoscope

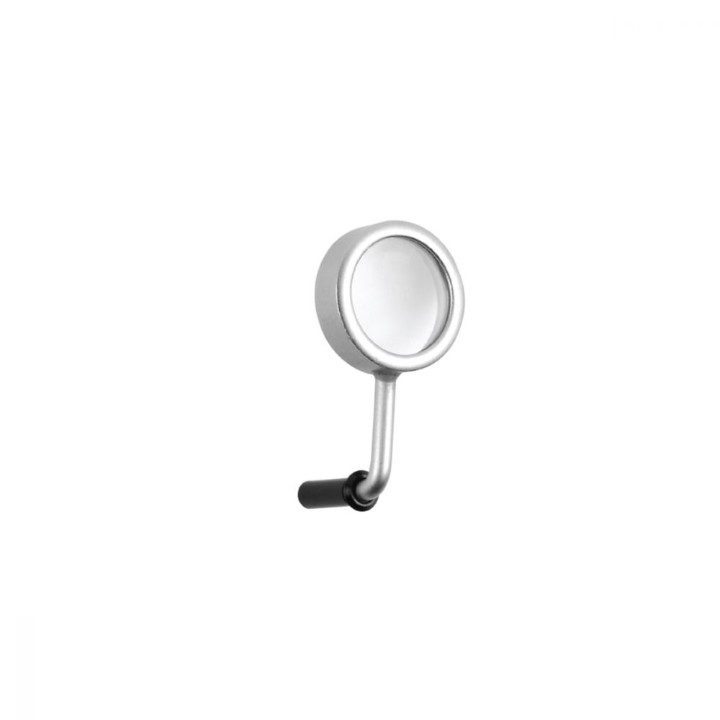

Swivel lens
Impact-resistant case

Otoscope Features and benefits

Customer’s choice of Xenon 3.5V lamp or Halogen 2.5V lamp
Swivel lens with 2.5x magnification
Moveable, slotted speculum holder can be locked in any position
Open design for unhindered use during examination and operation
All-metal operation otoscope for long service life
Reusable metal specula made of high-quality chrome-plated, corrosion-free metal

Ophthalmoscope Features and benefits

All Ophthalmoscopes Features:

Optimized high-performance optics with aspherical condenser lens
Parallel beam path
Dust-proof lenses
Large selection of power sources: handy and stable handles, practical chargers and well-conceived diagnostic stations

L1 Features:

Dioptre wheel with 29 corrective lenses Plus 1-10, 12, 15, 20, 40 Minus 1-10, 15, 20, 25, 30, 35
Easy-to-operate aperture hand-wheel with semi-circle, Small/medium/large circle fixation star, slit and red-free filter with contrast-enhancing effect.
Includes filter wheel engageable for all apertures with symbol display, red-free filter.

Specifications: vet-I-oto-ophthalmoscope

Product details

VET I Oto-/Ophthalmoscope

Dimensions	Case : 230 x 140 x 46
Ambient temperature	0° to +40° C
Relative humidity	30% to 70% non-condensing
Storage/ Transport ambient temperature	-10° to +55°C
Storage/ Transport relative humidity	30% to 85% non-condensing
Air pressure/ Transport relative humidity	800 hPa - 1100 hPa

The lamp for ri-scope^® Operation Otoscope Veterinary


ri-scope^® Operation otoscope Veterinary HL 2.5 V	2.5 V, 680 mA, mean life span 20 h
ri-scope^® Operation otoscope Veterinary XL 3.5 V	3.5 V, 700 mA, mean life span 20 h

The lamp for ri-scope^® L Ophthalmoscope


Ophthalmoscope 2.5 V XL	2.5 V 750 mA, mean life span 15 h
Ophthalmoscope 3.5 V XL	3.5 V 690 mA, mean life span 15 h
