Vet de luxe I - Riester

Vet de luxe I

7358
Instruments for Veterinary Medicine Inquiry About this product

Vet de luxe I

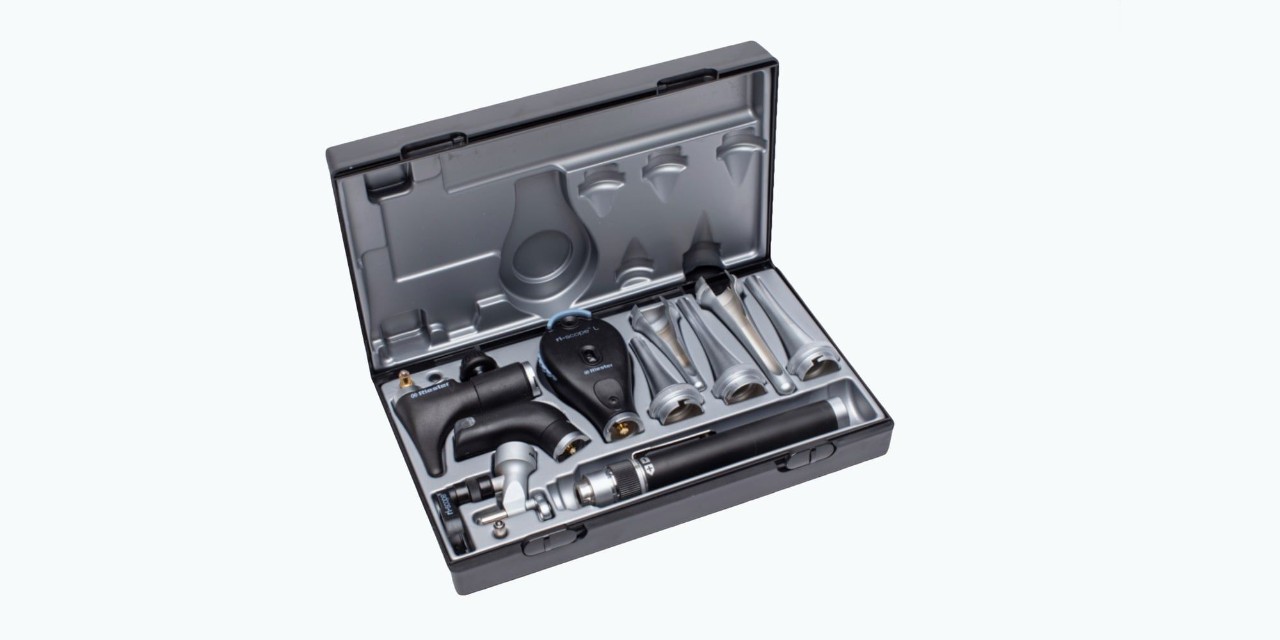

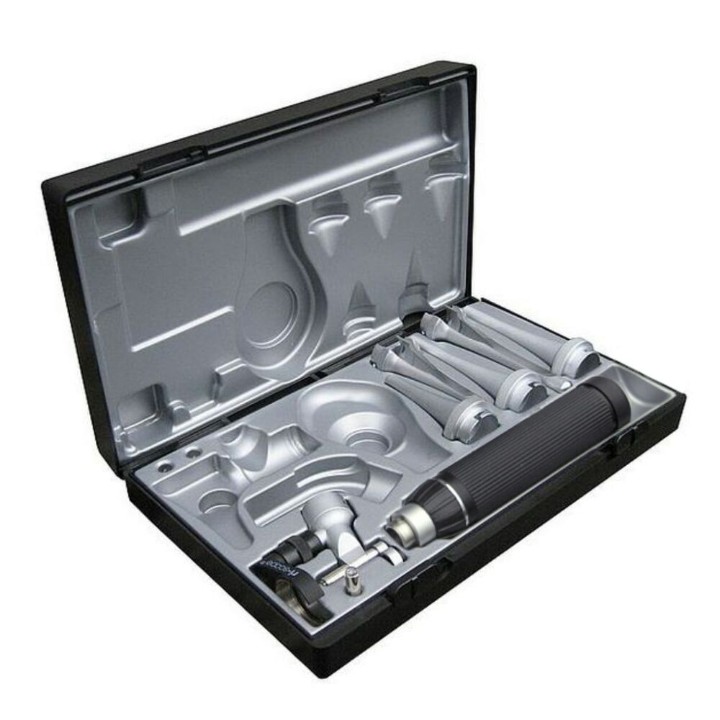

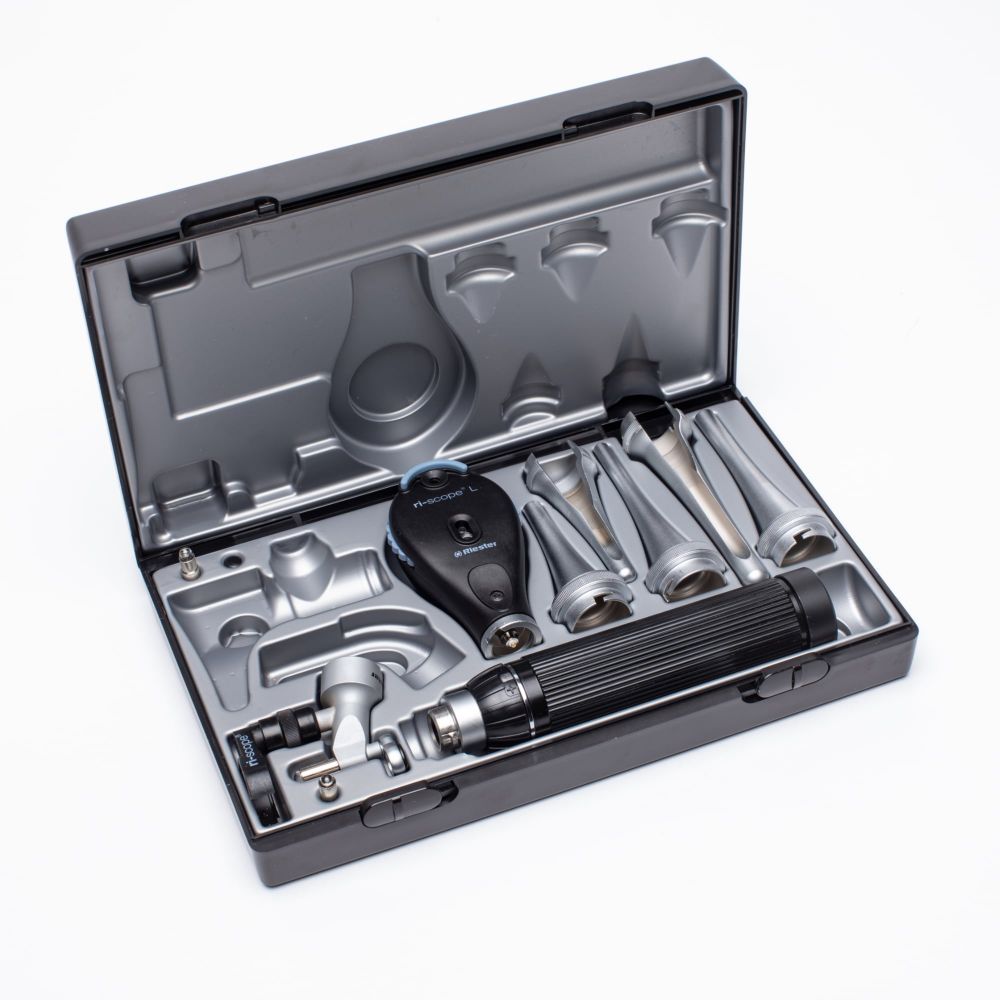

The Riester vet de luxe I comes with operation otoscope, ophthalmoscope, tongue blade holder and nasal speculum with accessories and spare lamps in impact-resistant case.

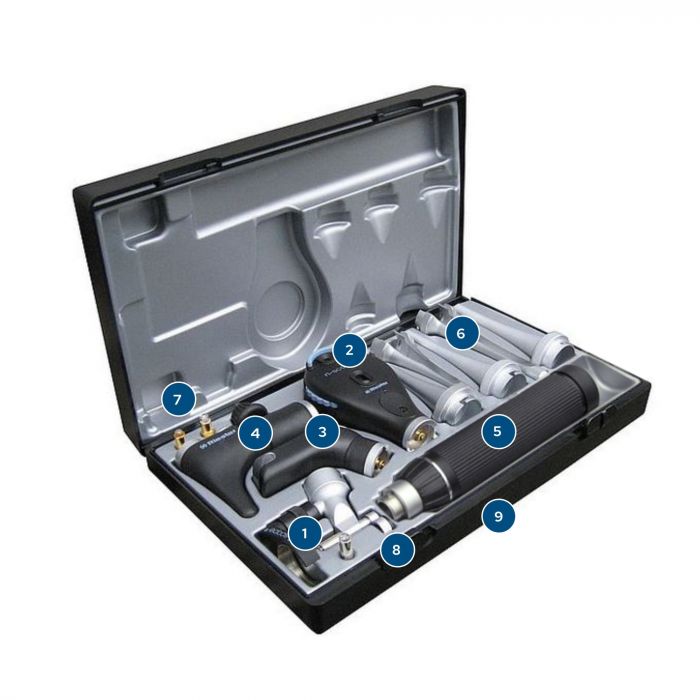

vet de luxe I – details

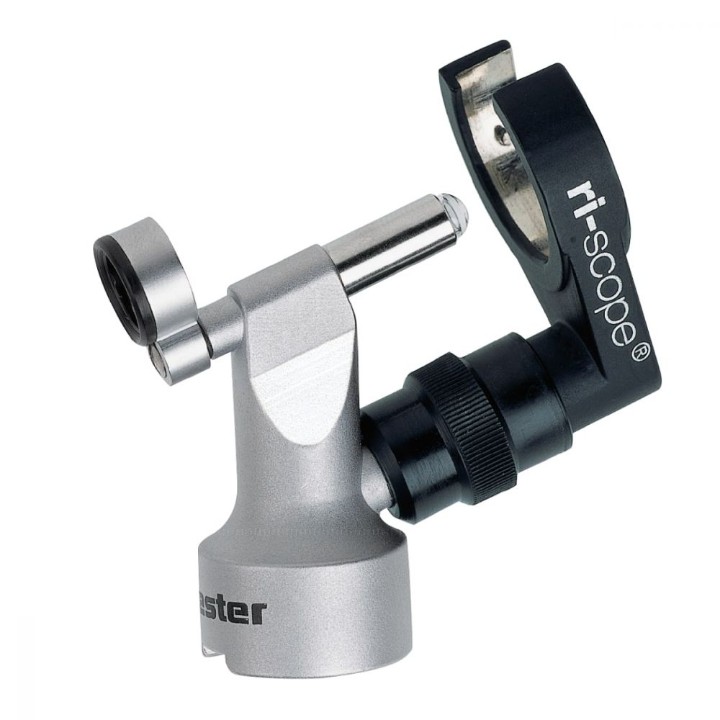

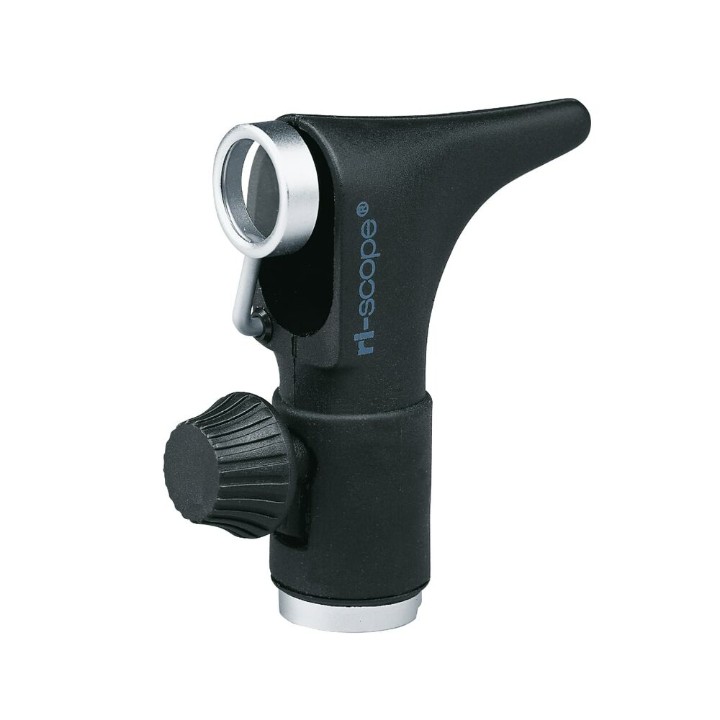

  1. ri-scope® Operation otoscope Veterinary head
  2. ri-scope® L1 Ophthalmoscope Head

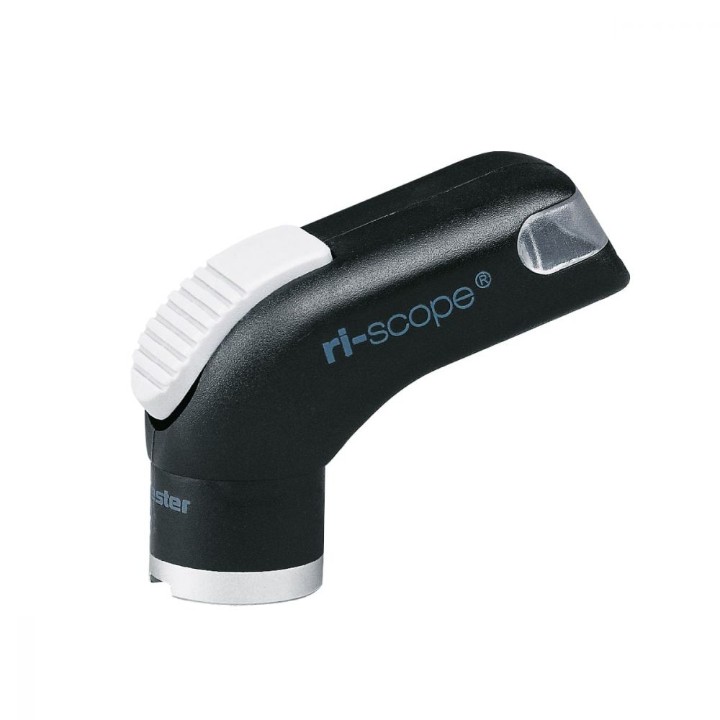

  3. ri-scope® F.O. tongue blade holder Head
  4. ri-scope® F.O. nasal speculum Head
  5. Bayonet fitting on the heads for fast and secure attachment to the handle

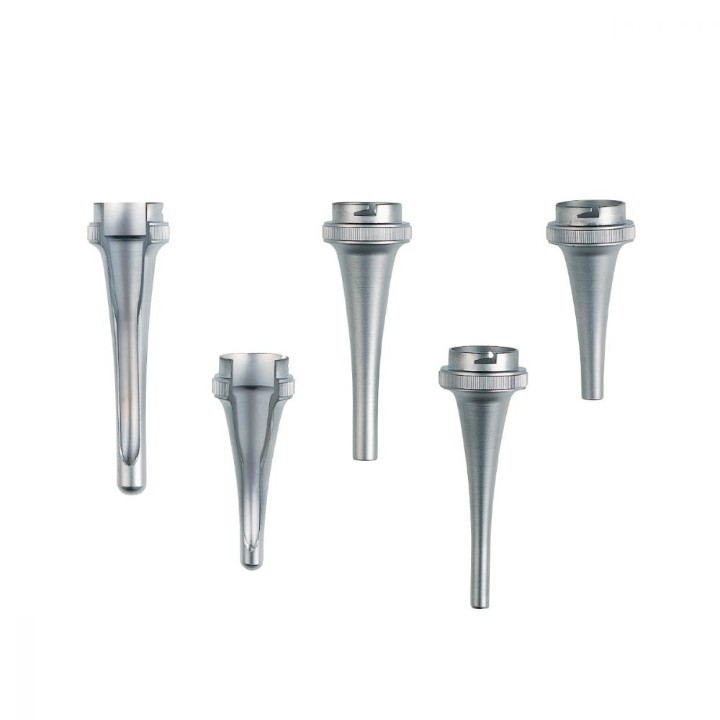

  6. ri-scope® Operation otoscope Veterinary Metal Specula

  • a)Unslotted, sterilisable at 134°C for 10 minutes in steam sterilizer:

    • diameter 4 mm, 83 mm long
    • diameter 5 mm, 62 mm long
    • diameter 6 mm, 82 mm long

  • b)Slotted, sterilisable at 134°C for 10 minutes in steam sterilizer:

    • diameter 7.5 mm, 68 mm long
    • diameter 9.4 mm, 92 mm long
  1. 3 spare lamps (Xenon 3.5V lamp or Halogen 2.5V lamp)
  • a)1pcs for the operation otoscope
  • b)1pcs for the ophthalmoscope
  • c)1pcs for the nasal or tongue

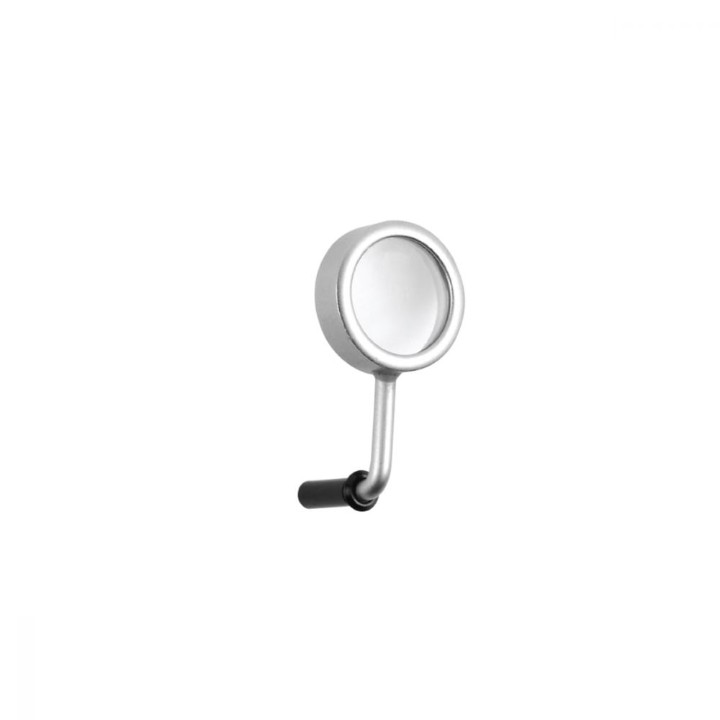

  1. Swivel lens
  2. Impact-resistant case

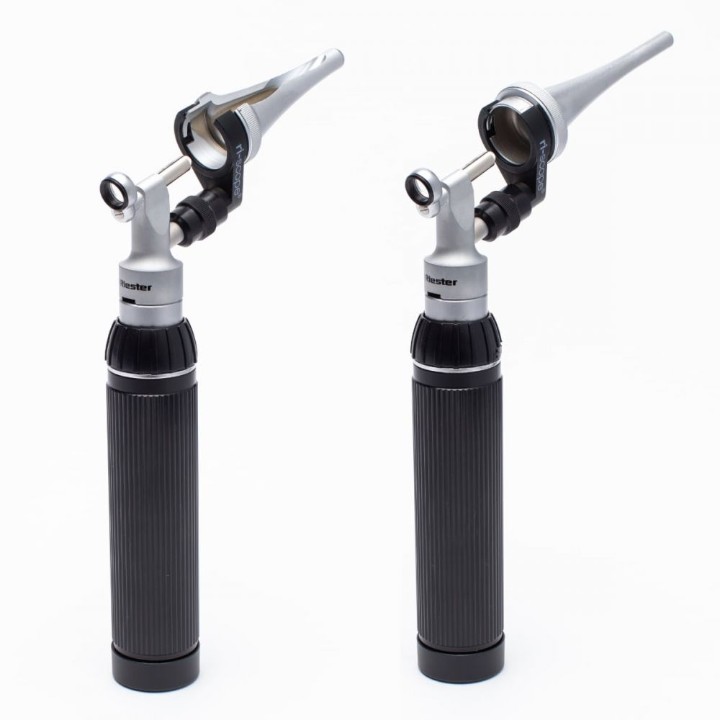

Otoscope Features and Benefits

  • Customer’s choice of Xenon 3.5V lamp or Halogen 2.5V lamp
  • Swivel lens with 2.5x magnification
  • Moveable, slotted speculum holder can be locked in any position
  • Open design for unhindered use during examination and operation
  • All-metal operation otoscope for long service life
  • Reusable metal specula made of high-quality chrome-plated, corrosion-free metal

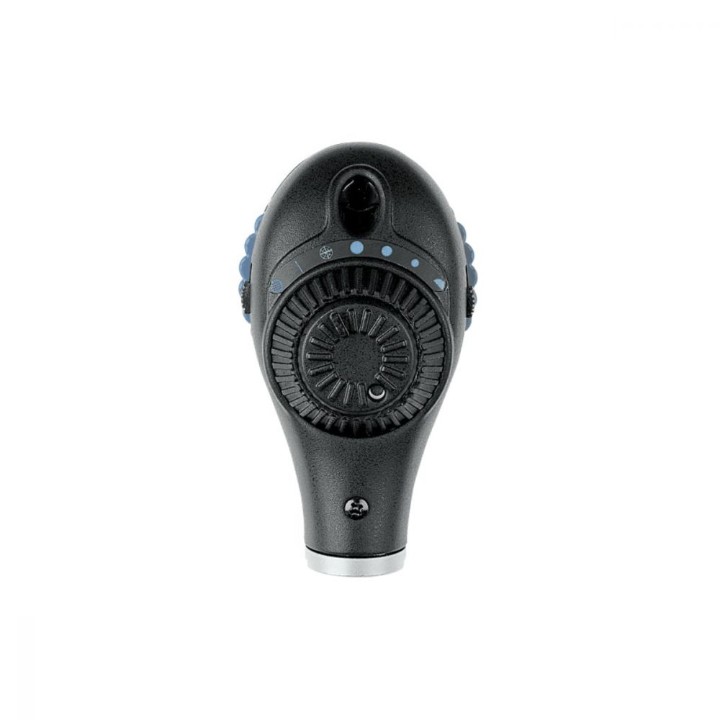

Ophthalmoscope Features and Benefits

All Ophthalmoscopes Features:

  • Optimized high-performance optics with aspherical condenser lens
  • Parallel beam path
  • Dust-proof lenses
  • Large selection of power sources: handy and stable handles, practical chargers and well-conceived diagnostic stations

L1 Features

  • Dioptre wheel with 29 corrective lenses Plus 1-10, 12, 15, 20, 40 Minus 1-10, 15, 20, 25, 30, 35

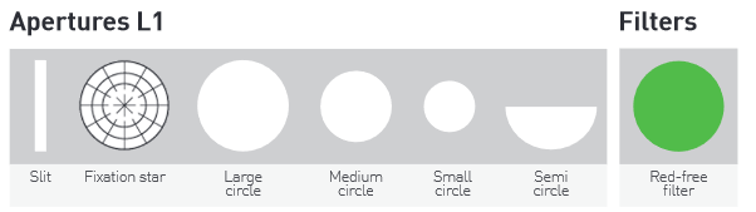

  • Easy-to-operate aperture hand-wheel with semi-circle, Small/medium/large circle fixation star, slit and red-free filter with contrast-enhancing effect.
  • Includes filter wheel engageable for all apertures with symbol display, red-free filter.
Specifications: vet-de-luxe-I

Product details

Dimensions Case : 230 x 140 x 46
Ambient temperature 0° to +40° C
Relative humidity 30% to 70% non-condensing
Storage/ Transport ambient temperature -10° to +55°C
Storage/ Transport relative humidity 30% to 85% non-condensing
Air pressure/ Transport relative humidity 800 hPa - 1100 hPa

The lamp for ri-scope® Operation Otoscope Veterinary
ri-scope® Operation otoscope Veterinary HL 2.5 V 2.5 V, 680 mA, mean life span 20 h
ri-scope® Operation otoscope Veterinary XL 3.5 V 3.5 V, 700 mA, mean life span 20 h

The lamp for ri-scope® L Ophthalmoscope
Ophthalmoscope 2.5 V XL 2.5 V 750 mA, mean life span 15 h
Ophthalmoscope 3.5 V XL 3.5 V 690 mA, mean life span 15 h

The lamp for ri-scope® F.O. tongue blade holder
Tongue blade holder XL 2.5 V 2.5 V 750 mA mean life span 15 h
Tongue blade holder XL 3.5 V 3.5 V 720 mA mean life span 15 h

The lamp for ri-scope® F.O. nasal speculum
Nasal speculum XL 2.5 V 2.5 V 750 mA mean life span 15 h
Nasal speculum XL 3.5 V 3.5 V 720 mA mean life span 15 h
