ri-modul Fibre Optic (F.O.) Laryngoscopes - Riester

ri-modul Fibre Optic (F.O.) Laryngoscopes

ri-modul Fibre Optic (F.O.) Laryngoscopes

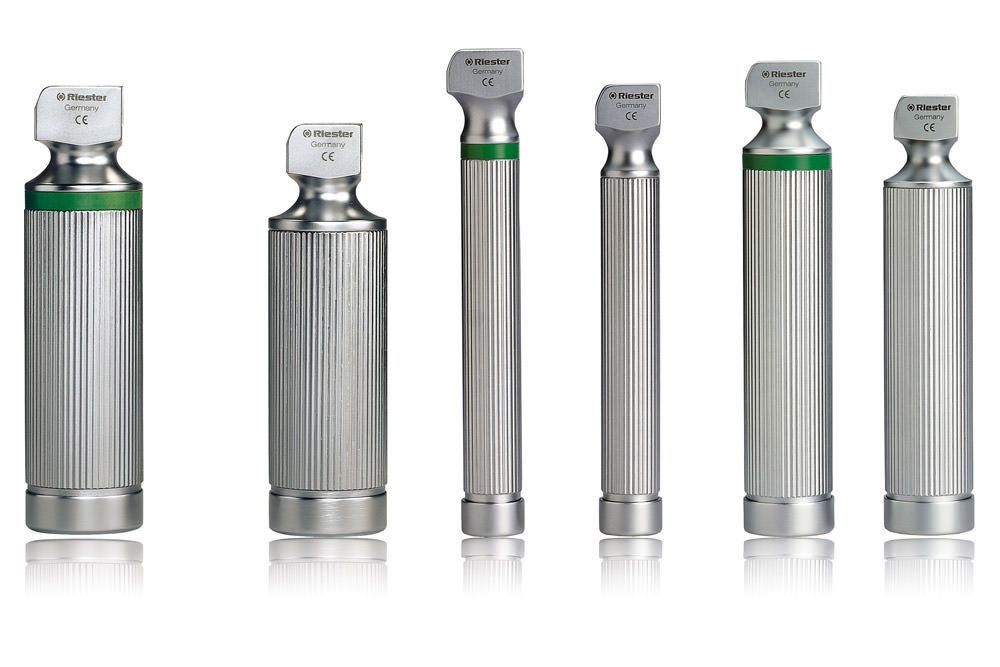

Riester’s fibre-optic Laryngoscopes offer a high quality light source which helps improve the visualization of the larynx during intubation. This coupled with the rechargeable battery packs built into the handle give the clinician the confidence to perform the intubation under a wide range of circumstances and patient types.




Features and benefits

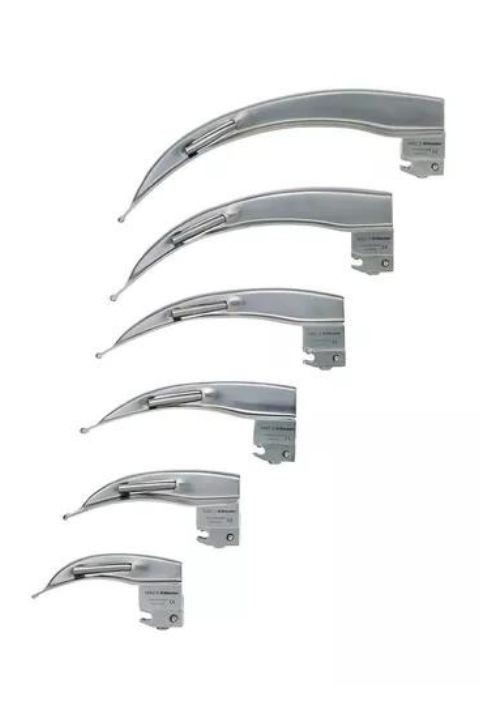

MACINTOSH F.O. BLADE

  • Macintosh F.O. blade with removable light conductor, simple to remove and refit without tools.
  • Reasonably priced alternative thanks to modular construction.
  • High light intensity with XL + LED illumination and excellent light transmission through strong fiber bundles.
  • Optimum blade design for easy intubation and improved visibility.
  • Children; Adults

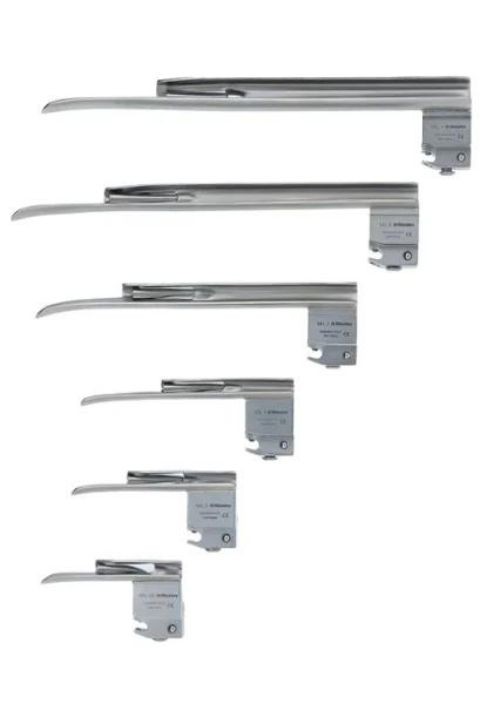

MILLER F.O. BLADE

  • Miller F.O. blade with removable light conductor, simple to remove and refit without tools.
  • Economically priced alternative due to modular construction.
  • High light intensity with XL + LED illumination and excellent light transmission through strong fiber bundles.
  • Blade size 00 for neonates.
  • Neonates; Children; Adults

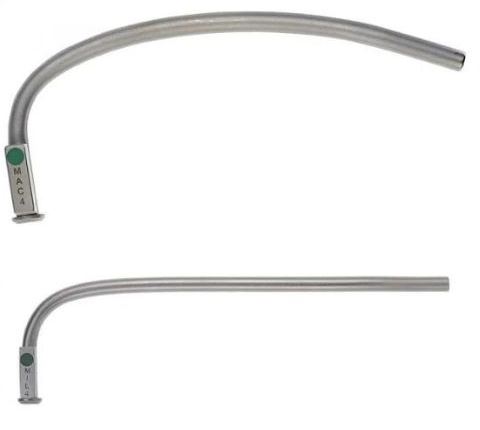

Light conductor for ri-modul Miller F.O. blades

  • Secure fitting and removal with ball mechanism.
Specifications: ri-modul-fibre-optic-(F.O.)
Dimensions Mode ri-modul MACINTOSH F.O. blade
81 mm; 95 mm; 116 mm; 135 mm; 155 mm; 170 mm
ri-modul MILLER F.O. blade
67 mm; 78 mm; 101 mm; 155 mm; 195 mm; 205 mm
The lamp for Laryngoscope Lamp, small, warm light 2.7 V
300 mA, mean life span 20 h
Lamp, large, warm light 2.7 V
300 mA, mean life span 20 h
Lamp, cold light XL 2.5 V
680 mA, mean life span 20 h
Lamp, cold light XL 3.5 V
700 mA, mean life span 20 h
Lamp, cold light LED 2.5 V
120 mA, mean life span 20000 h
Lamp, cold light LED 3.5 V
280 mA, mean life span 20000 h
Ambient temperature 0 ° to +40 °C
Relative humidity 15% to 90% non-condensing
Storage/ Transport temperature -20°C to 50°C
Storage/ Transport relative humidity 15% to 85% non-condensing
Air pressure 620 hPa - 1060 hPa
