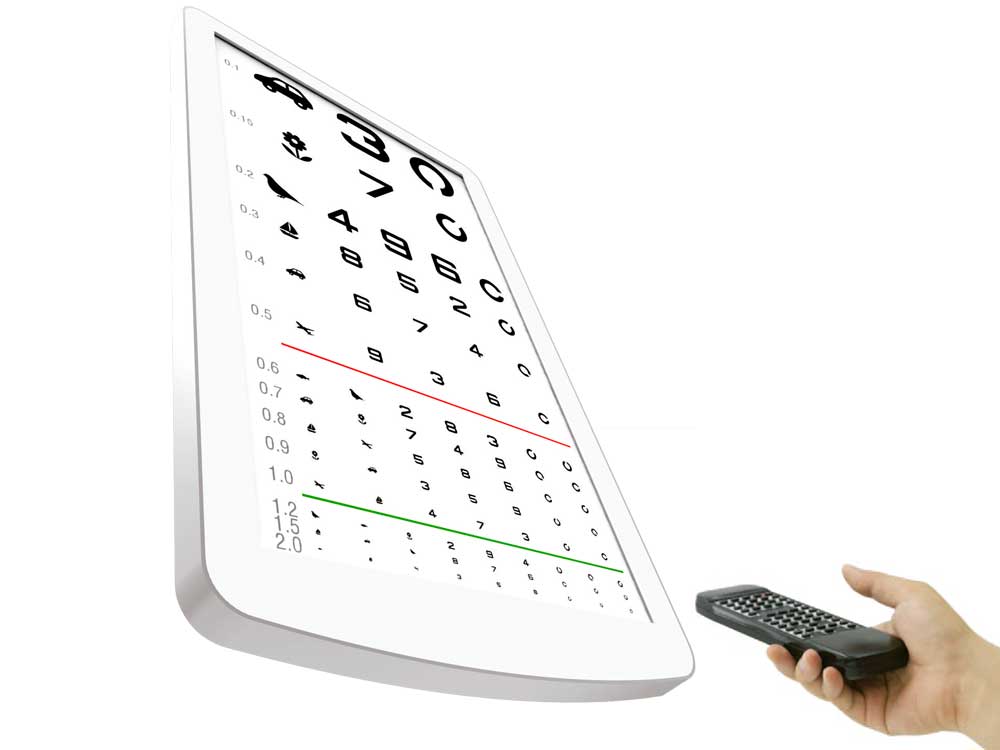

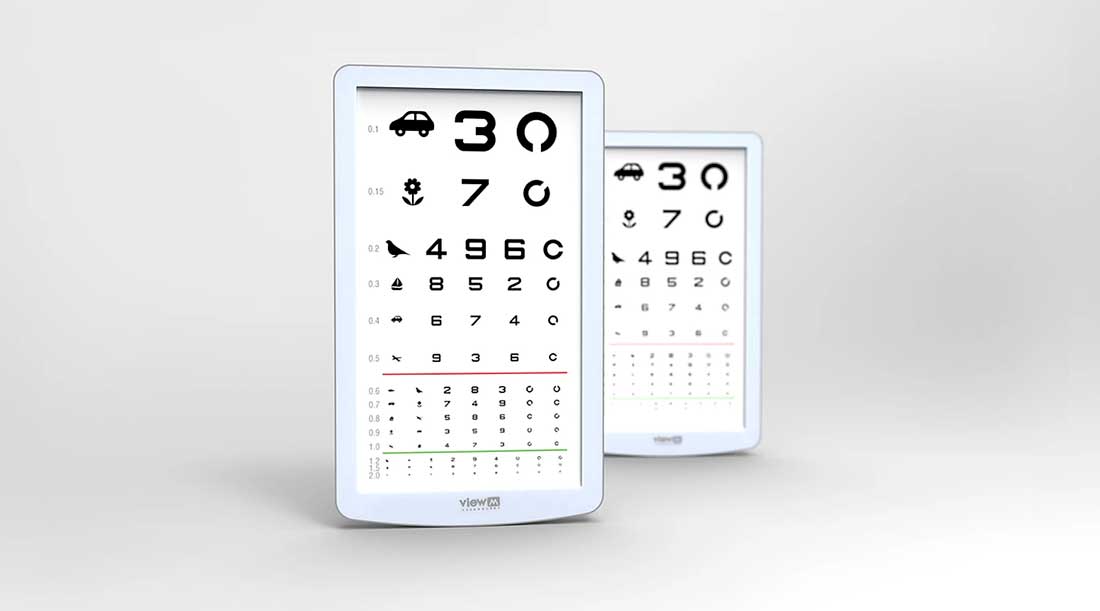

Vision Chart LCD 32" HANS HEISS HVC-902


HVC-902 provides various and precise opto-types by using cutting-edge digital technology.

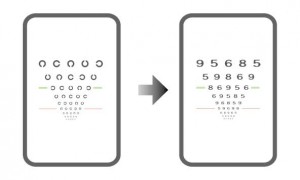

Full Chart

HVC-902 supports 32-inch vertical full HD screen that gives more convenient environment to the doctors.

Also random full chart function helps examiners to do the more precise test while using it

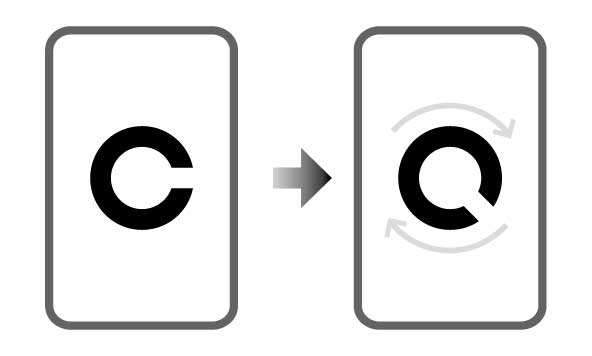

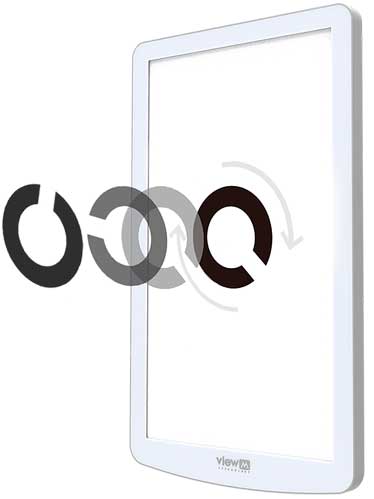

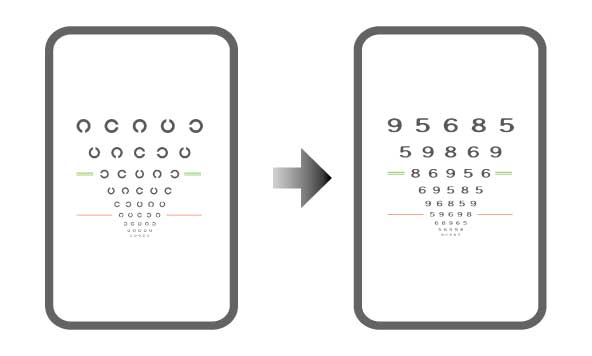

RANDOM Function

HVC-902 system's random function helps examiners to diagnose the patients, it also maximizethe precise testing result by automatically changing numbers and letters on the chart.

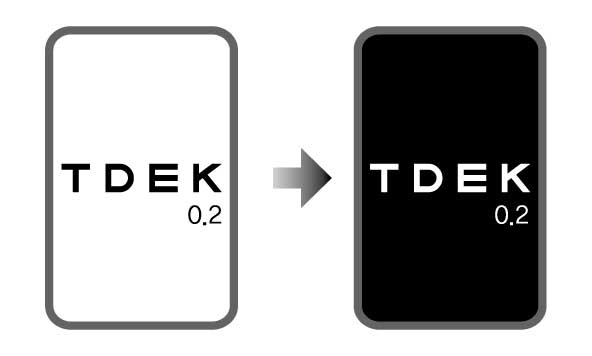

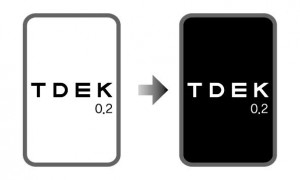

Black / White Reverse

HVC-902 system's Black/White Reverse function helps people, who have some experiences of having lasik or cataract surgery, to easily recognize optotypes

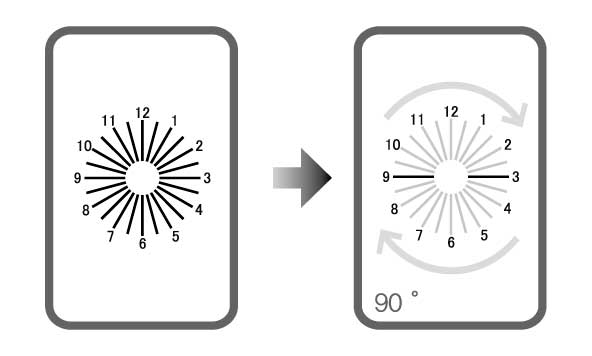

ASTIGMATISM AXIS Adjustment Function

HVC-902 system's adjusting astigmatism axis function gives convenient environment to diagnose astigmatism test.

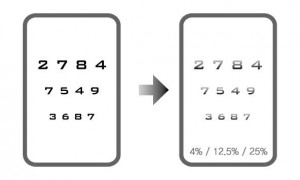

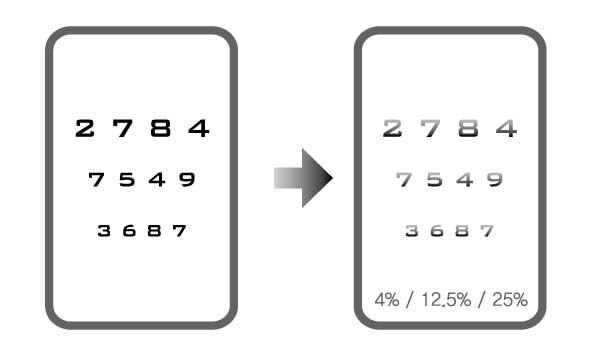

Contrast Sensitivity Adjustment

HVC-902 system helps examiners to do the visual acuity test for Cataract patients by using contrast sensitivity adjustment.

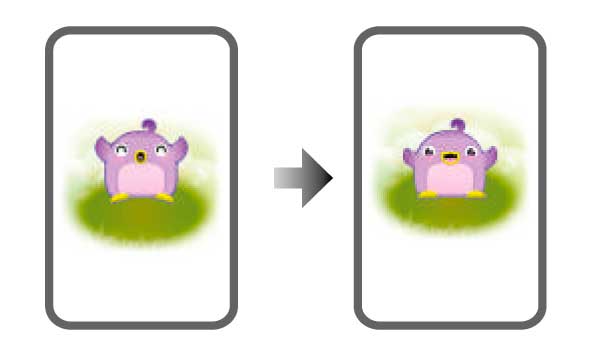

Animation Function

HVC-902 system's animation function helps examiners to do the visual acuity test for children by using animation function to concentrate on testing.

ETDRS Adjustment Function

HVC-902 system enables examiners to do the visual acuity test more conveniently by using ETDRS optotypes, which can be automatically changed by pushing button on the remote controller.

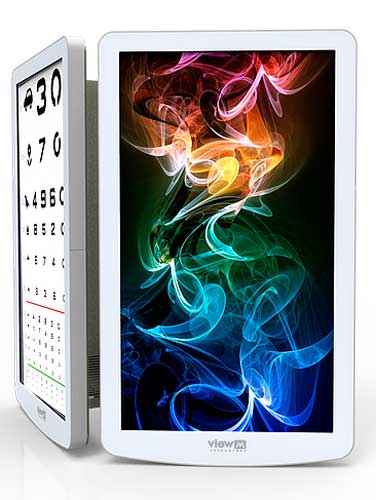

Sophisticated modern design

Sophisticated black silver bezel design can be placed in any test room.

Specifications: HVC902
Software App based on winCE
Panel Type 32 inch WUXGA LED Backlight
Resolution 1080 x 1920 Pixels
Window Size 400 (W) x 700 (H) mm
Brightness Max 350 cd/㎡
Chart Type Full Chart, Landolt Ring, Snellen, Opto type(Korean, English, Number, Russian, Japanese), Children, Masking(Horizontal, Vertical, Single), Special Opto type(only Red/Green), ETDRS, R/G 3D, Amsler Grid, Color Blindness
Number of Channel 8 EA
Convertion 1 Frame / 0.02 Sec
Distance 1.5M ~ 6M (0.25 or 0.5 Step)
Power AC 110V ~ 240V 50 / 60 Hz
Consumption Less than 80W
Body Size / Weight 470 (W) x 800 (H) x 90 (D) mm / 12kg
Remote Size / Weight 65 (W) x 195 (H) x 20 (D) mm / 158g
Wireless Main Remote Control : IR DA / 3D Remote Control : RF
Compatibility USB 2.0 Port
Accessories Main Remote Control, Wall mount, Power Cord, Manual
Options Floor stand, Red/Green Glasses, Sub Remote Control
