SC-1600 LCD Acuity System

LCD Vision Chart Inquiry About this product

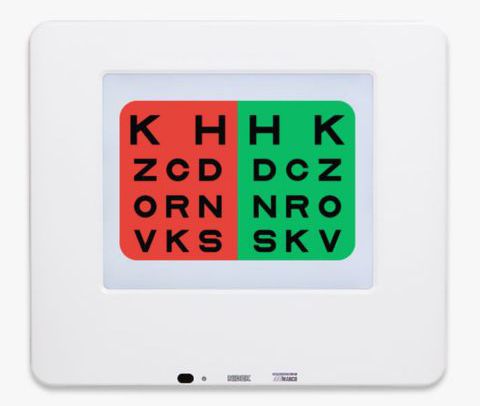

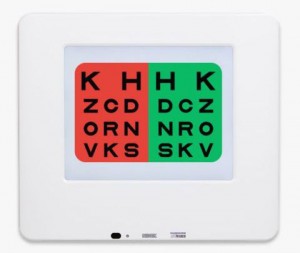

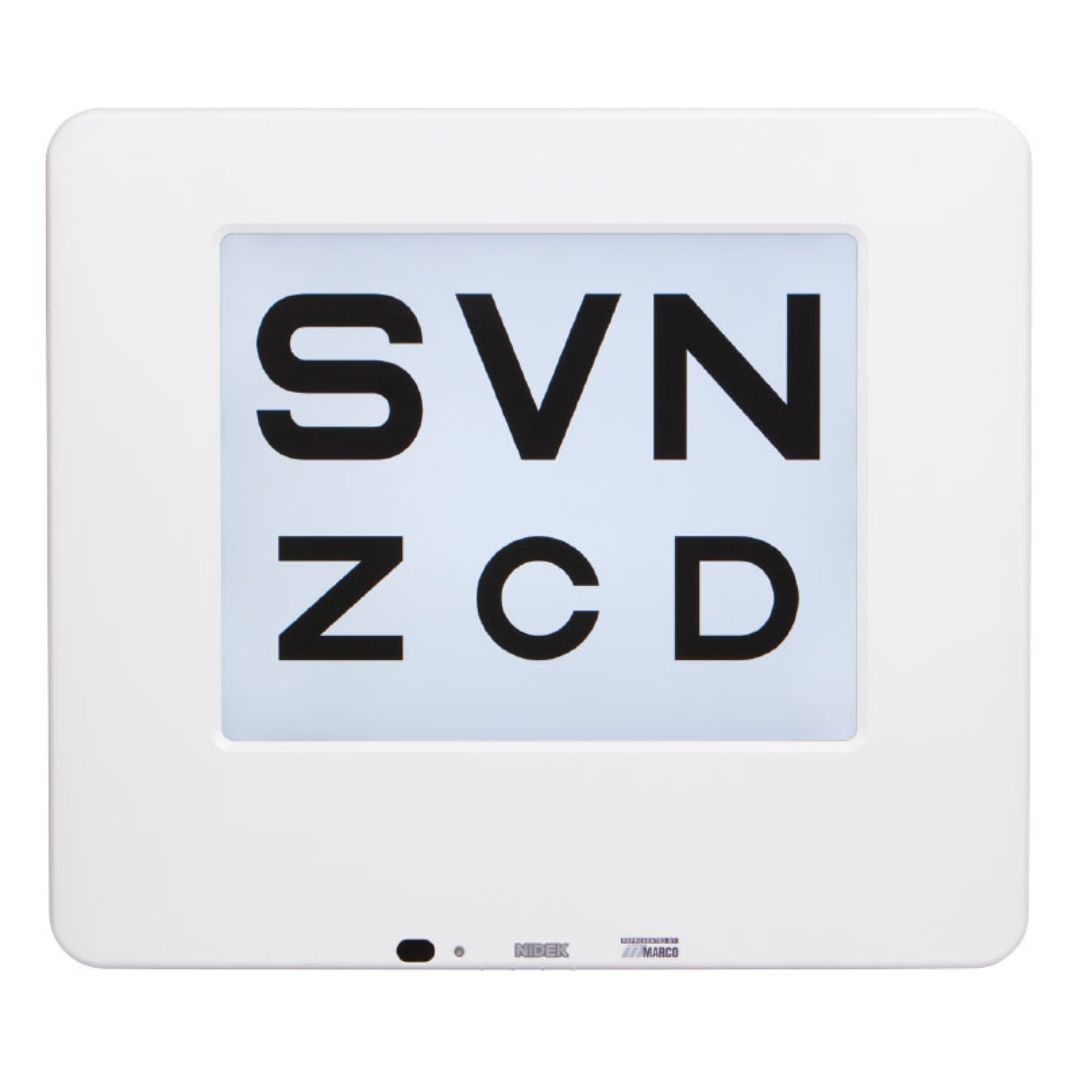

SC-1600 LCD Acuity Chart

The Marco SC-1600 visual acuity system features a wide range of popular Snellen, ETDRS, and stereo testing options for binocular vision examinations. With its high-resolution display, intuitive user interface, and comprehensive features, the SC-1600 provides an unmatched level of precision and convenience.

Features

Contrast Sensitivity TestingMeasures contrast at three distinctive levels below the normal threshold
RandomizationHelps to prevent patient letter/character memorization
User-Friendly RemoteIncludes an LCD chart display window for convenient operator reference
PersonalizationAdd up to 18 personalized images on removable SD card
Modern DesignAesthetically clean refracting device with an extreme emphasis on precise, high-quality visual acuities.

The Marco SC-1600 is a dedicated, solid-state refracting device with an extreme emphasis on precise visual acuities.

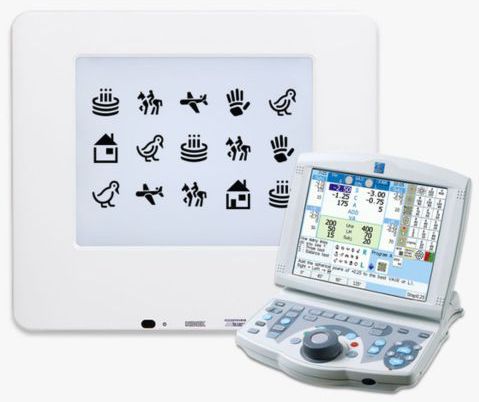

Seamless Integration

The SC-1600 integrates seamlessly with Marco’s digital refraction systems. This allows for communication between the SC-1600 and devices such as the TRS-6100 Automated Refraction System, providing the ability to control chart functions directly from your refractor’s control unit.

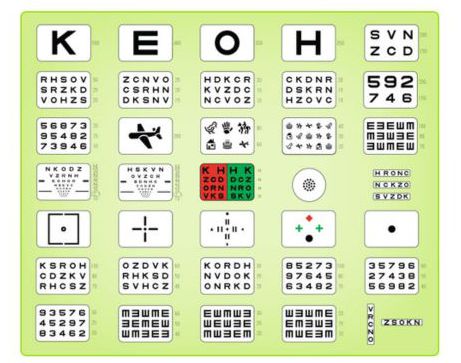

Choose From 33 Popular Charts

11 specialty/polarization charts
9 Snellen charts: (5) 20/20 lines, (3) 20/15 lines, (2) 20/10 lines
5 Numbers charts: (2) 20/20 lines, (1) 20/15 line, (1) 20/10 line
4 Illiterate E charts: (2) 20/20 lines, (1) 20/15 line, (1) 20/10 line
3 Children’s charts: (1) 20/20 line

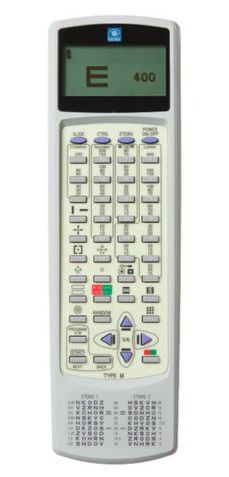

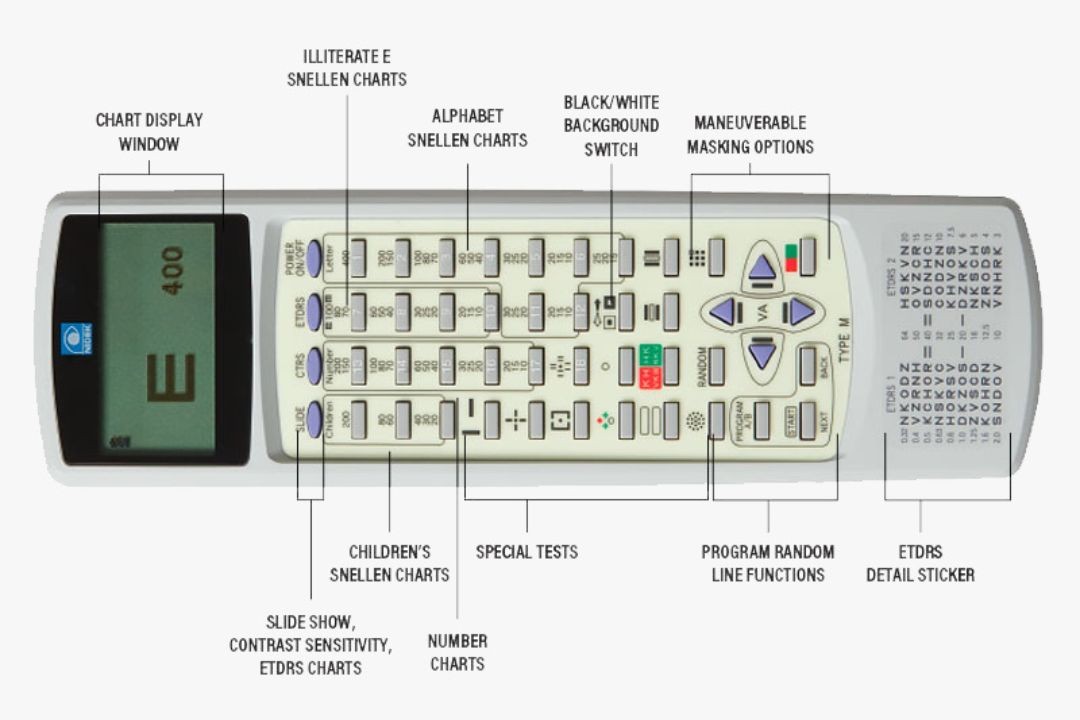

Optimized Remote Control

Instantly access 33 popular charts via the infrared remote control. Chart masking buttons allow the user to isolate individual lines horizontally, vertically, as well as individual letters, numbers, and characters. Three programming buttons isolate separate programs for individual users.

The SC-1600 Acuity Chart is the perfect tool for eye care professionals seeking an advanced, user-friendly vision testing system.

Specifications: SC-1600

Technical Details

Type	17-inch SXGA LCD with long-lasting backlight
Resolution	1280 x 1024 pixels
Chart Window Size	13.6″ (W) x 10.86″ (H)
Brightness	200 cd/m2 (5 level variable)
Charts	Type M, Type UK, Type P, Type T
Distance of Installation	2.5-7m (8’–23′) (in the Mirror mode; 5 to 7mm), 0.5m increments
Chart Selection Devices	Remote control or control panel for TRS (RT-5100) refraction system
Memory Card	CF card / Built-in card slot
Power Supply	AC100 V- 240 V, 50 / 60 Hz
Power Consumption	100 VA
