LCD Chart ulc-900 - UNICOS

LCD Chart ulc-900

The UNIQUE of UNICOS LCD Chart.

ULC-900 provides the most reliable test result by the technology to be developed by UNICOS to all types of patients. All of user may have the best experience with ULC-900 by easy and convenient operation and program.

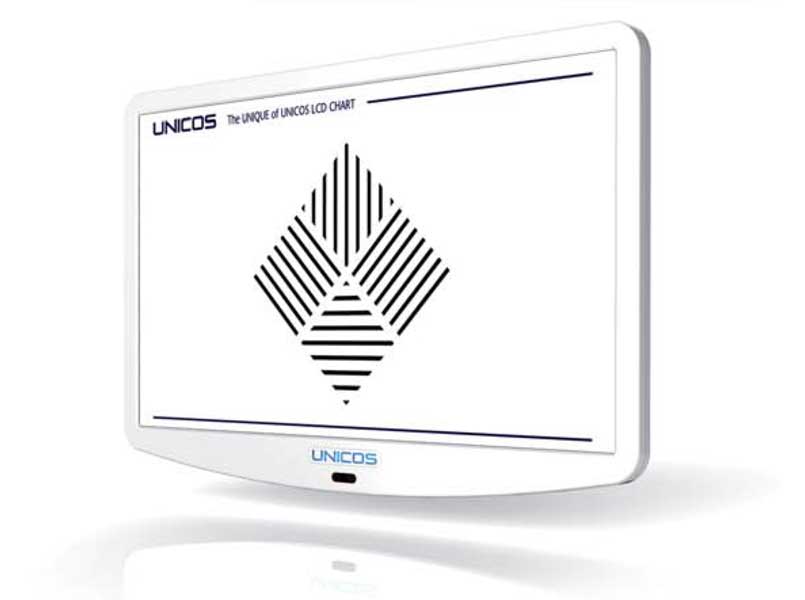

24" TFT LCD monitor

24 inch TFT monitor with high-resolution display for wider and clearer view. Various installation methods for securing enough space even in a limited area.

High performance polar filters

Keep charts clear between the range of 1.5M ~ 7.5M test distance by high performance polar filters. Heterophoria / Heterotropia / Stereopsis tests with polar seperation charts.

Installation distance

May control installation space from 1.5M up to 7.5M by 0.25m.

May use of Mirror functions at the small space.

White-black contrast

It allows to test LASIK patients.

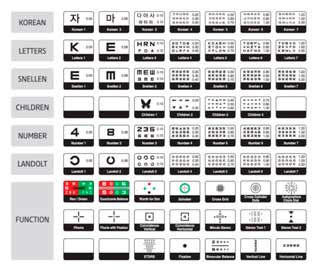

Numbers of different charts

Landolt , Snellen, Child chart, Cross chart and more.
Masking mode with single character, horizontal line, vertical line and more.

Visual functions and special functions for all types of patients such as cataract, strabismus and the other.

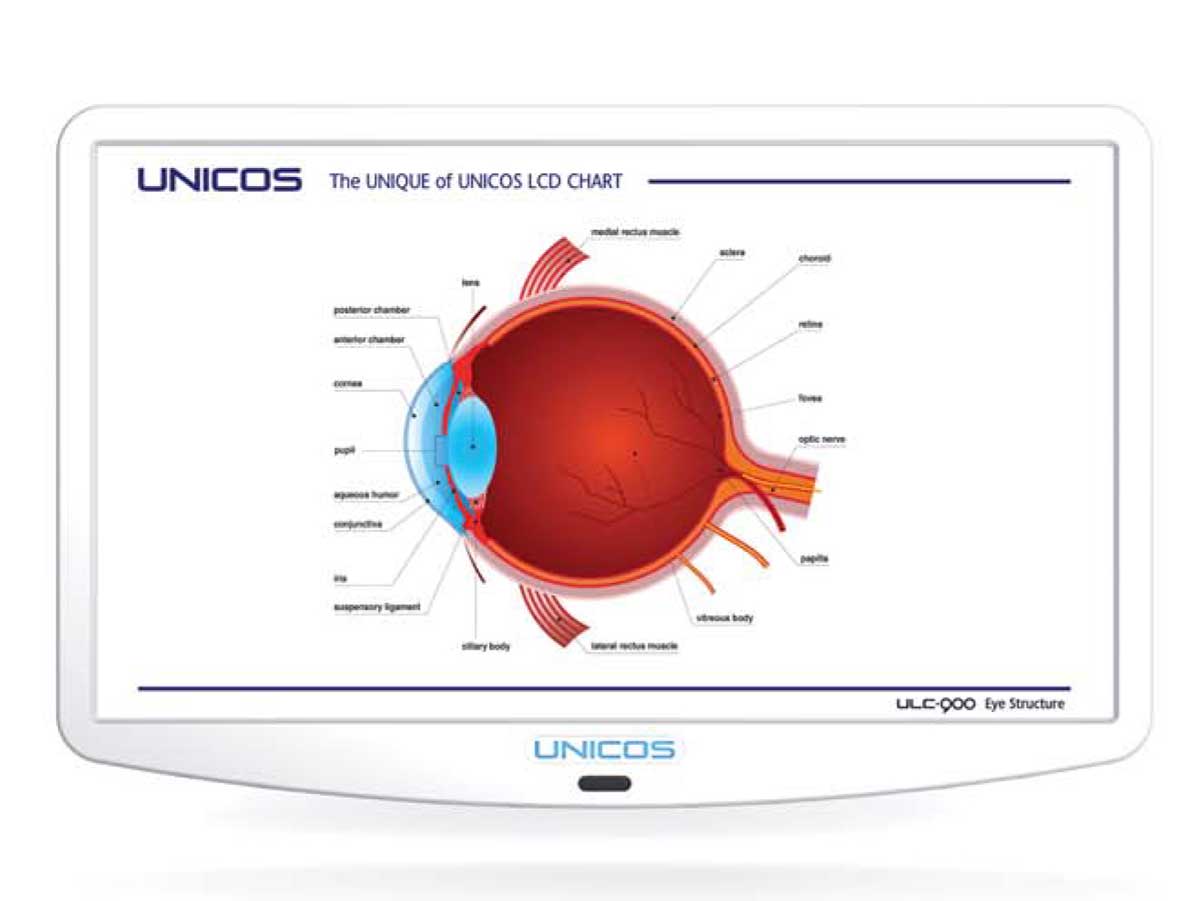

Easy image addition in Slide mode from USB flash drive.

General charts (Snellen, Landolt, Numbers, Characters, Children)

Back 0.05 ~ 2.00 charts by test distance up (Children 0.1~1.0) Horizontal, Vertical, Single character mask and Center indication Red / Green filters / Random charts.

Control System

A remote control for a prompt and convenient test. It is compatible with UNICOS’ Digital Refractor.

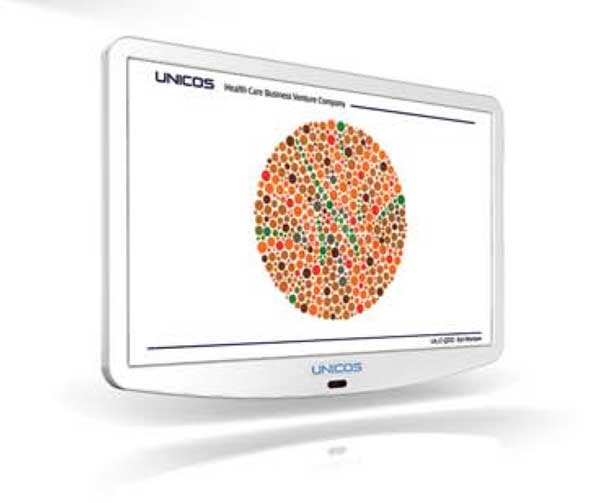

Color-blindness test

Preset seven type's charts / Random selection function.


(LCD CHART)

ULC-900 offers all types of patients the most reliable test result with State-of-Art Technology specially developed by UNICOS All customers will have the best experience with ULC-900 by easy and convenient operation and program.

High Performance Polar Filters

Clear charts in the range of 1.5m ~ 7.5m test distance by high performance polar filters Heterophoria/Heterotropia/Stereopsis tests with polar separation charts.

Installation distance

May control installation space from 1.5M up to 7.5M by 0.25m. May use of Mirror functions at the small place.

Set-up for Configuration Program

Program A, B / Correction / Insertion / Deletion

Interface with Digitalized Refractor

Regular software upgrade by USB stick memory

Outstanding Features

  • 24 inch TFT LCD monitor : Support for high resolution screen(1920x1080 pixels) and clear charts
  • Low power consumed CPU : Less than 26W - Various charts : It offers various charts such as number, English, Landolt ring, Snellen, Children charts and so on.
  • Light of weight : 4Kg - Installation distance : 1.5M ~ 7.5M
  • Connection of internet by LAN port
  • Convenient upgrade by USB port
  • Wireless system by Bluetooth : It allows perfect data transmission with UDR-800 regardless of working environment.
  • Color-blindness test:Preset seven type's charts / Random selection function.
  • White-black contrast:Making use of testing Lasik operated patient.
Specifications: ULC-900
Monitor
Type 24 Inch TFT LED Backlight
Resolution 1920(H) x 1080(V) Pixels
Display area 531.36(H) x 298.89(V) mm
Functions
Chart 1. Landolt Ring / Snellen
2. Numbers / Letters / Korean
3. Children
Masking 1. Letter / Horizontal Line / Vertical Line
2. Normal / Center
Filter Red and Green
Visual function 1. Red and Green, Polar separation, Polar 3D
2. Red and Green 3D, Color blindness (Slide mode)
Special function Mirror mode / Contrast / White and Black reverse
Distance 1.5m~7.5m (Step 0.25m)
Control device Wireless IR remote controller / Digital refractor
Screen saver function Monitor off / Chart show (5sec, 10sec, 30sec)
Screen saver waiting time 3mib / 5min / 10min / 30min
Specifications
Body 571(W) x 347(V) x 48(D) mm / 4 kg
Remote control 64(W) x 195(V) x 20(D) mm / 160 g
Power supply DC 12V
Power consumption 26W
Accessory
Mount Table / Floor(Option) / Wall(Option)
Glasses Polar(Option) / Red and Green(Option)
Remote control 1 pc
Battery 2 pcs (AA 1.5V)
Adaptor 1 pc
Serial Cable 1 pc
Power Cable 1 pc
Monitor towel 1 pc
