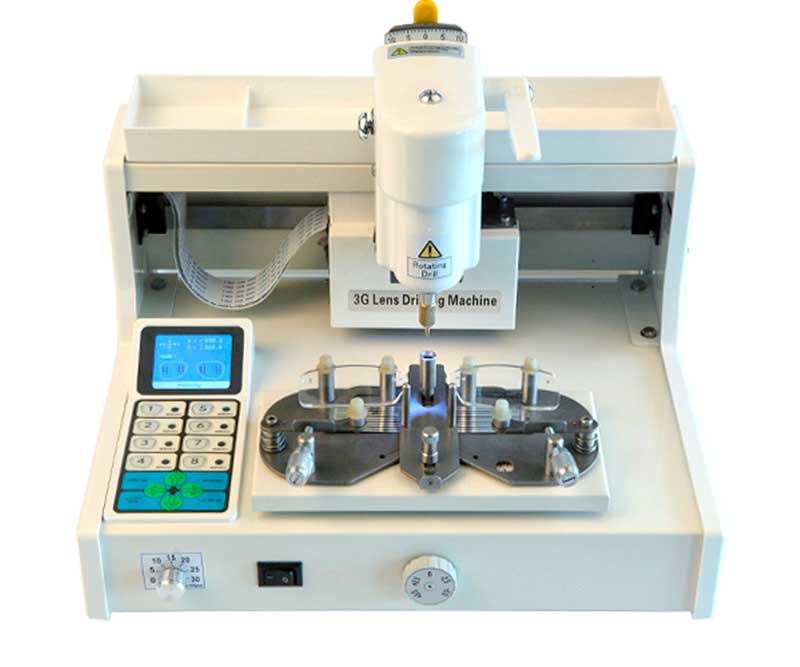

ARGO ADM001-D (DIGITAL DRILLING MACHINE)

Features

  • The operation procedures are highly intelligent and totally digital.
  • Compared to the hole position of the pattern lenses, it has higher process accuracy whose process deviation is less than 0.075mm in both X-axis and Y-axis.
  • It has auto position clamping equipment which allows to remain the same process accuracy after the change of clamps.
  • The screen shows the drill position and coordinates data, and gives guidance to the operation.
  • The hole position memory function allows to process the set hole positions continuously.
  • There’re two measure modes to choose which are original pattern measure mode and frame position measure mode.
  • It has mirroring mode in the process.
  • The head can automatically reposition if it’s removed from its position accidently.
  • The instrument drills automatically in a set order, and can be corrected by pressing the number button if any hole is missed by wrong operation.

Specifications

  • Voltage: AC100~240V DC24V
  • Power: 50W
  • Drilling speed: 0~5000RPM
  • Permissible variation of drill non-concentricity: 0.03mm
  • Max X-axis moving range: 155mm
  • Max load of X-axis movement: 50KGS
  • Max Y-axis moving range: 38mm
  • Max load of Y-axis movement: 30KGS
  • Max pickup of clutch: 1.5KG
  • Resolution of encoder resolution: <0.07mm
  • Dimension: 302*228*270mm
  • Weight: 5KGS
