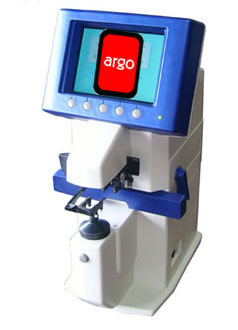

ADL2500

Function

Pupil Distance+Pupil Height+Thermal Printer+UV Tester

Main Technology Parameters

  • Sphere: 0-± 25D unit (0.01/0.12/0.25D steps)

    Measuring range

           Accuracy

    <0D?>=-5D

        >0D?<=+5D

       ±0.06

          <-5D?>=-10D

        >+5D,  <=+10D

       ±0.09

          <-10D?>=-15D

        >+10D?<=+15D

       ±0.12

          <-15D?>=-20D

        >+15D?<=+20D

       ±0.18

          <-20D

        >+20D

       ±0.25

  • Cylinder: 0-± 10D unit (0.01/0.12/0.25D steps)
  • Axis: 0°-180° unit (1° step)
  • Add: 0-± 10D unit (0.01/0.12/0.25D steps)
  • Prism: 0-± 10? unit (0.01?/0.12?/0.25? steps)

             Measuring range

                 Accuracy

              >0??<=5?

                  0.1?

              <5??<=10?

                  0.2?

  • PD Measuring range: 40-95mm unit 0.5mm
  • Lens Diameter: Max.approx.120mm
  • Display LCD Monitor: 320*240 with back light (black/white)
  • Printer: Thermal printer
  • Power supply: AC100W 50/60HZ 40VA
  • Dimensions: 200(W)X420(H)X2900(D) mm
  • Weight: 7kg
  • Contact Lenses: 0 to ± 25D, BC 6.00 to 9.00
  • Reading Resolving Power: 0.01DMulti-beam type: Double-beam, tri-beam, progressive multi focus
  • Contact Lens Type: hard and soft contact lens.
  • HighRefraction ratio Lens Compensation: Abbe value 20-60
  • Cylinder Mode: -/MIX/+
  • Prism Mode:
    • X-Y: Cartesian Coordinates H: I,O; V: U,D.
    • P-B: Polar Coordinates ?.
    • M-M: mm expression.
    • Measurable: 10% and over
    • Atmospheric Pressure: 700-1060 hpa
    • Altitude: Up to 2000m
  • Humidity:
    • 30-85% (Non-condensing)(in usage)
    • 10-95%(in storage/transference)
  • Reading resolving power: 0.01D
  • PD Measuring
  • Lens diameter Measuring
  • Multi-beam type: double-beam, tri-beam, progressive multi focus.
  • Contact Lens type : hard and soft contact lens
  • High Refraction ratio Lens Compensation: ABBE value 20-60
  • Measurable :10% and over? transmissivity (20% and over at ±15D to ±25D)
  • Contact lenses: 0?±25D?BC 6.00 to 9.00
  • Lens diameter: Max.approx.120mm
  • Display: Full graphic 320*240LCD with back light(Black/White)
  • Menu: Both Chinese and English, Readable Diagram
  • Power source: 100-120V~/200-240V~changeable 50 or 60Hz (Main supply voltage fluctuation not to exceed ±10% of the nominal voltage)
  • Power consumption?40W
  • Weight: 7Kg
  • Dimensions: 200(W)×420(H)×290(D)
  • Environmental condition:
    • Temperature: 5-40?(In usage) -20-60?(In storage/transference)
    • Humidity: 30-85%(Non-condensing)(In usage) 10-95% (In storage / transference)
    • Atmospheric pressure: 700-1060 hpa
    • Altitude: Up to 2000m
    • Others: No harmful dust or smoke
