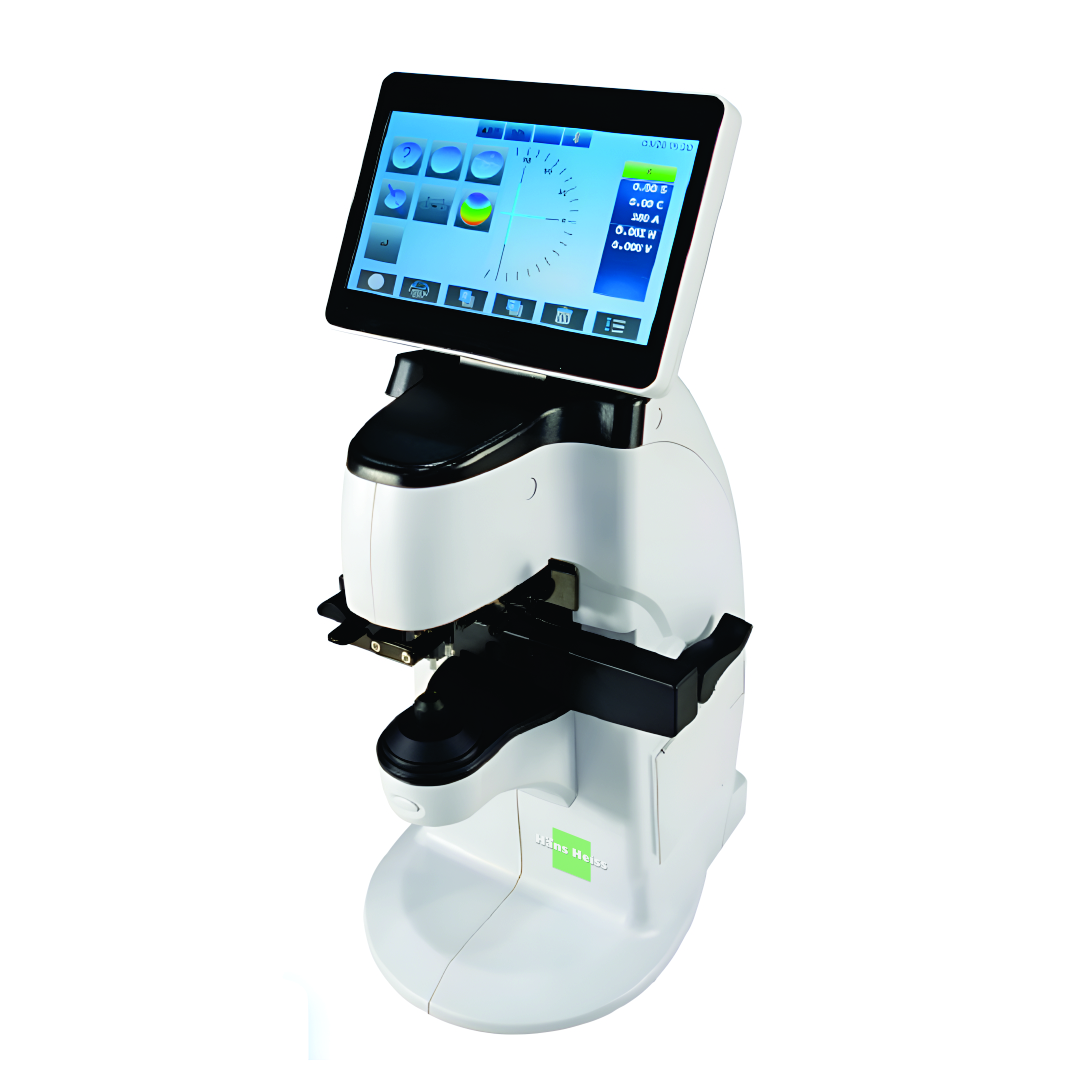

HLM-6037 Auto Lensmeter - Hans Heiss

HLM-6037 Auto Lensmeter

Auto Lensmeter HLM-6037

Use the map function, we could easily get a visual topographic map of the power ranges for single vision lens or progressive lens. When a progressive lens is without any marked areas, we can also use this function to identify the direction of progressive lens corridor, then know the positions of the distance area and near area, The working areas of progressive lenses can be intuitively displayed to customers.

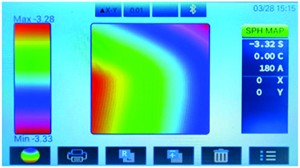

Diopter Distribution Map

7-inch Flip, open-frame capacitive Touch Screen

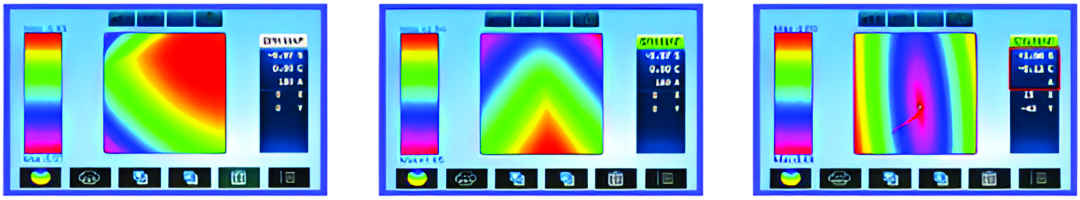

Sphere & Cylinder Map

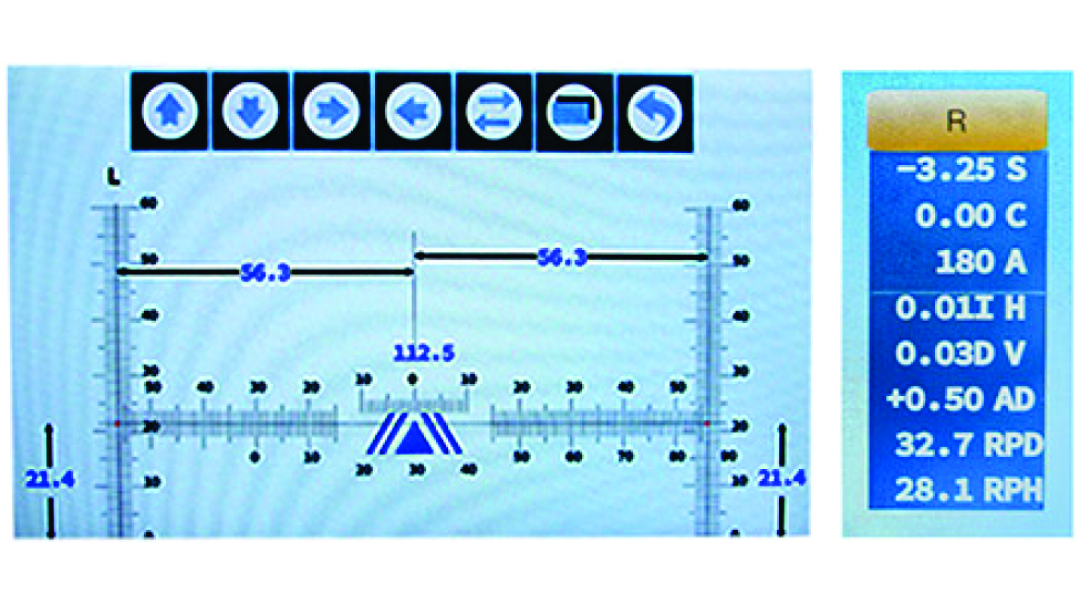

Digital & Mechanical PD & PH Ruler

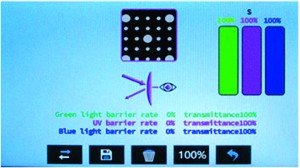

GL, UV & BL Transmittance
Specifications: HLM-6037

Measurement Range

Sphere -40.00 D ~+ 20.00 D
Cylinder 0 ~ ± 10.00 D
Axis 0° ~ 180° (1° Steps)
ADD 0 ~ 10.00 D
Prism 0 ~ 10 Δ

Minimum Measuring Value

Diopter 0.01 / 0.12 / 0.25 D
Prism 0.01 / 0.12 / 0.25 Δ

Other Information

Cylinder + / ± / -
Prism X-Y / P-B
Measure Speed 0.05 S
Light Source Wavelength 525 nm
UV Wavelength 400 nm
Blue Light Wavelength 425 nm
Lens Diameter 18 - 100 mm
Display 7-inch (1024*600) True color capacitive touch screen
Printer Thermanl Printer
Data Connection RS232, Bluetooth, BLE SPP
Size 235(L) * 192(W) * 436 (H) mm
Weight 3.7 Kg
Power Supply 110V -240V / 50Hz - 60Hz
Power 5V 6A
