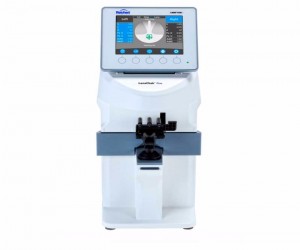

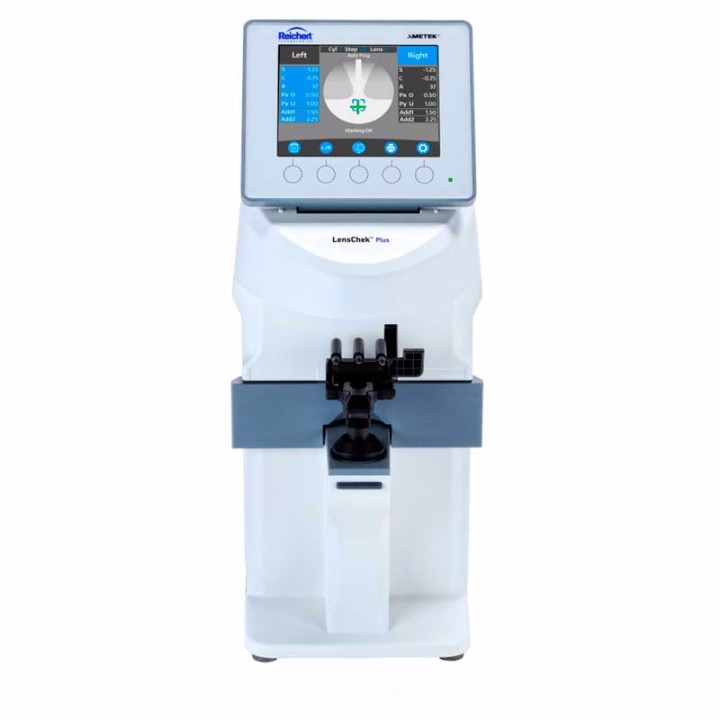

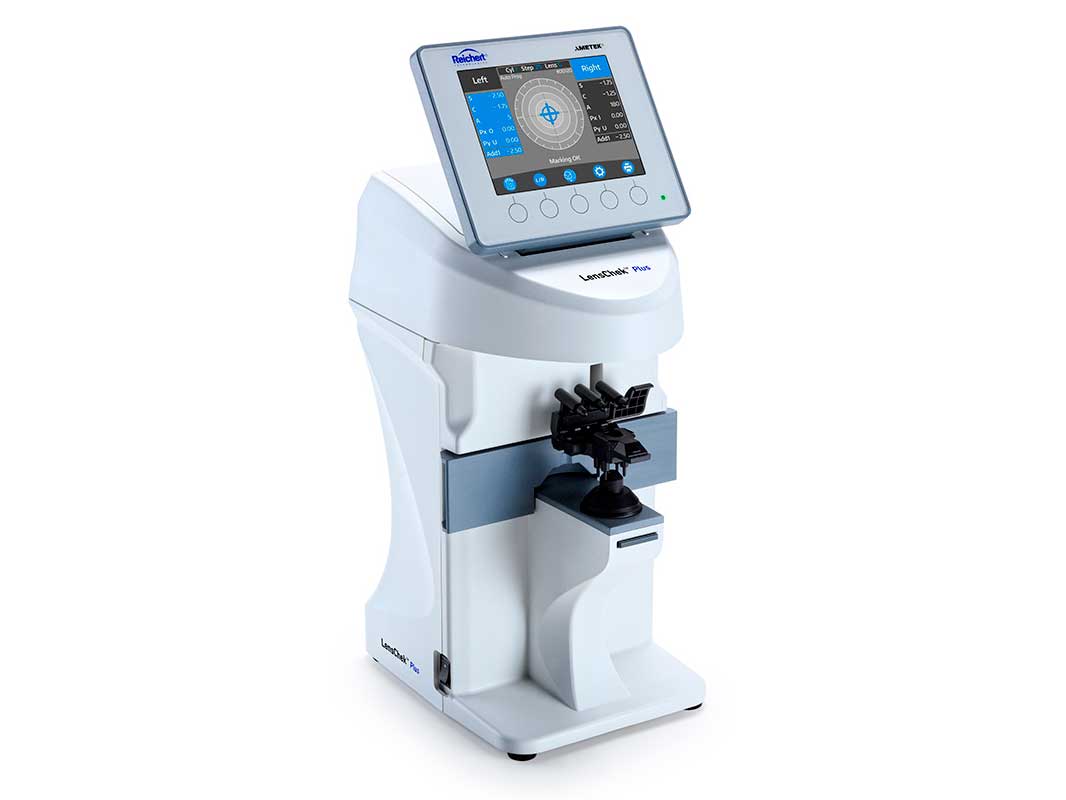

LensChek™ Plus - Digital Lensometer®

Digital Lensmeter Inquiry About this product

The all-new LensChek™ Plus Digital Lensometer®, part of the VisionChek™ Digital Exam Suite, combines technology with simplicity at the core of your exam. The new, compact, modern design and intuitive user interface of the LensChek Plus Digital Lensometer offers the easiest lensmeter user experience available. For example, when the target is aligned with the correct optical center, readings can be automatically “locked-in” ensuring fast, repeatable, and reliable lens measurement.

Combines technology, simplicity and value
Compact, modern design

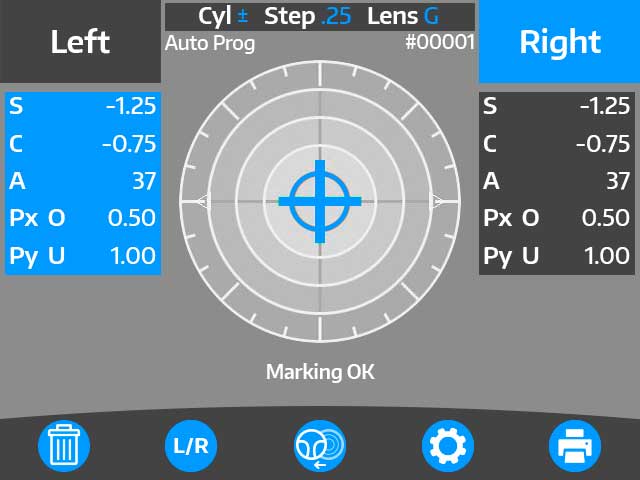

Intuitive user interface
Brilliant 5.7 inch color LCD display
Utilizes green measurement light

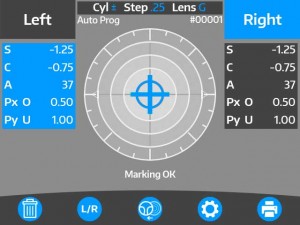

Automatically lock-in measurement when optical center is aligned

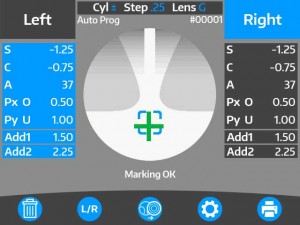

Measures single vision, bi-focal/tri-focal, and progressive lenses

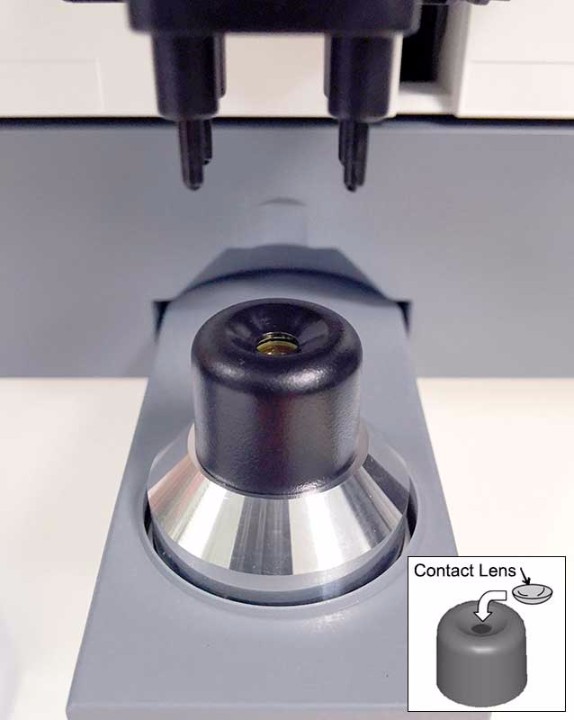

Hard and soft contact lens measurement mode
Data output options: built-in printer and serial RS-232C port for connecting to EMR/EHR and other devices

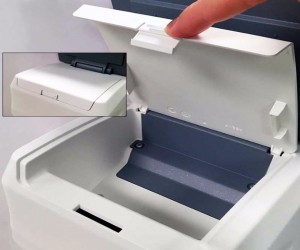

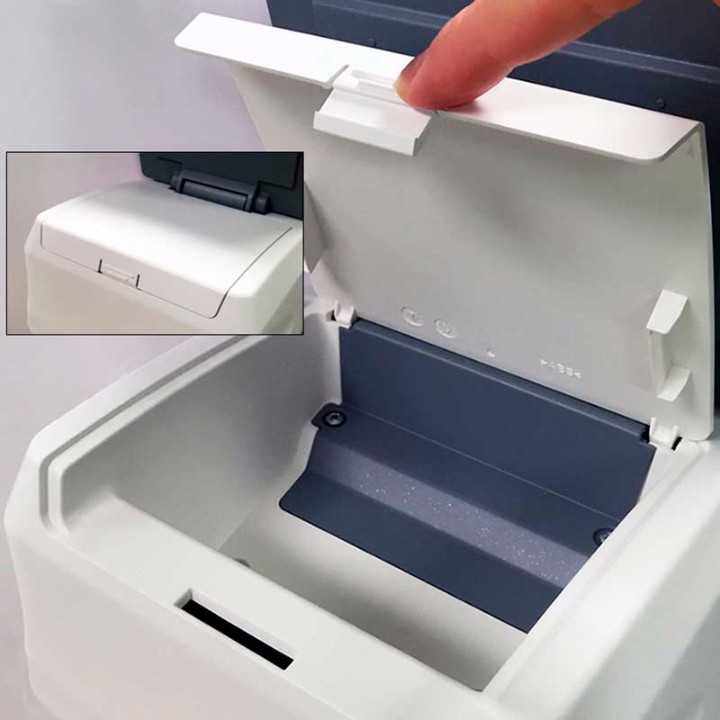

Built-in storage compartment for extra printer paper or accessories
Measurement range:
Sphere: -25 D to +25 D
Cylinder: 0 D to ±10 D
Axis: 0° to 180°

	LensChek Plus	LensChek Pro
Auto Lens Detection	•	•
Modern and Compact Design	•	•
Full-Color 5.7” LCD Screen	•	•
Measures Soft & Hard Contact Lens	•	•
Marking Pens	•	•
Green Measurement Light	•	•
Internal Thermal Printer	•	•
RS-232C Serial Port	•	•
Auto Left and Right Lens Detection		•
PD Measurement - Monocular		•
PD Measurement - Binocular		•
UV Transmittance		•

Specifications: LensChek Plus

Specifications

LensChek™ Plus - Digital Lensometer® Specifications:

Catalog Number: 15180

Refractive Measurement Range:
Sphere: -25D to +25D (Step: 0.01D, 0.12D, 0.25D)
Cylinder: 0D to ± 10D (Step: 0.01D, 0.12D, 0.25D)
Axis angle: 1 to 180° (Step: 1°)
Addition: 0D to 10D (Step: 0.01D, 0.12D, 0.25D)
Prism: 0 to 10° (Step: 0.01D, 0.12D, 0.25D)
Lens Power Measuring Wavelength: 630 nm

Measureable Lens:
Unprocessed (Diameter: 100mm) and Framed Lens
Single, Multifocal, Progressive lens
Single Focus Hard and Soft Contact Lens (use Contact Lens Stand)

Measurement Accuracy:
Sphere: 0D to ± 10D = ±0.25D, else 0.50D
Cylinder: ±0.25D

Printer: Thermal line printer (Paper width: 58 mm)

Port: Serial RS-232C port for connecting to EMR/EHR and other devices

Internal Display: 145 mm (5.7 inches) color LCD monitor

Size:
Weight Unpacked: 4.7 Kg (10.35 lbs)
Display Up: 46.7 cm (18.4 in)
Display Down: 41.9 cm (16.5 in)
Width: 18.4 cm (7.3 in)
Depth: 22.9 cm (9.0 in)
Color LCD Monitor: 12.1 x 8.9 cm (4.75 x 3.5 in.)

Electrical:
Input Power: 100 to 240V @ 50/60Hz, 60 VA
Fuse: T2AL 250V, 5x20mm, RoHS
Bluetooth Power Source: 5V DC ± 5% @ 200 mA (typical)
