One vision, Two sharp eyes with Our Innovation

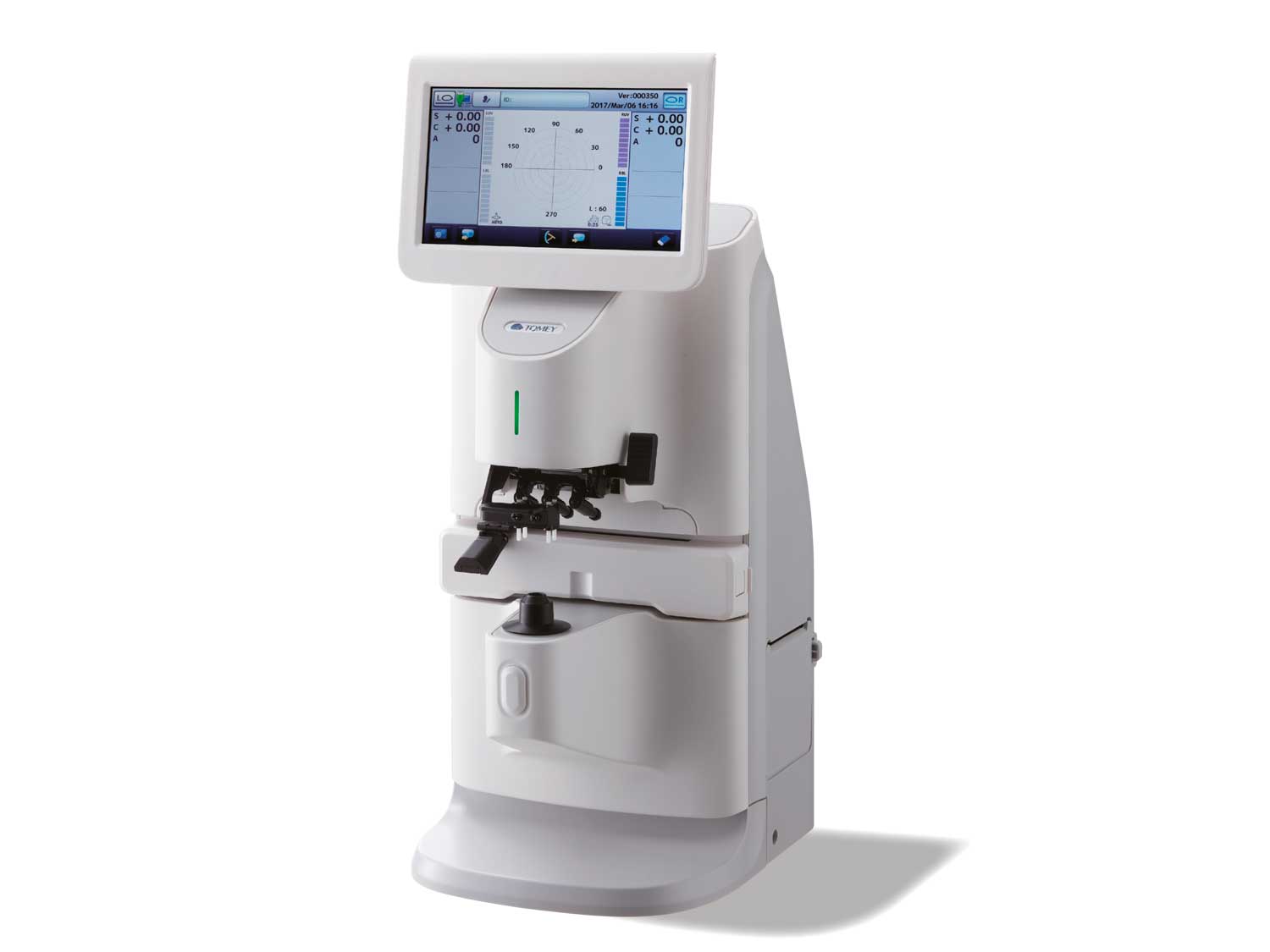

Using 117 point Hartmann sensor wavefront technology in the TL-7000/6000, measurement accuracy of vertically narrow progressive lenses has markedly improved.
By emitting measurement light, UV light (375nm) and Blue light (465 nm) simultaneously, it is possible to check UV/Blue light transmittance as well as conduct power measurements.
Displaying the grid patterns on the screen will help recognition of lens marks. Grid patterns are selectable.
|Spherical power (SPH)||+/- 25D|
|Cylindrical power (CYL)||+/- 10D|
|Axial angle (AXIS)||0 to 180 degrees|
|Additional power||-2 to +10D|
|Prism power||0 to 15 △|
|Diameter of the lens||φ20 to 120 mm
more than φ5mm for CL
|Pupillary Distance||40 to 86 mm (step:0.5mm)
(for TL-7000 only)
|Measurement Object||Spectacle lens, Contact lens, Optical lens|
|Transmittance of UV||The peak of the wavelength is 375nm|
|Transmittance of Blue light||The peak of the wavelength is 465nm|
|Display||7-inch-wide color TFT with touch panel|
|Printer||Thermal printer, Paper width 58mm|
|External communication port||RS-232C, USB3.0, Ethernet|
|Dimensions and Power Source|
|Dimensions (when LCD is tilted)||188(W) x 240(D) x 430(H) mm|
|Weight||Approx. 5.5kg (12.1lb)|
