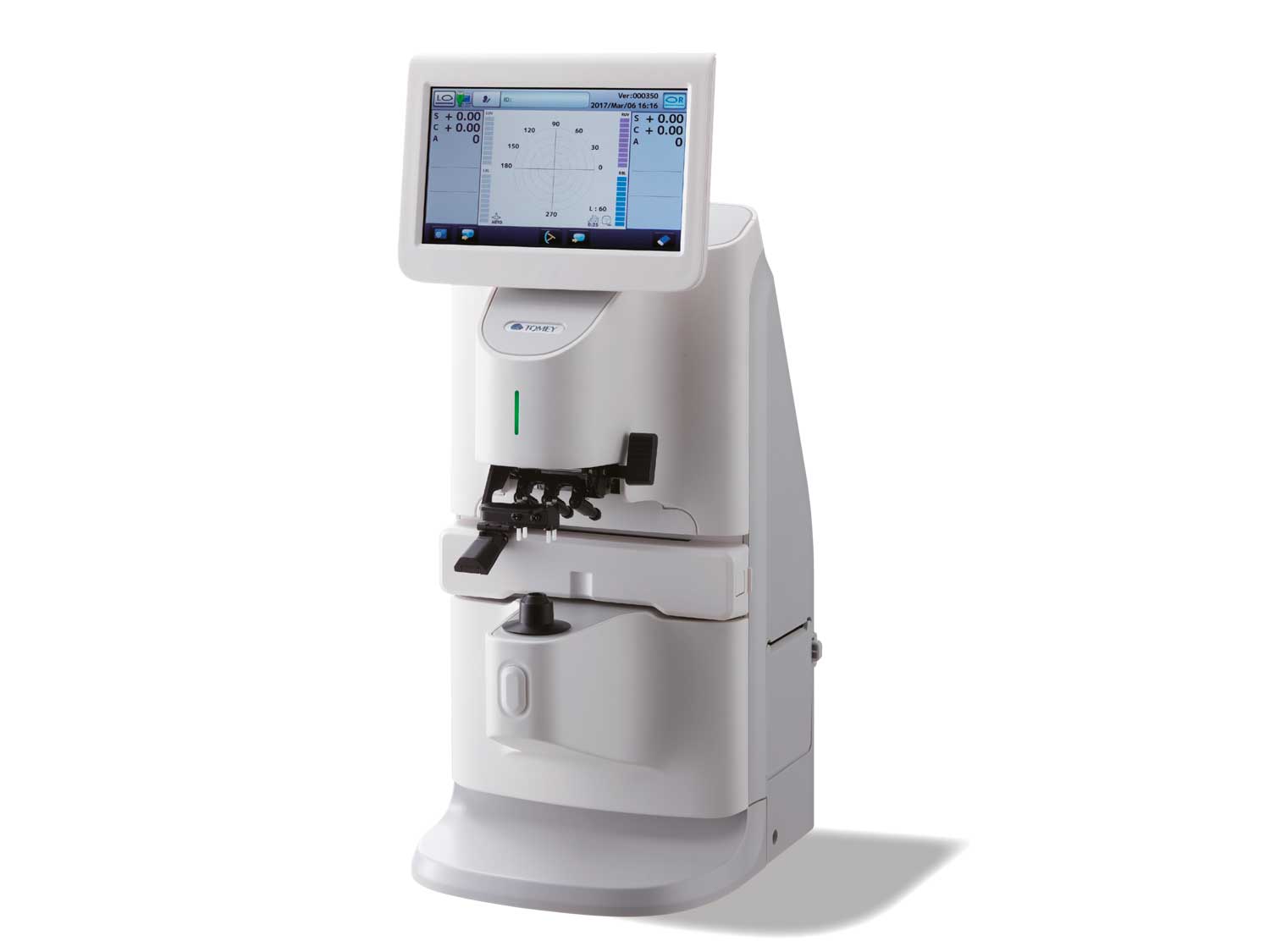

Auto Lensmeter TL-7000

One vision, Two sharp eyes with Our Innovation

Auto Lensmeter Precise measurement using new measurement technology

  • Hartmann sensor wavefront technology
  • UV/Blue light measurement
  • Lens mark recognition support

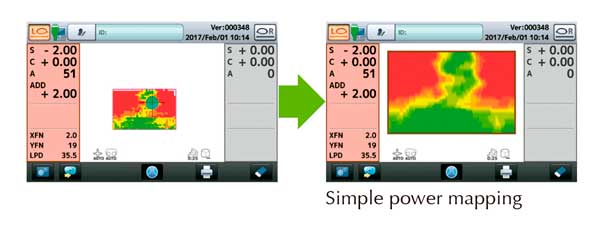

  • Simple power mapping (TL-7000 recommended)
  • LAN and RS-232C connection

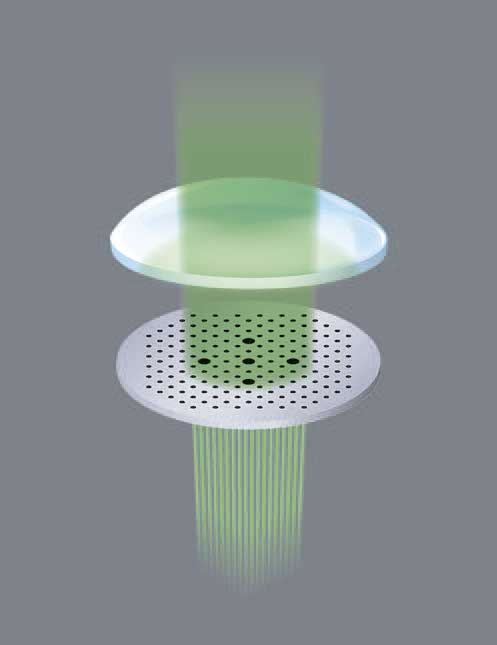

Wavefront technology with Hartmann sensor (117 points)

Using 117 point Hartmann sensor wavefront technology in the TL-7000/6000, measurement accuracy of vertically narrow progressive lenses has markedly improved.

Simultaneous measurement of UV/Blue light and power

By emitting measurement light, UV light (375nm) and Blue light (465 nm) simultaneously, it is possible to check UV/Blue light transmittance as well as conduct power measurements.

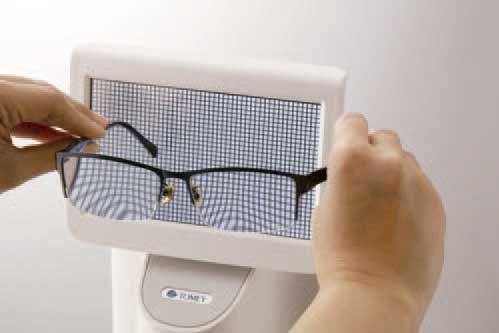

Lens mark recognition support

Displaying the grid patterns on the screen will help recognition of lens marks. Grid patterns are selectable.



LAN and RS-232C connection

Output the measurement data from each port of LAN and RS-232C.

Specifications: TL-7000

SPECIFICATIONS (other than specified items, specs are exactly the same)

Measurement Range
Spherical power (SPH) +/- 25D
Cylindrical power (CYL) +/- 10D
Axial angle (AXIS) 0 to 180 degrees
Additional power -2 to +10D
Prism power 0 to 15 △
Increment
Diopter 0.01/0.06/0.12/0.25D
Prism 0.01/0.06/0.12/0.25△
Wavelength 535nm
Diameter of the lens φ20 to 120 mm
more than φ5mm for CL
Pupillary Distance 40 to 86 mm (step:0.5mm)
(for TL-7000 only)
Measurement Object Spectacle lens, Contact lens, Optical lens
Transmittance of UV The peak of the wavelength is 375nm
Transmittance of Blue light The peak of the wavelength is 465nm
Display 7-inch-wide color TFT with touch panel
Printer Thermal printer, Paper width 58mm
External communication port RS-232C, USB3.0, Ethernet
Dimensions and Power Source
Dimensions (when LCD is tilted) 188(W) x 240(D) x 430(H) mm
Weight Approx. 5.5kg (12.1lb)
Voltage AC 100V-240V
Frequency 50/60Hz
Power Consumption 40-50VA
