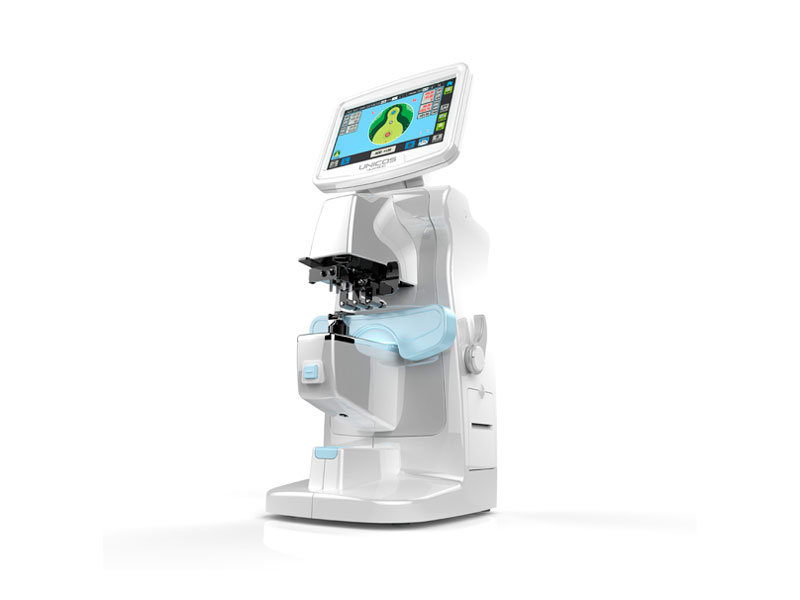

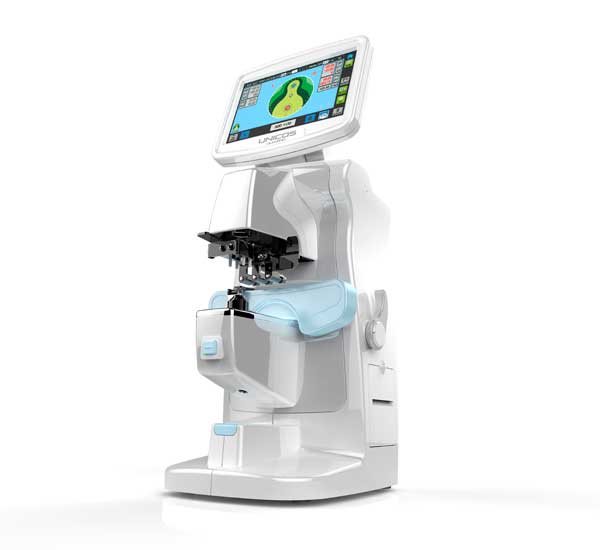

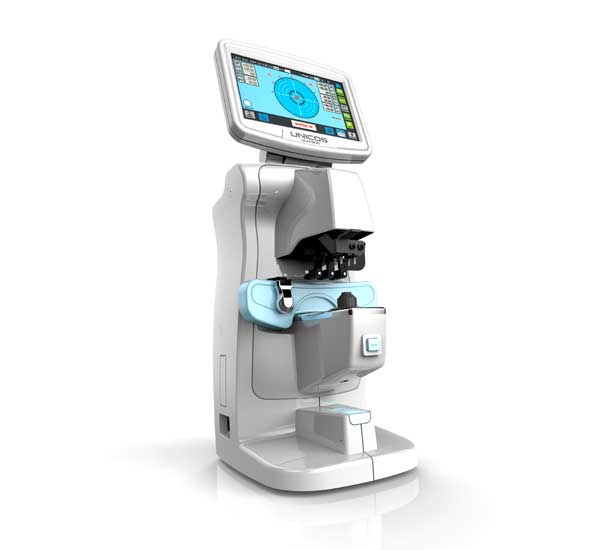

Auto Lensmeter ULM-800

The UNIQUE of UNICOS Lensmeter.

ULM-800 meets requirements of market with UNICOS’ High Technology and Modern Design. It serves quick response and reliable data to be a maximized satisfaction for user convenience.

LCD Rotated 110 °

7″ Color & Full Graphic LCD

Normal Lens Measurement, Progressive lens Measurement, UV Measurement and PD.

Specially designed chips back up more clear graphic user interface, noticeable icons.

Serve a convenient use-environment for user with intuitive and familiar UI and Touch Screen.

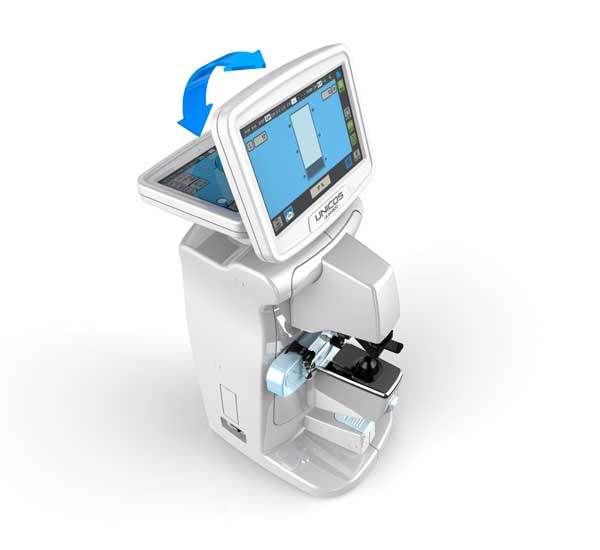

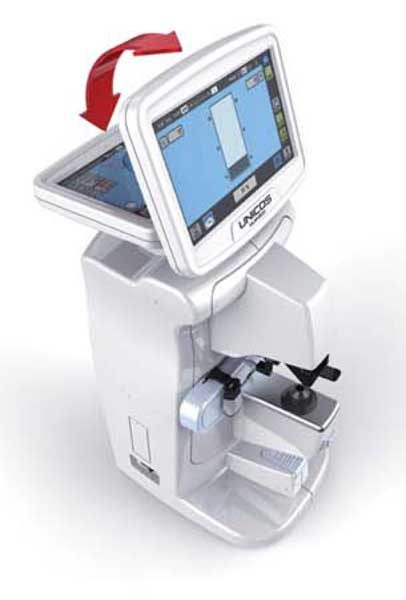

110° Tilted Full Touch Monitor Display

LCD monitor with 7 inch Full-Color Touch Panel is designed to view till 110° for user convenience.

It allows noticeable icons and Intuitive and familiar GUI provide an efficient operation without a specialized knowledge.

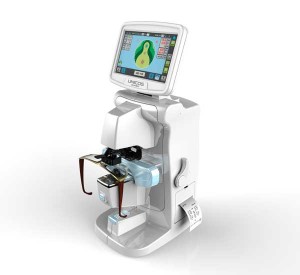

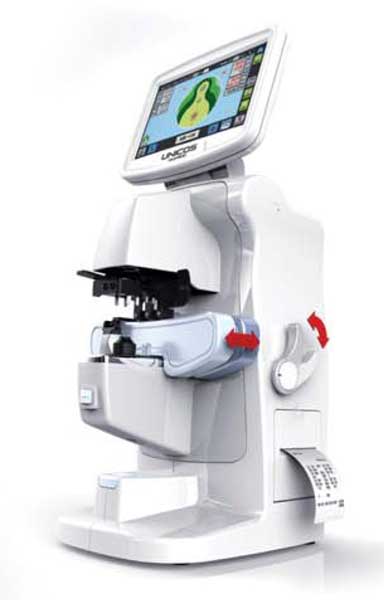

Compact Lens Table

Compact lens table allows an accurate and a stable measurement for a small-sized glasses, a children’s glasses, high curved glasses and so on without any interference.

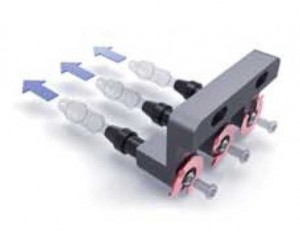

Marking Device ( Ink Cartridge )

Long-lasting & Accurate representation.

Compact Lens Table

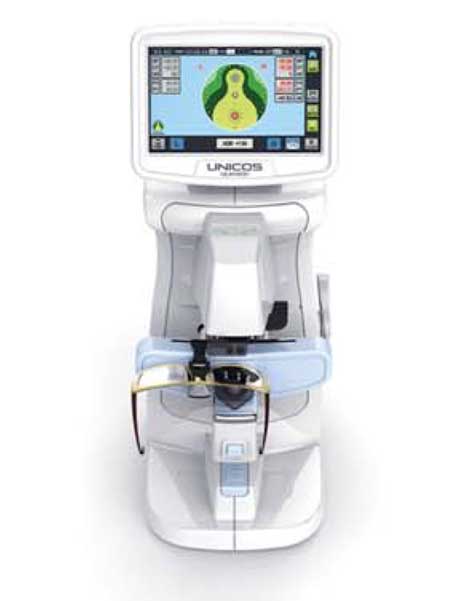

Measurement

Cleaner and wider screen with 7 inch Full-Color LCD Touchscreen.

It serves wide measurement range (-25D ~ +25D) and could measure Refraction.

Astigmatism and Prism at the same time. Progressive lens, Bifocal lens, Trifocal lens, Hard contact lens, Soft contact lens are measurable.

Single vision lens or Progressive lens could be detected automatically and switched quickly to corresponding measurement mode to measure various lenses without adjusting ABBE number.


UV Measurement

UV penetration ratio could be measured simply and accurately by easy operations and shows a result in the range of 0% to 100% for a various lenses including sunglasses.


High-Speed printer & Compatibility

High-Speed printer shows necessary data to user.

ULM-800 could be easily compatible with all of UNICOS’ products.


Outstanding Features

  • 7” Full-color touch LCD : High-definition, simple GUI and various image for each function
  • Convenient function for LCD monitor : 110° tilted monitor display for user convenience and easy operation without expert knowledge
  • Wide measurement range and measurement for various lenses such as Progressive lens, Bifocal lens, Trifocal lens, Hard contact lens, soft contact lens and so on.( Possibility for measurement of various lenses without ABBE number)
  • Wide measurement rage => -25D~+25D
  • Measurement for REF, Astigmatism and Prism at the same time
  • Automatic Lens Recognition(Detection) : Automatic recognition for Single vision, Progressive and other lenses and automatic change to corresponding measurement mode.
  • Wireless system by Bluetooth : It allows perfect data transmission with URK-900F and URK-800F and UDR-800 regardless of working environment.
Specifications: ULM-800
Measurement Range
Spherical Power(SPH) -25.00 ~ +25.00D (VD 12mm)
Increments: 0.01/0.06/0.12/0.25D
Cylinderical Power(CYL) 0.00 ~ ±10.00D
Increments: 0.01/0.06/0.12/0.25D
Form : -/+/+-
Axis 1 ~ 180˚
Increments: 1˚
Addition Power 0.00 ~ +10.00D
Increments: 0.01/0.06/0.12/0.25D
Prism Power 0.00 ~ 10.00∆
Increments: 0.01/0.06/0.12/0.25∆
Form : OFF/X-Y/P-B
Applicable lenses
Applicable Lens type Single lens / double focal lens / Three focal lens / progressive multifocal lens
Hard contact lens / Soft contact lens (a special accessory is required respectively)
Lens diameter 000 ~ 100mm
Note
Data Out RS-232C
Internal Printer Thermal printer
Display 7.0 inch TFT COLOR LCD Monitor, Touch
Operation environment Temperature : +10℃ ~ +40℃
Humidity : 30% ~ 90% RH
Atmospheric pressure range : 70 kPa ~ 106 kPa
Shock (without packaging) : 10g / 6ms
Storage and environmental condition Temperature : -40℃ ~ +70℃
Humidity : 10% ~ 95% RH
Atmospheric pressure range : 50 kPa ~ 106 kPa
Shock : 30g / 6ms
Permanent shock : 10g / 6ms
Oscillate(sine curve) : 10Hz ~ 500Hz, 0.5g
Power supply AC100V ~ 240V. 50/60Hz
Power consumption 25 ~ 50VA
Dimension 175mm(W) x 255.5mm(D) x 478mm(H)
Weight 5.25kg
