Auto Lensmeter ULM-800A - UNICOS

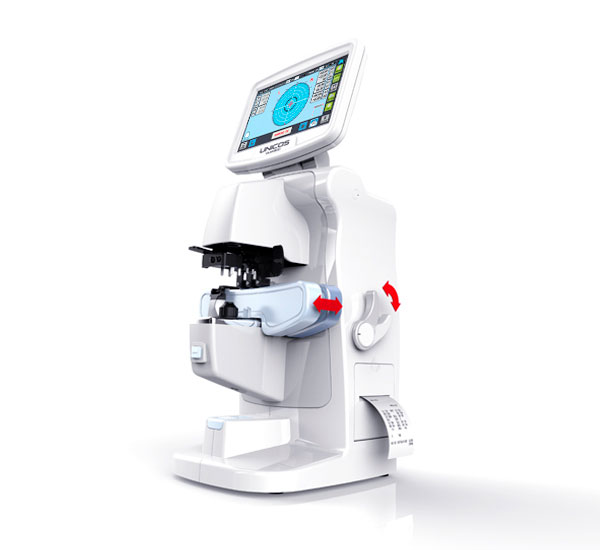

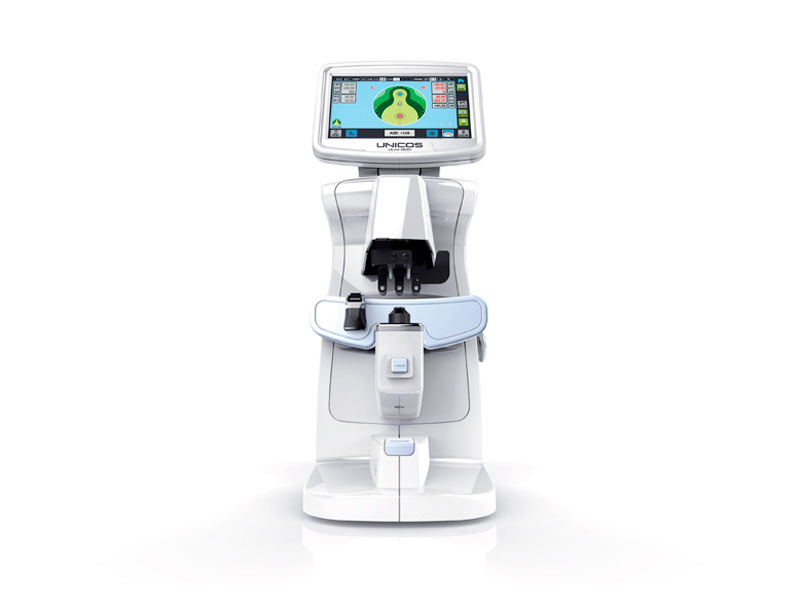

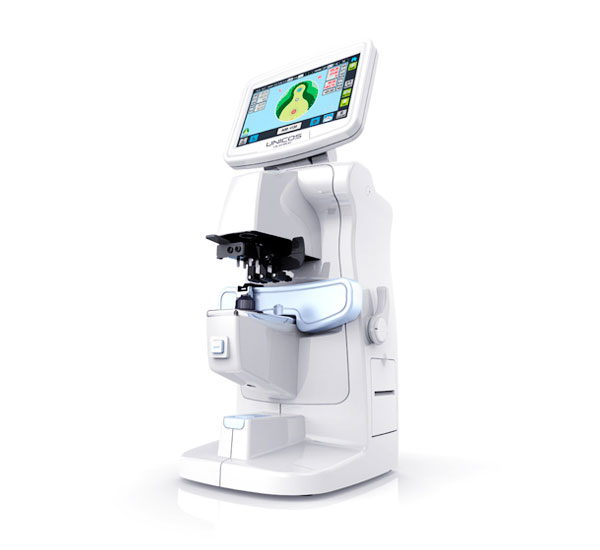

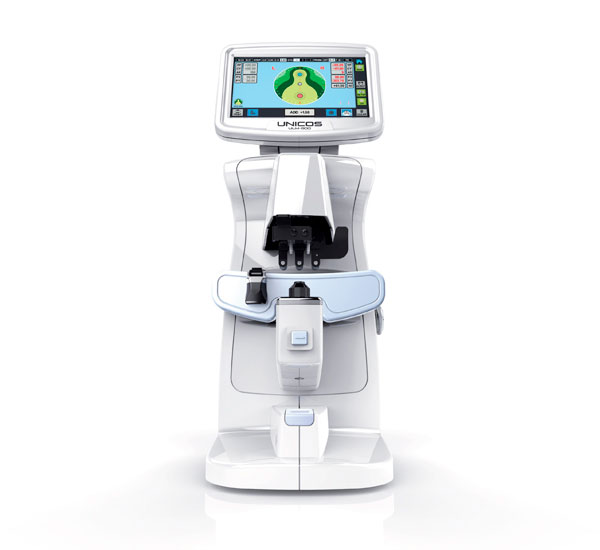

Auto Lensmeter ULM-800A

(Full option , with PD(LCD) and UV Function)

More intuitive and simple GUI

More accurate Measurement

Simple and convenient user’s environment Deliver more convenient user environment with wide viewed 7.0" TFT COLOR LCD screen and with simple and intimate design.

Easy Connection with other Equipment

ULM-800 could be connected with other equipment such as URK-900F and URK-800F and UDR-800.

Outstanding Features

  • 7” Full-color touch LCD : High-definition, simple GUI and various image for each function

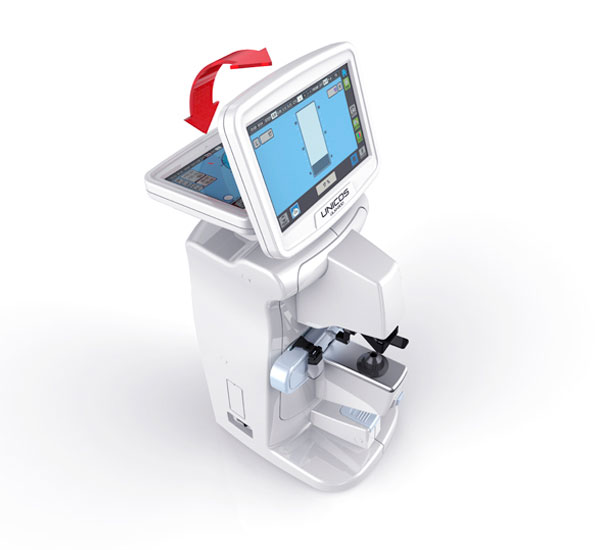

  • Convenient function for LCD monitor : 110° tilted monitor display for user convenience and easy operation without expert knowledge
  • Wide measurement range and measurement for various lenses such as Progressive lens, Bifocal lens, Trifocal lens, Hard contact lens, soft contact lens and so on.( Possibility for measurement of various lenses without ABBE number)
  • Wide measurement rage => -25D~+25D
  • Measurement for REF, Astigmatism and Prism at the same time
  • Automatic Lens Recognition(Detection) : Automatic recognition for Single vision, Progressive and other lenses and automatic change to corresponding measurement mode.
  • UV measurement : Without compensation of UV transmittance, simple and accurate UV measurementt
  • Wireless system by Bluetooth : It allows perfect data transmission with URK-900F and URK-800F and UDR-800 regardless of working environment.
Specifications: ULM-800A
Measurement Range
Spherical Power(SPH) -25.00 ~ +25.00D (VD 12mm)
Increments: 0.01/0.06/0.12/0.25D
Cylinderical Power(CYL) 0.00 ~ ±10.00D
Increments: 0.01/0.06/0.12/0.25D
Form : -/+/+-
Axis 1 ~ 180˚
Increments: 1˚
Addition Power 0.00 ~ +10.00D
Increments: 0.01/0.06/0.12/0.25D
Prism Power 0.00 ~ 10.00∆
Increments: 0.01/0.06/0.12/0.25∆
Form : OFF/X-Y/P-B
Applicable lenses
Applicable Lens type Single lens / double focal lens / Three focal lens / progressive multifocal lens
Hard contact lens / Soft contact lens (a special accessory is required respectively)
Lens diameter 000 ~ 100mm
Note
Data Out RS-232C
Internal Printer Thermal printer
Display 7.0 inch TFT COLOR LCD Monitor, Touch
Operation environment Temperature : +10℃ ~ +40℃
Humidity : 30% ~ 90% RH
Atmospheric pressure range : 70 kPa ~ 106 kPa
Shock (without packaging) : 10g / 6ms
Storage and environmental condition Temperature : -40℃ ~ +70℃
Humidity : 10% ~ 95% RH
Atmospheric pressure range : 50 kPa ~ 106 kPa
Shock : 30g / 6ms
Permanent shock : 10g / 6ms
Oscillate(sine curve) : 10Hz ~ 500Hz, 0.5g
Power supply AC100V ~ 240V. 50/60Hz
Power consumption 25 ~ 50VA
Dimension 175mm(W) x 255.5mm(D) x 478mm(H)
Weight 5.25kg
