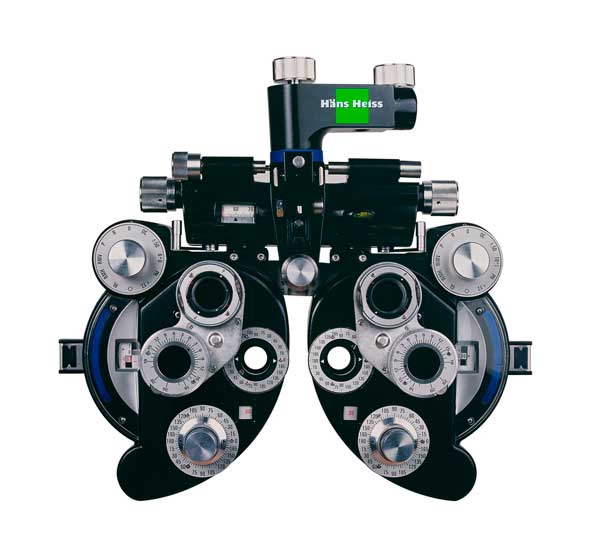

Vision Tester HMR-8005 - Hans Heiss

Vision Tester HMR-8005


This device is applicable to ophthalmology department of hospitals and spectacle stores for precision measurement of visual functions such as myopia, hyperopia, astigmatism, eyesight balance, heterophoria, stereoscopic vision and eyesight amalgamation.


Working Environment

The instrument should be installed and worked under such environment:

  • Temperature: 5°C-35°C
  • Humidity: below 85%RH
  • Clean indoors
  • No direct strong light
  • No vibration and collision

Size and weight

Size: 235(W)×246(D)×487(H)mm

Weight: 6kg

Other indexes

  • Display: TFT color screen
  • 800×480dots
  • Touch screen
  • Printer: Thermal printer. 57mm wide
  • Interface connectors: USB, RS-232
Specifications: HMR8005


  • Unique design of butterfly-shape appearance.
  • Capable of checking up all-sided visual functions, accurate and comfortable in measurement.
  • Exquisite manufacturing technique, with comfortable feel.
  • High grade plated-film used in all optic lenses.
Spherical power (spectacle lens) -25 m-1~+25 m-1
Cylindrical power: -9.99 m-1~+9.99 m-1
ADD power -9.99 m-1~+9.99 m-1
Spherical power(contact lens) -20 m-1~+20 m-1
Dioptor step 0.01 m-1 .0.06 m-1 .0.12 m-1 0.25m-1
Axis 0~180° Increment: 1°
Prism basal angle 0~360° Increment: 1°
Prism power 0~20 cm/m (horizontal direction) Increment:0.01cm/m
0~20cm/m (vertical direction) Increment:0.01cm/m
Applicable lenses φ10mm~φ90mm dia  ≤20mm center thickness
Applicable frame leg length 0~158mm
PD and PH measurement PD=42mm ~ 82mm Increment:0.25mm
PH=8mm~ 45mm Increment:0.25mm
Qualitative measurement of UV transmittance
Instrument body power DC12v 45va
Adapter Input AC110V-240V 50HZ-60HZ
Output DC12V 45VA
