Clar N Head Mirror

Medical lighting and binocular loupes Inquiry About this product

clar N Head Mirror

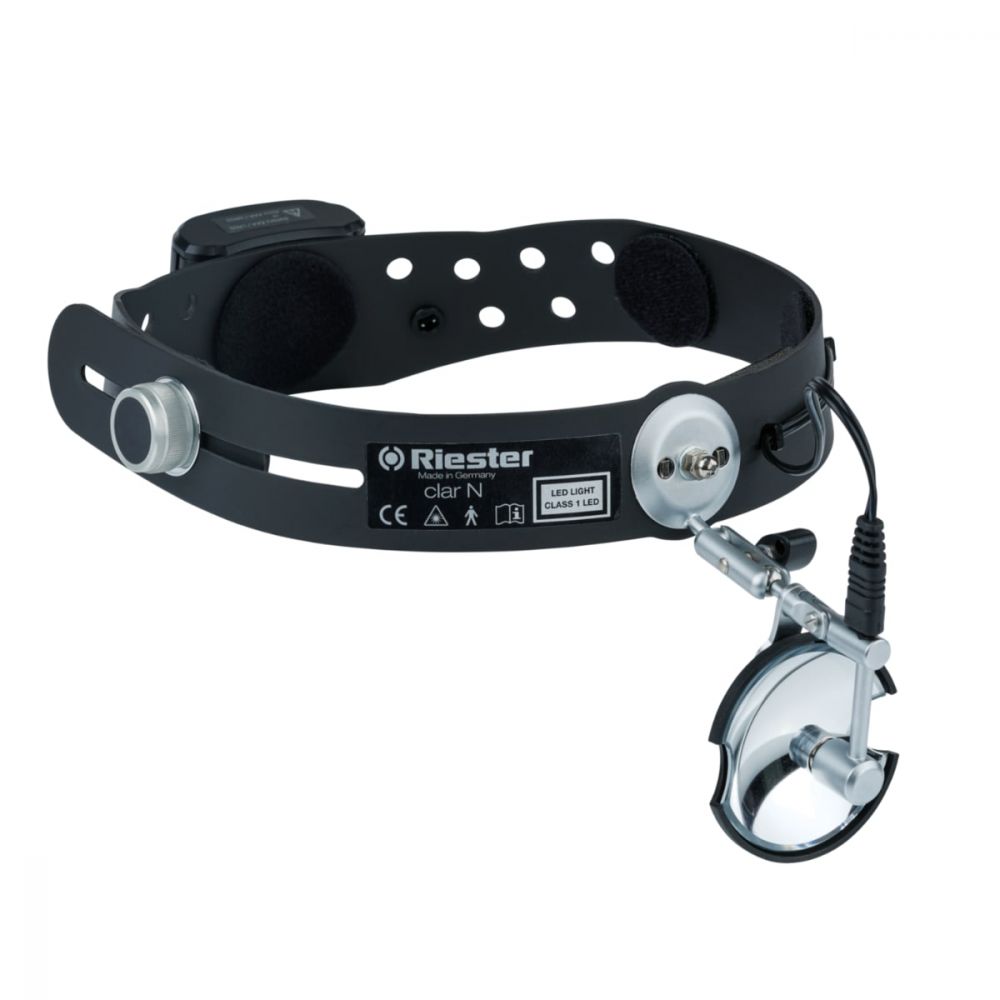

clar N is a wireless high-performance head mirror built-in battery compartment with LED lighting or 6V vacuum lamp. The headband is infinitely adjustable, offering high level of wear-comfort for practitioners without fatiguing operation even after long periods of use. The removable inner pad is washable for comfortable insertion and removal. The headband with integrated battery compartment can be ordered either for lithium CR 123A batteries or NiMH batteries with plug-in charger 230V / 120V.

Providing bright and cold examination light

The mirror provides in combination with LED lighting, a light extremely bright and cold, significantly less energy consumption and heat generation. The lifespan of the LED is set at 50,000 hours.

Features and benefits

One-hand operation

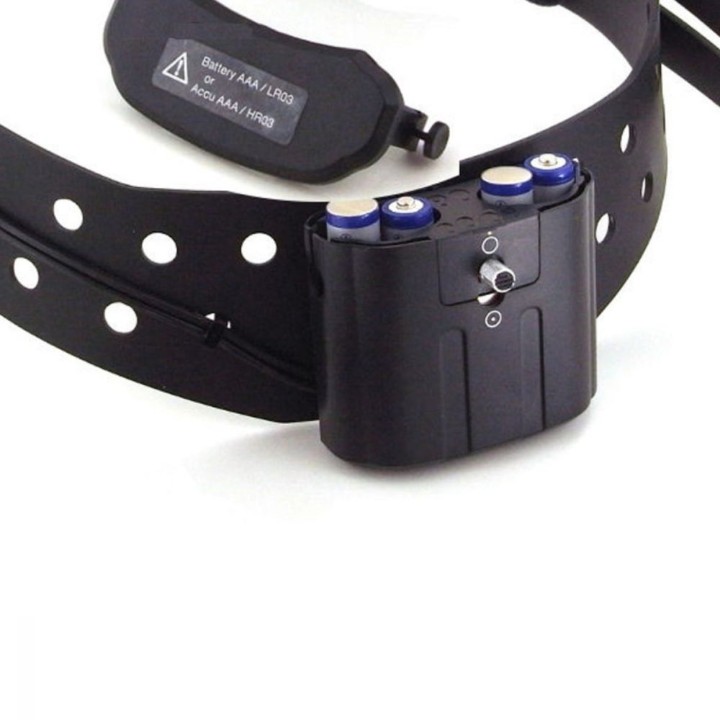

Built-in battery compartment and integral charge jack, optionally fitted with 2 lithium batteries size CR 123 A,
4 batteries size AAA (alkaline) or 4 rechargeable batteries size AAA (NiMH)
Wireless and balanced headband, cleaning made easy by inner, removable and washable padding.
Adjustable lamp holder on the mirror to focus the circle of light.
Particularly comfortable with balanced, infinitely adjustable headband.
Mirror Ø 55 mm infinitely adjustable and fixable.
On/off switch on the battery compartment.
Battery operation approx. 4 hrs. with lithium batteries, approx. 90 min. with alkaline batteries Type AAA, approx. 90 min. with rechargeable battery

Specifications: clar-n-head-mirror

Product details

Dimensions

Max. Headband diameter	approx. 200 mm
Min. Headband diameter	approx. 160 mm
Diameter mirror	50 mm
Length of mirror arm	approx. 50 mm

Weight


without batteries	209 g
with CR 123 A lithium batteries	242 g
with rechargeable AAA batteries	258 g

Lamp for clar N


Technical data of the lamp for clar N	4000 - 4200 Kelvin CRI 95 1W

Light field


Distance	400 mm / 200 mm
Lux max. LED	11.600 / 30.000
Lux max. Vacuum 6V	4000 / 7300

Further details

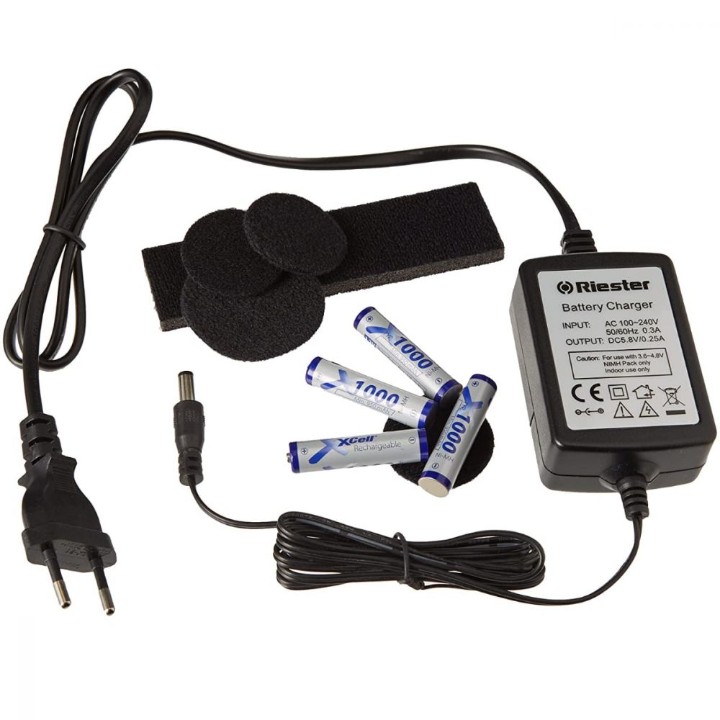

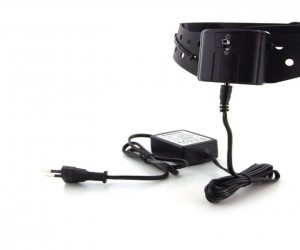

Plug-in charging device	5.8V 0.25A 50/60 Hz
Ambient temperature	0° to +40 °C
Relative Humidity	30% to 70% non-condensing
Storage/ Transport Ambient temperature	-5 ° to +50 °C
Storage/ Transport relative Humidity	10% to 85% non-condensing
