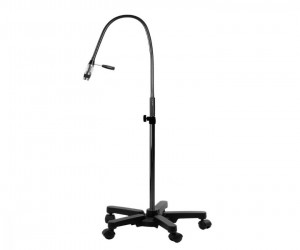

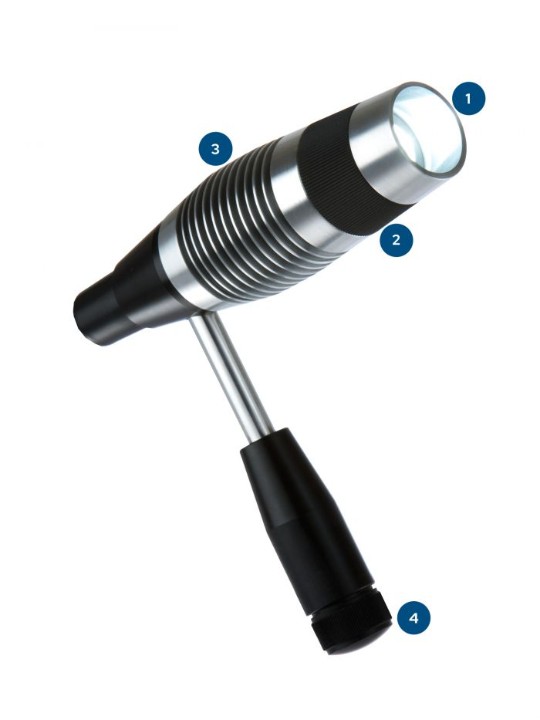

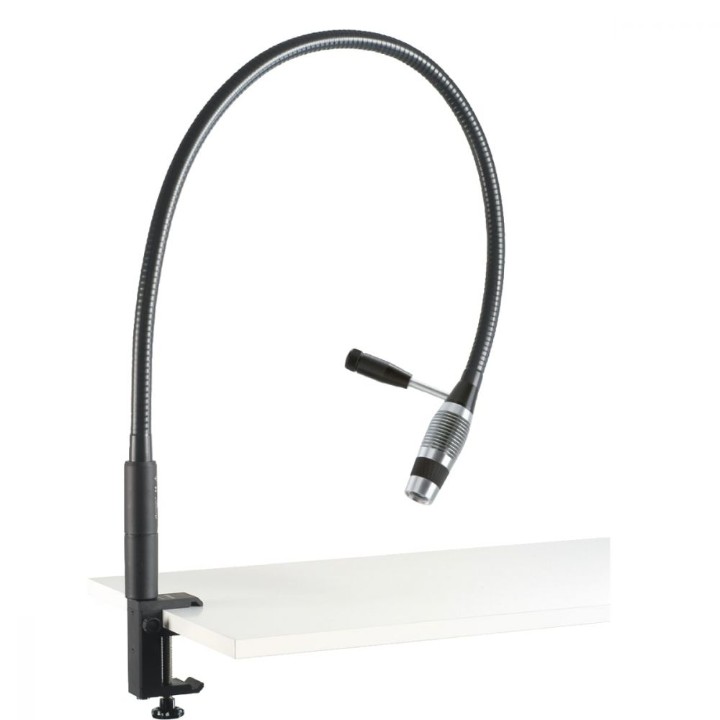

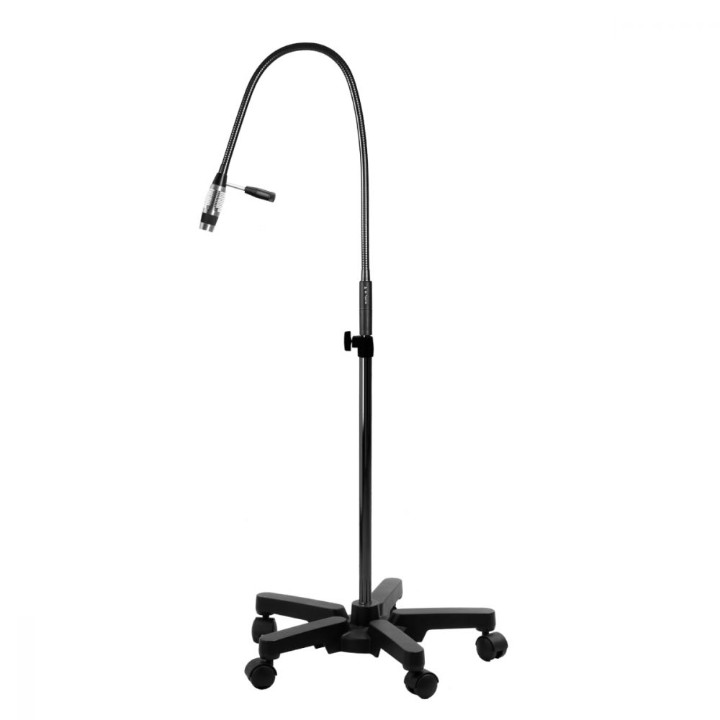

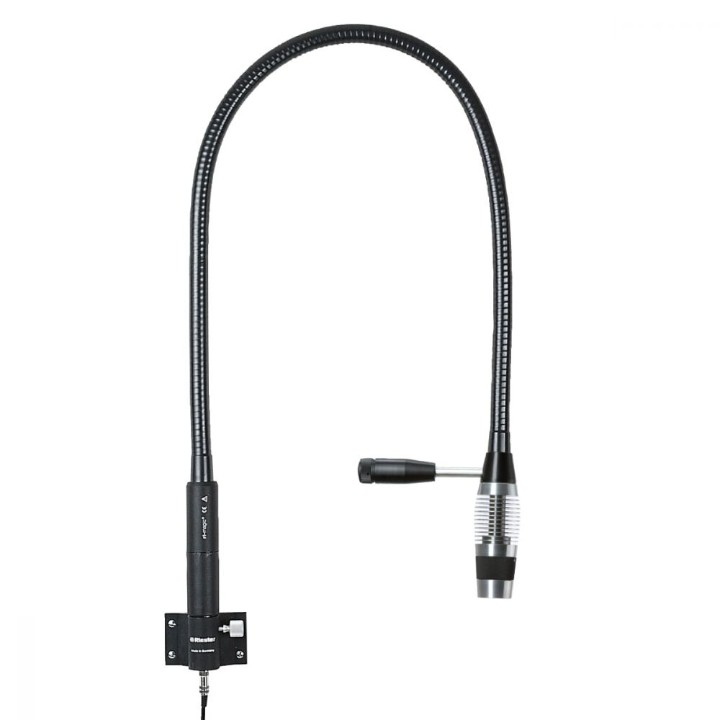

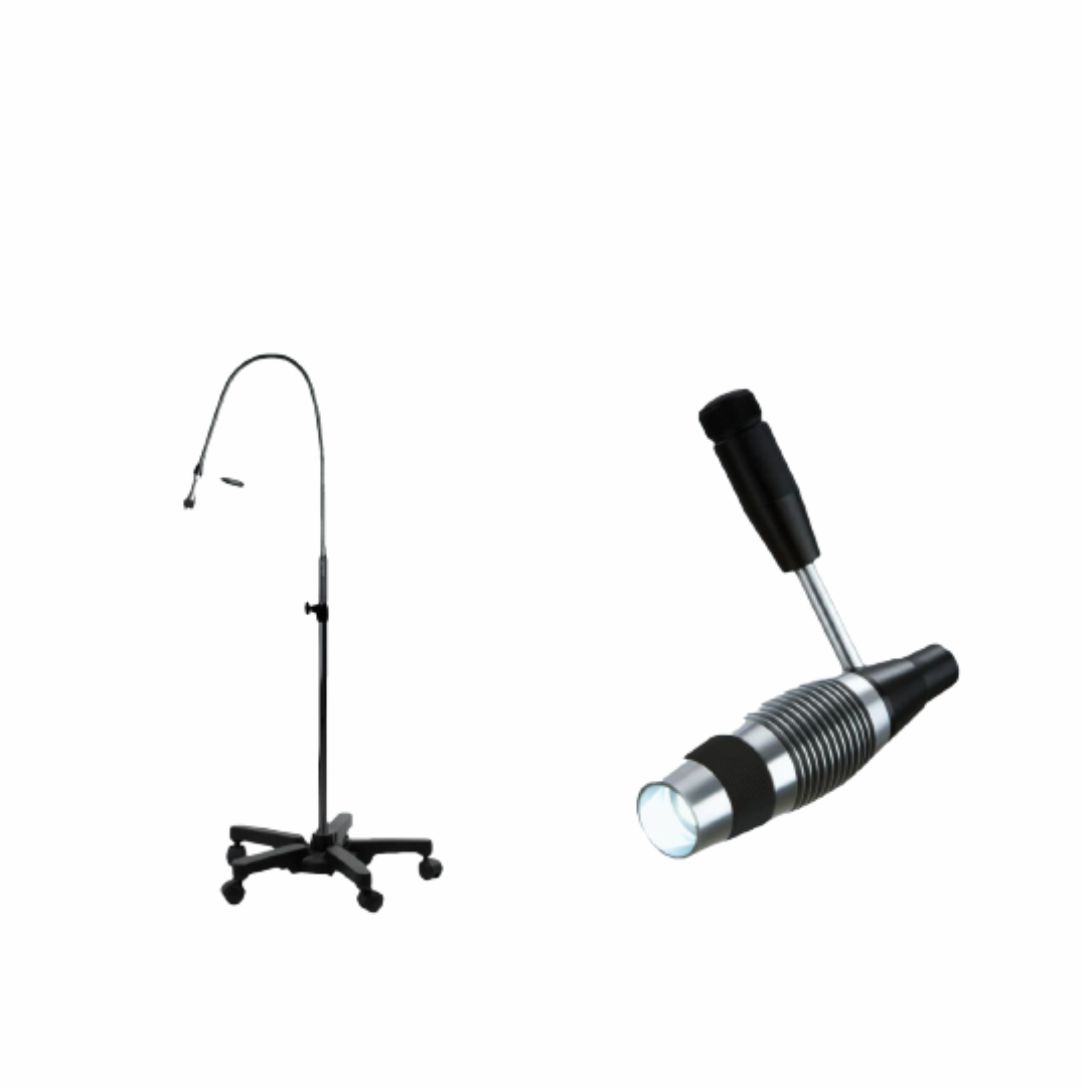

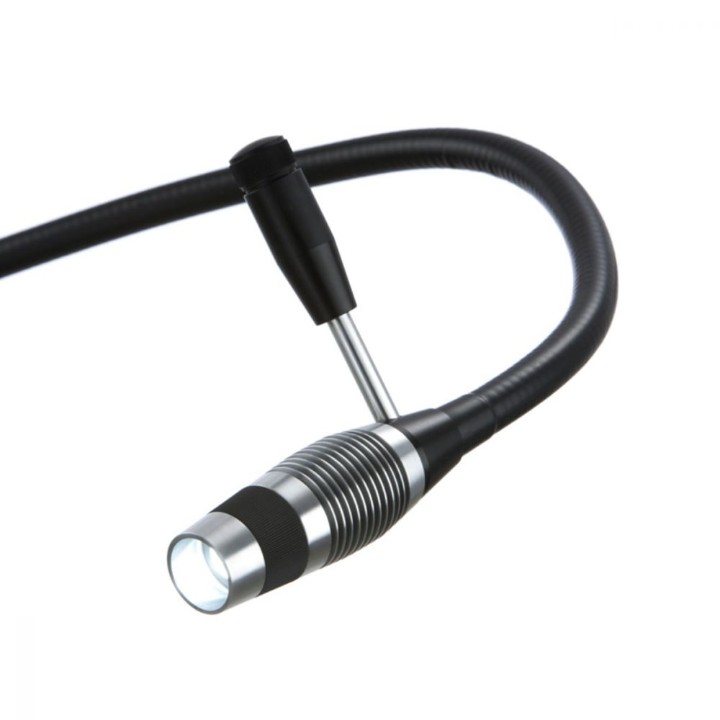

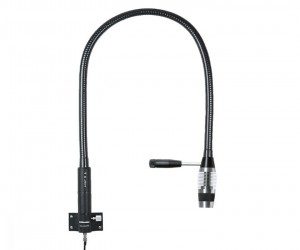

ri-magic® HPLED examination light is a high-performance examination light with the most modern LED technology, similar to daylight. The ri-magic® HPLED is equipped with a focusing device on the front of the lamp head to precisely size the illuminated examination area. Highly flexible and long special arm can be bent in any direction and used as a wall-mounted model, as a desk model with universal clamp or as a mobile lamp with a practical wheeled chassis. The mobile model is supplied with a particularly steady, heavy and anti-static stand. Two of the five castors can be locked. The wall and desk models can be quickly and easily mounted to any conventional wall rail in the clinic using universal clamps.
Length of the examination light | without a tripod and mobile base | 1250 mm |
Lamp head | diameter | 45 mm |
Height stand | with mobile base | 700 mm |
Technical data of the lamp for ri-magic® HPLED | 5700 Kelvin CRI 93 4,6W |
Distance | 1000 mm | 800 mm | 600 mm | 400 mm | 200 mm |
Lux max. 1 | 25.000 | 35.000 | 60.000 | 130.000 | >200.000 |
Circle of light max. Ø | 500 mm | 400 mm | 320 mm | 230 mm | 130 mm |
Circle of light min. Ø | 80 mm | 60 mm | 50 mm | 35 mm | 20 mm |
1: Brightness at maximum intensity setting, tolerance +/-20%

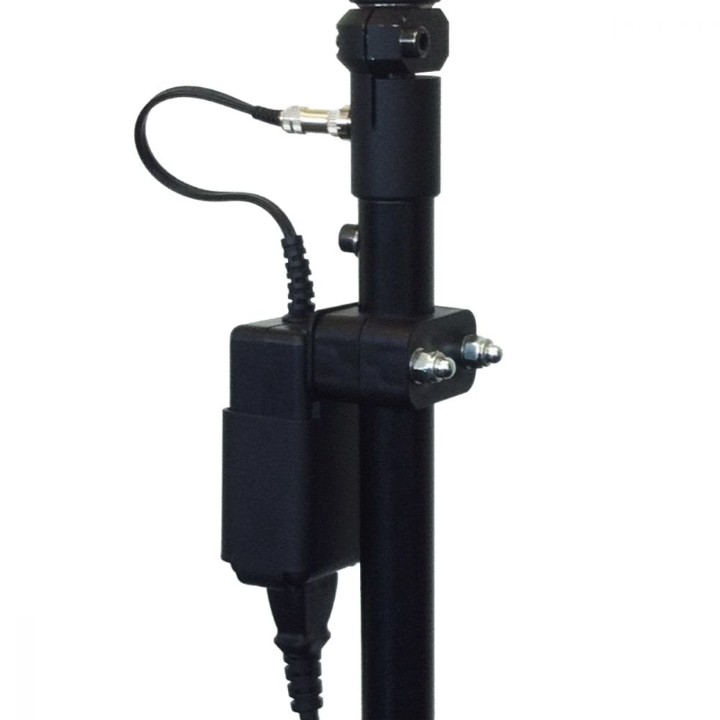

Power adapter | 5V 3Ah 15W |
Ambient temperature | 0° to +40 °C |
Relative Humidity | 30% to 70% non-condensing |
Storage/ Transport Ambient temperature | -5 ° to +50 °C |
Storage/ Transport relative Humidity | 10% to 85% non-condensing |
