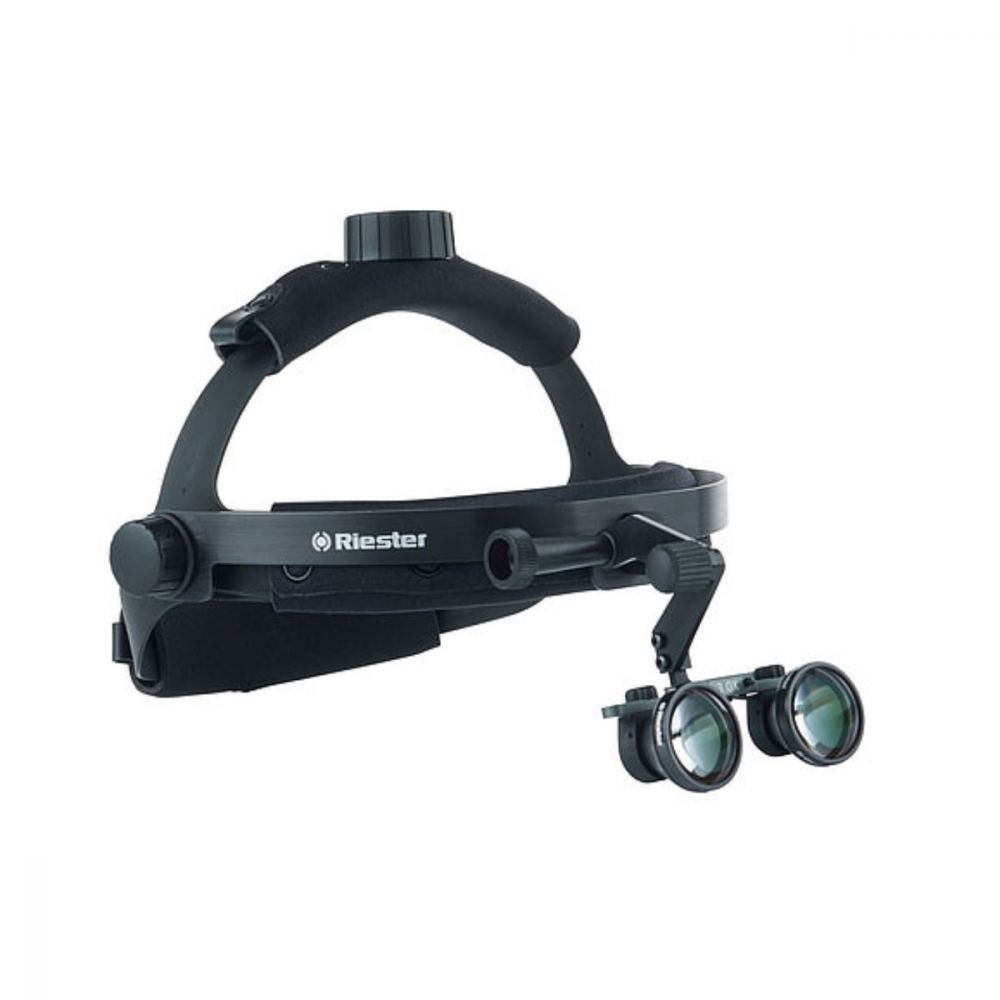

SuperVu HiRes Galilean Binoculars with 3.0 x magnification provides a high-resolution loupe, which far surpasses any previous standards. This loupe offers triple magnification with a 15 % increased field of view, a bright image and a visually flat field from edge to edge.
The SuperVu HiRes Galilean Binoculars have excellent distinction, stunning performance as well as great looks. It is suitable for most fields of surgery, ophthalmology and surgical assistants.

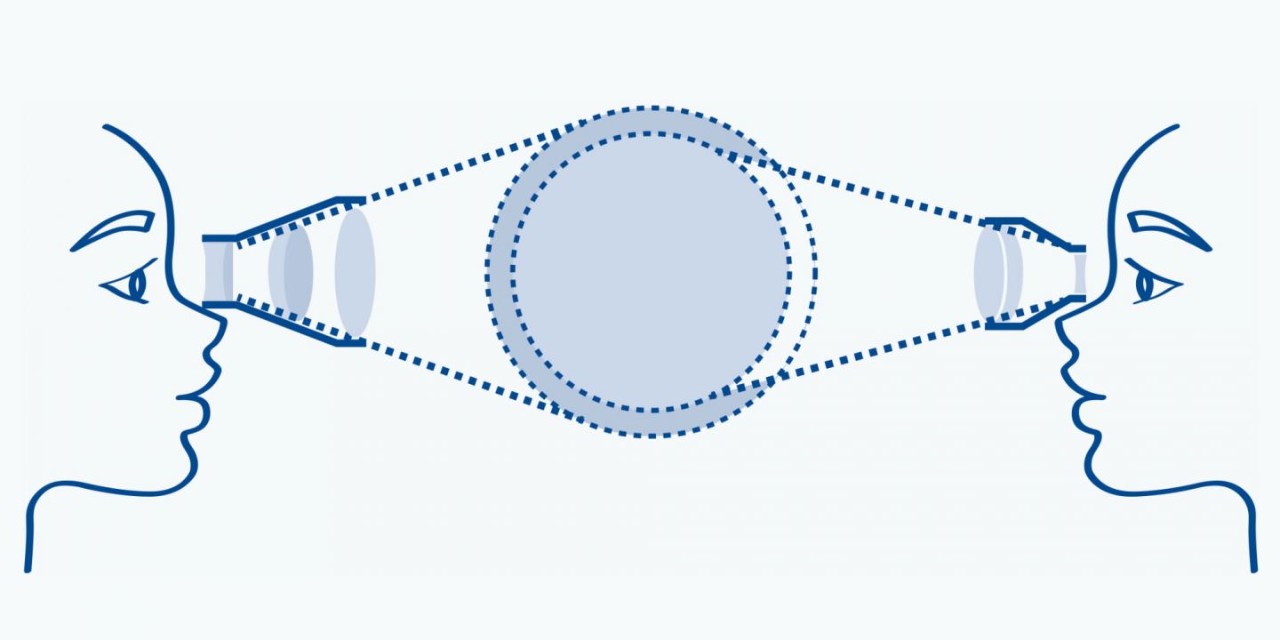

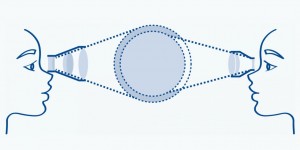

The SuperVu HiRes Galilean binocular loupes offer excellent optical features with respect to the field of view: (+/- 10 %)
| Binocular Loupes | Magnification | Working distance | Field of view |
|---|---|---|---|
| SuperVu Galilean HiRes 3.0x | 3.0 x | 34 cm | 6.8 cm |
| 3.0 x | 42 cm | 8.2 cm | |
| 3.0 x | 46 cm | 8.8 cm | |
| 3.0 x | 50 cm | 9.5 cm |
| Ambient temperature | + 10 °C to + 35 °C |
| Relative humidity | 30 % to 90 % non-condensing |
| Air pressure | 800 hPa - 1060 hPa |
| Shock (without packing) | 10 g, duration 6 ms |
| Storage/ Transport temperature | - 10 °C to + 55°C |
| Storage/ Transport relative humidity | 10 % to 95 % non-condensing |
| Storage/ Transport Air pressure | 700 hPa - 1060 hPa |
| Vibration, sinusoidal | 10 Hz to 500 Hz: 0.5 g |
| Shock | 30 g, duration 6 ms |
| Bump | 10 g, duration 6 ms |
