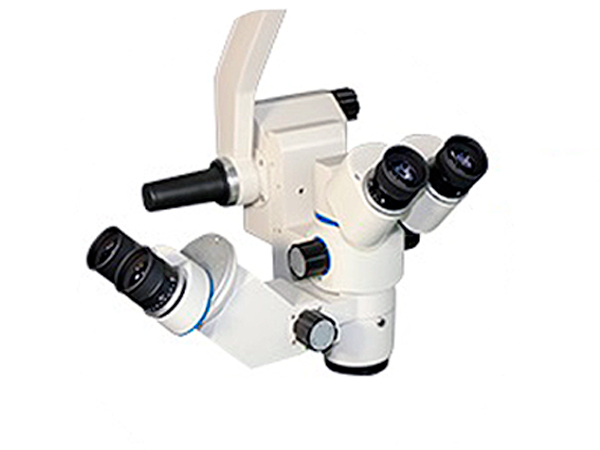

Operating Microscope HRM-001

HRM001 operating microscope is our latest developed product for ophthalmic surgery.

Equipped with advanced motorized continuous zoom, the instrument can meet the needs of ZOOM magnification during the operation.

The assistant scopes have tree ranges of magnification, and can be turned round the main scopes within 180° and be fixed at any angel.

High resolution video camera mountable, and connect to monitor.

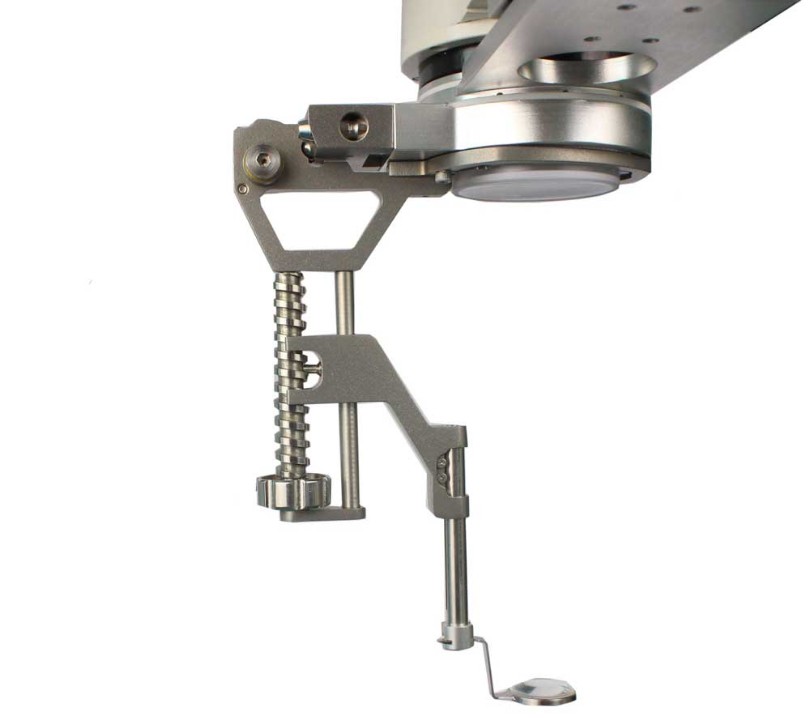

BIOM KIT mountable for HRM-001 microscope, which can be used for retinal surgery.

  • BIOM Lens: 130 degree, 120 degree, 90 degree available
  • BIOM size: 138*50*170mm
  • Lens Position: Rotational assembly
  • Mountable for Zeiss, Leica, Topcon, Takagi operating microscopes.

Characteristics:

  • HRM001 use coaxial cold light source
  • Light system is equipped with retina protection device, red reflex intensifier, filter of infrared.
  • The assistant scope possess the step magnification of 6.5x, 10.8x, 17.3x. Also, it can revolve round the main scopes within 180°and fixed at any angle.
  • X/Y system automatically controllable , and the moving range of X/Y: 30mm.
  • Equipped with motorized bending or lifting adjustment construction, it is convenient for doctor to operate the instrument.
  • The instrument adopts spring counter balance at every fixed point. The performance is easy and flexible while stable and reliable.

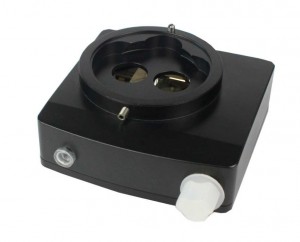

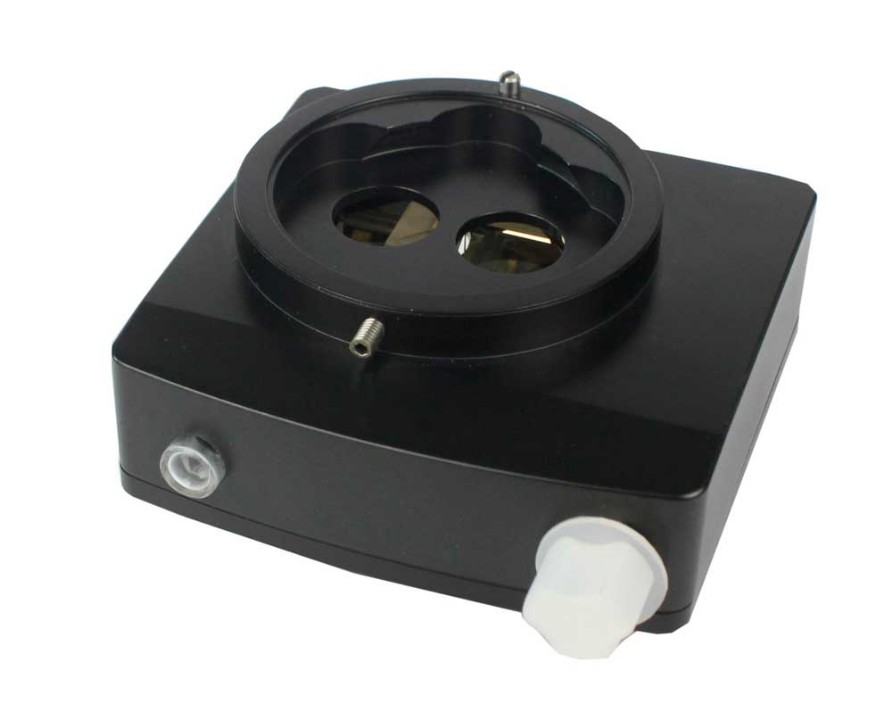

OPTIONAL ACCESSORIES. Beam Splitter, Teaching Tube, Digital-camera adapter, 1/3〃CCD Adapter

Specifications: HRM001
MICROSCOPE
Eyepiece 12.5X
Objective Lens F=200mm (F175mm, F250mm, F300mm, F350mm,
F400mm Optional)
Binocular Angle 30° to 90° adjustable
Working Distance 200mm
Main Scope Magnification 4.5X ~ 27X ZOOM
Assistant Scope Magnification 6.5X, 10.8X, 17.3X
Diameter of view-field for main scope diameter 8mm ~ diameter 45mm
Diameter of view-field for assistant scope diameter 12mm, diameter 19mm, diameter 31mm
Pupil Distance adjustable 55mm ~ 75mm (continuously adjustable)
Diopter Adjustable ± 6D
Fine-focus Speed & Range ≤ 2mm/s,≥25mm
X/Y Moving Speed & Range ≤2mm/s,≥30mm X 30mm
ILLUMINATION SYSTEM
Illumination Type 6°+0°coaxial illumination of cold light source
Illumination Source 15V/150W, cold reflection halogen lamp
Illumination Adjustment Digital controllable continuously
Coaxial Illumination ≥ 800000 LX
STANDING FRAME
Extension Range of ARM 1200mm
Vertical Adjusting Range 450mm
