Portable Operation Microscope HansHeiss HSM-650 / HSM-652 - Hans Heiss

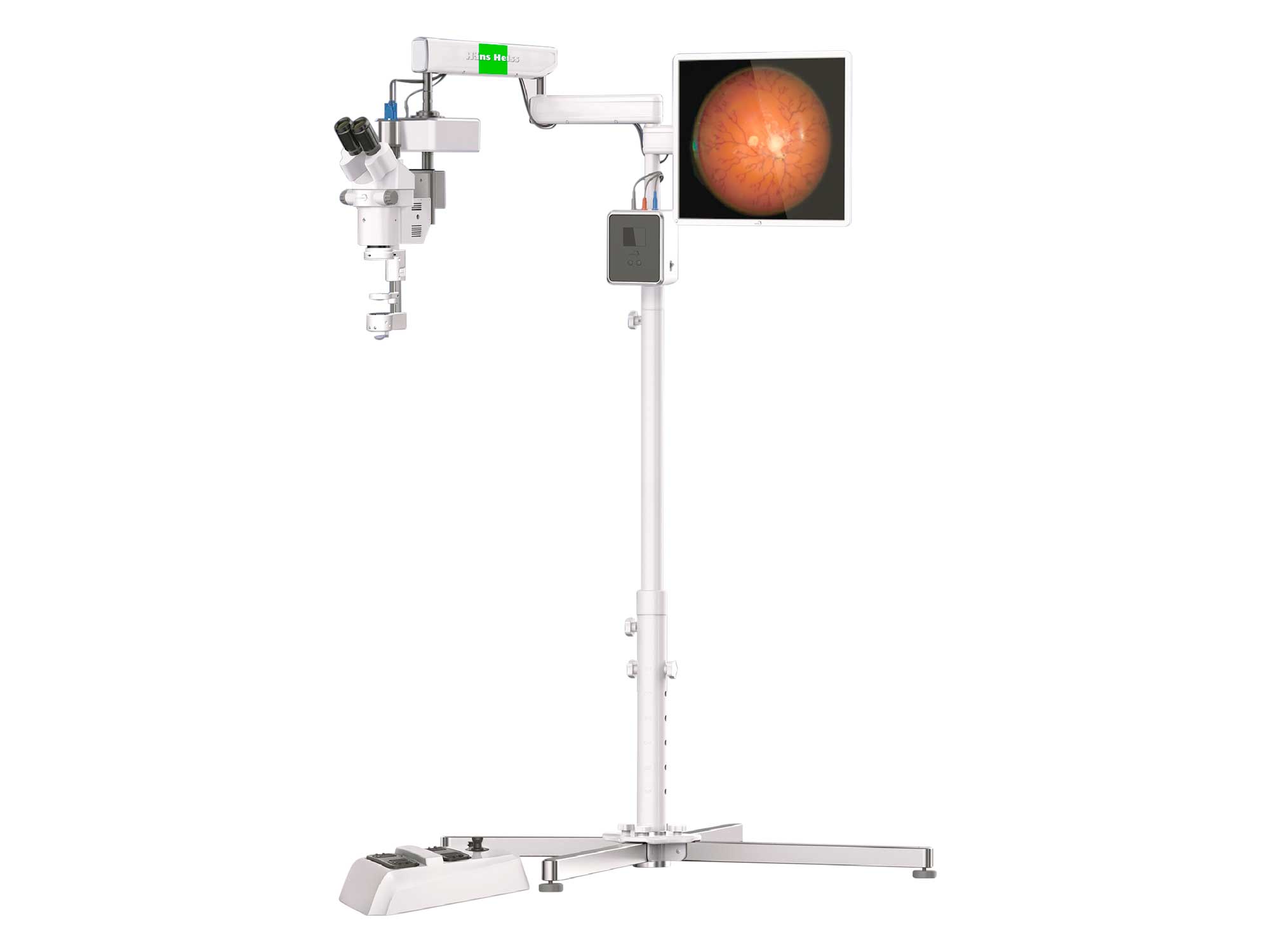

Portable Operation Microscope HansHeiss HSM-650 / HSM-652

PRODUCT PROFILE

  • Aspheric lens,Wide field of view
  • Special designed stereoscopic inverter neutralized field of view
  • Indirect wide-angle observation system
  • One-step swift from anterior to posterior

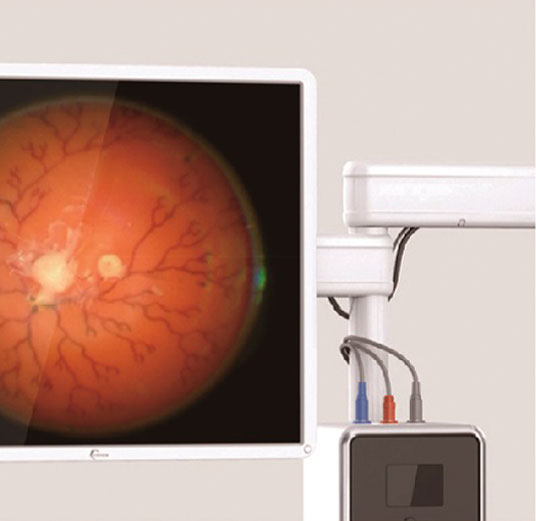

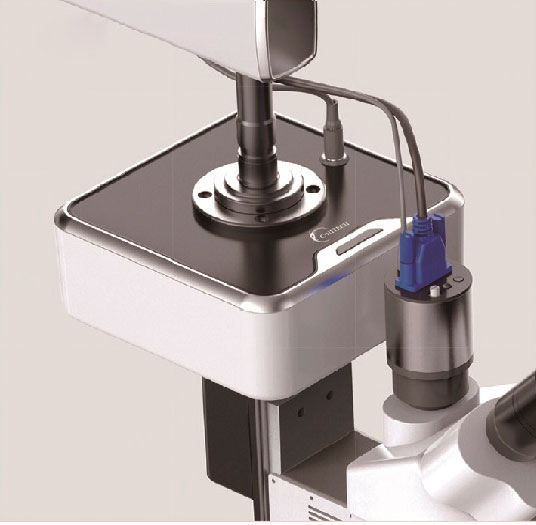

  • With video capture system,the real time surgery can be displayed and recorded


Specifications: HSM650 / HSM652

Specifications

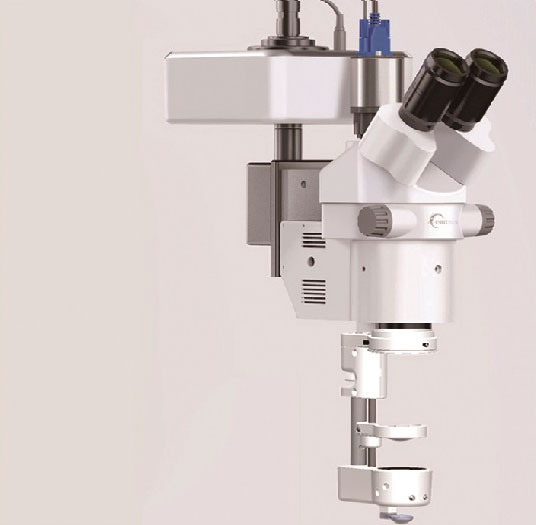

Microscope

Total Magnifications

3.5X-22.5X Manual Zoom Magnification
Objective 175mm
Eyepieces 10X
Total Magnifications 3.5 X- 22.5 X
Real Field of View Diameter 57.1mm ~ Diameter 8.9mm
Pupil Distance 55mm ~ 75mm
Diopter Adjustment ± 5D
X-Y X-Y Movement ± 12.5mm
Illumination Illumination Type Coaxial Illuminance
Light Source LED
Illumination Control 7 Steps
Illumination Filed Diameter 65mm

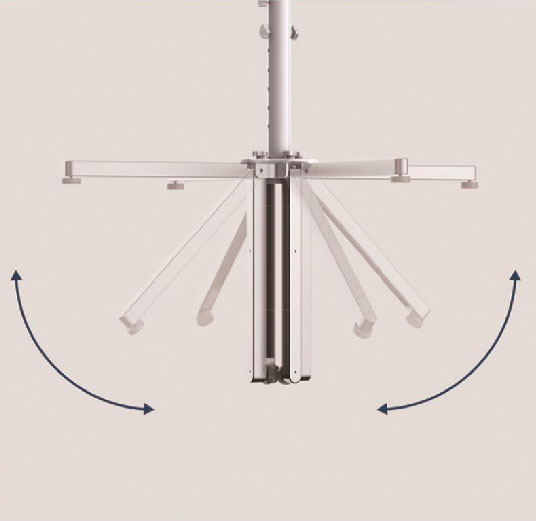

Arm & Base Type Stand/Table Top
Maximum Arm Extension 814mm
Vertical Movement 450mm
Base Size 930 mm X 930 mm
Others Weight Stand Type 45kg/Table Type 33kg
Power Consumption 70VA
Power SuppIy AC 100V - 240V 50/60Hz
