Optical Coherence Tomography HHO-2000 - Hans Heiss

Optical Coherence Tomography HHO-2000

Optical coherence tomography (OCT) is a new, noninvasive, noncontact, transpupillary imaging technology which can image retinal structures in vivo with a resolution of 5 to 8 microns. Cross-sectional images of the retina are produced using the optical backscattering of light in a fashion analogous to B- scan ultrasonography and cofocal microscopy. Cross-sectional images of the retina, is revolutionizing the early detection and treatment and greatly enhanced our quality of patient care.

Applications

In vivo, cross-sectional images and quantitative analysis of retinal features to optimize the diagnosis and monitoring of retinal disease and for enhanced pre - and post-therapy assessment.

High-quality images and accurate measures RNFL and the optic nerve head to aid in the detection and management of glaucoma.

Cross-sectional images are valuable for clinical evaluation of macular holes, macular edema and other retinal pathologies.

Precise location of pathology to expand diagnostic confidence and therapeutic precision .

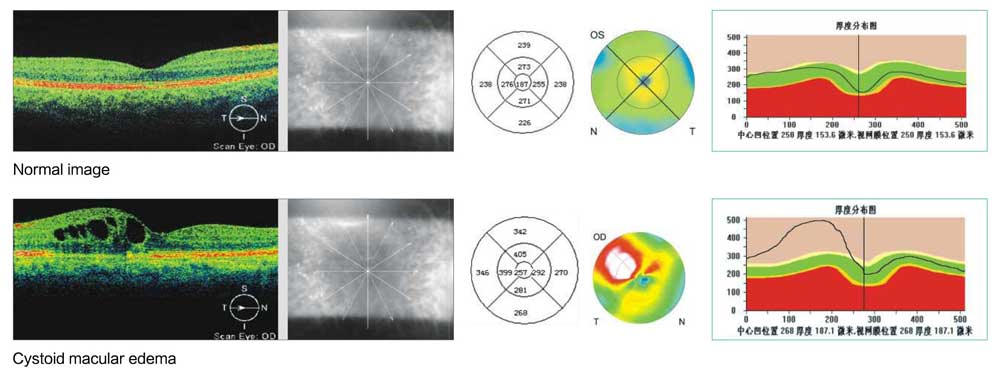

Normal and abnormal image contrast image

Lesions image by image with normal OCT images, the regional thickness values? topographic maps, diagrams and other multi-thickness contrast, thereby comprehensive judgment of disease.

Advantages

High performance at a low price

Modular design increases flexibility, reusability and maintainability. We can provide personalized design according to the customers' needs.

With the powerful software, has clear, easy-to-use interface and supports multi-language.


Specifications: HHO2000

SPECIFICATIONS

Tomographic imaging
purpose Cross sectional imaging of the retina
Signal type photon scattering from tissue
Light source Super Luminescent diode ,830nm
Optical power <0,75mW (on the cornea)
Axial resolution 5 μ m in tissue
Lateral resolution 10 μ m in tissue
scanners Galvanometer mirror
Scan mode Line, concentric ring, repeat, arbitrary-angle
Scan rate 29,000 A-scan/s
Acquisition time 58 pictures per second
Scan depth 2mm in tissue
Fundus imaging
purpose Fundus observation and real-time registration of OCT imaging
Signal type CCD imaging
Field angle 29” x 23”
Viewing method 19-inch Color Flat Panel Display
Illumination LED
Internal fixation LED dot matrix
External fixation Adjustable blinking LED
Minimum pupil diameter 3,5mm
