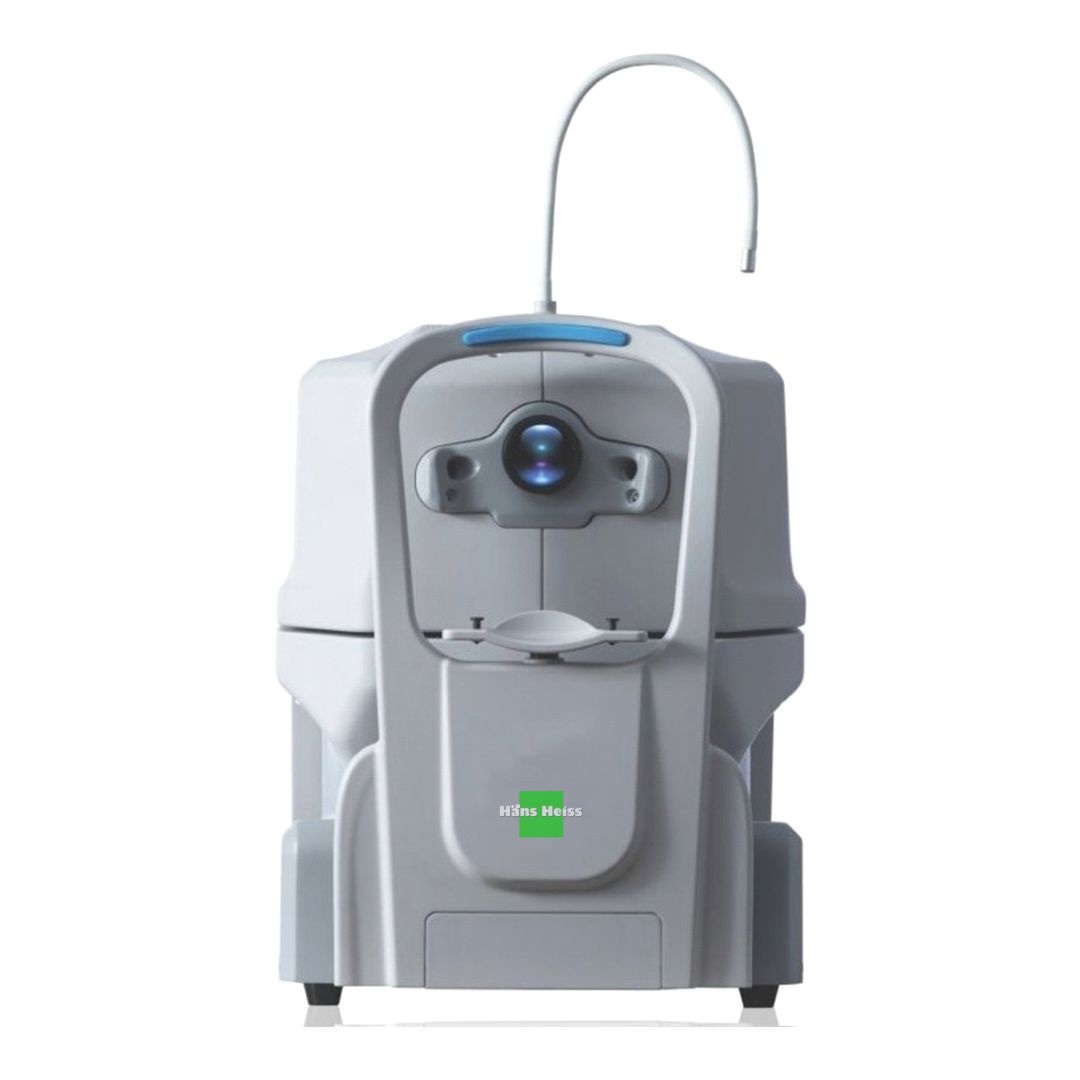

HHO-2200 Optical Coherence Tomography (OCT Made in China)

OPTICAL COHERENCE TOMOGRAPHY

  • All-in-one design with optional larger external monitor guarantees an installation-free experience. Plug the power cable and power on the system, then you are ready to go.
  • Fully automated operation with minimum human intervention. Smart pupil alignment, advanced signal optimization assure quality OCT images independent of operators.
  • The small footprint and all-in-one system fits in the smallest examination roon. The flexible monitor locations allows various operator positions.
  • Extremely easy to operate. Make for professionals without professional operators.

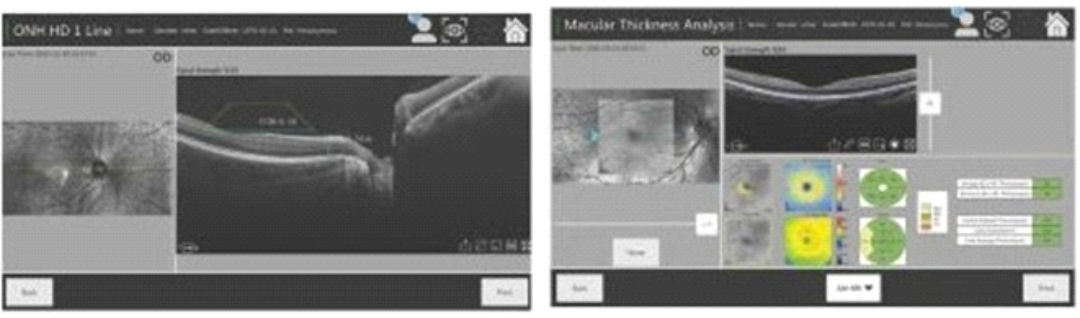

  • High definition image and comprehensive analysis software.
  • Subtle lesion will be precisely identified via high resolution image.
  • with more than 4 scan mode on macular and optic part, the software creats a summary annalysis of macula retina, RNFL, ONH. Progress analysis for fallow-up examination is available.

Specifications: HHO-2200

Methodology

spectral domain OCT

Axial resolution

≤ 6 um (in tissue)

Transverse  resolution

≤ 20 (in tissue)

Scan depth

≥ 2.5mm  (in air)

Scan range

6-12mm

Scan speed

≥ 24,000 A-scan/sec ,up to 36,000 A-sean /sec

Scan mode

3D (Macular & Optic Disk),HD, Raster, Circle , Cross

Analysis mode

Up to 7 retinal l ayers segmentation, Macular analysis mode, RNFL & Optic Disk analysis mode, Glaucoma analysis mode and Progress analysis for follow-up examination.

Fundus image

OCT en face

Focus adjustment

-15D to +15D

Pupil diameter

≥3mm

OCT Light source

840nm SLD

Optical power

750um(at cornea)

Operation

13.3inch touch screen, optional external mouse or keyboard

Power supply

100-240V,50/60 HZ

Dimensions

497 x395x490mm

Weight

34kg
