Tuning Forks - Riester

Tuning Forks

Tuning forks

Tuning forks can be used in a number of medical procedures as a diagnostic tool. Most commonly for hearing tests by Audiologists and ENT specialists.

Technical Overview

A tuning fork is an effective tool clinicians can utilise to test a patient’s hearing. Because hearing uses mechanical components of the ossicles and neural components of the cochlea, hearing loss can be either conductive (a complication with the physical aspect of hearing), or sensorineural (a problem with the neural component of hearing).

A physician can utilise the simple physics of a tuning fork to determine whether hearing loss is conductive or sensorineural using the Weber and Rinne tests. The Weber test involves placing a tuning fork’s base in the centre of a patient’s forehead. If a patient has unilateral conductive hearing loss, the sound from the tuning fork will seem louder in the affected ear. This is because the sound waves travel through bone and bypass the conduction of sound through air.

The Rinne test takes advantage of this as well; instead of the forehead, a tuning fork is held on the mastoid just behind the ear. Once a patient is no longer able to hear it via bone conduction, the clinician then removes the fork from the bone and holds the tuning fork closer to their ear. Because hearing is more sensitive to air conduction, a patient with normal hearing should still be able to hear the tuning fork.

In addition to hearing loss, the tuning fork can be used to evaluate a wide range of other health problems. A clinician can use tuning forks to identify whether a bone is fractured. This is done by simply striking a tuning fork and placing the vibrating fork close to the affected area.

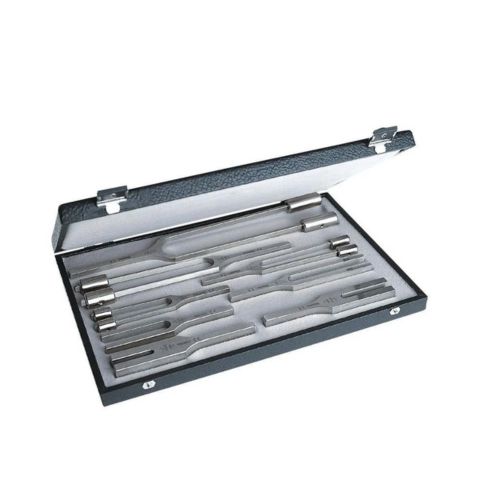

Tuning forks Set I

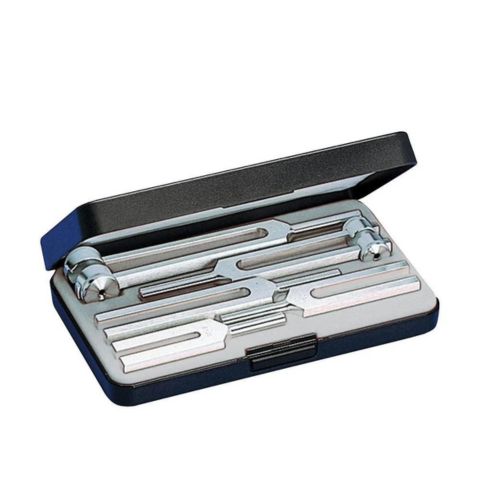

Tuning forks Set II
Tuning forks Set III

Benefit to the clinician

  • Aluminium or stainless-steel construction
  • Wide range of frequency options

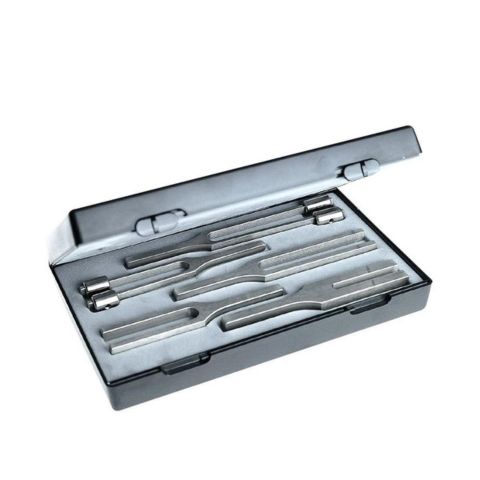

  • Available in sets with case for storage
  • Easy clean design

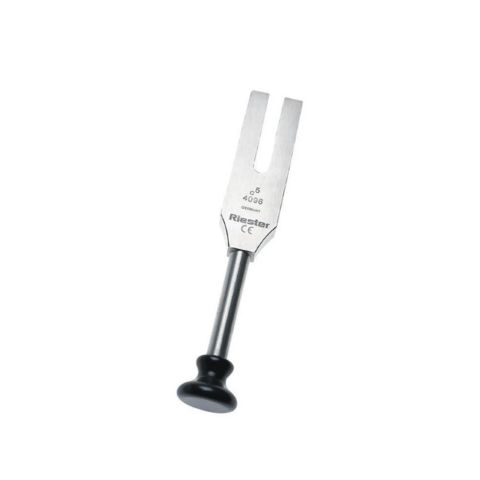

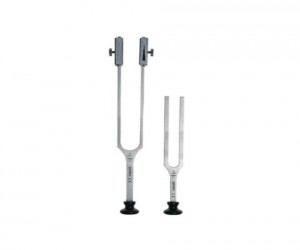

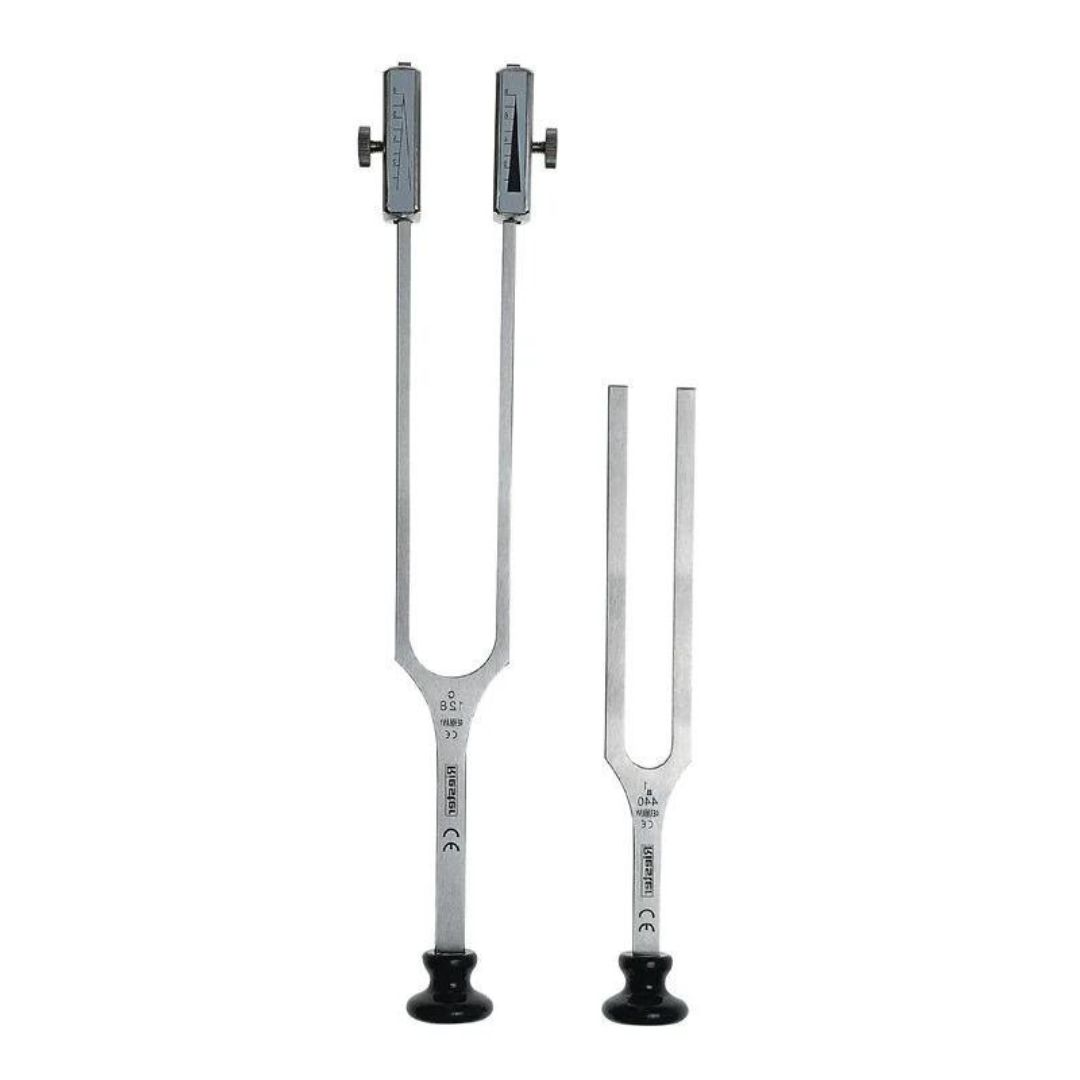

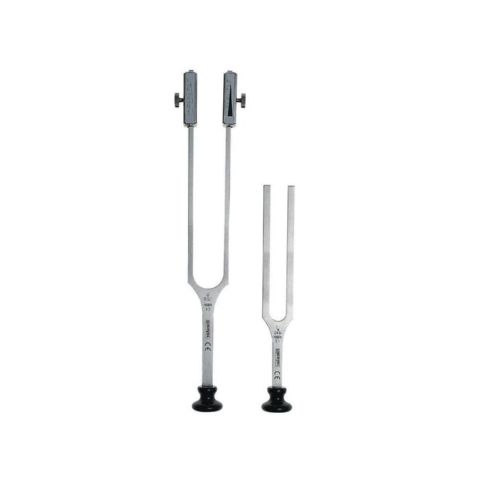

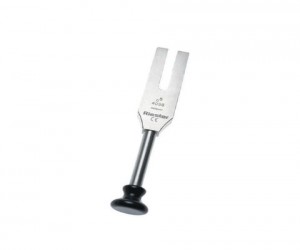

Tuning forks with base
Tuning forks with base

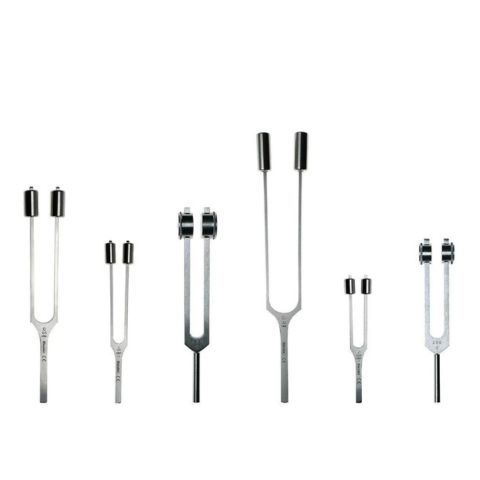

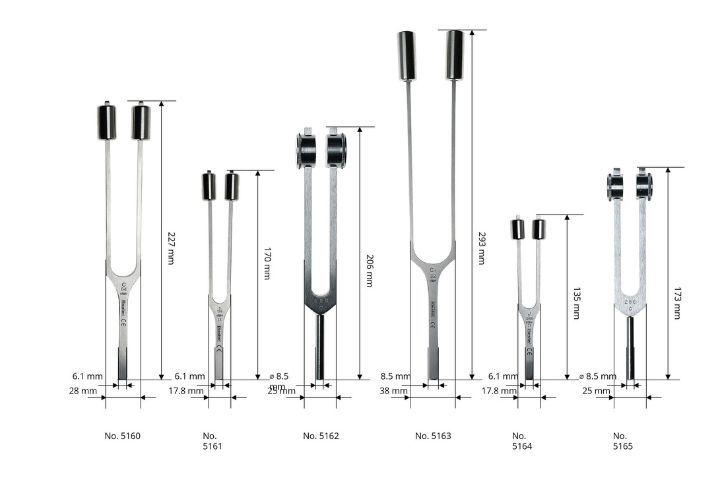

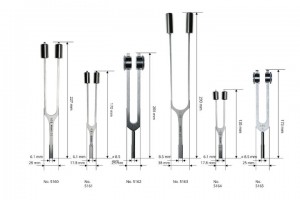

Tuning forks with clamps

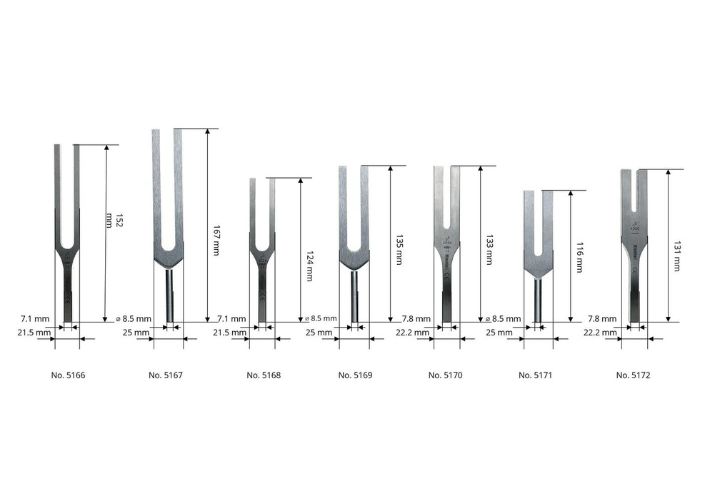

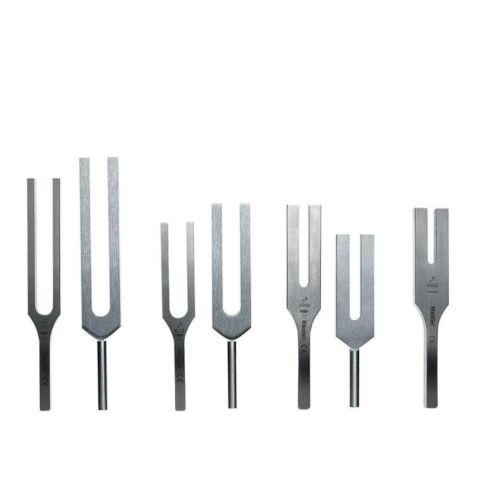

Tuning forks without clamps
Specifications: tuning-forks
Frequency From 64 Hz to 4096 Hz.
Operating conditions 10°C to 40°C
Relative humidity 30 to 70% (non-condensing)
Air presssure 700hPa to 1060hPa
Storage/ Transport temperature -10°C to 55°C
Storage/ Transport relative humidity 85% (non-condensing)
