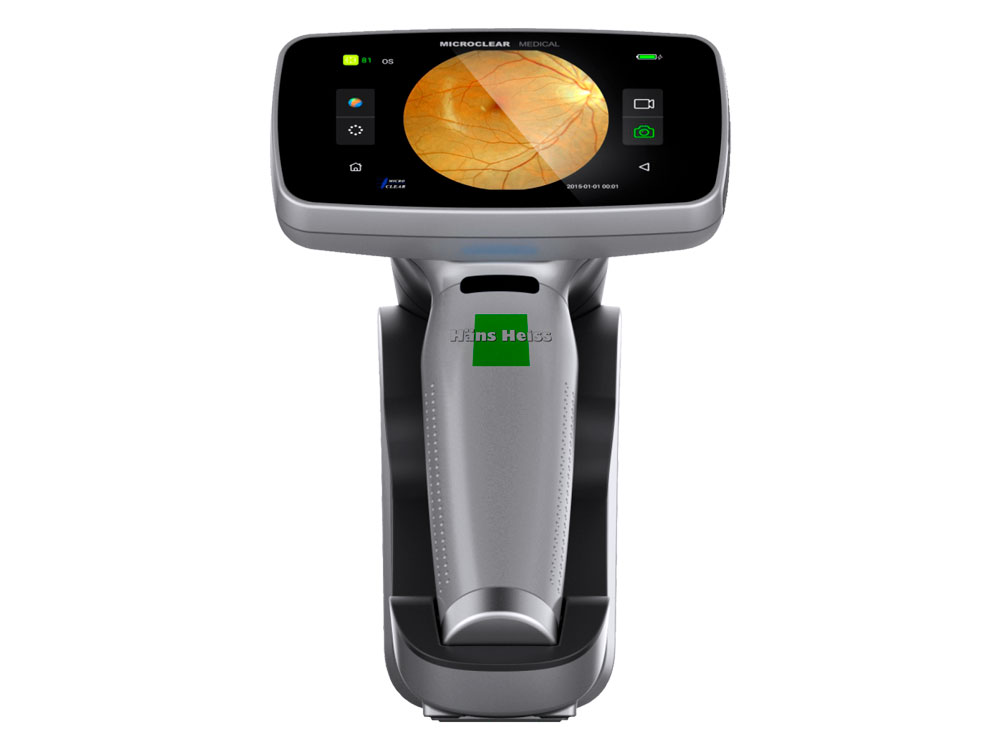

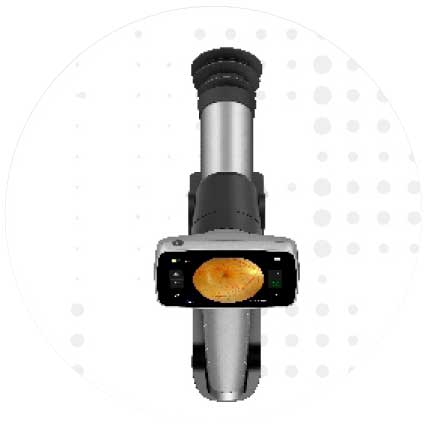

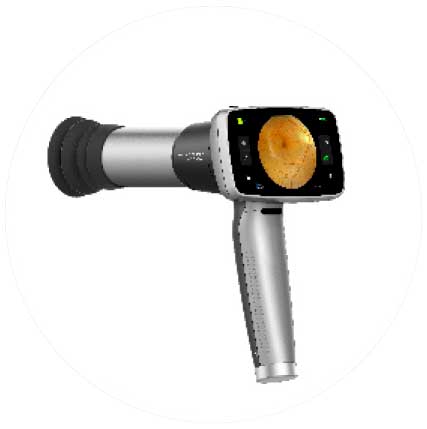

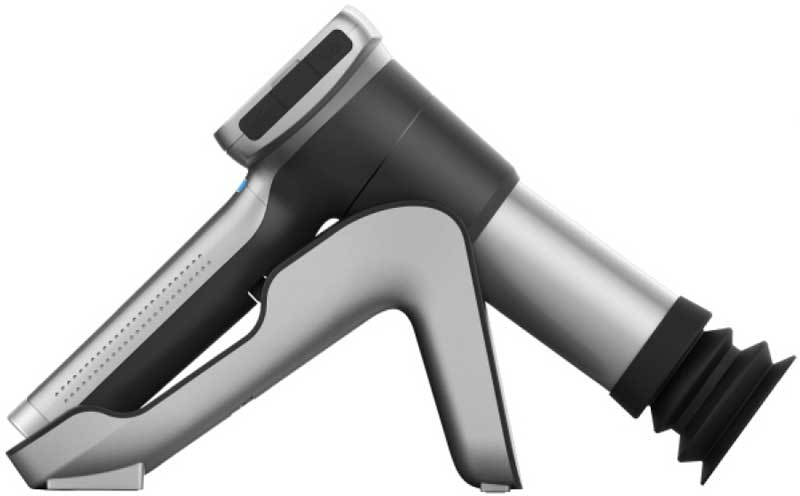

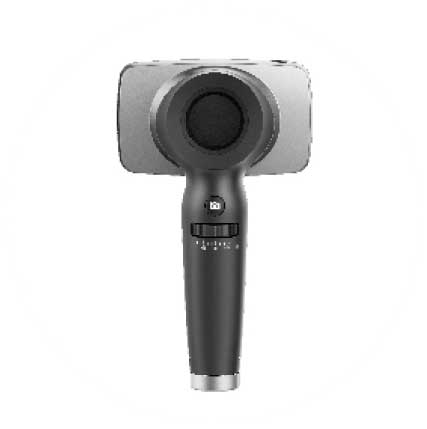

Portable Fundus Camera HFC-010

Intelligent and advanced fundus screening

FEATURES

Inteligent and advanced fundus screening

  • Non-mydriatic and minimum pupil size 2.5mm
  • Low light LED flash and 400*800 HD touch screen.
  • Auto focus and 8 target fixation.

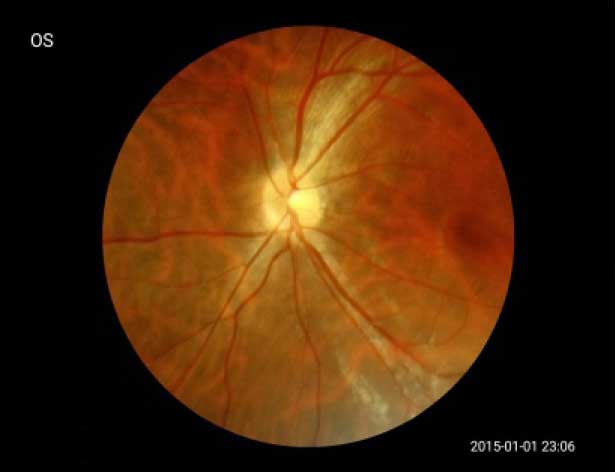

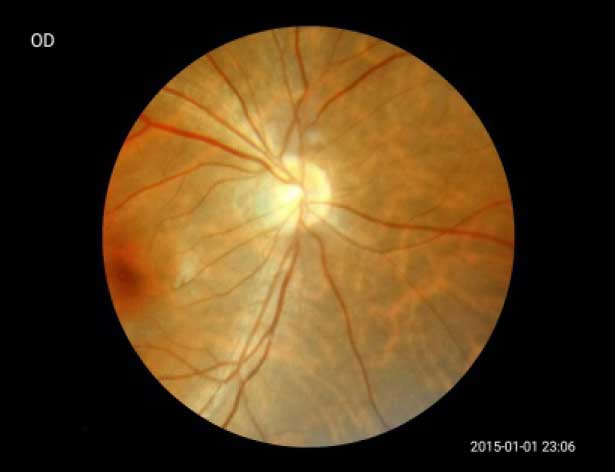

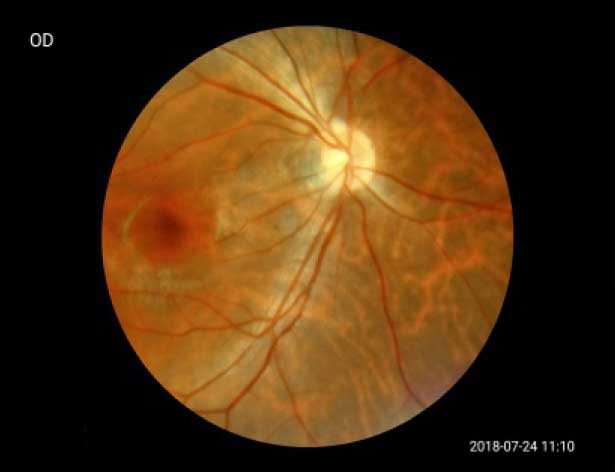

Fast and HD fundus imaging

  • 16 mega pixel
  • Image auto-mosaic

Android system application

  • Android system,easier operation and data storage
  • Reading,wireless transfer DICOM interface
  • 4G networks
  • No additional computer or mobile device be required
  • Intergrated design only 560g
  • Wireless printing

APPLICATION SCENARIOS

  1. Ophthalmology clinic.
  2. General eye clinic.
  3. Gynecology hospital.
  4. Diabetic retinopathy.
  5. Basic screening/tele-medicine.
  6. Animal hospital/clinical research.
  7. Physical examination.
  8. Consultation charity clinic.
Specifications: HFC010
FOV 45 degree
MINIMUM PUPIL 2.5mm
REFRACTIVE COMPENSATION -20D~+20D
FOCUS WAY Auto/Manual
FOCUS MODE 8 targets fixation
IMAGE RESOLUTION 16MP
SCREEN 3.97 inch multi targets touch screen 800*400
SHOOT TYPE Infrared,white light
IMAGE FORMAT JPEG
TRANSMISSION AND STORAGE Internal capacity 16GB;USB/Wifi/BT/4G
BATTERY CONTINUOUSLY WORKING TIME 6h(standby time exceeds 24h)
TOTAL CHANGING TIME 3.5~4h
POWER SUPPLY 3.7V Lithium battery 3400mAh
OPENING SYSTEM PC:Windows system APP:Android
NFCCARD READER Yes
CONNECT FUCNTION Proffessional software,APP,support DICOM,support cloud service system,patient date management software,support wireless printing.
ID CARD READING AND COLLECTION YES
N.W. 560g
