High Definition optical performanceHigh optical resolution. Portable devices and accurate diagnosis |
 |

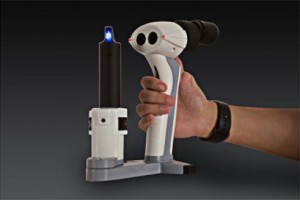

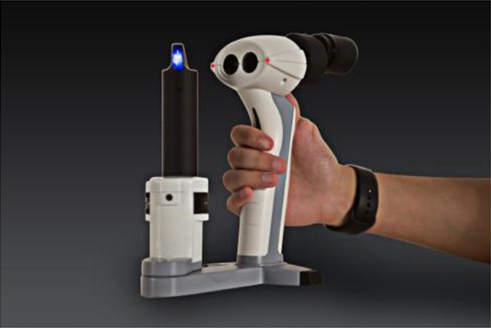

Zoom magnification10x/16x Portable Handle Operation |
 |

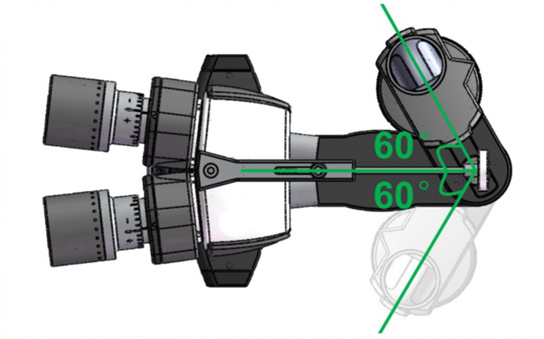

±60 Big Slit AngleCorneal cut is better |
 |

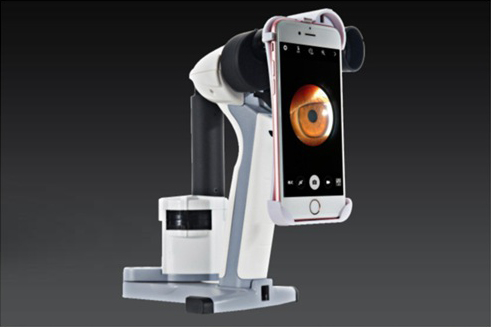

Dedicated AdapterEasy to installation, record anytime |
 |
Big Optical FieldThe Filed is 1.5 times than traditional one. Sunkingdom Optical Field Traditional Optical Field |
 |

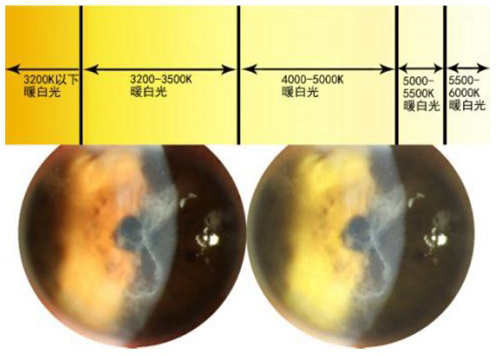

High-Quality LightWarm LED, Color temperature suitable. Max 450000 Lux High Intensity45, that suitable for outside screen requirement. |
 |
| ITEM | LS-1A | LS-1B |
|---|---|---|
| Type | Binocular hand held Biomicroscope slit lamp | |
| Magnification | 10 X | 10 X, 16X |
| Magnification Change Function | / | Objective lens retractable |
| Working Distance | 80mm | |
| Pupil distance | 49mm~75mm | |
| Diopter compensation | -7D~+7D | |
| Slit Size | 0.1mm * 12mm ; 0.2mm * 8mm ; 0.8mm*12mm | |
| Spot Size | 1mm ; 5mm ; 12mm | |
| Slit Angle | Horizontal ±60° | |
| Filter | Red Free, Cobalt blue, Heat aborption | |
| Light Source | Warm LED | |
| Max Illumination | >= 450000 Lux | |
| LED Input voltage | DC7.4V , 950mAh | |
| Battery | AA dry battery | |
| Adapter | With Special Adapter to Capture Image | |
