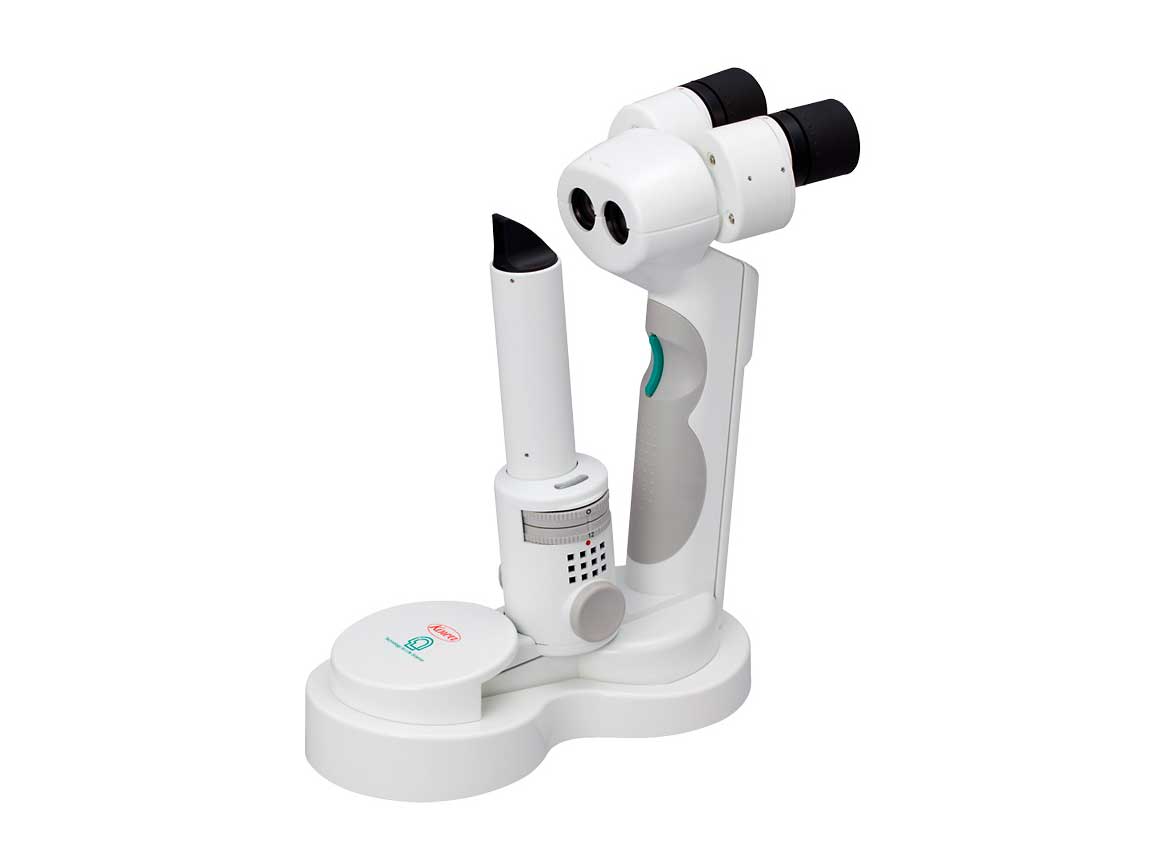

Portable Slit Lamp KOWA SL-17

Kowa's Portable Slit Lamp is now LED light-based!

The SL-17 weighs less than 800g and provides easy and versatile operation with a choice of 10x and 16x magnifications, 3 slit widths* (0.1mm, 0.2mm, 0.8mm) plus spot illumination and a cobalt blue filter using a high illumination LED as the light source.

The cobalt blue filter is useful for foreign body and contact lens applications.

The SL-17 has a rheostat controlled light source from 0 to 20,000 Lux. The LED light source provides a much whiter light than ordinary halogen light sources found on competitive instruments.

The SL-17 is compact and portable making it the ideal instrument for domiciliary environments, mobile evaluations, pediatrics, and patients not able to be imaged by a traditional slit lamp.

The SL-17 is especially useful in emergency rooms where patient mobility is a challenge, or when switching between consultancy rooms is necessary. Offering cordless operation, the SL-17 is powered by (4) AAA rechargeable or dry cell batteries to provide long lasting, continuous operation of the extra-bright LED lamp.

Features and Benefits

20,000 Lux White LED Light Source.

Illumination is thumb wheel controlled and illuminated for easy viewing in a darkened room.

Powered by AAA Batteries

The Kowa SL-17 uses the following commercially available batteries:

  • AAA rechargeable batteries
  • AAA dry cell batteries
    • * Excludes lithium-ion and lithium batteries

Anti-Tip Design

New circular base increases slit lamp stability providing a safer place to store the instrument

Available in 4 Colors

Specifications: SL-17
Working Distance Approximately 80mm (16x) and Approximately 100mm (10x)
Light Source White LED
Type Binocular: Direct Image Type, Erected Real Image
Angle of Convergence 13°
Actual Field of View ⌀10mm(16x) ⌀15mm(10x)
Magnification Change Built in Both Oculars
Ocular Diopter -8D to +5D
Slit Selection Turret
Slit Length Fixed, 12mm
Slit Width 0.1mm, 0.2mm, 0.8mm
Light Intensity Adjustable Continuously
Slit Projection Angle Horizontal ±60°
Filter Built-in Cobalt Blue Filter
Duration of Illumination Approximately 140 Minutes
Power Unit Type (4) AAA Rechargeable or Dry Cell Batteries
Power Supply Input: DC4.8 to 6.4V Power Consumption: 3.6 to 4.5VA
Slit Lamp Dimensions 220(W) x 95(D) x 220(H) mm
Slit Lamp Weight 745g (Batteries Not Included)
Magnification 10x/16x
