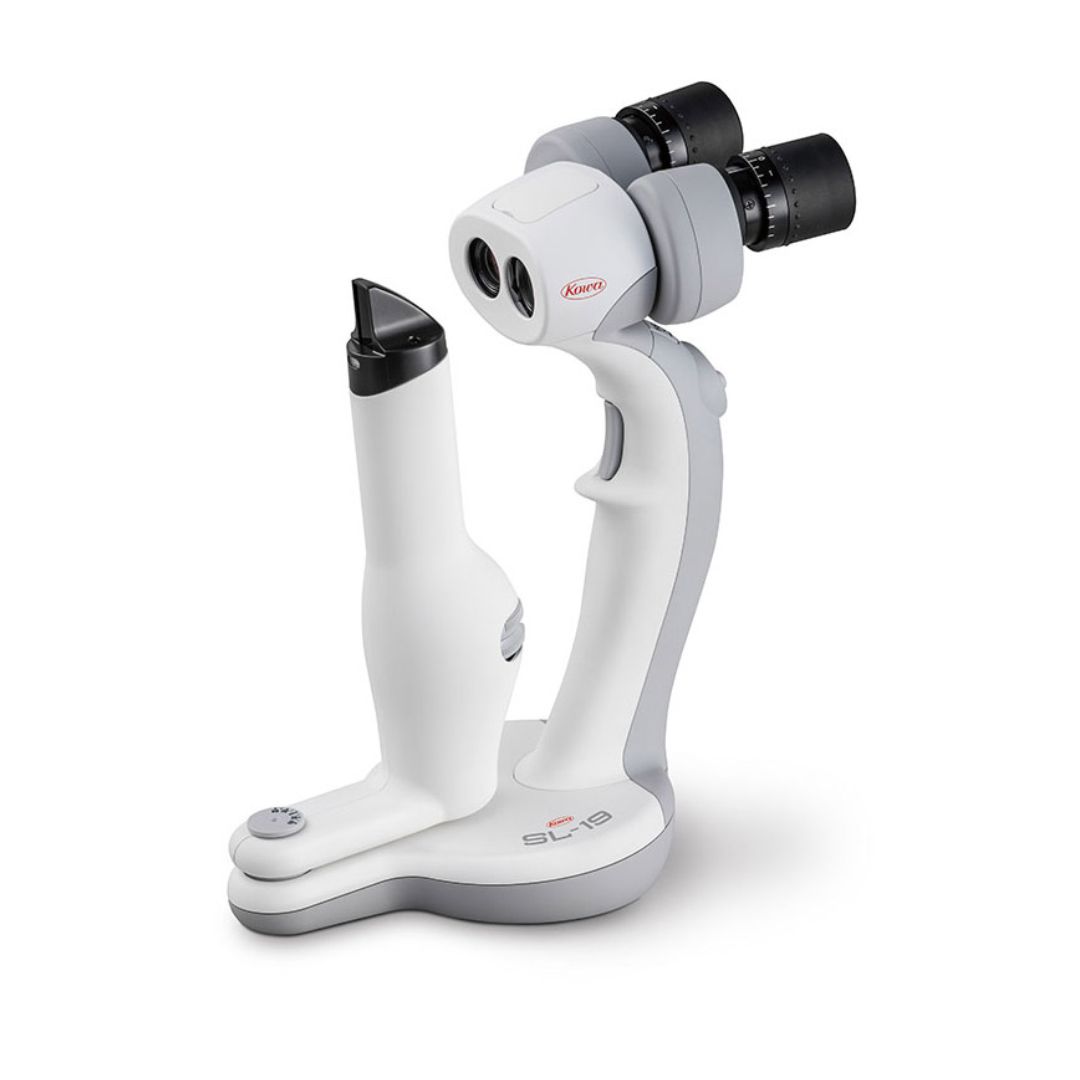

Kowa’s Lightest Portable Slit Lamp!

Lighter than the previous model, the SL-19 weighs 620g and provides easy and versatile operation with a choice of 10x and 16x magnifications and 3 slit widths* (0.1mm, 0.2mm, 0.8mm). The SL-19 has a variable controlled LED light source from 200 to 20,000 Lux and has a 3-step background light as well as a 3-step blue illumination light. The LED light source provides a much whiter light than ordinary halogen light sources found on traditional instruments. The SL-19 is compact and portable making it ideal for field evaluations, pediatrics, and patients not able to be imaged by a traditional slit lamp. The SL-19 is especially useful in emergency rooms where patient mobility is a challenge, or when switching between consultancy rooms is necessary. Offering cordless operation, the SL-19 is powered by (3) AA rechargeable or dry cell batteries to provide long lasting, continuous operation of the bright LED lamp.

Features and Benefits

Sophisticated design

1. Smooth and roundish design aimed to reduce stress and mental strain of patients.
2. Easy fitting with trigger grip and optimized grip diameter.

The lightest hand-held slit lamp

1. By incorporating glass fiber reinforced resin, the weight was reduced. The lighter device minimizes operator fatigue.

New functions

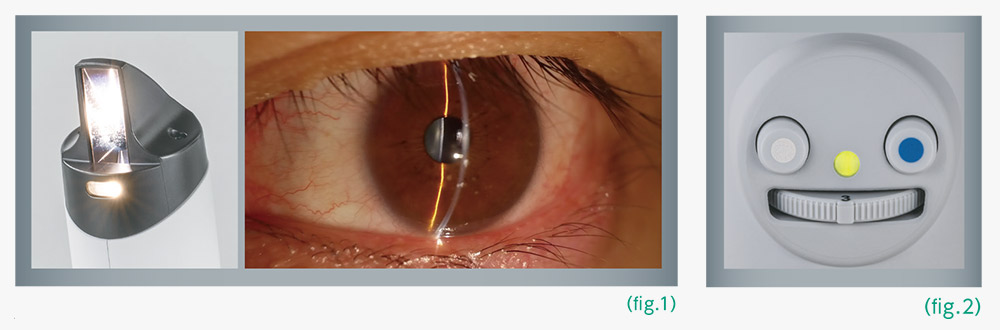

1. Background illumination simultaneously usable with slit lamp.（fig.1）
2. Blue light illumination button conveniently located on handle.（fig.2）
3. Continuously variable slit length. (1.5-12 mm)

Longer operating time

1. Owing to an energy saving system design, the SL-19 has a continuous illumination time at maximum intensity for 360 minutes. ・When used with 3 x A A Ni-MH batteries. (1,900 mAh)

Optional accessory

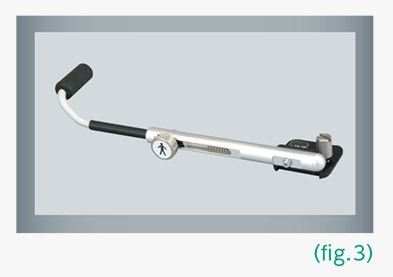

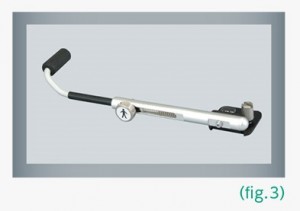

1. Head rest（fig.3）

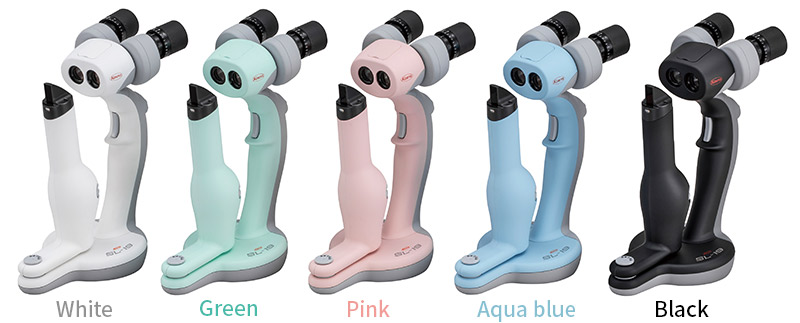

Available in 5 Colors

In KOWA SL series.

■ Built-in wireless camera
■ Using a dedicated application, connect the SL-19 camera to your iPad via wireless LAN to capture and store images

■ Weight: 810 g (battery included)
■ Ideal for examination records and treatment evaluations

The availability of colors and optional accessory varies among countries and regions. Please contact your local Kowa representative or distributor.

Simple application, high performance

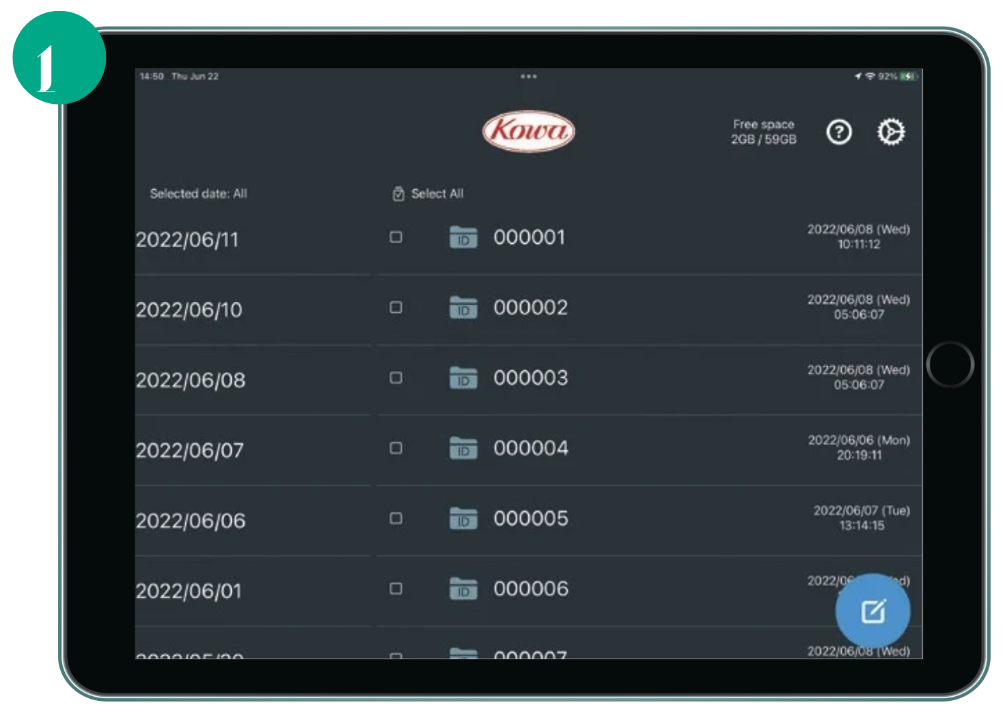

PatientIDmanagement/Realtimeview/Videocapture/Auto extraction and storage of still images

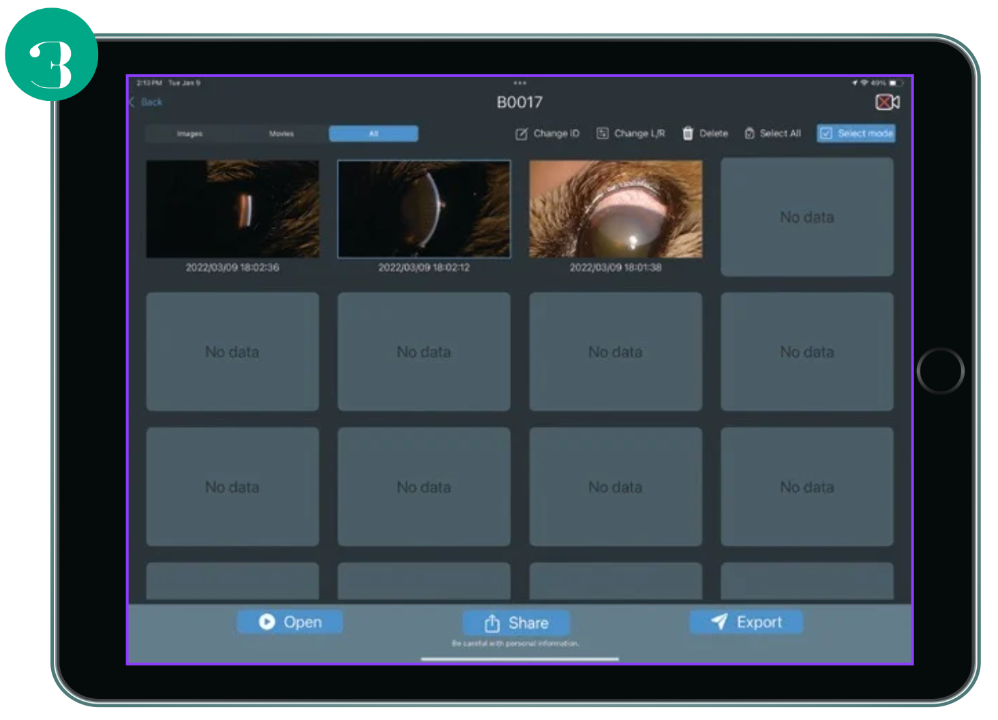

Recorded images can be stored and managed for every patient.

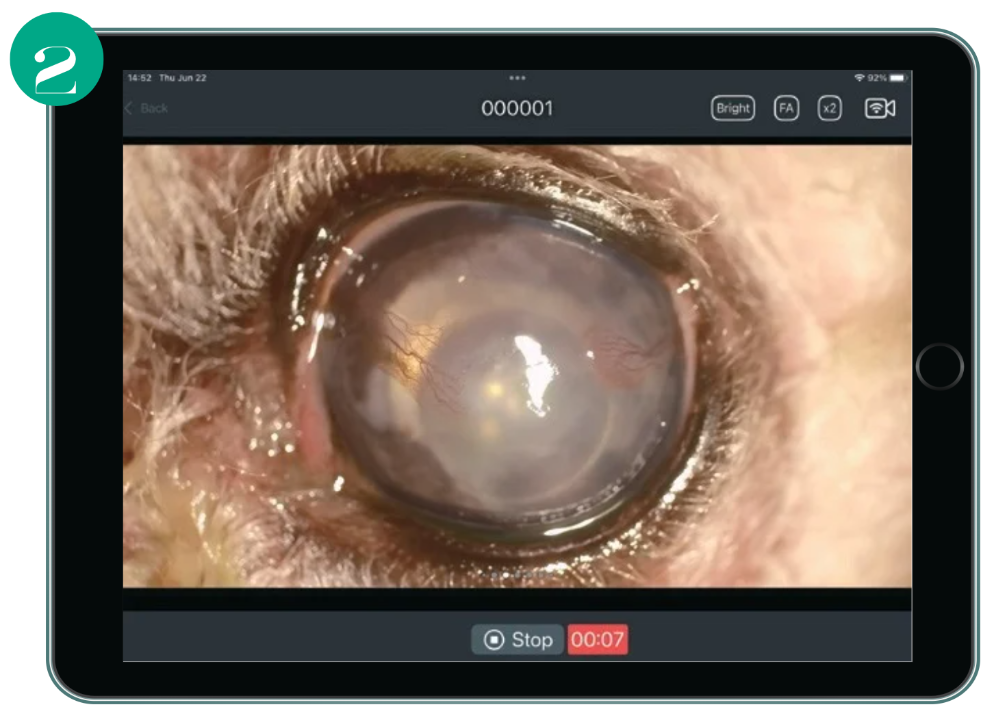

Finder view can be displayed and recorded on your iPad through the dedicated application.

Focused still images are automatically extracted from the video. Extracted or selected still images can be stored.

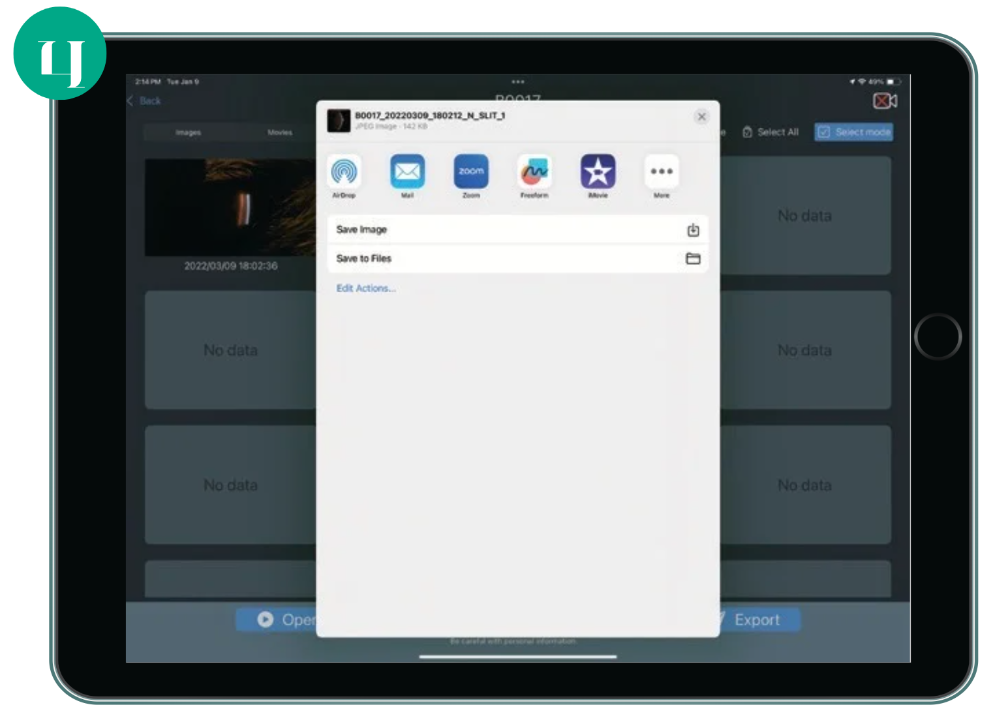

Images can be shared via AirDrop, or external USB memory, etc.

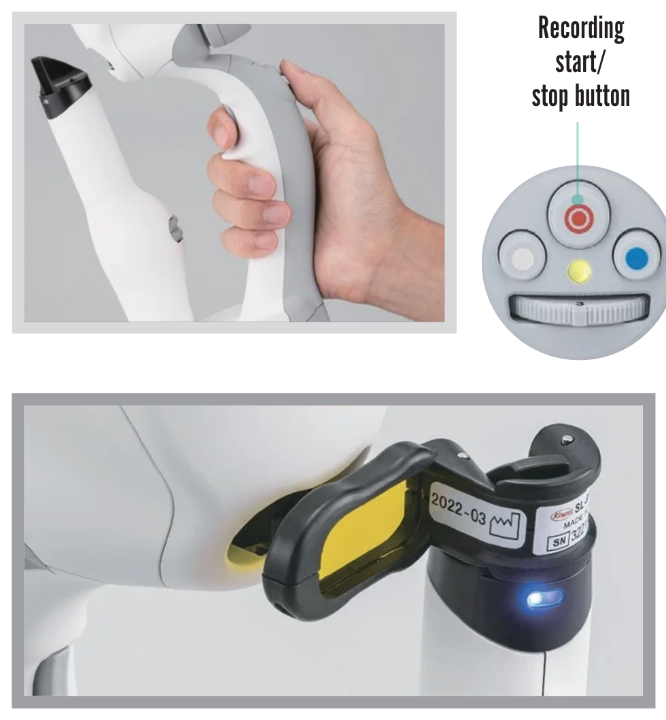

EASY HANDHELD OPERATION

Recordings can be controlled with your thumb by the push of a button.

YELLOW FILTER

Effective for fluorescein observation.

Yellow filter is a standard accessory of the SL-19 plus.
