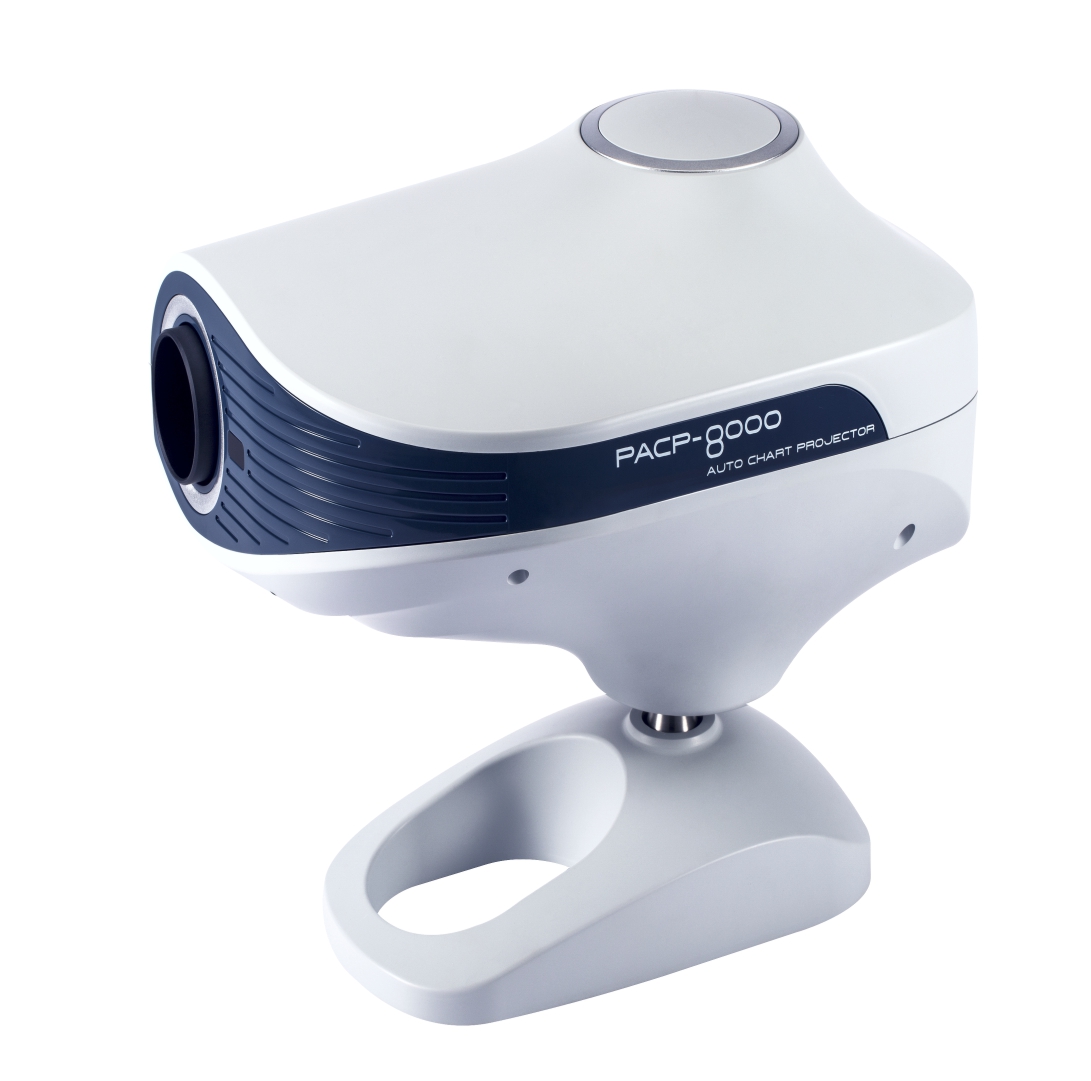

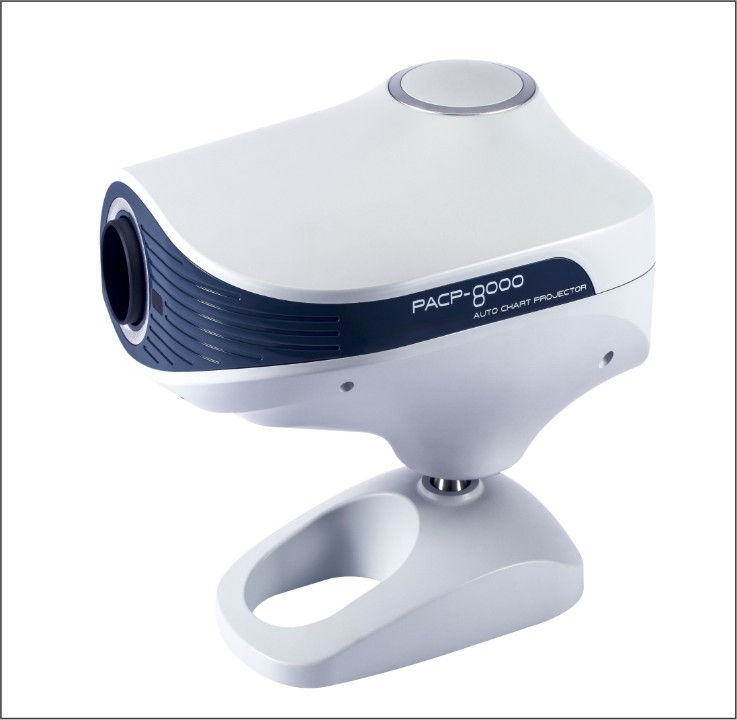

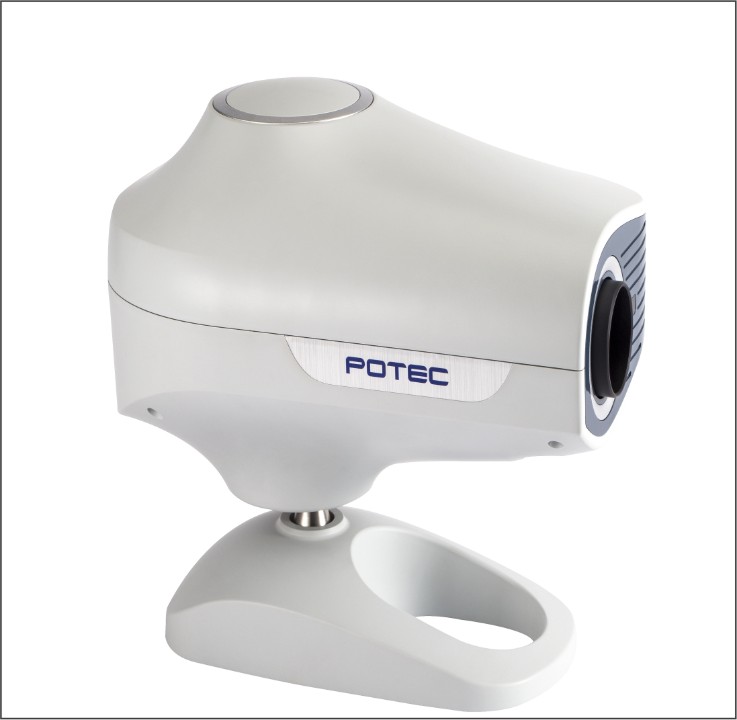

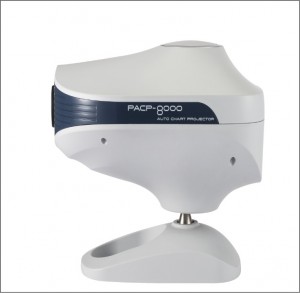

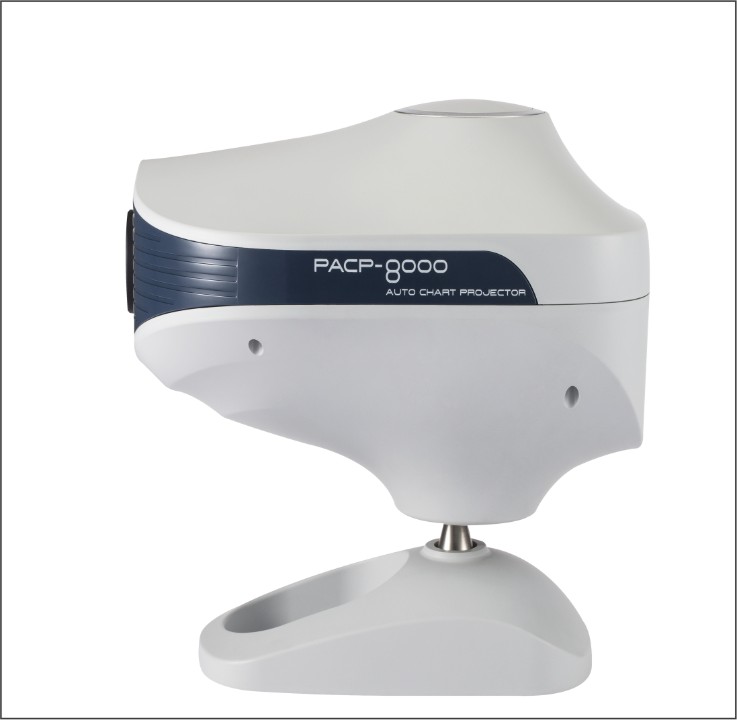

Auto Chart Projector PACP-8000

Eyesight measurement using diversified charts

Diversified charts (4 types of A/C/D/R) per country are retained including binocular balance, aniseikonia, stereopsis, binocular vision test chart

Cost saving through adoption of LED light source

Maintenance & repair costs can be saved through adoption of LED light source having a semi-permanent service life

Bright & clear chart display

Brighter & clear chart display is provided by adoption of white LED

Refined design

Optometry room is made to stand out by the refined design embodying an eyeball.

Compact size

A roomy optometry space is provided using a more compact size
- Size: 25% Reduction comparing with PACP-7000
- Weight: 25% lighter than PACP-7000

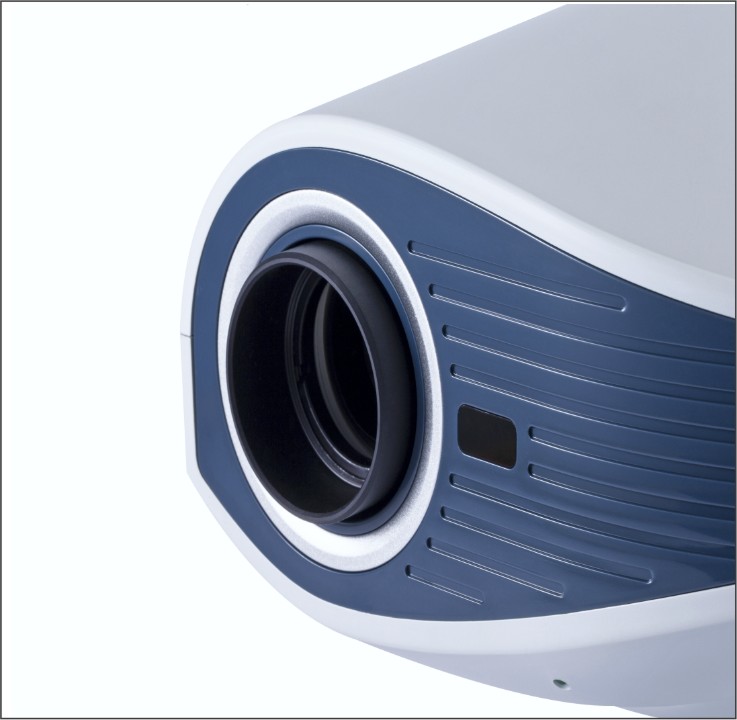

Convenient focus adjustment

Convenient focus adjustment is enabled by a rotary aperture.

Specifications: PACP-8000
Charts 42 EA
Distance of Projector 2.5~8m (8m distance projection screen is optional)
Chart magnification 30× (when projected at 5m distance)
Lamp LED lamp
Chart rotation speed average 0.3 sec
Power save 11 minutes (after last signal)
Tilt angle ± 20 degrees
Resolution 50 lines / mm
Program 2 programs with a maximum of 40 charts each
Power Supply 100 - 240V~, 50/60Hz
Power consumption 25~35VA

Body (Exclude Stand) : 200(W)×290(D)×172(H) mm

Body (Include Stand) : 200(W)×290(D)×235(H) mm

Remote Controller : 64(W)×196(D)×20(H) mm


Body : 3.58 kg(Stand included)

Remote Controller : 160 g (Battery included)

Standard Accessories Screen, Remote Controller, Table Stand, Dust Cover, Power Cable,T wrench, Fuse, Battery
Optional Accessories Red/Green glasses, Polarization glasses
