3nethra Classic Retinal Camera - Forus

3nethra Classic Retinal Camera

3nethra classic

Digital Non-mydriatic Fundus Camera

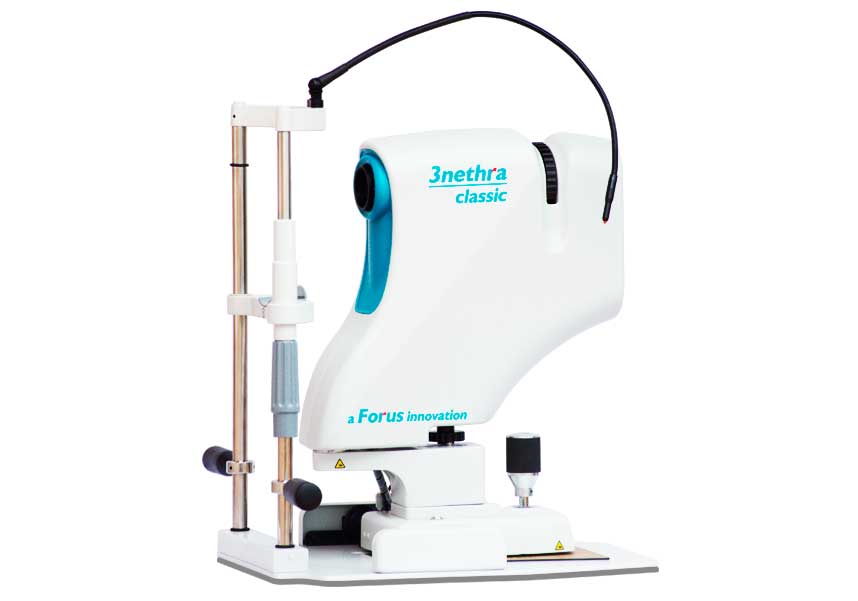

The 3nethra classic is a digital non-mydriatic fundus camera, equipped with an efficient workflow to capture undistorted and uniformly illuminated photographs of the retina and surface area of the cornea. The compact design of the camera enhances mobility and easy deployment. The camera is used by clinicians in ophthalmology, optometry, or primary care practice to assist them in the effective evaluation, diagnosis, and documentation of visual health. Some of the common eye diseases that lead to visual impairment are glaucoma, diabetic retinopathy, Age-Related Macular Degeneration (ARMD), and cataract.


  • Easy to use and deploy
  • Rapid eye screening
  • Greater portability

Key Features

  • Non-mydriatic retinal imaging
  • Multi-functional imaging: posterior segment, anterior segment, and dry eye
  • Peripheral retinal imaging
  • Short eye examination time
  • Compact design
  • Telemedicine compatible
Specifications: 3nethra-classic

FOV 45 degrees
Optical resolution 8-14 microns
Image sensor 3 megapixels
Interface USB 2.0
Dimensions 520 mm (H) X 420 mm (L) X 400 mm (W)
Total weight 11.1 kgs (3.4 kgs tricam + 7.7 kgs stand)
Power consumption 5-10 W (DC)
Power supply AC 100-240 V, 50/60 Hz (for DC power adapter 5 V/4 A)
Minimum system
The software will work on MS Windows 10 having a 64-bit OS and an i3 10th Generation Processor with a turbo booster of up to 3.3 GHz. A minimum of 4GB RAM with 500 GB or more of hard disk space is required. A display dimension of 1366 X 768 is needed. Forus Health recommends using a CE-marked laptop or desktop.
