HFC-009 PLUS

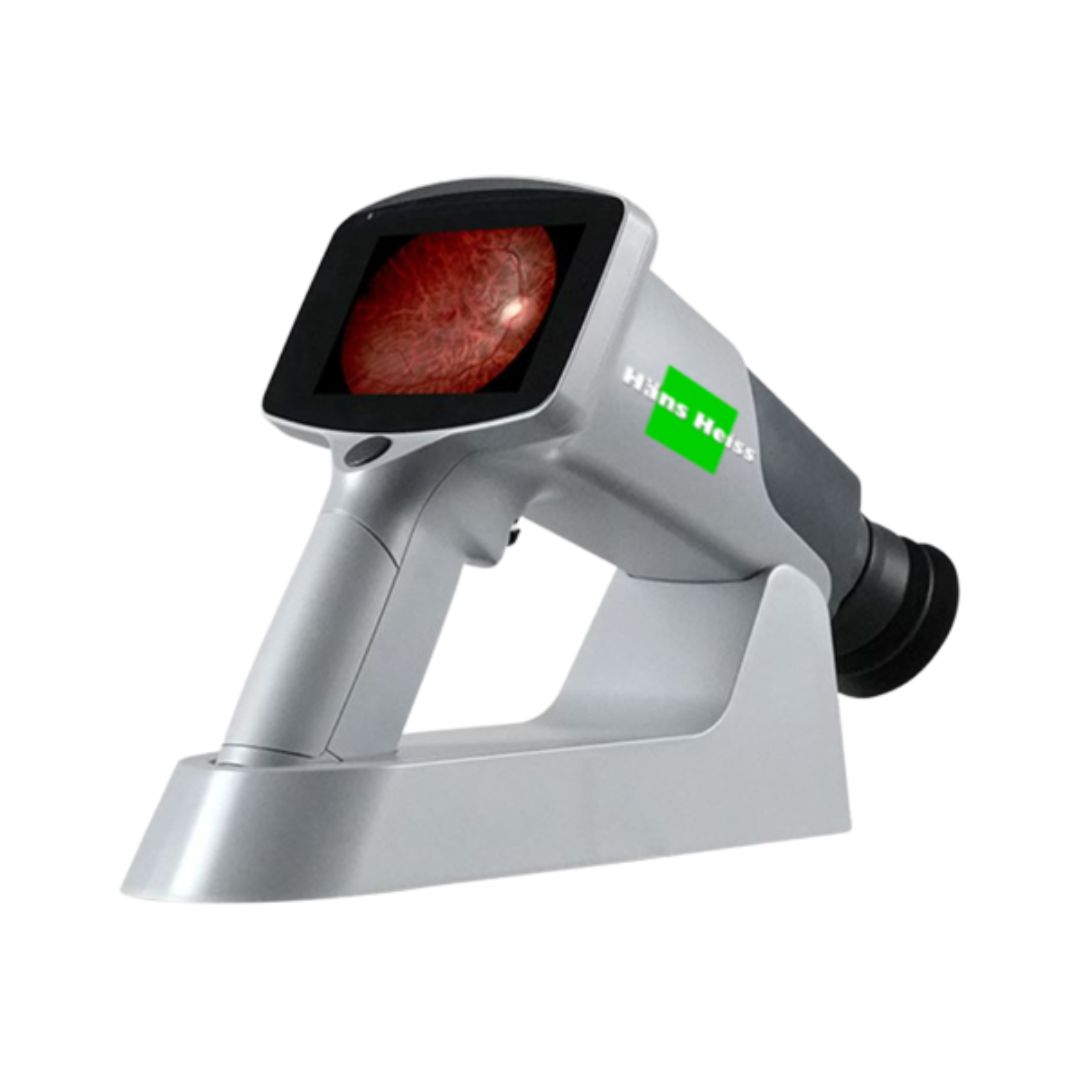

HFC-009 PLUS Hand-held Fudus Camera

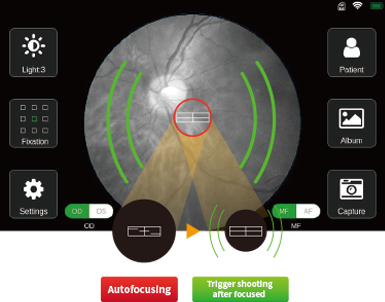

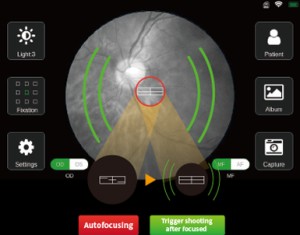

Millisecond Focusing

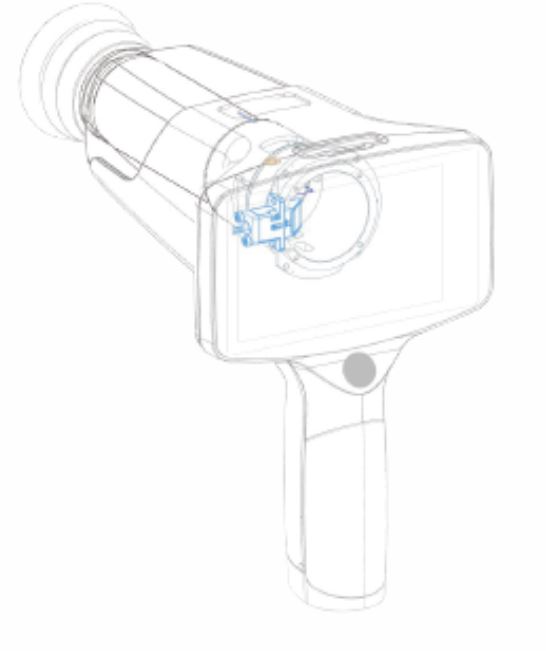

Auto Split Focusing Technology Millisecond Focusing Speed

HFC-009 PLUS adopts Auto Split Focusing technology, focusing speed reaches milliseconds.

It avoids the out-of-focus of the fundus image caused by the patient's movement during shooting,effectively improve the image quality and reduce the requirements for cooperation between operators and patients.


5 Advantages

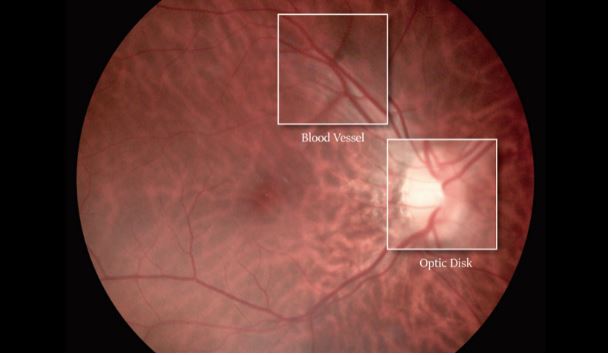

High-resolution fundus images

HFC-009 PLUS is an non mydriatic fundus camera which provides high-resolution fundus images, and the image resolution is up to 12 Mega Pixels.

Making the diagnosis of early lesions more accurate, It is essential for diagnosing retina disease, such as diabetic retinopathy, glaucoma, and macular degeneration.

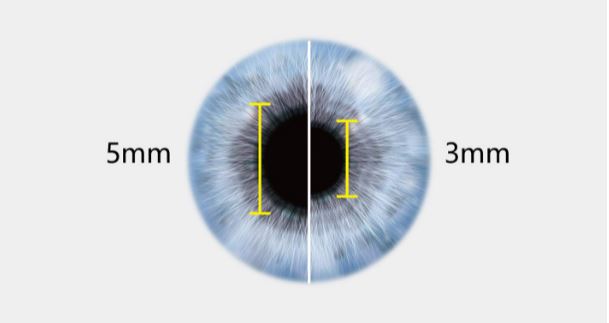

Non-mydriatic

The minimum pupil diameter of HFC-009 PLUS is φ3.0mm.

20 minutes of mydriatic waiting time is saved, and the risk of mydriasis to the patient is avoided.

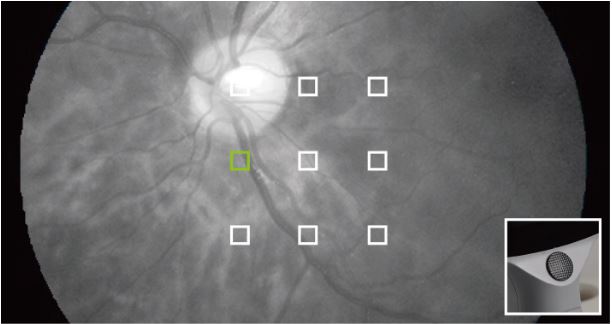

9 Fixation Targets

With 9 fixation targets, FC161 covers 85° field of view of the fundus and supports the examination of early peripheral lesions of the fundus. With 45 ° field of view , a single central fundus image can be taken to meet the needs of fundus disease screening.

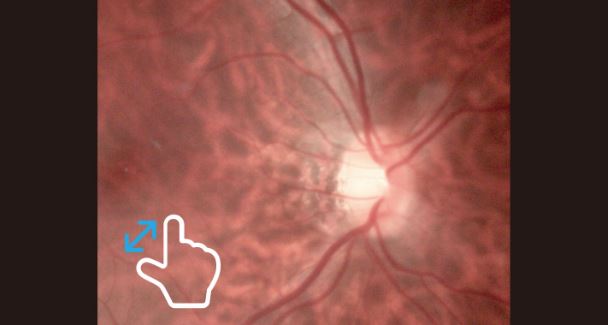

Smart Touch Operation

4.3〃 full-touch LED screen brings a smarter operating experience. Doctors can zoom the image at any time to check the details of the fundus, and can also easily slide the screen to edit and view the case.

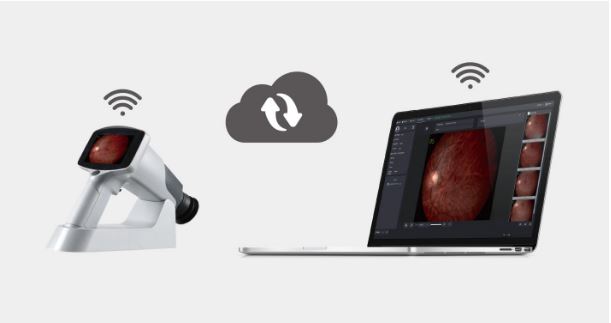

Real-time Uploading

HFC-009 PLUS supports real-time synchronization between fundus images and Mediview Patient Management software through WIFI connection..

Specifications: HFC-009 PLUS
Type Non-mydriatic
Filed of View 45degrees
Camera Sensor Resolution 12M Pixels
Fixation Targets 9×LED,Internal
Minimum Pupil Size 3mm
llumination White LED & IR LED
Focusing Manual/Automatic
Focus Range -20D~+20D
Display 4.3”Touch Screen
Image Format JPEG
Type of Image Color
Memory Micro SD card. Maximum 32G
Data Connectivity WIFI/USB
Power Supply Rechargeable battery 3.7V/3400mAh x 2
Working Time 3 hours of continuous work
Charging Station 100-240V~,0.5A,50/60Hz
Power Supply 5V DC,2A
Dimensions 28cm×13cm×15cm
Weight 800g
languages Chinese,English
