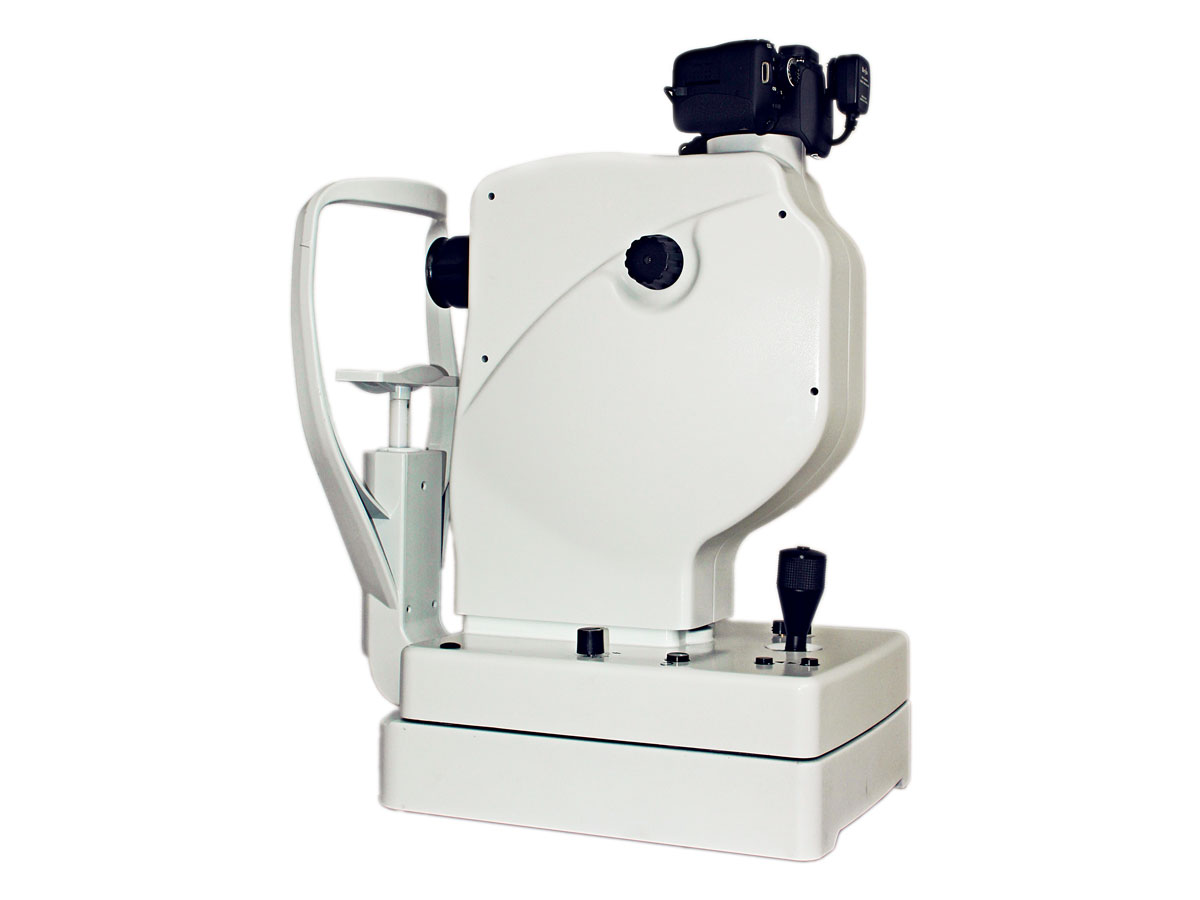

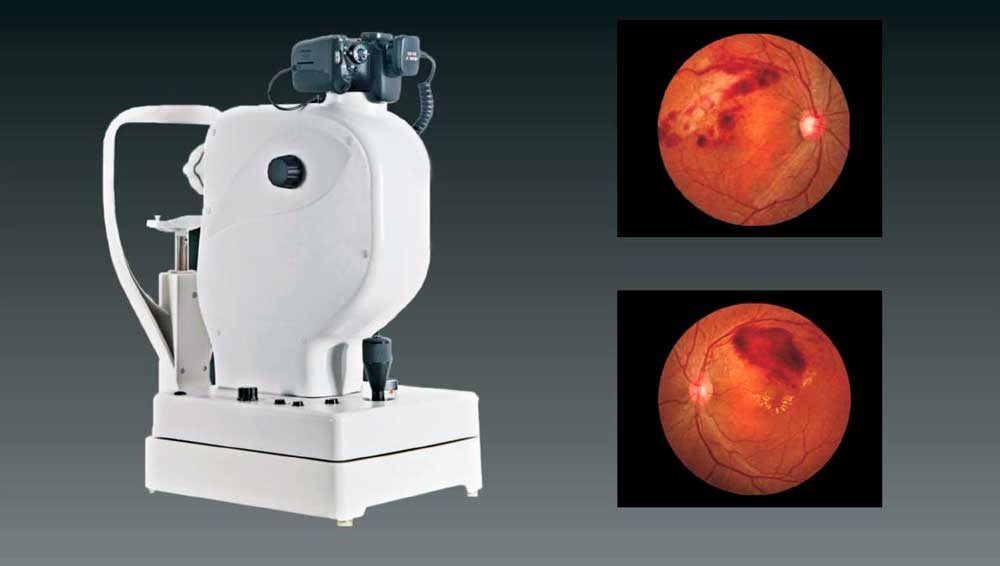

Cámara Retinal No Midriática Hans Heiss HFC-005

Advantages of Non-mydriatic Fundus Camera

  • Reduce the pain and inconvenience of patient
  • Save time for patients and doctors,dilating need about 20 minutes
  • Won’t affect patients’activity which improving their compliance
  • Non-mydriatic image with reliable quality

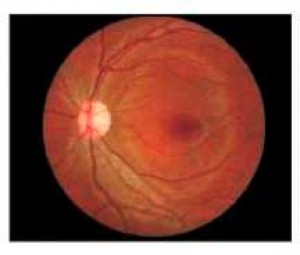

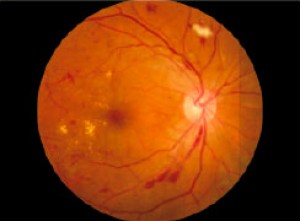

High quality image

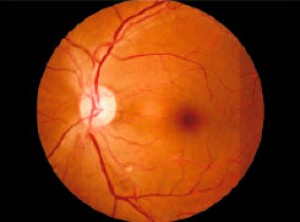

Normal retinal image

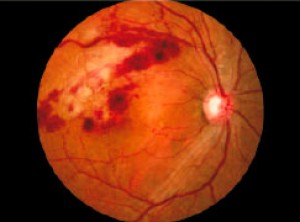

Branch retinal vein occlusion

Diabetes phase II

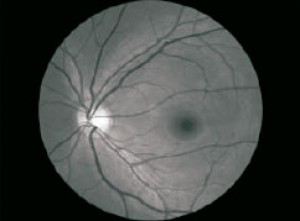

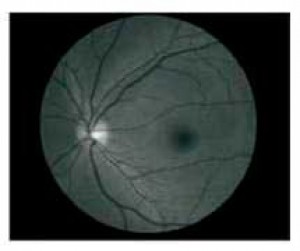

Red-free

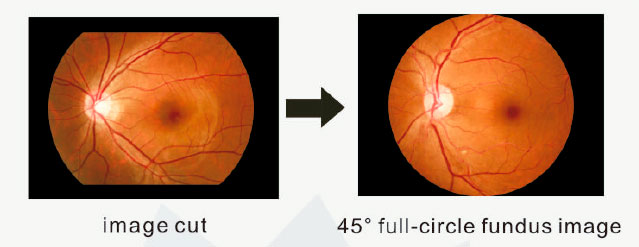

45° full-circle design

New optical design guarantee 45° full-circle image and avoid losing fundus information

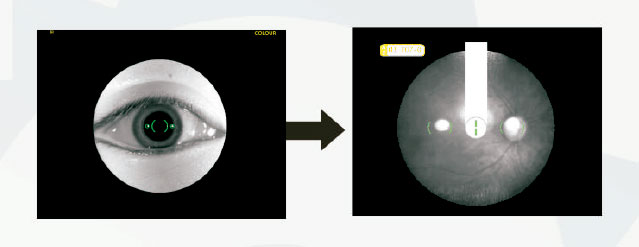

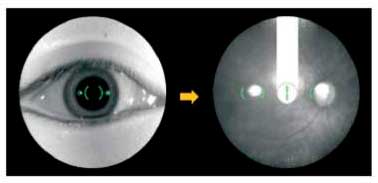

Switching anterior-posterior para-position compensation lens

Using additional compensation mode of fundus para-position,cleverly solve the problem of para-position blind area from the ocular surface to fundus, which make the fundus para-position becomes easier

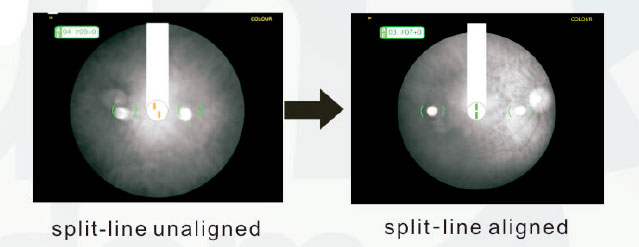

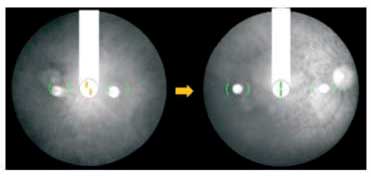

Split-line aligning focus

Using split-line aligning focus method which indicates focus status more objectively compared to the traditional one which can avoid turbid eye medium holding back the image focus Even under the black background such as FFA, Split-line aligning system still helpful for clear images capturing.


Exposure intensity automatic controlled

The system identify patients' retinal status and control exposure intensity automatically which realize the best exposure condition. It assures to get perfect image every time.


Specifications: HFC005

Specifications

Model SK-650A SK-650B
Optical lens Aspherics system Aspherics system
Test mode Non-mydriatic fundus Non-mydriatic and FFA
Fundus Obsevation Switching Optical anterior-posterior compensation lens Moved platform
Red-Free Yes No
Focus Split-line aligning focusing
Digital Camera CANON EOS Technology
Color Image Resolution 5184*3456
Monochrome Image resolution / 1360*1024
Min. Pupil Size 3.3mm
Compensation range de -25D a +30D
Fundus observation para-position indication Dots overlap

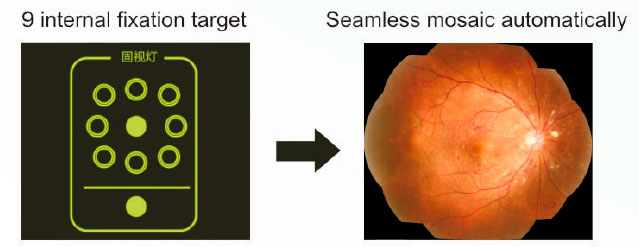

Fixation target External eye fixation lamp & 9 internal fixation target (LED dot matrix-Fully controlled by software)
Maximum angle of view 53°
Optical head tilting / Horizontal ± 30°
Vertical ± 12.5°
Working distance 40mm +/- 2mm

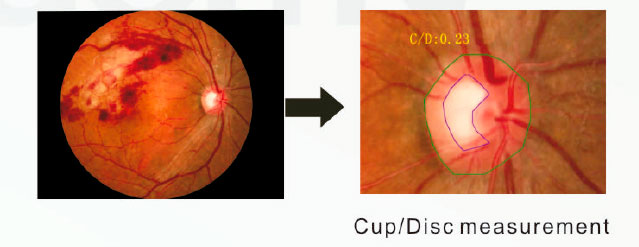

Software Support Dicom 3.0, support hospital HIS/PACS system. Image processing, easily
operate, strong analysis, support fundus Mosaic, image post processing,
measurement, patient profile management
