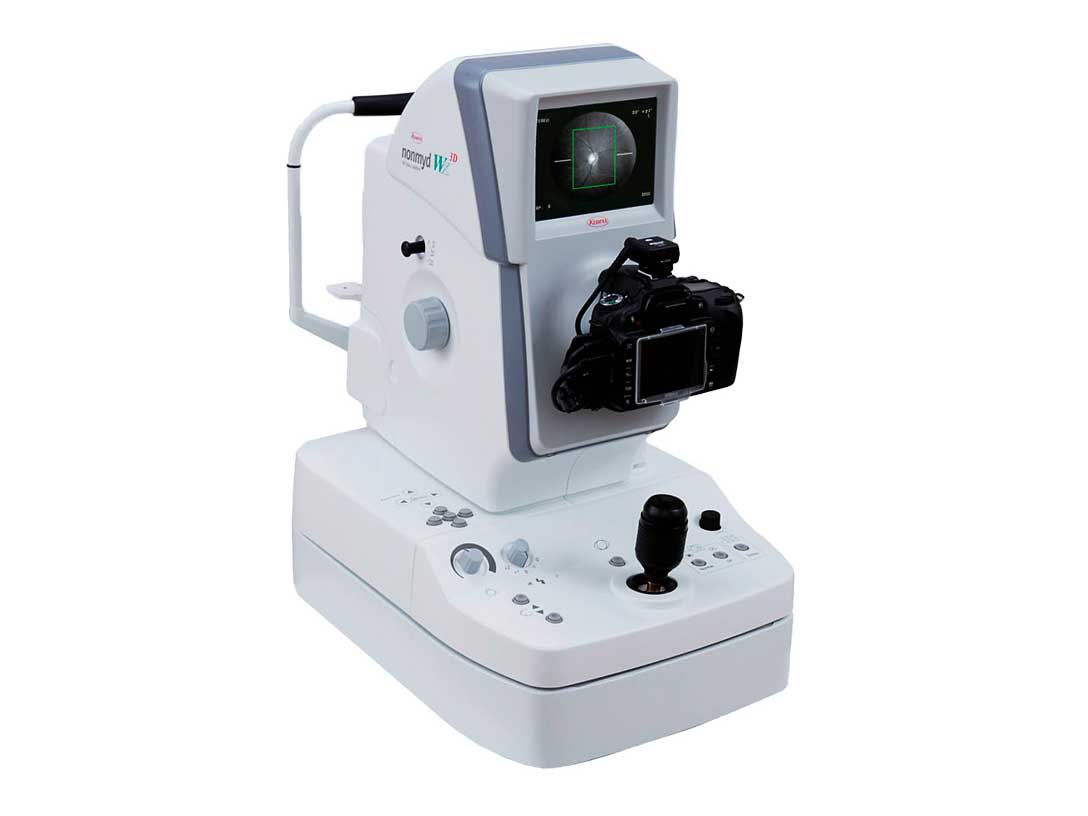

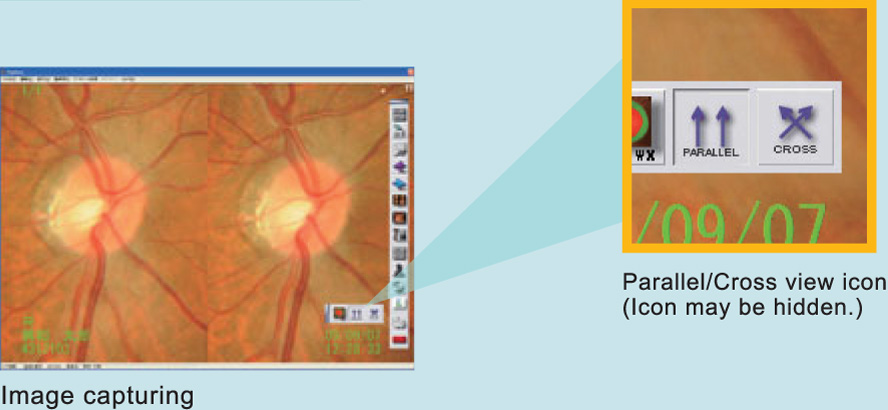

The Nonmyd WX-3D is a versatile retinal camera offering both 2D and superior stereo 3D images while maintaining Kowa's longstanding tradition of high quality imaging and ease of use. The incredibly detailed stereoscopic 3D images delivered through the 3D mode will help you diagnose your patients by providing imaging capabilities unmatched by any other combination retinal imaging device. The Nonmyd WX3D enables 3D viewing of images taken of the ONH and macula, thus providing superior stereo images to support diagnosis of sight threatening conditions such as glaucoma.
Kowa's exclusive optical design in combination with the digital SLR camera delivers extremely detailed retinal images.
The integrated 9-points internal fixation light allows for mosaic photography covering a large retinal area.

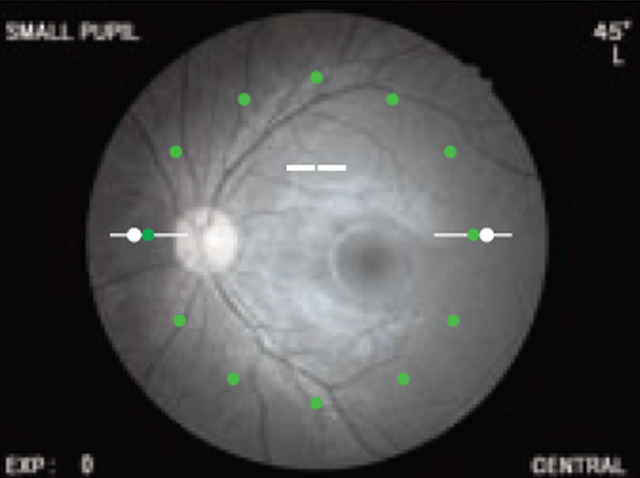

Retinal images can be taken even with smaller pupils. On screen guides indicate if the pupil size is within the sufficient range (above φ3.5 mm) for photography.

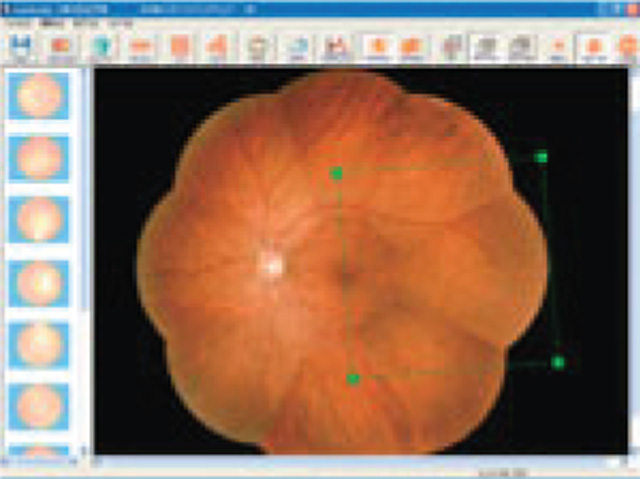

Mosaic images are created easily with automatic image rotation & alignment.
|Monitor||5.7 Inch LCD Monitor|
|Dimensions||310(W) x 504(D) x 548(H)mm|
|Weight||21kg/46lbs (Excluding Attached SLR Camera)|
|Field Angle||Normal: 45° Stereo: 34°(20° x 27°) SP:45°(Some eyes may cause a flare around their circumference)|
|Working Distance Adjustment||Indication Type: 2 Luminous Dots|
|Internal Fixation Target||Central, Disc, Macula, Mosaic 8 Positions|
|External Fixation Target||Red Light (Optional)|
|Optical Head Base Adjustment Range||Forward/Backward: 40mm Left/Right: 98mm Vertically (Electric): 27mm|
|Minimum Pupil Size||Normal Mode: ⌀4.0mm SP Mode:⌀3.5mm Stereo Mode: ⌀4.0mm|
|Camera||Specific Nikon® Digital SLR Camera|

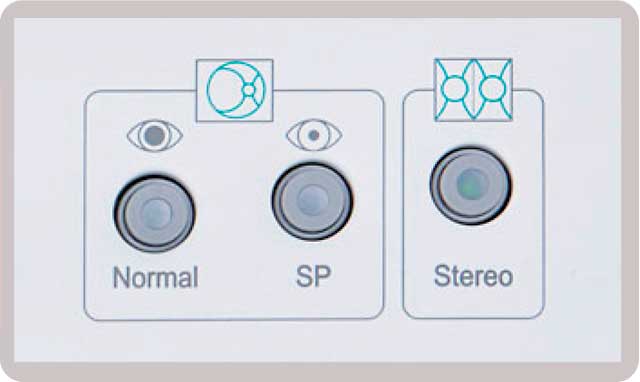

|Photography Modes||Normal/SP/Stereo (Switches Electronically)|
|Focusing||Split Luminous Bars Coincidence|
|Stereoscopic Photography Method||Simultaneous Stereo Photography|
|Stereo Photography Parallax||7.4°(At the Diopter Eye)|
|Power Supply||Input: AC100-240V 50/60Hz Power Consumption: 150VA|
|Chin Rest Adjustment Range||55mm (Electric)|
|Compensation Range of Examined Eye||Without Compensation: -12D to +13D -Compensation: -32D to -10D +Compensation: +10D to +35D|
