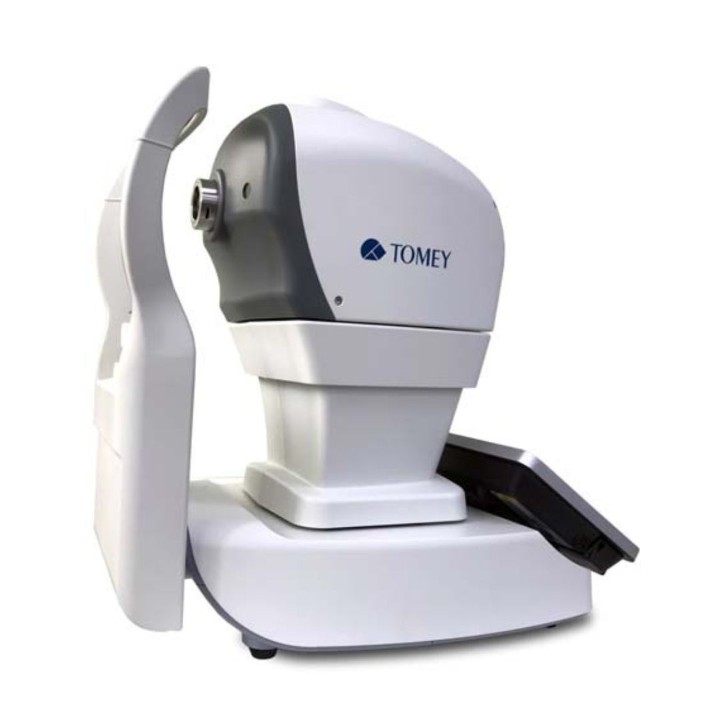

NON-MYDRIATIC FUNDUS CAMERA TFC-1000

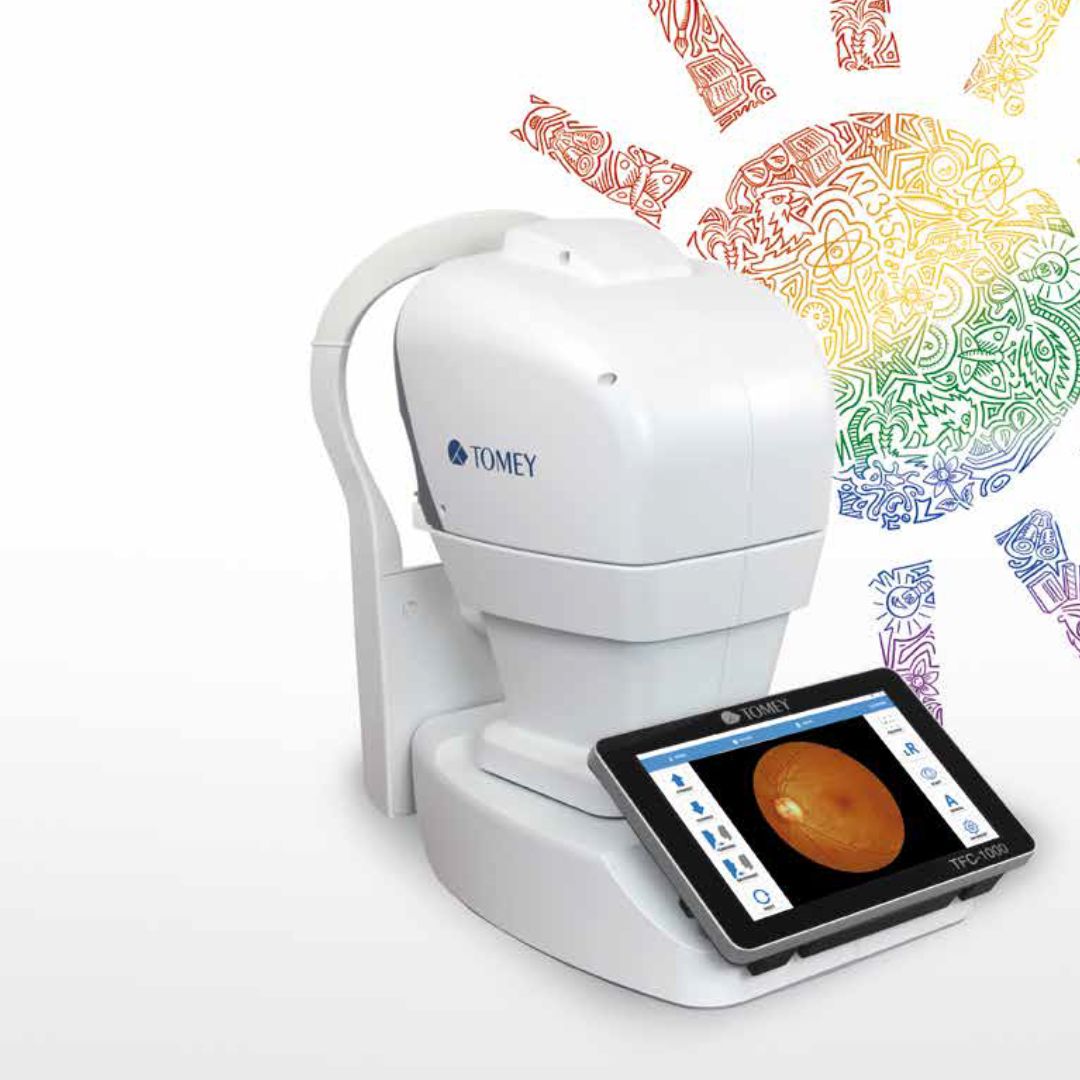

Tomey Fully Automated fundus Camara TFC-1000

The TFC-1000 fully automatically generates a fundus image within 15 seconds using eye tracking, auto-focus and auto-measurement. The “KISS principle” (keep it short and simple) had the highest priority in the design of the software and workflow. This makes the operation of the TFC-1000 extremely easy. The user-friendly interface is very intuitive and delivers results in a very short time.

Excellent features

  1. Automatic eye tracking.
  2. Auto-focus and auto-measurement.
  3. Fundus image within 15 seconds.
  4. Multi-imaging display.
  5. Field of view 45° x 45°.
  6. 12 MP sensor.
  7. 10 fixation points.

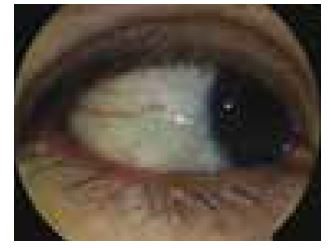

  8. Anterior segment imaging.
  9. Ready for 3rd party screening software.

MULTI IMAGING DISPLAY

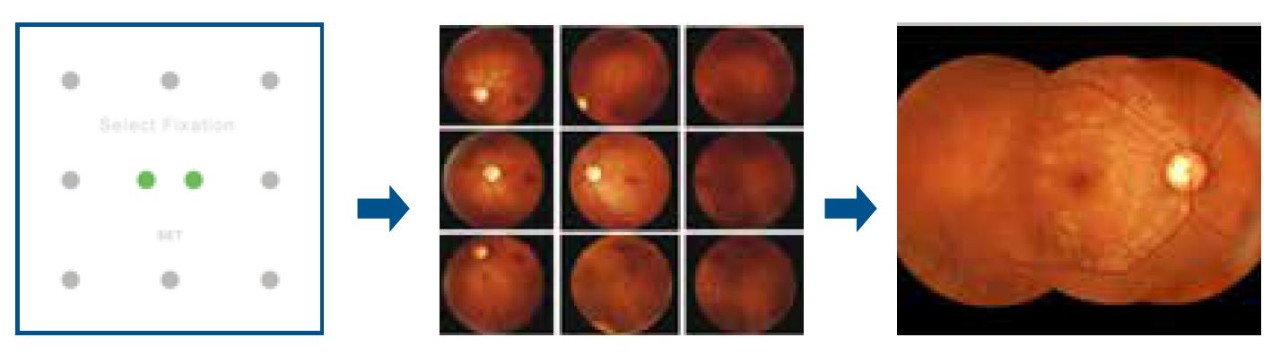

With 9 fixation points we enlarge the field of vision (FOV) of the reninal image. For multi imaging you have the possibility to select 3 of 9 points. The FOV will extended from 45° to 80°

TFC-1000 VIEWER SOFTWARE

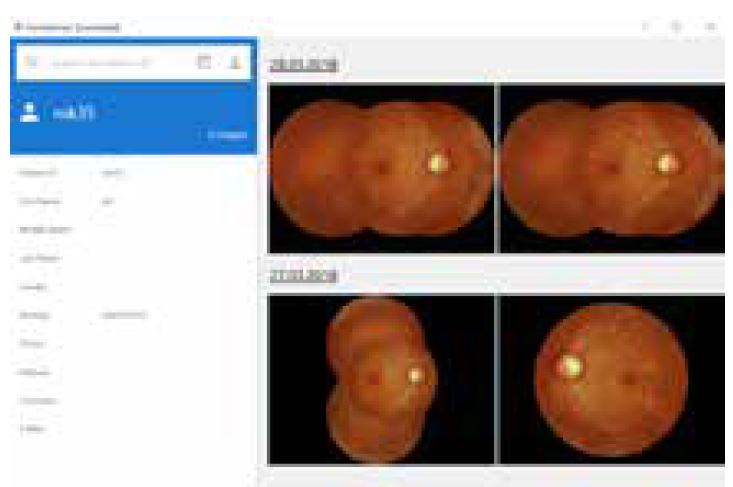

With the viewer software you can analyse the diagnostics of the images.


EXTERNAL ANALYSIS (OPTIONAL)

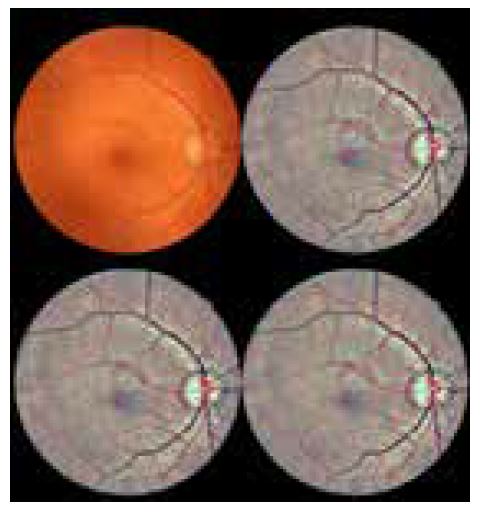

Fundus images can be send to external diagnostic supplier for screening. The images can also be transfered to our Perimeter for target Perimetry.

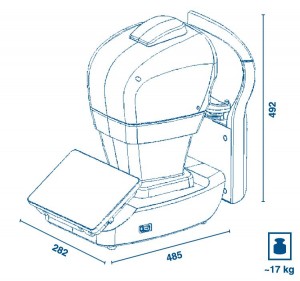

DIMENSIONS

Specifications: TFC-1000

FEATURES AND FUNCTIONS

Type Digital non-mydriatic retina camera

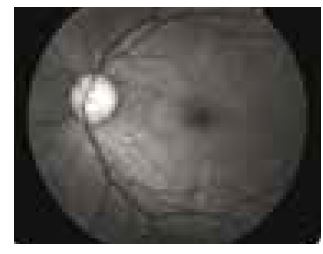

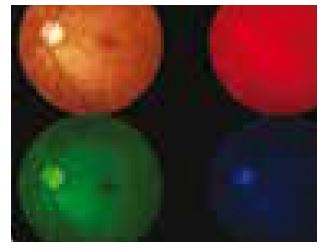

Type of photography Colour, digital red-free, anterior eye image
Light source Observation light source: Infrared LED Flash light source: White LED
Auto-exposure YES
Auto-focusing YES
Image 12 MP
Image resolution 4096 x 3072
Alignment Fully automatic 3D tracking
Chin rest Motorised

MEASUREMENT

Field of view 45° x 45° up to 80°
Minimum pupil size 4 mm
Working distance 25 mm
Focus adjustment range -15 D to +10 D (without compensation lens)
-30 D to +30 D (with compensation lens)
Flash intensity 10 levels, can be set manually
Fixation target 10 internal points

NETWORK CAPABILITY

Interface USB 2.0, Ethernet, HDMI, WiFi
Image format JPEG, PNG, Dicom, BMP

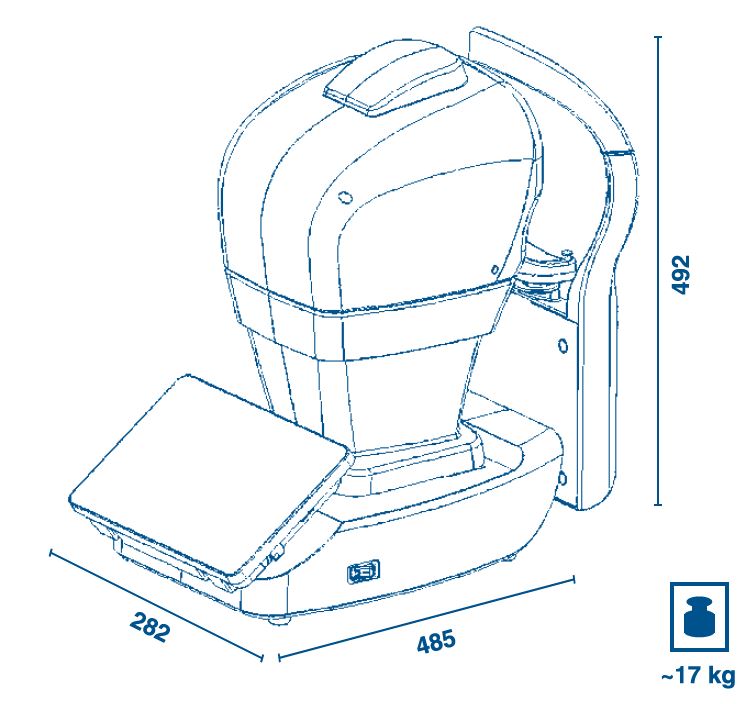

DIMENSIONS AND ELECTRICAL REQUIREMENTS

Dimensions WDH 282 x 485 x 492 mm
Weight 17 kg
Voltage 100 VAC to 240 VAC
Frequency 50/60 Hz
Power consumption <150W

OPERATING ENVIRONMENT

Temperature 10°C to 35°C
Humidity 30% to 90% (no condensation)
