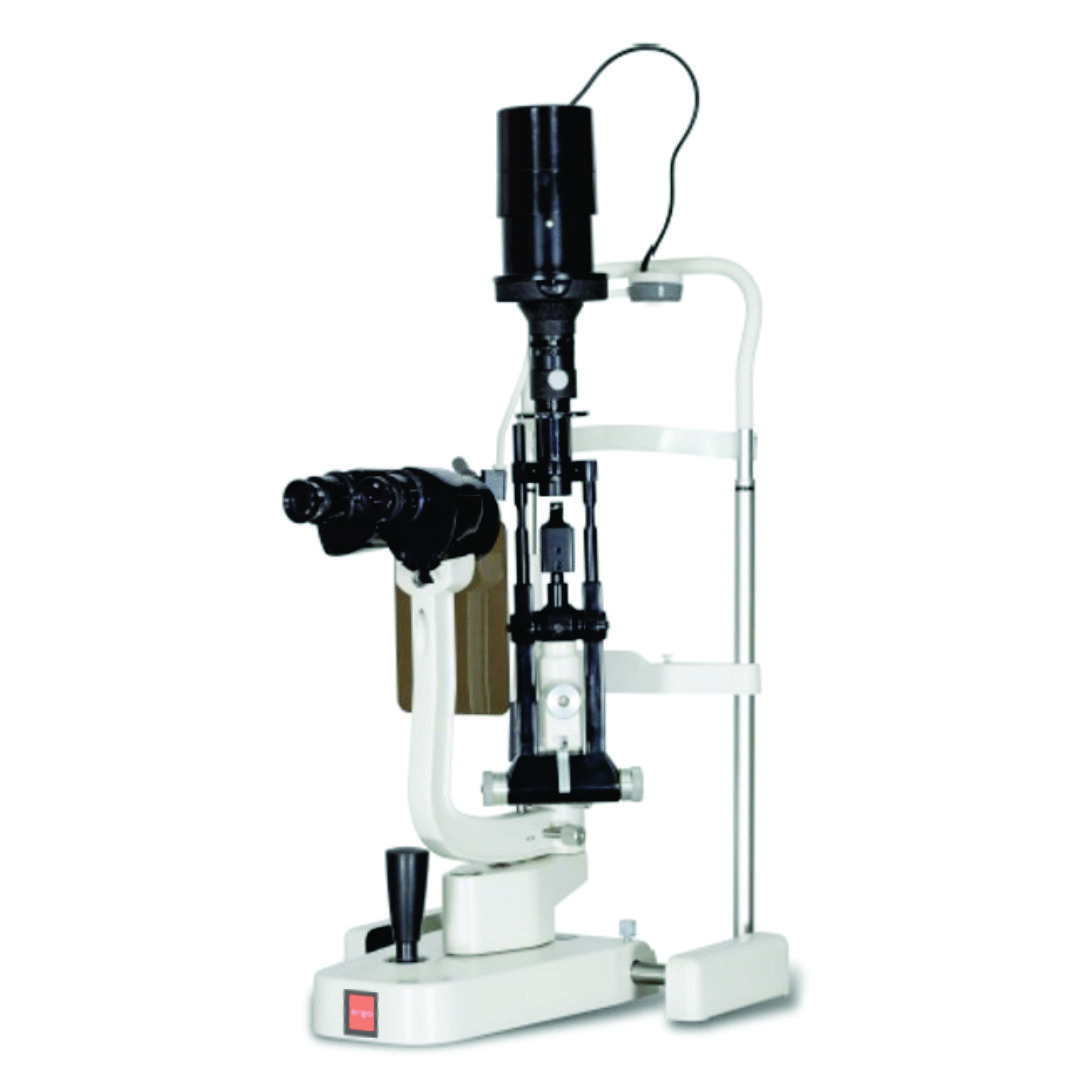

ASL 1500 SLIT LAMP - Argo Equipment


ASL 1500

Converging stereoscope microscope provides the clear images.

Schott optics from Germany reduces optical distortion, increases clarity and depth of focus.

Allthe optical lenses are moisture-proof, mildew-proof and anti-reflected treated.

Three-step magnifications (10X , 16X , 25.6X) can be changed by lever and 10X & 16X eyepieces are available.

All the joints can be connected by accessories with international standards.

Specifications: ASL1500
Microscope Type Converging Stereoscopic Microscope
Objective Magnification Two Steps Magnifcations
EyePiece 10x and 16x
Magnifications (Field of view) 10x(φ18mm) 16(φ14.5mm) 16(φ11.25mm) 25.6(φ9mm)
Puil Distance 10x EyePiece : 55mm ~ 82mm ; 16x EyePiece : 51mm ~ 78mm
Diopter Adjustment 10x EyePiece:±8D ; 16x EyePiece:±10D
Slit width 0mm ~ 9mm adjustable(slit round when the slt width is 9mm)
Slit Height 1mm ~ 8mm adjustable
Slit Angle 0° ~ 180° ajustable
Slit Inclination 5°, 10°, 15°, 20° four steps
Filers Heat Absorption, Grey, Redfree, Cobalt blue
Diameter of Light Spot φ9mm, φ8mm, φ5mm, φ3mm, φ2mm, φ1mm, φ0.2mm
Power Supply AC110V/220V ± 10%, 50Hz/60Hz
Packing Volume 670mm x 620mm x 490mm
Total Weight 23Kg
Optional Accesories R-Type, T-Type Aplanation Tonometer, Measuring EyePiece, Trihedron Lens, Gonioscope, Funduscope, Aspheric Lens
