B3 Slit Lamp

B3 Slit Lamp

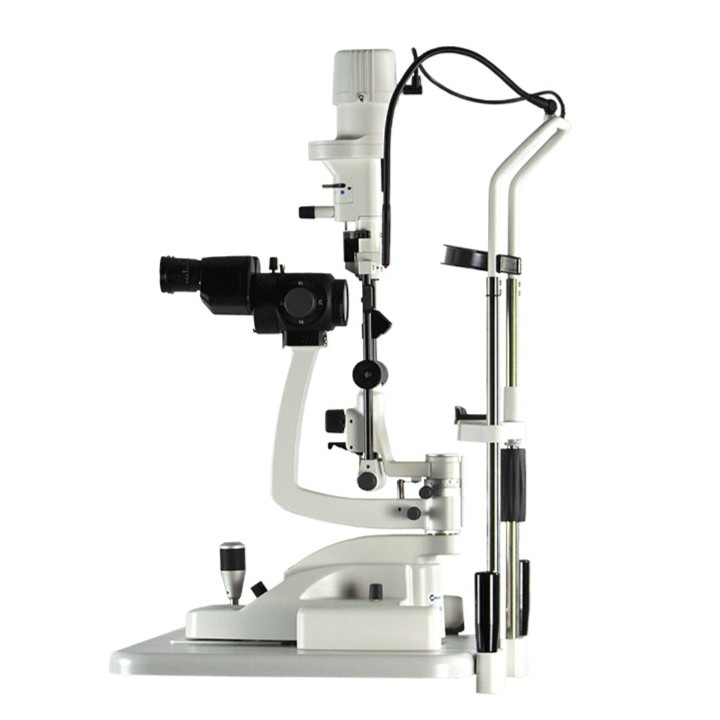

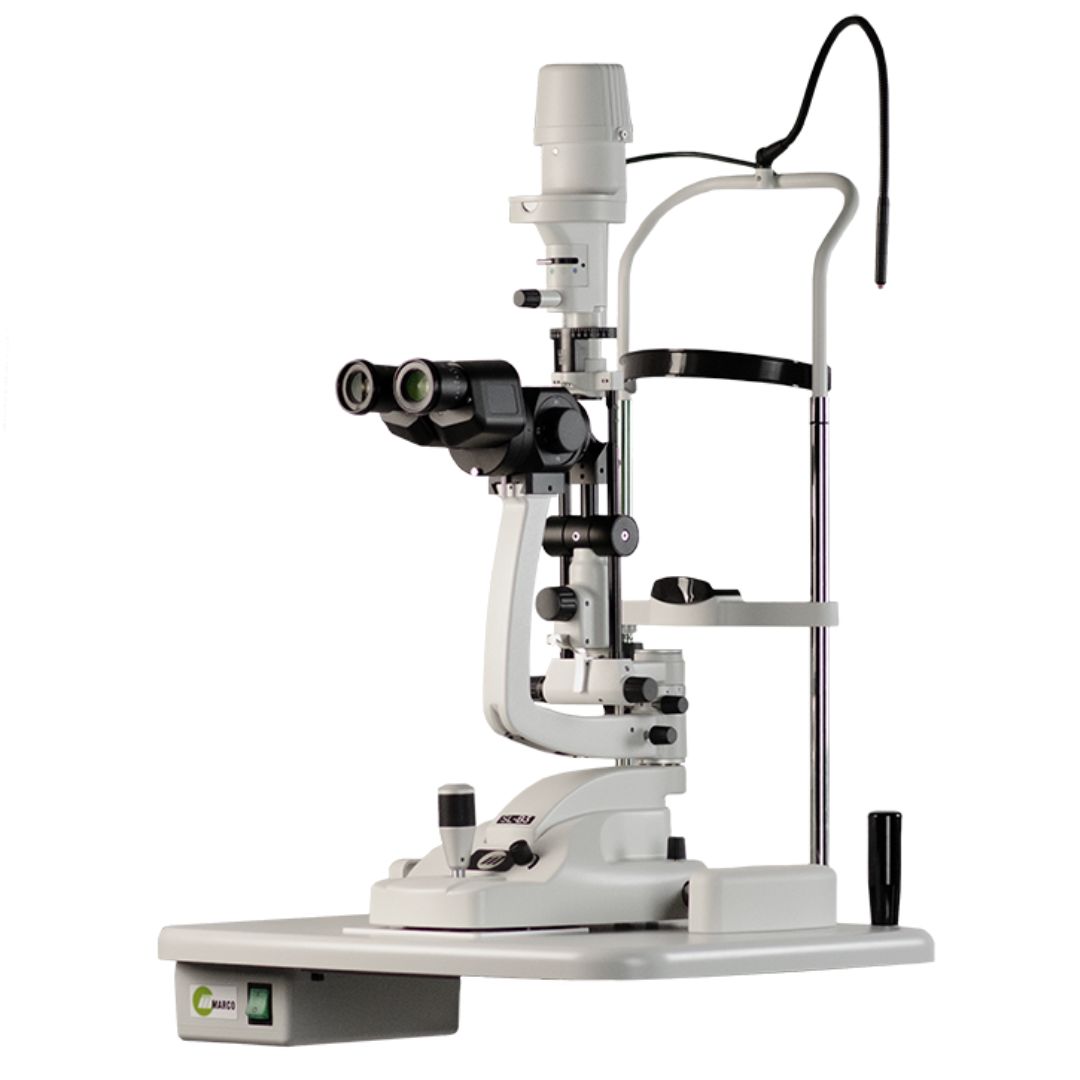

The Marco B3 slit lamp is a product defined by one simple objective – to provide a practical, efficient instrument that meets the needs of everyday clinical examinations. With a unique combination of quality, features, and most importantly, value, this tower illumination style slit lamp is a perfect choice for the practitioner looking for a comprehensive instrument that effectively fits into any practice environment.

Product Features

  • Tower style illumination
  • 3-step magnification (10x, 16x, 25x)
  • Parallel/Galilean optics
  • LED fixation target – Patient fixation target is a red LED on a continuously flexible shrouded cable
  • Self-contained headrest and baseplate assembly
Specifications: B3-slit-lamp-marco

Optical System

Binoculars Type Galilean Parallel (8 Degree Converging)
Magnification 10x, 16x, 25x
Eyepiece 12.5x
Field of View 22, 14, 8.5 mm
PD Range 49-77 mm
Diopter Adjust -8 to +8 D
Objective Lens Focal Distance 107 mm
Objective Lens Convergence Angle 13 Degrees

Slit Projection System & Base

Slit Width 0-12 mm Continuously Variable
Slit Length 12 mm (1 mm- 12mm Continuously Variable)
Aperture Diameters 0.2, 1 mm Square, 2, 3, 5, 9, and 12 mm
Filters Clear, Red Free, Neutral Density, Blue, Yellow, Diffuser Lens, IR Heat Absorbing Filter Permanently Installed
Slit Angle +/- 90 degrees Continuous
Slit Rotation +/- 180 degrees with Reference Scale
Slit Vertical Tilt 0, 5, 10, 15, and 20 degrees
Base Travel 25 mm Z-Axis, 107 mm X-Axis, 110 mm Y-Axis
Horizontal Fine Adjustment 12 mm
Chinrest Elevation Adjustment 70 mm
Table Top Dimensions 405 x 500 mm
Fixation Lamp Flexible LED
Light Source LED
