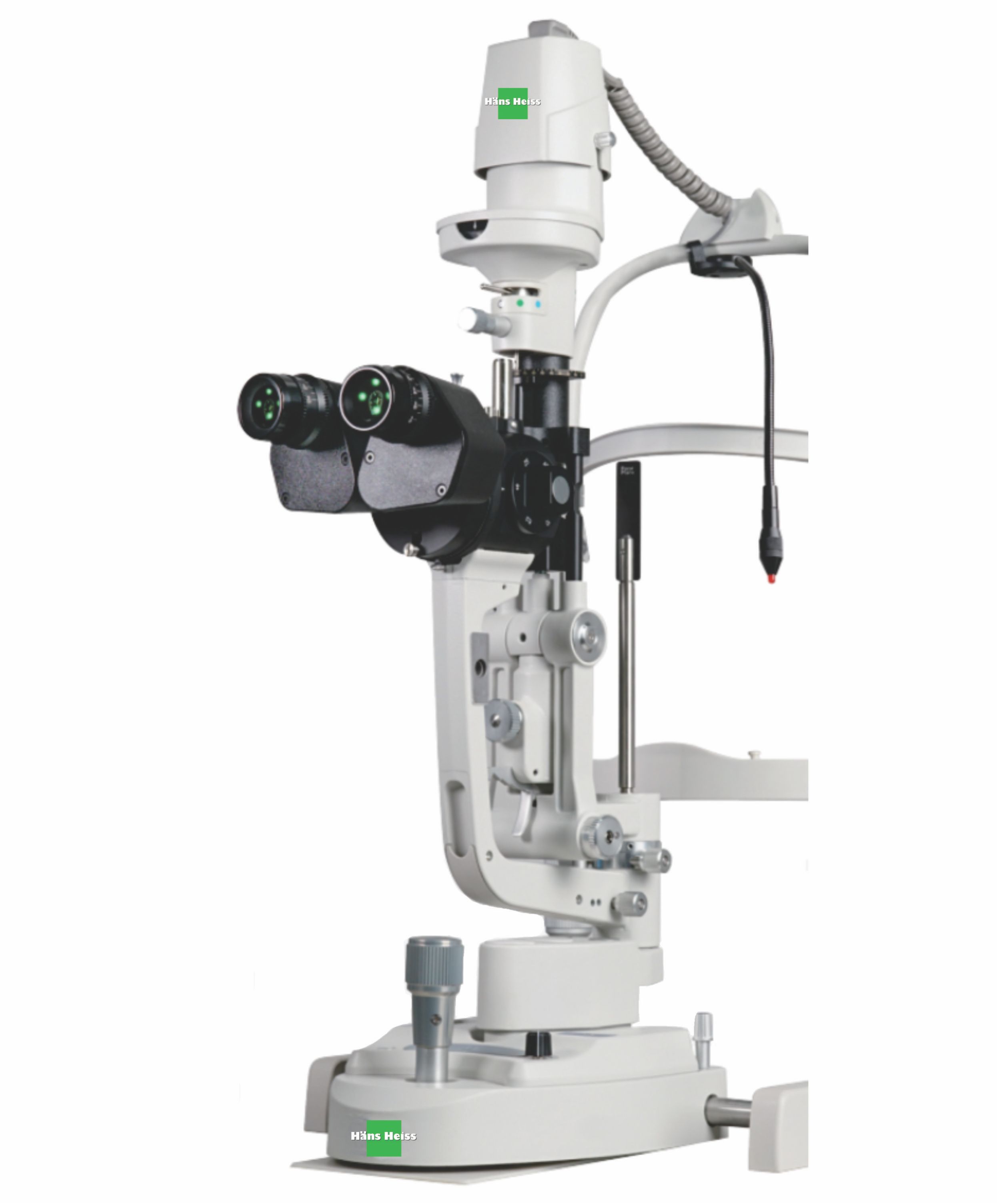

Tower style Slit Lamps with 5 magnifications SL7DL

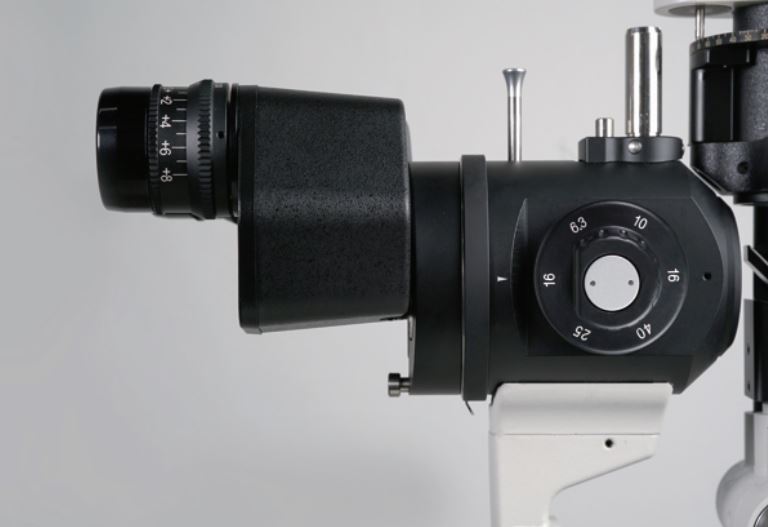

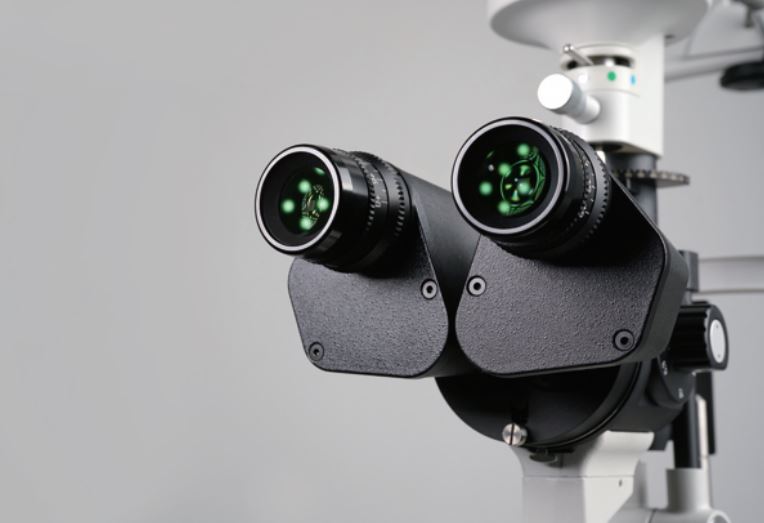

HD Optical System

Optical resolution is up to 200 lp/mm(2700·N lp/mm), providing more details of the pathologies.

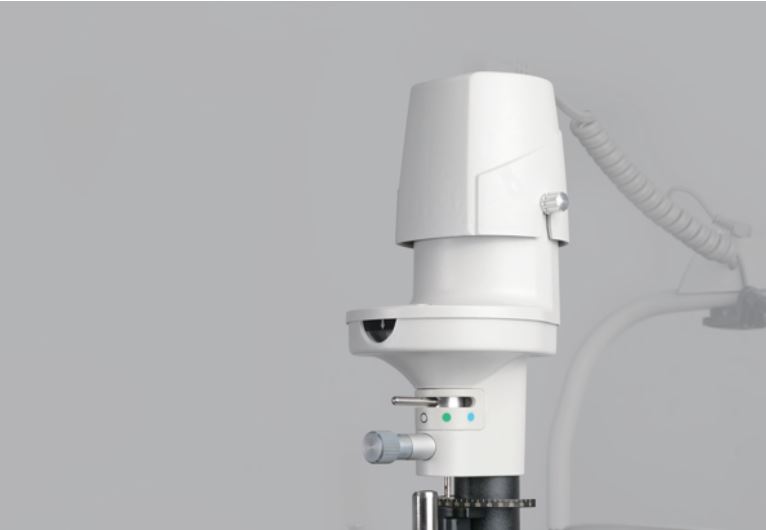

LED Illumination

The light of MediWorks LED lamp is very similar to halogen lamp, which conforms to the operating habit of doctors. The LED lamp MediWorks applied has a low color temperature and high illumination intensity, making view of retina without glare-colors much more vivid and view of cornea with nerves pop out better. The LED lamp has a longer life span and consumes less energy.

Built-in Yellow Filter

Built-in yellow filter along with cobalt-blue filter increases the contrast of Sodium Fluorescein Staining image. Increase positive rate of early corneal epithelial staining.

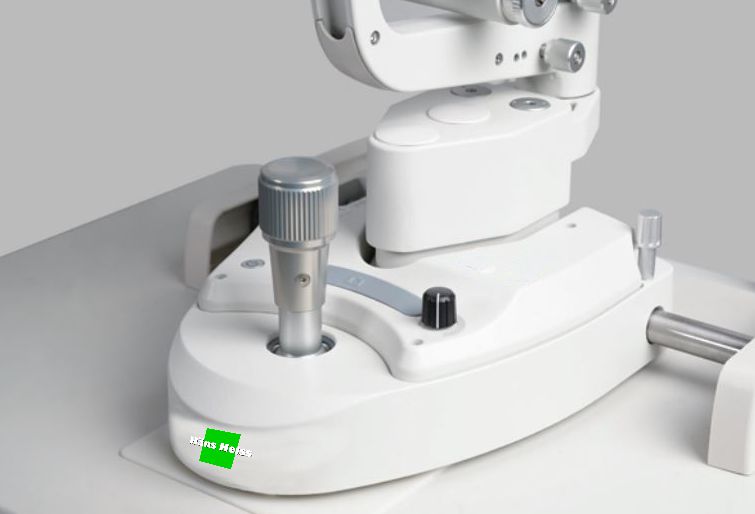

Easier Installation

Compact control panel with built-in power supply makes it much easier to install the slit lamp especially when installing the slit lamp on an ophthalmic unit. Users do not need to find place to install the chunky power box.

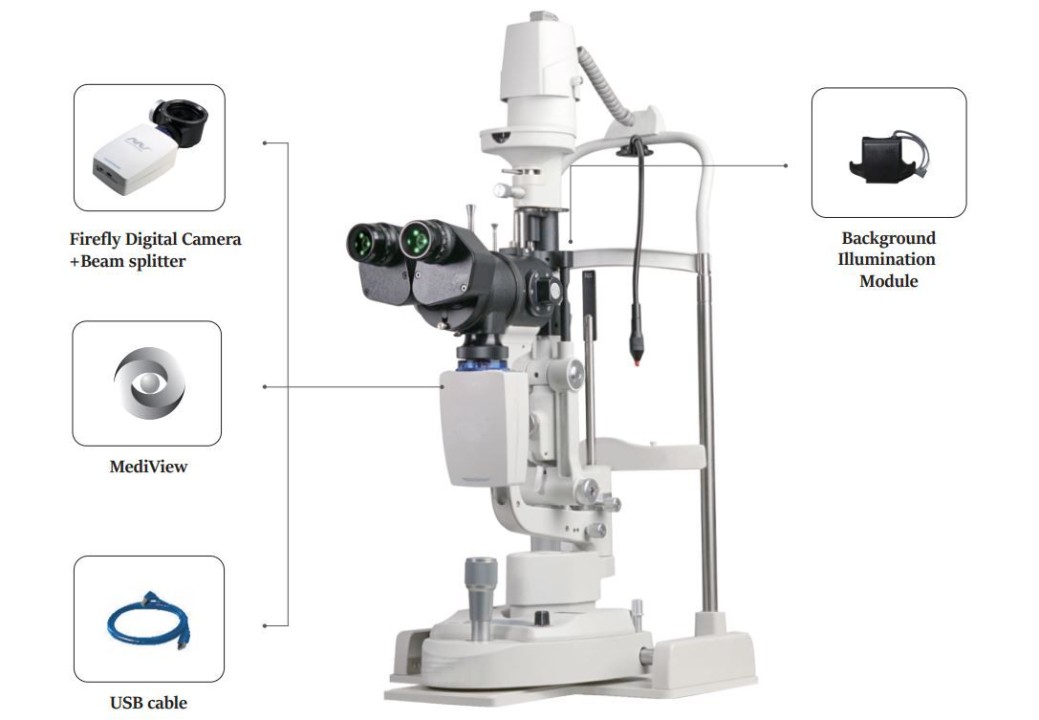

Imaging Solutioan

It's easy to upgrade your S360/S360S to a Digital Slit Lamp with Firefly Digital Module Kit (Firefly Digital Camera, Beam Splitter, MediView Software, USB Cable,Background Illumination Module). Optional

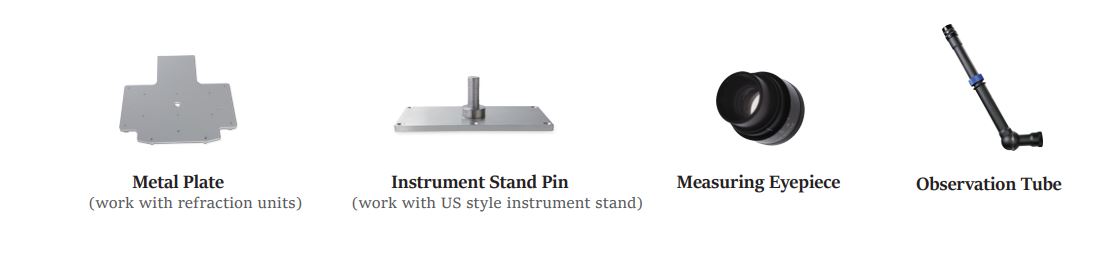

Optional Accessories

Specifications: SL7DL
Microscope SL7DL SL7DSL
Microscope Type Galilean Type
Magnification Change Revolving drum 5 steps Revolving drum 3 steps
Total Magnification 6.3X, 10X, 16X, 25X, 40X 10X, 16X, 25X
Optical Resolution 2700·N lp/mm (200 lp/mm)
Eyepieces 12.5X
Angle between Eyepieces 10°
Pupillary Adjustment 52mm-80mm
Diopter Adjustment -8D~+8D
Field of View Ø36.2mm, Ø22.3mm, Ø14mm, Ø8.9mm, Ø5.7mm Ø22.3mm, Ø14mm, Ø8.9mm

Slit Illumination
Slit Width 0~14mm continuous (slit becomes a circle at 14mm)
Slit Length 1~14mm continuous
Aperture Diameters Ø14mm, Ø10mm, Ø5mm, Ø3mm, Ø2mm, Ø1mm, Ø0.2mm
Slit Angle 0°~180°
Slit Inclination 5°, 10°, 15°, 20°
Filters Heat-absorbing filter, ND filter, Red-free filter, Cobalt blue filter, Built-in yellow filter
Lamp LED
Luminance ≥150klx

Power Supply
Input Voltage ~100V~240V
Input Frequency 50Hz/60Hz
Rated current 1.2A
Output Voltage LED 3V,Fixation 15V
Dimension 740mm x 450mm x 530mm(L/W/H)
Gross weight 23kg
Net weight 17kg
