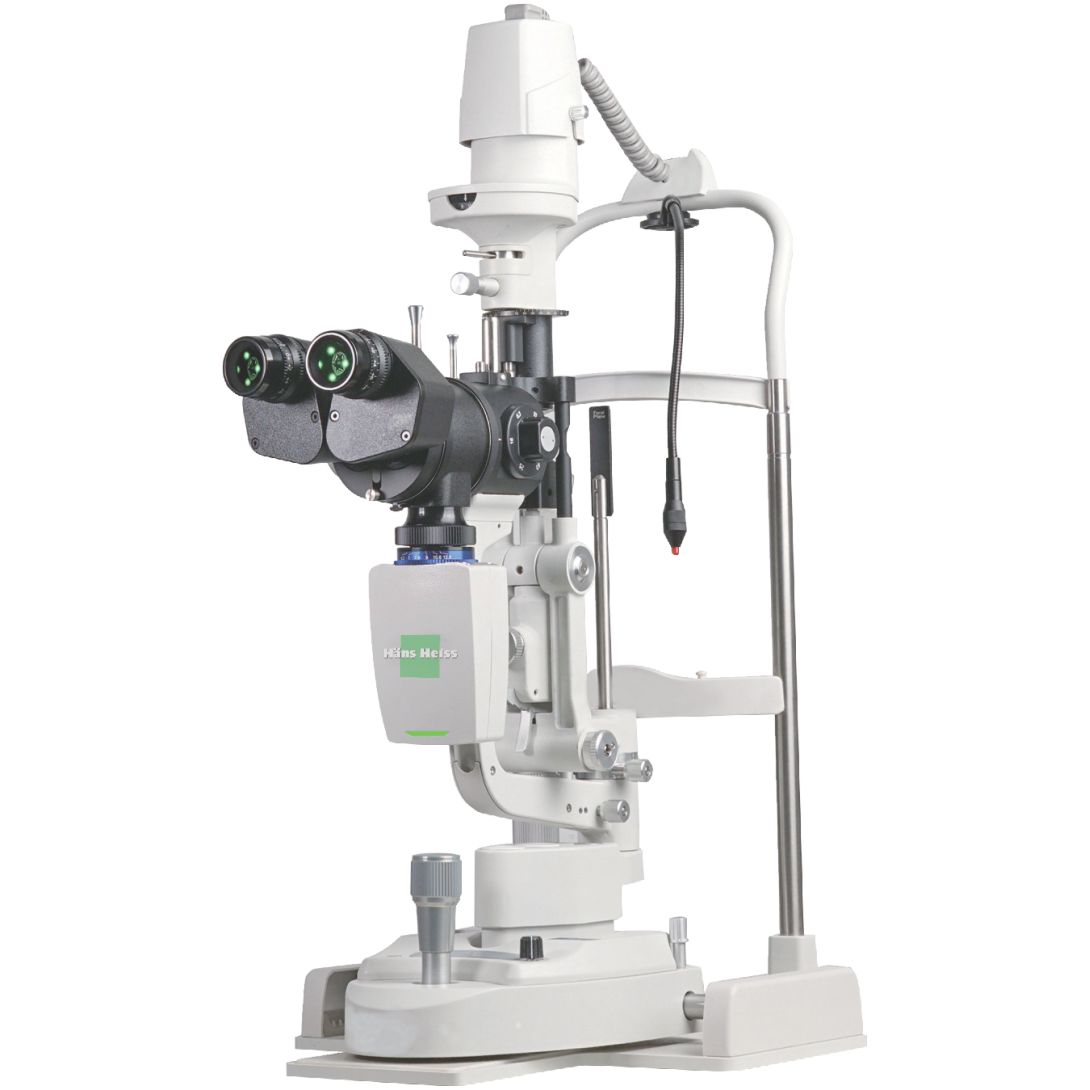

Monitorized Focusing Digital Slit Lamp Microscope SL9DL - Hans Heiss

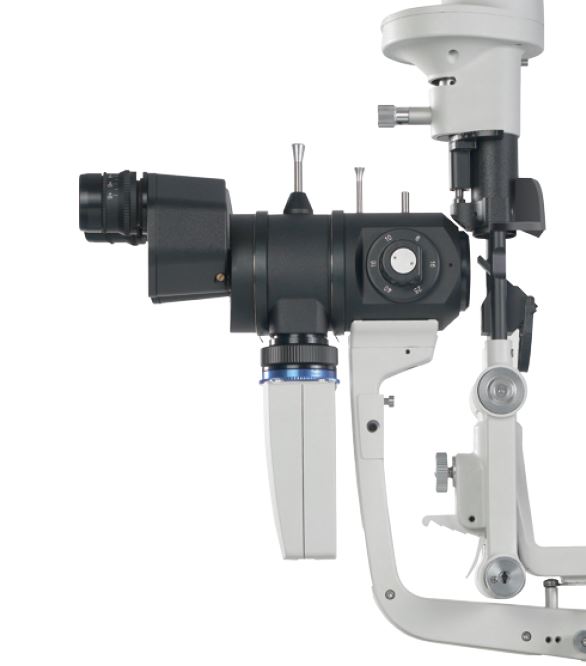

Monitorized Focusing Digital Slit Lamp Microscope SL9DL

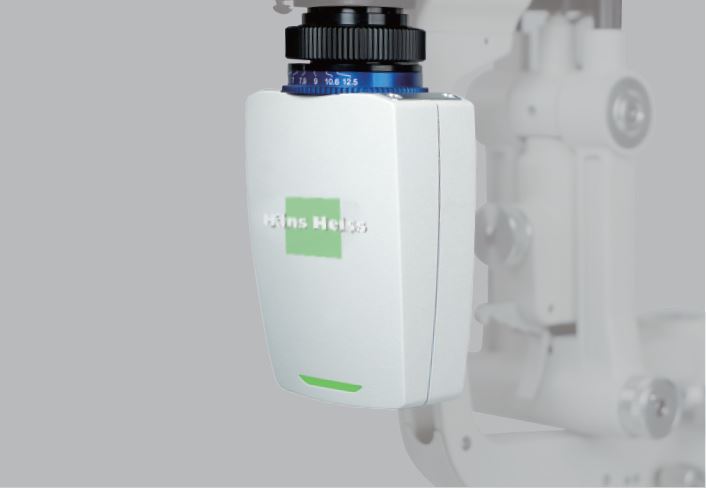

The design was inspired from the shape of firefly. The smart design largely saves space for clinicians compared other bulky camera systems.We have preset many camera parameters so the user does not need to adjust settings before using the device. The user can operate the machine immediately once the installation has been finished. The device has the following automatic functions for photo shooting and processing when equipped with our Mediview software:

  • Wide Dynamic Range
  • Meibomian Glands Examination
  • Auto Exposure
  • Auto Gain
  • Auto White Balance
  • Auto OD/OS Indicator

High sensitivity. The slit is still clear and sharp under weak light.

Wide dynamic range. Iris and sclera images are simultaneously clearly presented with more realistic and evenly distributed color

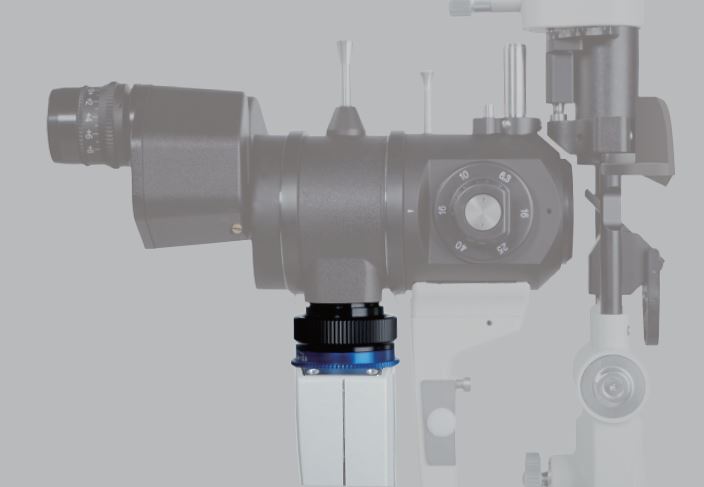

HD Optical System

Optical resolution is up to 2700·N lp/mm (200 lp/mm), providing more details of the pathologies.

Built-in Yellow Filter

Built-in yellow filter along with cobalt-blue filter increases the contrast of Sodium Fluorescein Staining image.Increase positive rate of early corneal epithelial staining.

The Meibomian glands examination

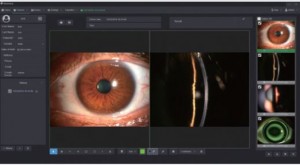

Software Features

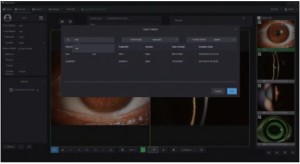

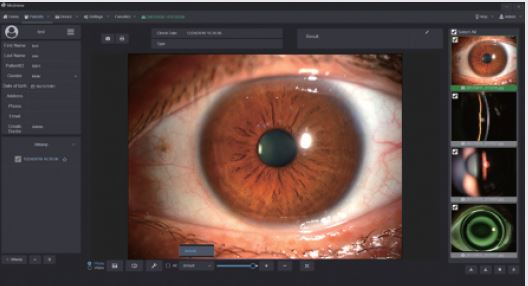

Convenient Patient Management

The patient management system enables clinicians to build and edit patient record,search information by inputting keywords.Clinicians can easily record symptoms and manage the data all the time. The software supports DICOM which makes the images captured by Firefly be easily integrated into hospital's medical system.

Functional Image Analysiss

Clinicians can measure the pathology area with our powerful software tools and change the contrast and brightness of the images. Clinicians can also compare several images at one time to analyze the symptoms and pathology.

Orthokeratology Lens Fitting Assistance

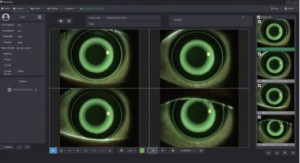

The optometrists can capture and record high resolution fluorescein images of lens fitting and real-time video without a recording time limit. By comparing the different lens fitting effects, the optometrist can show and educate patients which lens is most suitable for them.

Customized Auto Exposure Value Setting

Clinicians can customize auto exposure values according to the image demand and save as templates for future capturing purpose. Also, the printing report can be customized according to clinician's needs.

The Most Effective Tools for Dry Eye

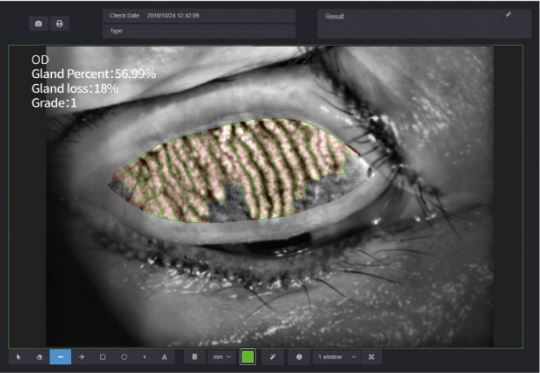

Meibomian Gland Observation

Built-in infrared light source allows the doctor to accurately judge the absence of the meibomian glands.

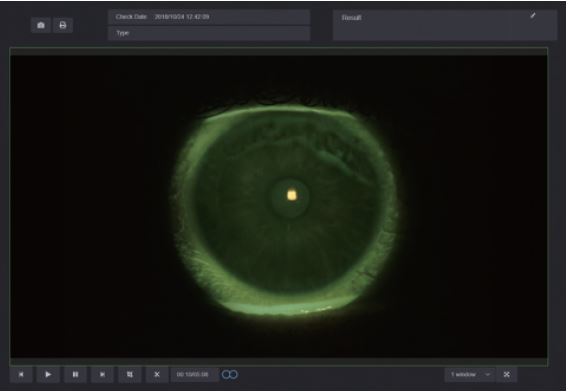

Tear Film Breakup Time

High-performance digital module, doctors can get the tear film breakup time and judge the stability of it by high-resolution video recording.

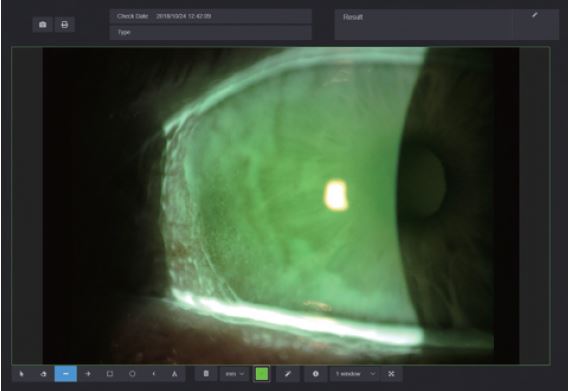

Red Eyes Analysis and Keratopathy Exposure

With a built-in yellow filter, doctors can accurately analyze eye surface damage and inflammation images.

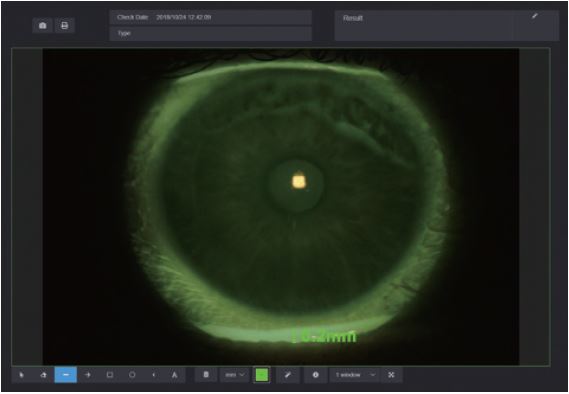

Tear Meniscus Height

Doctors can obtain tear meniscus height by using measuring function in the Mediview software, and effectively evaluate tear meniscus height.

Specifications: SL9DL


Microscope Type Galilean Type

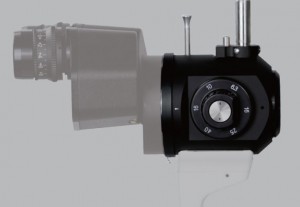

Magnification Change Revolving Drum 5 steps
Total Magnification 6.3X, 10X, 16X, 25X, 40X
Optical Resolution 2700·N lp/mm (200 lp/mm)

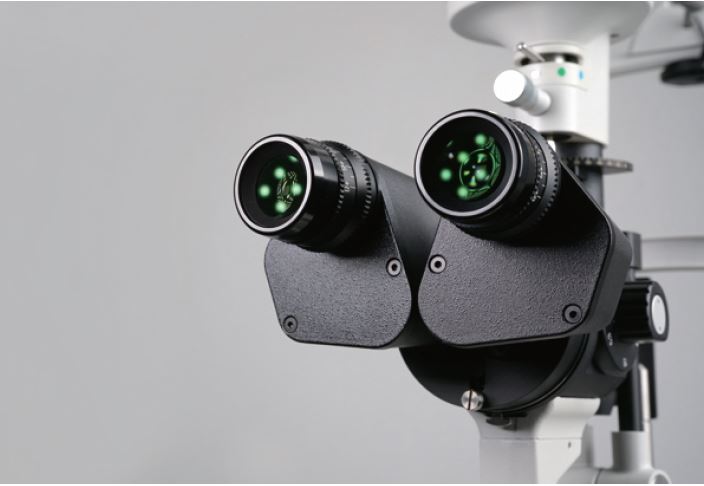

Eyepieces 12.5X
Angle between Eyepieces 10°
Pupillary Adjustment 52mm-80mm
Diopter Adjustment -8D~+8D
Field of View Ø36.2mm, Ø22.3mm, Ø14mm, Ø8.9mm, Ø5.7mm
Slit Illumination

Slit Width

0~14mm continuous (slit becomes a circle at 14mm)
Slit Length 1~14mm continuous
Aperture Diameters Ø14mm, Ø10mm, Ø5mm, Ø3mm, Ø2mm, Ø1mm, Ø0.2mm
Slit Angle 0°~180°
Slit Inclination 5°, 10°, 15°, 20°
Filters Heat-absorbing filter, ND filter, Red-free filter, Cobalt Blue filter,Yellow filter built-in
Lamp LED
Luminance ≥150klx

Power Supply
Input Voltage ~100V-240V
Input Frequency 50Hz/60Hz
Rated current 1.2A
Output Voltage LED 3V, Fixation 15V


Dimension 740mm x 450mm x 530mm(L/W/H)
Gross weight 23kg
Net weight 17kg

System Specifications

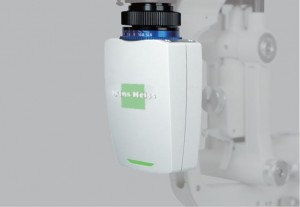

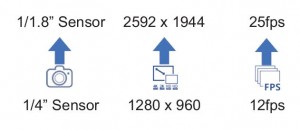

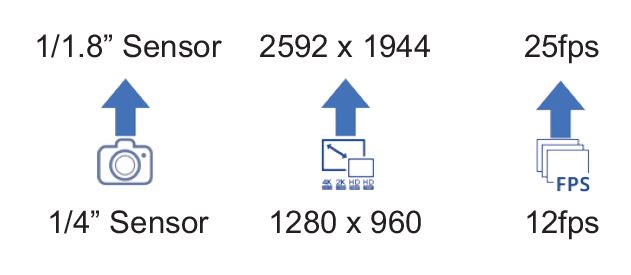

Image Sensor 5.0M Pixels
Photo Resolution 2592 x 1944
Format JPEG
Video Resolution 2592 x 1944
Frame of Video 25fps
Video Formats MP4 H.264
Exposure Mode Automatic exposure
Transmission Interface USB

Computer Specifications

PC configuration i5-10500T 8G memory 25GB SSD+1TB storage
Display 1920×1080 23.8inch
PC system Windows 10

  • Firefily digital Slit Lamp SL9DL eye examination video
