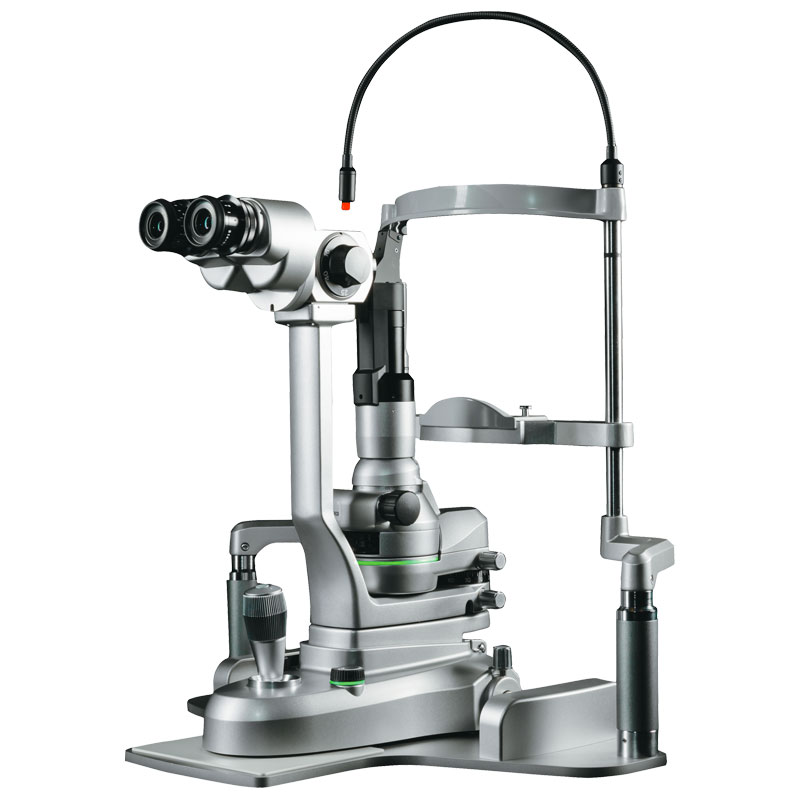

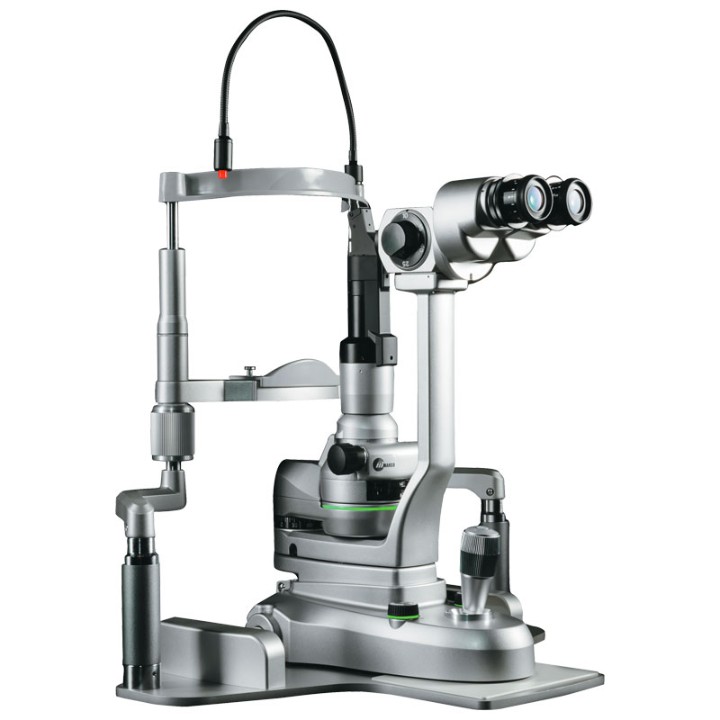

Ultra M4 Slit Lamp

Ultra M4 Slit Lamp

Like our M5 slit lamp model, our Ultra M4 slit lamp uses parallel (galilean) type binocular stereomicroscope with background illumination, but has compact/horizontal light source configuration. The M4 conventional slit lamp also features blue, red-free, blue LED correction light filters and 5 position rotating drum and 16x wide-field, high-eyepoint eye pieces and includes 5 power magnifications (6.3x, 10x, 16x, 25x, 40x).

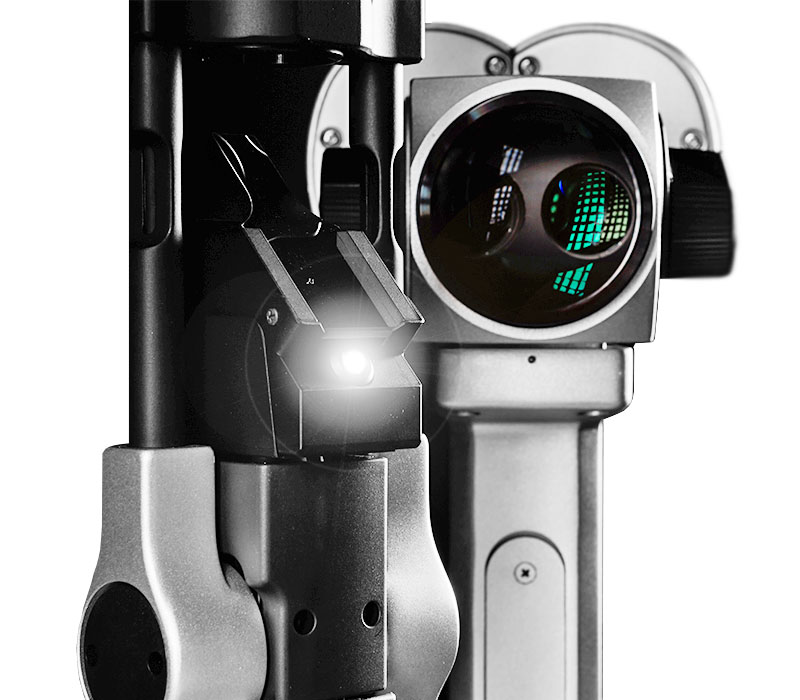

LED Illumination

The new LED illumination, with a color temperature of 3500 K, allows greater visibility and clarity of anatomy and tissue structure, with brighter and sharper light. A single element, high-luminance LED provides a beautifully consistent and uniform light compared to multiple element LEDs.

LED Illumination

power Optics

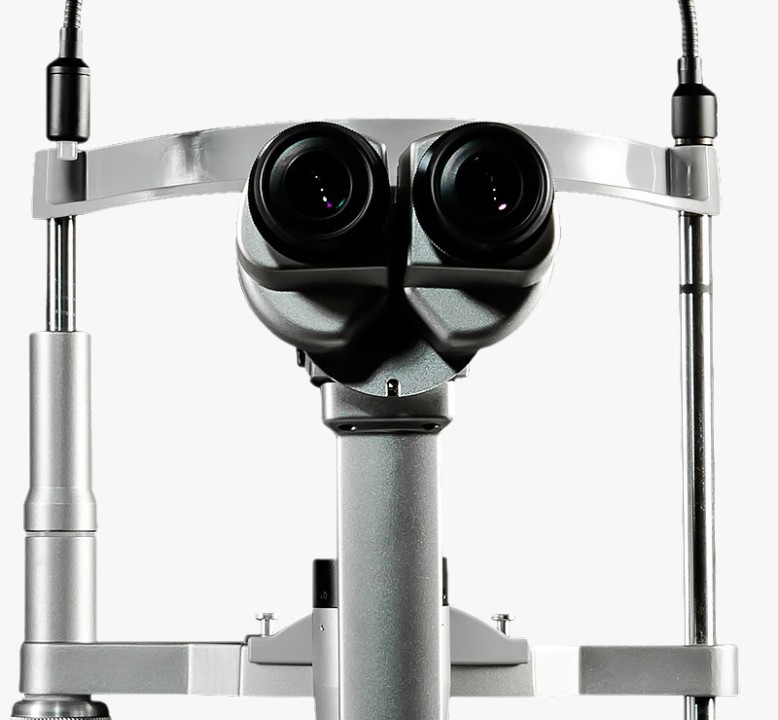

5 Power Optics

The M4 uses parallel (Galilean) type binocular stereomicroscope with background illumination, but has compact/horizontal light source configuration. Featuring a 5 position rotating drum, 16x wide-field, high-eyepoint eye pieces, and includes 5 Power Magnifications (6.3x, 10x, 16x, 25x, 40x).

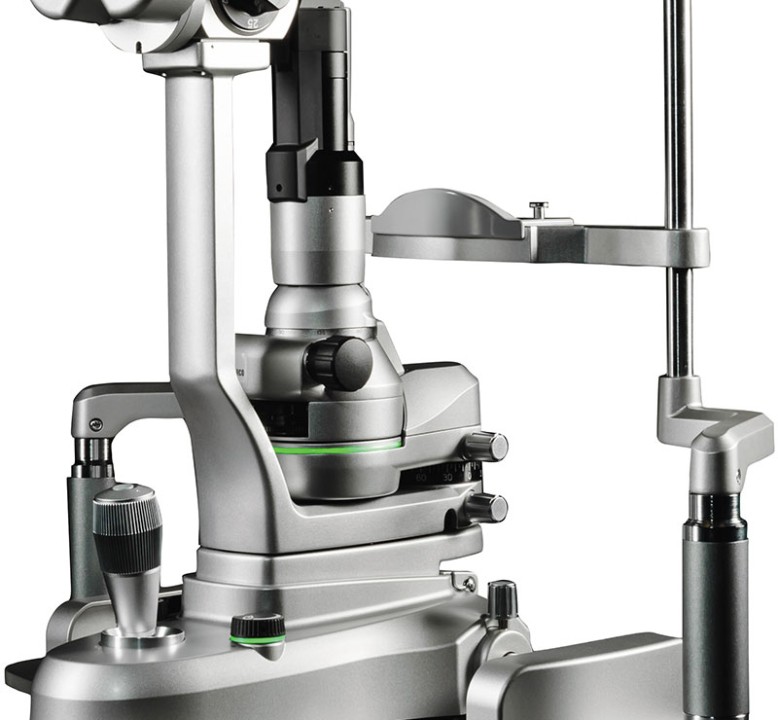

Cable Free Design

Ultra M Slit Lamps are neat and compact with no exposed wiring, giving them a noticeably sleek and stylish appearance. Contemporary and durable finishes have been selected both for lasting application and patient appeal.

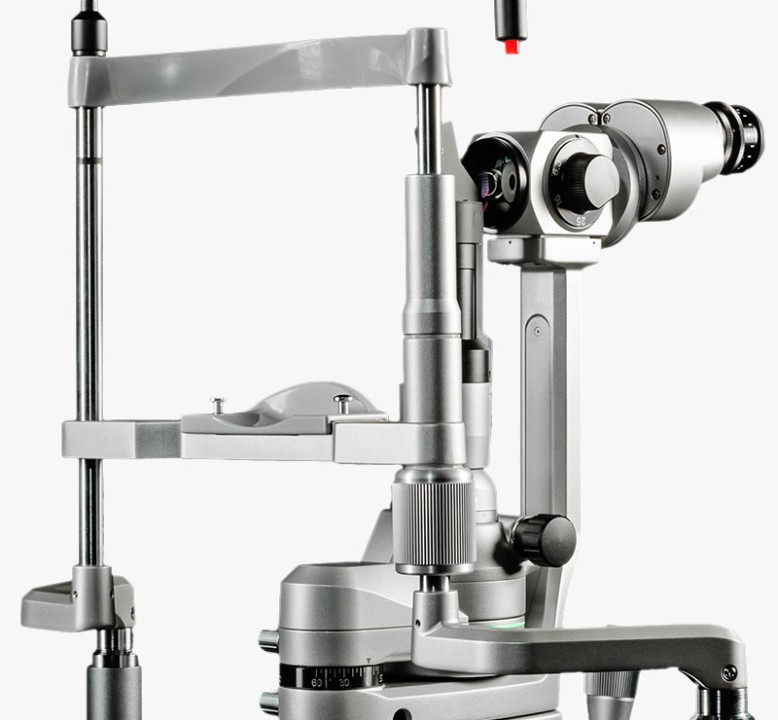

Self Contained Headrest

A self-contained headrest & baseplate assembly with a comfortable expanded chin rest design for easier patient access.

Specifications: Ultra-M4

Ultra M4 Slit Lamp Specs

Technical Details

Type Binocular Stereomicroscope Parallel (Galilean)
Light Source LED
Light Source Configuration Compact/horizontal
Background Illumination Yes
Light Filters Blue, Red-free, Blue LED Correction
Slit Width 0-14mm continuous variable
Aperture Diaphragm Diameter (Ø) 14, 8, 5, 3, 0.3mm
Total # Power Magnifications 5 (6.3x, 10x, 16x, 25x, 40x)
Magnification Change 5 Position Rotating Drum
Eye Pieces 16x wide-field, high-eyepoint
Real Field of View (Ø) 35.9mm, 23.3mm, 14mm, 8.8mm, 5.5mm
Interpupillary Adjustment 52-82mm
Diopter Adjustment Range (+/-) 7 Diopters
Horizontal Coarse Movement 105mm
Horizontal Fine Movement 15mm
Vertical Movement 30mm
Fixation Light Source Red LED on Flexible Arm
Large Patient Chin Rest Yes
Chinrest Elevation 95mm

Power

Power Supply AC100V-240V (+/-10%)
Power Consumption DC5V 2A

Weight

Mass (Approximate) 11.5Kg
